Thermador
Warming Drawer

Model # WDC30E01 Official Thermador warming drawer

Here are the diagrams and repair parts for Official Thermador WDC30E01 warming drawer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 12 parts  |
Sealing 640293
#209

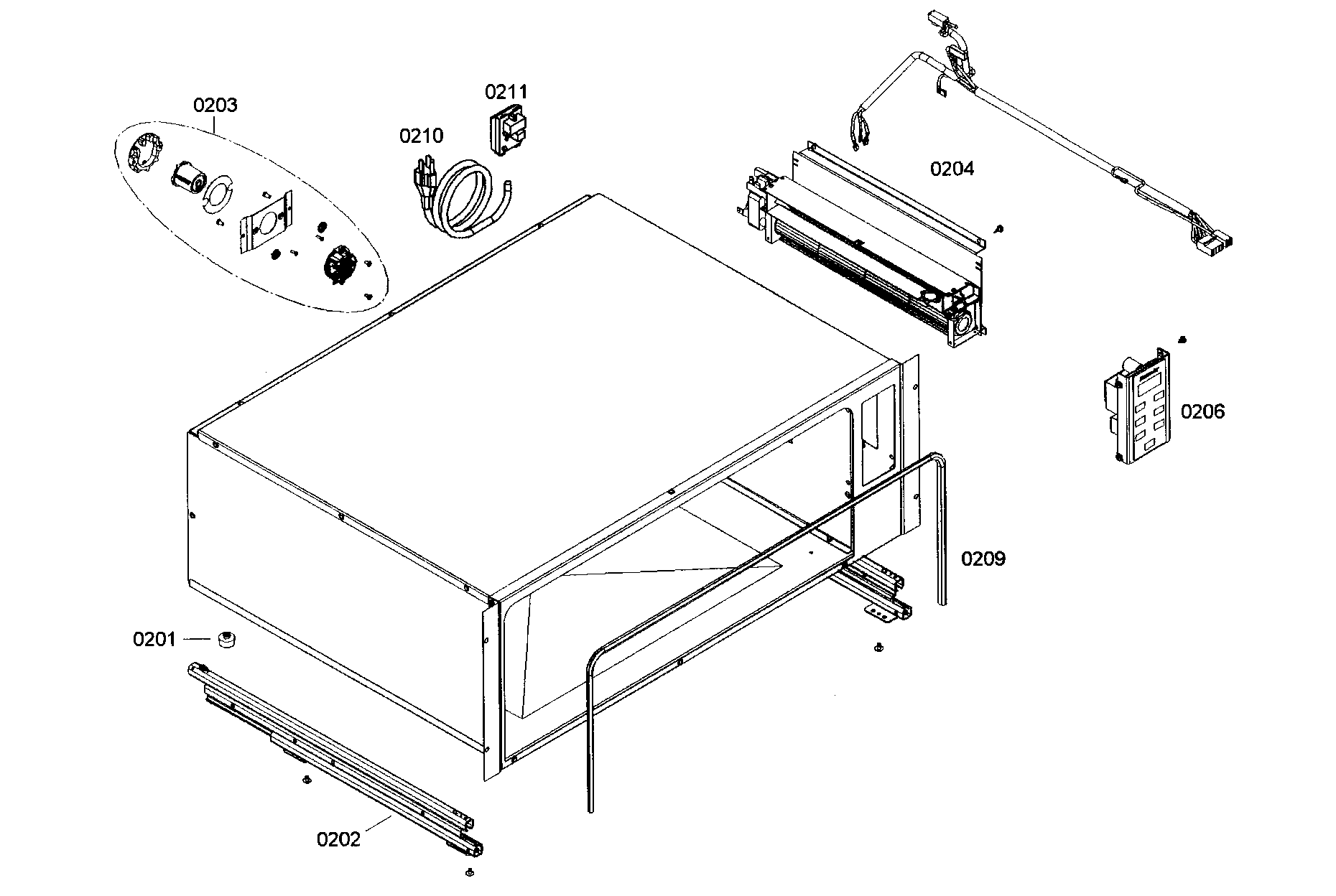

Cabinet parts diagram

Sealing

Part #640293

Replaced by #00640293

?
Manufacturer substitution
This part replaces 640293. Substitute parts can look different from the original.
$26.29
In Stock
Ac Cord 604496
#210

Cabinet parts diagram

Ac cord

Part #604496

The manufacturer no longer makes this part, and there's no substitute part

Rail 449696
#202

Cabinet parts diagram

Rail

Part #449696

The manufacturer no longer makes this part, and there's no substitute part

Template 540474
#NI

Cabinet parts diagram

Template

Part #540474

The manufacturer no longer makes this part, and there's no substitute part

Coupling 604474
#203

Cabinet parts diagram

Coupling

Part #604474

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual 540215
#NI

Cabinet parts diagram

Owner's manual

Part #540215

The manufacturer no longer makes this part, and there's no substitute part

Socket 640258
#211

Cabinet parts diagram

Socket

Part #640258

The manufacturer no longer makes this part, and there's no substitute part

Terminal 604572
#105

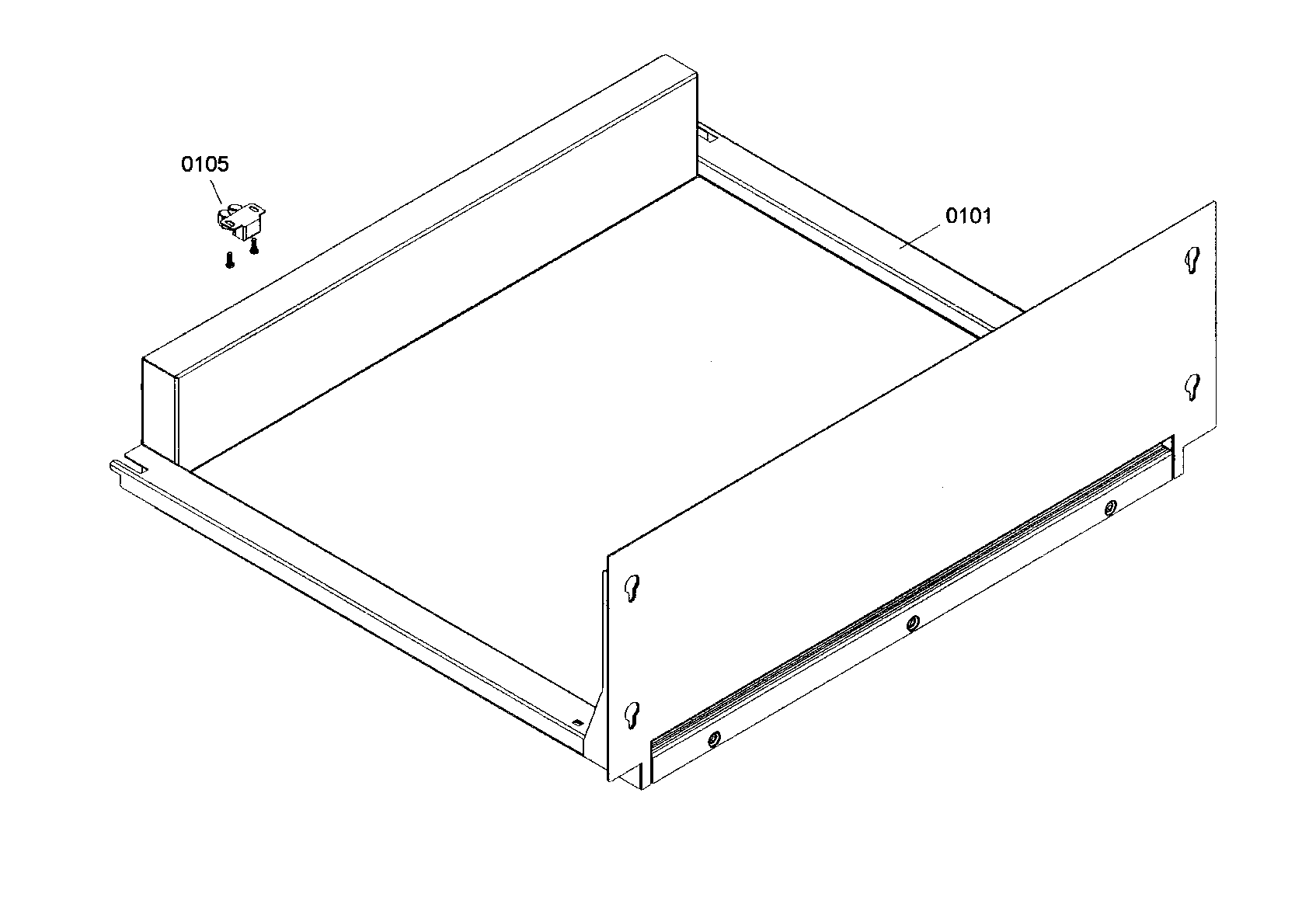

Drawer diagram

Terminal

Part #604572

The manufacturer no longer makes this part, and there's no substitute part

Drawer Heater 476844
#101

Drawer diagram

Drawer heater

Part #476844

The manufacturer no longer makes this part, and there's no substitute part

Power Module 643546
#206

Cabinet parts diagram

Power module

Part #643546

The manufacturer no longer makes this part, and there's no substitute part
