Amana
Countertop Microwave

Model # 1285.A Official Amana microwave

Here are the diagrams and repair parts for Official Amana 1285A microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 118 parts  |
Lamp Access Door M7D839
#32A

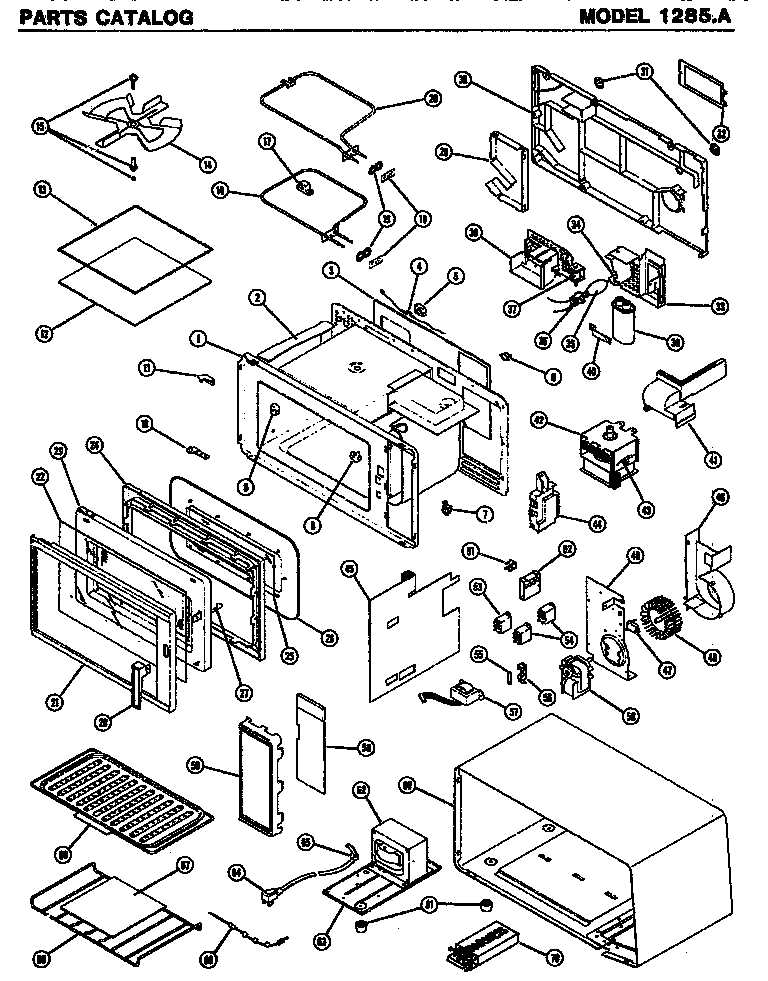

Microwave parts diagram

Lamp access door

Part #M7D839

The manufacturer no longer makes this part, and there's no substitute part

Flat Washer - Capacitor Grounding M1D56
#64C

Microwave parts diagram

Flat washer - capacitor grounding

Part #M1D56

The manufacturer no longer makes this part, and there's no substitute part

Airflow Switch M14D286
#47A

Microwave parts diagram

Airflow switch

Part #M14D286

The manufacturer no longer makes this part, and there's no substitute part

Foot (4 Per Package) M2D752
#61A

Microwave parts diagram

Foot (4 per package)

Part #M2D752

The manufacturer no longer makes this part, and there's no substitute part

Cavity Assembly (includes Ref. Nos. 2, 3, 6, 8, 9, 13, 17, And 45) M77D150
#1

Microwave parts diagram

Cavity assembly (includes ref. nos. 2, 3, 6, 8, 9, 13, 17, and 45)

Part #M77D150

The manufacturer no longer makes this part, and there's no substitute part

Screw, Bezel Mounting M1D804
#24B

Microwave parts diagram

Screw, bezel mounting

Part #M1D804

The manufacturer no longer makes this part, and there's no substitute part

Varistor (low Voltage Transformer) M3D69
#57C

Microwave parts diagram

Varistor (low voltage transformer)

Part #M3D69

The manufacturer no longer makes this part, and there's no substitute part

Stirrer Insert Assembly M2D750
#15

Microwave parts diagram

Stirrer insert assembly

Part #M2D750

The manufacturer no longer makes this part, and there's no substitute part

Power Tesr Kit (includes Thermomether) M95D5
#70I

Microwave parts diagram

Power tesr kit (includes thermomether)

Part #M95D5

The manufacturer no longer makes this part, and there's no substitute part

Nut, Hinge Mtg. M1D348
#34B

Microwave parts diagram

Nut, hinge mtg.

Part #M1D348

The manufacturer no longer makes this part, and there's no substitute part
