Craftsman
Gas Walk-Behind Mower

Model # 917370715 Official Craftsman lawn mower

Here are the diagrams and repair parts for Official Craftsman 917370715 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
  View engine

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 246 parts  |
Lock Nut 83923
#33

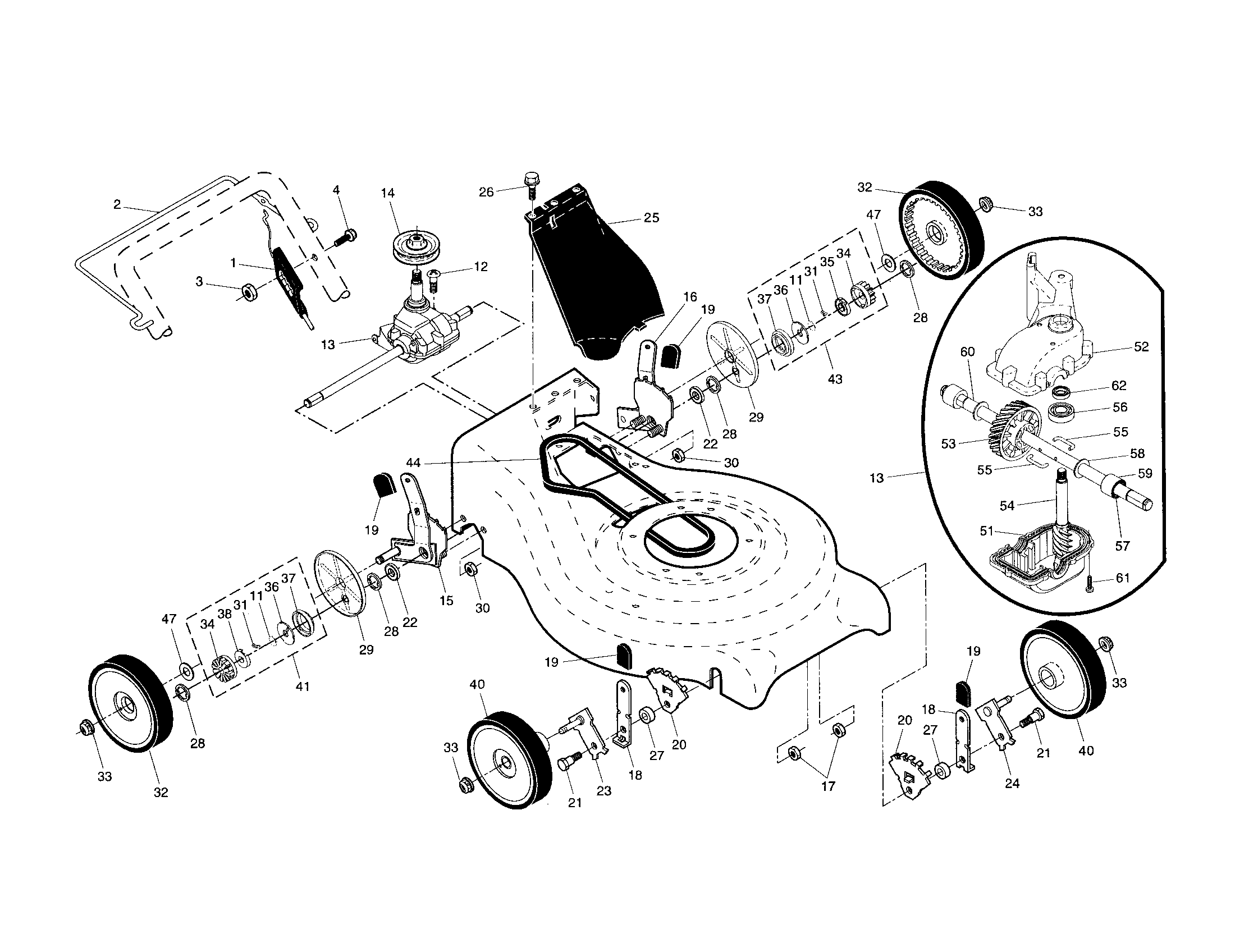

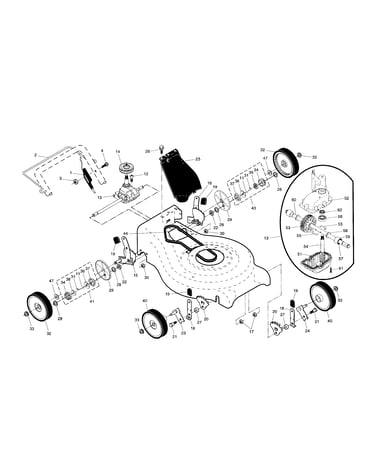

Drive control/gear shaft/wheels diagram

Lock nut

Part #83923

Replaced by #532409149

?
Manufacturer substitution
This part replaces 83923. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Hex Flange Lock Nut 145212
#52

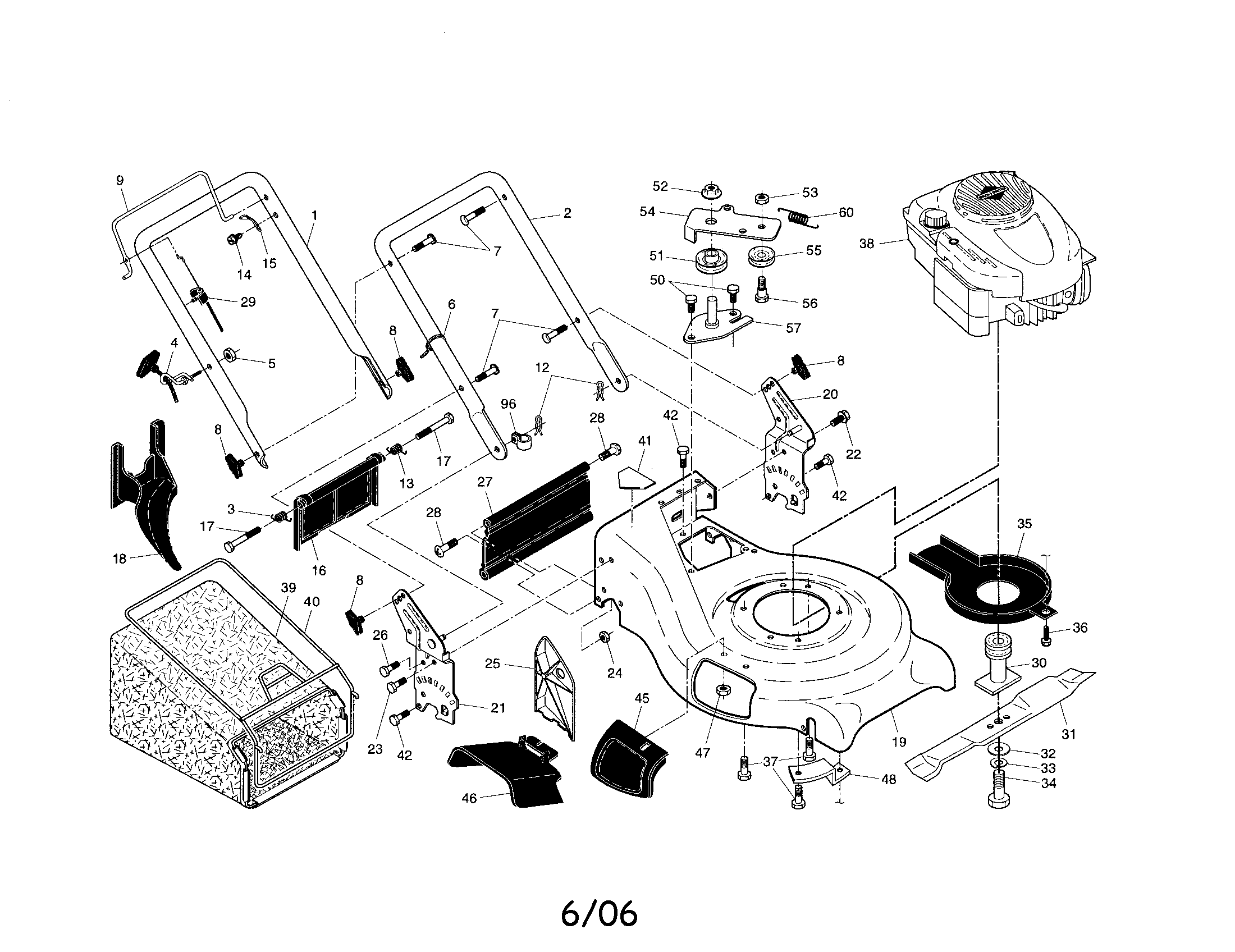

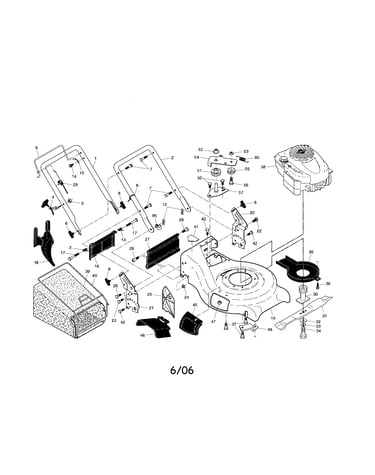

Engine/housing/handle diagram

Hex flange lock nut

Part #145212

Replaced by #532409149

?
Manufacturer substitution
This part replaces 145212. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Hndl.knob.bl 189713X428
#8

Engine/housing/handle diagram

Hndl.knob.bl

Part #189713X428

Replaced by #532185577

?
Manufacturer substitution
This part replaces 189713X428. Substitute parts can look different from the original.
BEST SELLER
$10.64 |
16% OFF Phone Price : $12.64
In Stock
Lawn Mower Wheel Dust Cover 189403
#29

Drive control/gear shaft/wheels diagram

Lawn mower wheel dust cover

Part #189403

Replaced by #581840401

?
Manufacturer substitution
This part replaces 189403. Substitute parts can look different from the original.
BEST SELLER
$8.22 |
11% OFF Phone Price : $9.22
In Stock
Handle Bolt 191574
#7

Engine/housing/handle diagram

Handle bolt

Part #191574

Replaced by #532191574

?
Manufacturer substitution
This part replaces 191574. Substitute parts can look different from the original.
BEST SELLER
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Lock Nut 73800500
#24

Engine/housing/handle diagram

Lock nut

Part #73800500

Replaced by #596040501

?
Manufacturer substitution
This part replaces 73800500. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.11
In Stock
Return Spring 182226
#60

Engine/housing/handle diagram

Return spring

Part #182226

Replaced by #532406558

?
Manufacturer substitution
This part replaces 182226. Substitute parts can look different from the original.
BEST SELLER
$9.31 |
10% OFF Phone Price : $10.31
In Stock
Washer 67725
#47

Drive control/gear shaft/wheels diagram

Washer

Part #67725

Replaced by #532067725

?
Manufacturer substitution
This part replaces 67725. Substitute parts can look different from the original.
BEST SELLER
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Lawn Mower 21-in Deck 3-in-1 Blade (replaces 532189028, 5321890-28) 189028
#31

Engine/housing/handle diagram

Lawn mower 21-in deck 3-in-1 blade (replaces 532189028, 5321890-28)

Part #189028

Replaced by #532189028

?
Manufacturer substitution
This part replaces 189028. Substitute parts can look different from the original.

Get free shipping with Automatic Reorder

$24.60
In Stock
Lawn & Garden Equipment Washer (replaces 532851074, 5328510-74) 851074
#32

Engine/housing/handle diagram

Lawn & garden equipment washer (replaces 532851074, 5328510-74)

Part #851074

Replaced by #532851074

?
Manufacturer substitution
This part replaces 851074. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
