Model # 58714112401 Official Kenmore dishwasher

Here are the diagrams and repair parts for Official Kenmore 58714112401 dishwasher, as well as links to manuals and error code tables, if available.

By Schematic
By Part

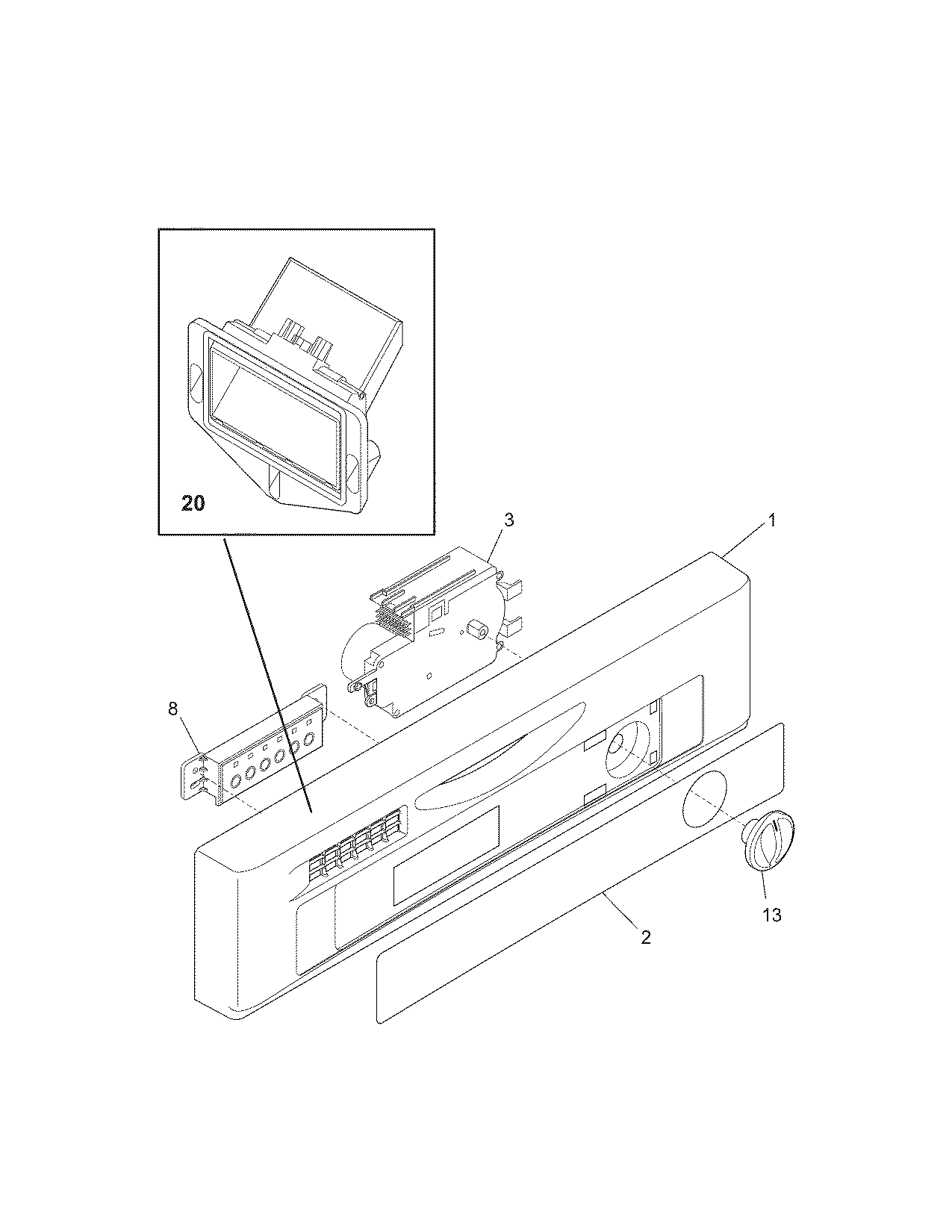

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for58714112401 Dishwasher

  • Gasket 154561001
    #3

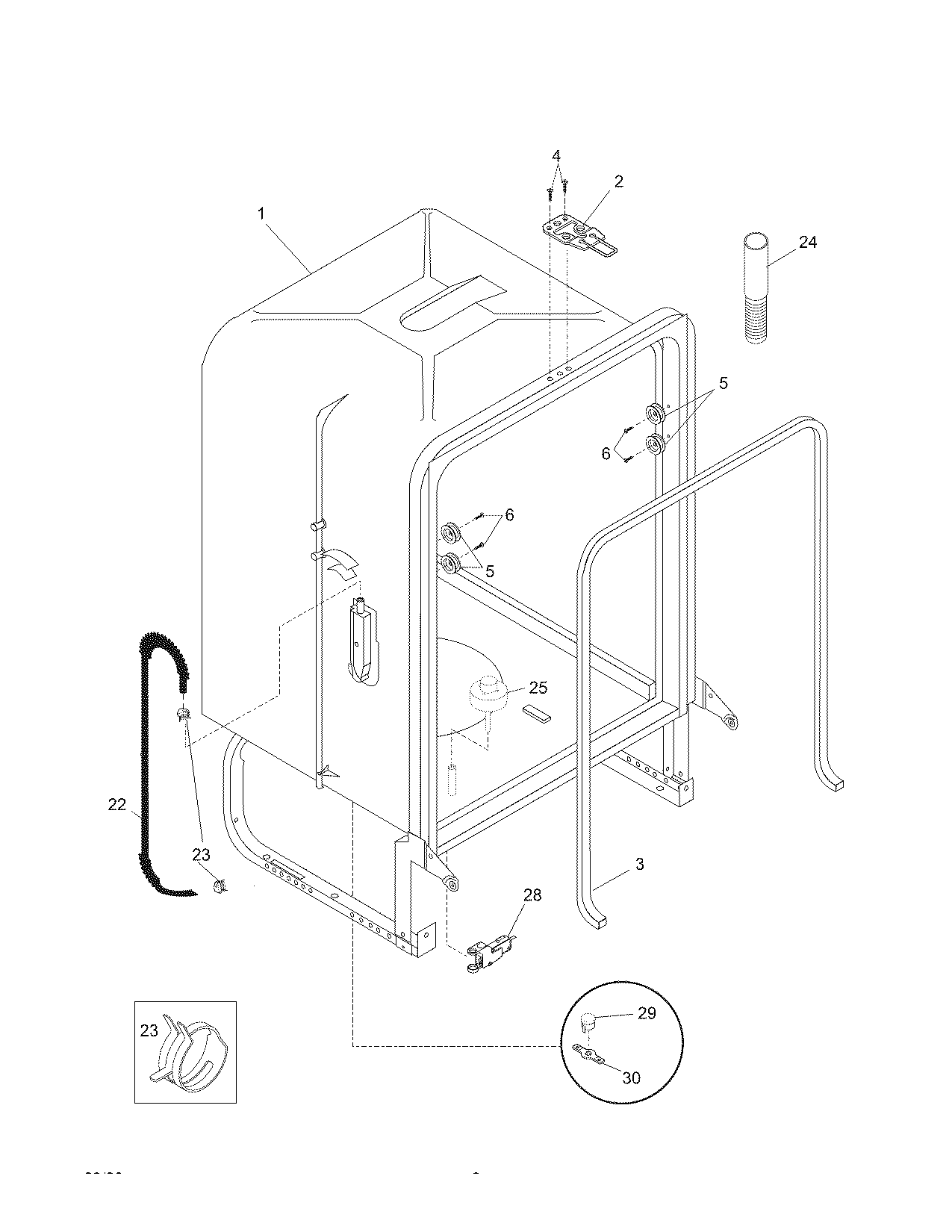

    Tub diagram

    Gasket

    Part #154561001

    Replaced by #154827601

    ?
    Manufacturer substitution
    This part replaces 154561001. Substitute parts can look different from the original.
    BEST SELLER
    $26.94
    18% OFF Phone Price : $32.94
    In Stock
  • Dishwasher Spray Arm 154568001
    #24

    Motor & pump diagram

    Dishwasher spray arm

    Part #154568001

    Replaced by #5304517203

    ?
    Manufacturer substitution
    This part replaces 154568001. Substitute parts can look different from the original.
    BEST SELLER
    $34.33
    15% OFF Phone Price : $40.33
    In Stock
  • Gasket 154588201
    #49

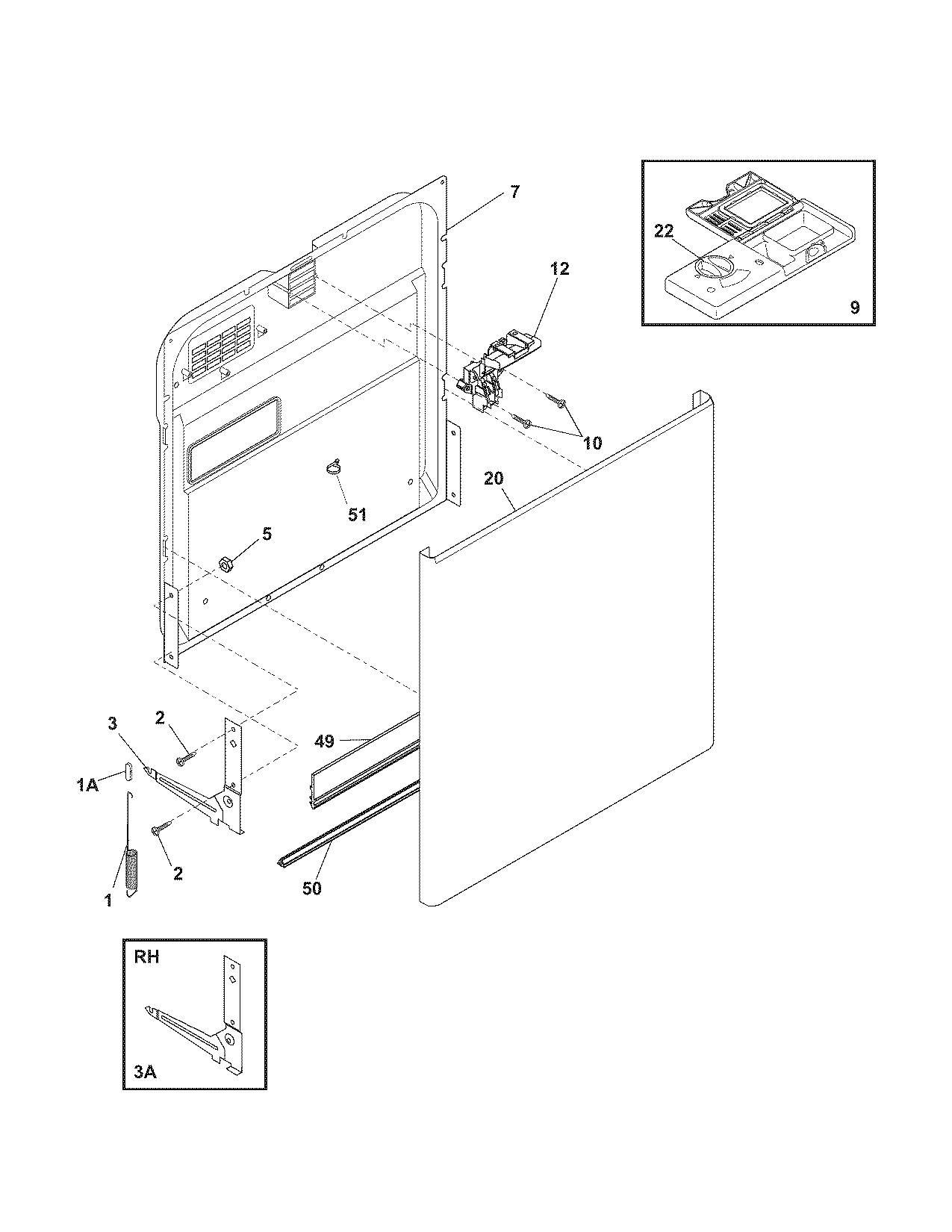

    Door diagram

    Gasket

    Part #154588201

    Replaced by #809006501

    ?
    Manufacturer substitution
    This part replaces 154588201. Substitute parts can look different from the original.
    BEST SELLER
    $25.01
    19% OFF Phone Price : $31.01
    In Stock
  • Pump&motor A 154648101
    #70

    Motor & pump diagram

    Pump&motor a

    Part #154648101

    Replaced by #154844301

    ?
    Manufacturer substitution
    This part replaces 154648101. Substitute parts can look different from the original.
    BEST SELLER
    $183.41
    6% OFF Phone Price : $195.41
    In Stock
  • Dishwasher Lower Spray Arm Support 154294101
    #62

    Motor & pump diagram

    Dishwasher lower spray arm support

    Part #154294101

    Replaced by #5304518968

    ?
    Manufacturer substitution
    This part replaces 154294101. Substitute parts can look different from the original.
    BEST SELLER
    $14.28
    12% OFF Phone Price : $16.28
    In Stock
  • Dishwasher Water Inlet Valve 154637401
    #3

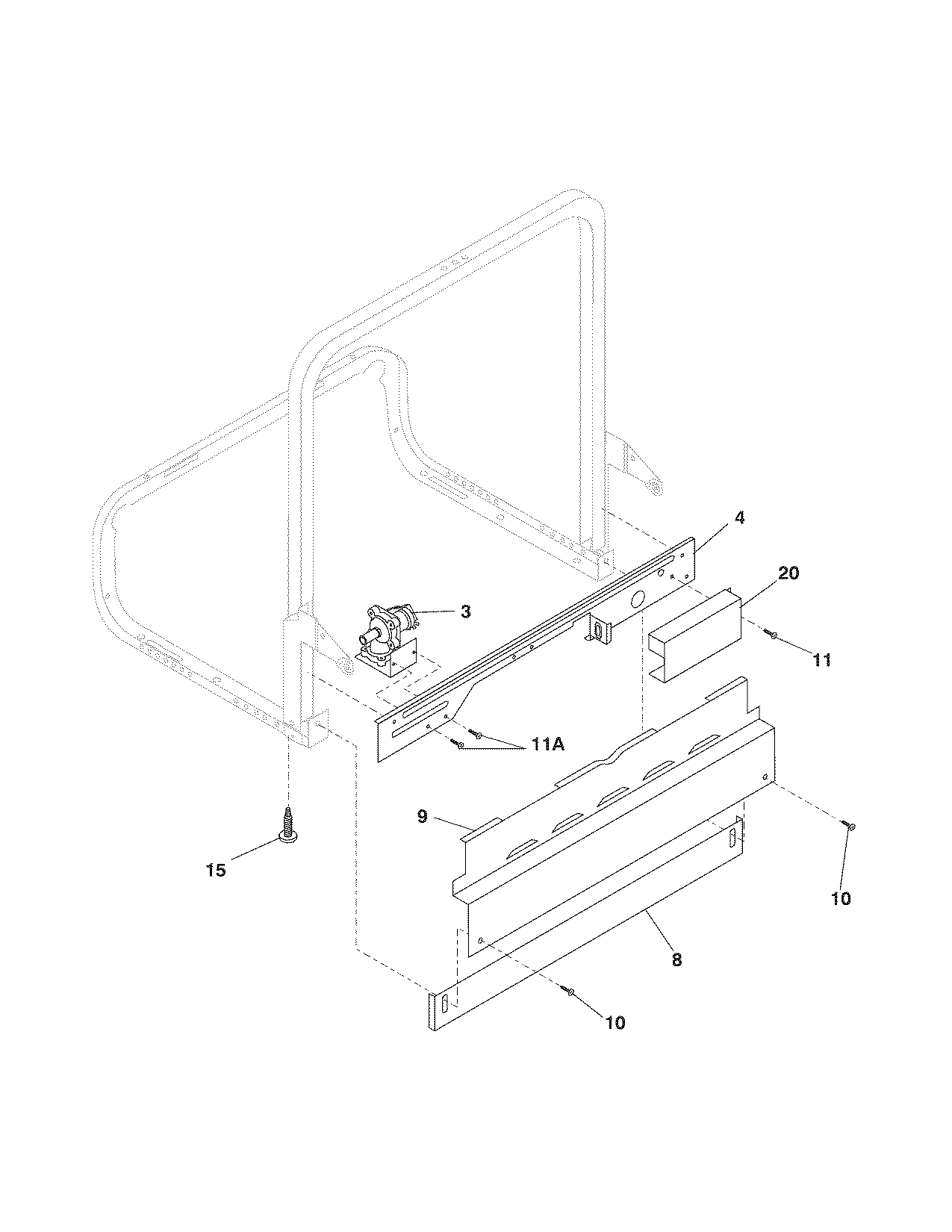

    Frame diagram

    Dishwasher water inlet valve

    Part #154637401

    BEST SELLER
    $45.62
    12% OFF Phone Price : $51.62
    In Stock
  • Dishwasher Dishrack Roller, Lower 154174502
    #7

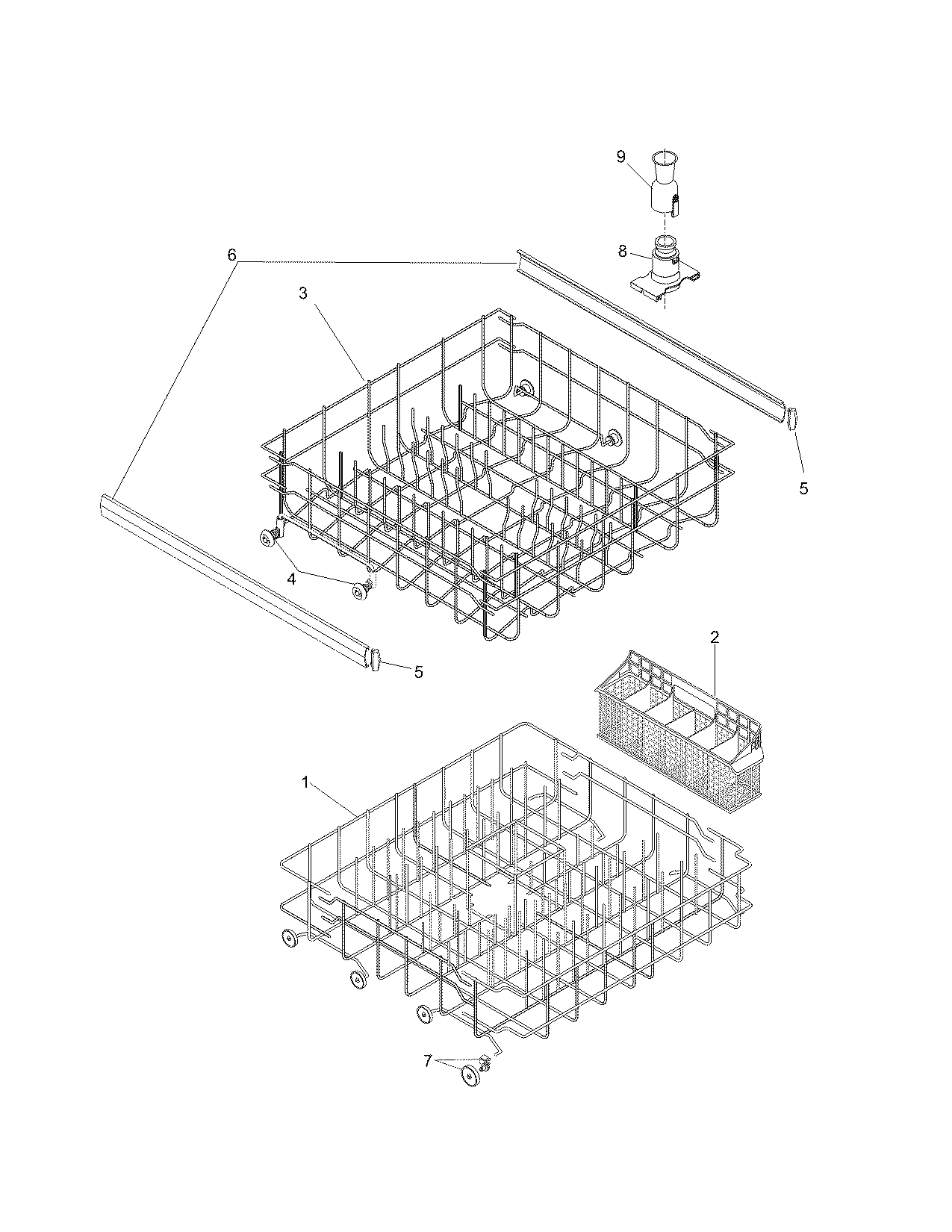

    Racks diagram

    Dishwasher dishrack roller, lower

    Part #154174502

    Replaced by #5304532229

    ?
    Manufacturer substitution
    This part replaces 154174502. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    $4.69
    18% OFF Phone Price : $5.69
    In Stock
  • Dishwasher Door Spring 154430501
    #1

    Door diagram

    Dishwasher door spring

    Part #154430501

    BEST SELLER
    $29.37
    17% OFF Phone Price : $35.37
    In Stock
  • Base 154252201
    #63

    Motor & pump diagram

    Base

    Part #154252201

    Replaced by #5304506533

    ?
    Manufacturer substitution
    This part replaces 154252201. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    $19.78
    9% OFF Phone Price : $21.78
    In Stock
  • Dishwasher Drain Pump 154474101
    #60

    Motor & pump diagram

    Dishwasher drain pump

    Part #154474101

    Replaced by #A00126501

    ?
    Manufacturer substitution
    This part replaces 154474101. Substitute parts can look different from the original.
    BEST SELLER
    $70.43
    8% OFF Phone Price : $76.43
    In Stock
