Model # JGRP17BEW5BB Official GE gas wall oven
Here are the diagrams and repair parts for Official GE JGRP17BEW5BB gas wall oven, as well as links to manuals and error code tables, if available.
Owner’s manual
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for
JGRP17BEW5BB Wall Ovens
#253

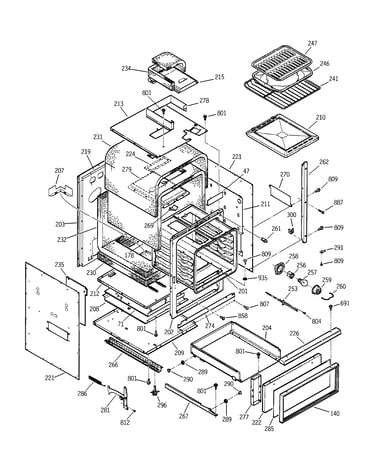

Body parts diagram
Sensor
Part #WB21X5347
Replaced by #WB21X5301
?
Manufacturer substitution
This part replaces WB21X5347. Substitute parts can look different from the original.
$166.75 |
7% OFF Phone Price : $178.75
In Stock
#32

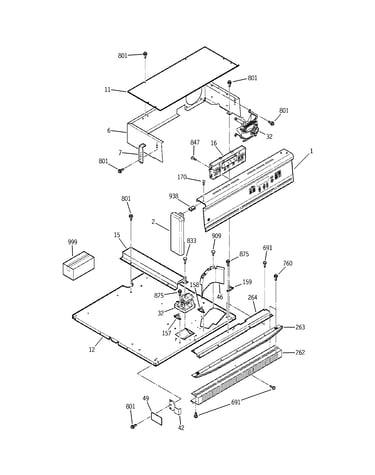

Control panel diagram
Wall oven cooling fan assembly
Part #WB26K5061
$135.99 |
8% OFF Phone Price : $147.99
In Stock
#241
Body parts diagram
Oven rack
Part #WB48X0218
Replaced by #WB48T10094
?
Manufacturer substitution
This part replaces WB48X0218. Substitute parts can look different from the original.
$33.52 |
15% OFF Phone Price : $39.52
In Stock
#151

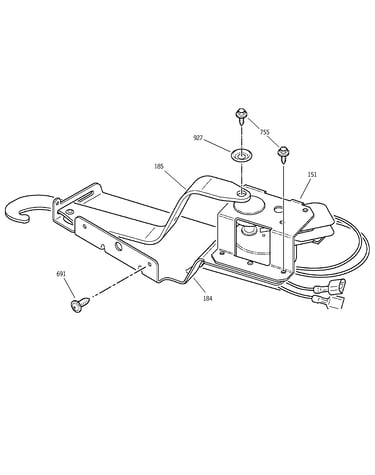

Door lock diagram
Lock motor
Part #WB26K5030
Replaced by #WB49T10020
?
Manufacturer substitution
This part replaces WB26K5030. Substitute parts can look different from the original.
$130.30 |
8% OFF Phone Price : $142.30
In Stock
#32
Control panel diagram
Fan
Part #WB26X0114
Replaced by #WB26X114
?
Manufacturer substitution
This part replaces WB26X0114. Substitute parts can look different from the original.
$116.85 |
9% OFF Phone Price : $128.85
In Stock
#157
Control panel diagram
Hotpoint wall oven high-limit thermostat
Part #WB24K5041
$54.08 |
10% OFF Phone Price : $60.08
In Stock
#121

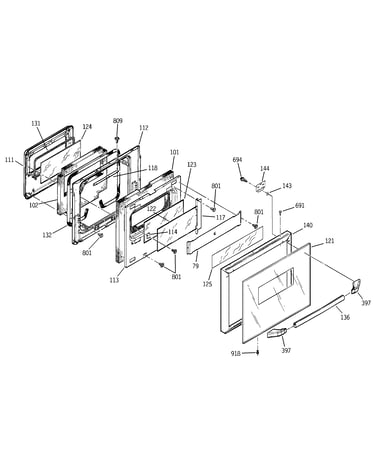

Door diagram
Wall oven door outer panel (black) (replaces wb57k5060, wb57k5258)
Part #WB57K5256
$70.82 |
8% OFF Phone Price : $76.82
In Stock
#159
Control panel diagram
Wall oven thermal fuse (replaces wb24k5034)
Part #WB24K5085
$48.47 |
11% OFF Phone Price : $54.47
In Stock
#1
Control panel diagram
G.e. wall oven control panel (replaces wb36t10074)
Part #WB36T10542
$274.04 |
$12.00 OFF Phone Price : $286.04
Back Order
#312

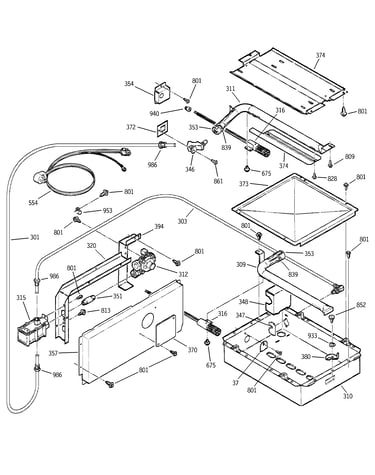

Gas & burner parts diagram
Pressure regulator
Part #WB19K5032
Replaced by #WB19T10079
?
Manufacturer substitution
This part replaces WB19K5032. Substitute parts can look different from the original.
$75.12 |
7% OFF Phone Price : $81.12
In Stock
Most common symptoms to help you fix your wall oven
Choose a symptom to see related wall oven repairs.
Main causes: bad oven door lock assembly, faulty electronic control board, wiring failure…
Main causes: broken broil element, faulty broil burner igniter, control system failure…
Main causes: broken bake element, bad bake burner igniter, tripped thermal switch, control system failure…
Main causes: faulty oven temperature sensor, control system problem, weak burner igniter, damaged oven element…
Main causes: lack of electrical power, bad electronic control board, faulty oven control thermostat…
Main causes: lack of gas supply, broken igniter, tripped circuit breaker, broken oven element, tripped thermal fuse, con…
Most common repair guides to help fix your wall oven
These step-by-step repair guides will help you safely fix what’s broken on your wall oven.
How to replace a wall oven door outer glass panel
Learn how to replace a damaged outer window panel on your wall oven door with these step-by-step instructions. …
Repair difficulty
Time required
45 minutes or less
How to replace a wall oven control thermostat
Get your oven temperature under your control by replacing a faulty oven control thermostat.…
Repair difficulty
Time required
60 minutes or less
How to replace a wall oven thermal fuse
The thermal fuse trips to prevent the over from excessively overheating. The oven won't heat again until you replace the…
Repair difficulty
Time required
60 minutes or less
