Model # 625345900 Official Kenmore chemical feed pump

Here are the diagrams and repair parts for Official Kenmore 625345900 chemical feed pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 95 parts  |
O-ring 9000902
#69

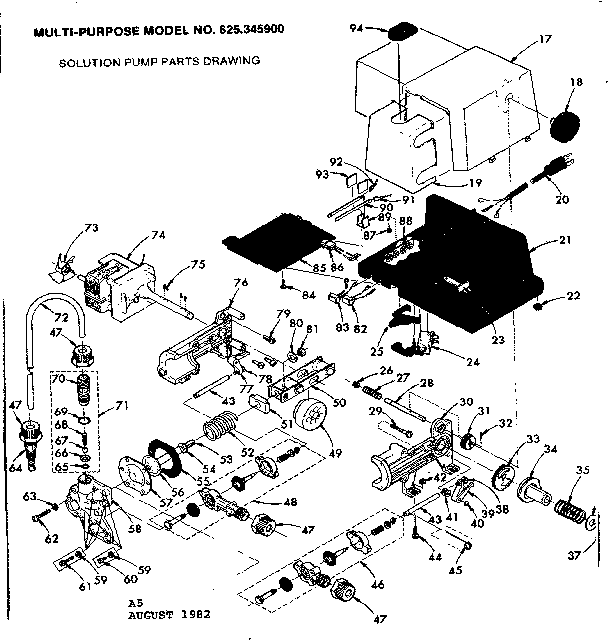

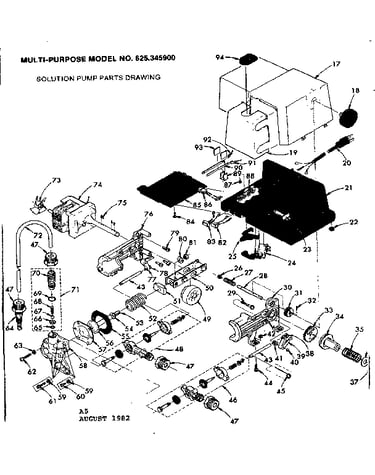

Replacement parts diagram

O-ring

Part #9000902

This item is not returnable
$2.99
In Stock
Snubber Bushing 9029000
#13

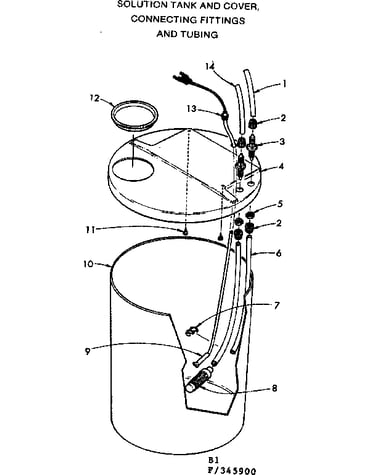

Tank and tubing diagram

Snubber bushing

Part #9029000

This item is not returnable
$2.29
In Stock
E-ring 9005400
#50F

Replacement parts diagram

E-ring

Part #9005400

This item is not returnable
$2.29
In Stock
Tube 815402
Tube

Part #815402

Replaced by #7157280

?
Manufacturer substitution
This part replaces 815402. Substitute parts can look different from the original.
$48.93
In Stock
Bulkhed Fitg 812612
#3

Tank and tubing diagram

Bulkhed fitg

Part #812612

Replaced by #0812612

?
Manufacturer substitution
This part replaces 812612. Substitute parts can look different from the original.
$16.49
In Stock
Return Valve 817195
#46

Replacement parts diagram

Return valve

Part #817195

Replaced by #0812612

?
Manufacturer substitution
This part replaces 817195. Substitute parts can look different from the original.
$16.49
In Stock
Washer 810037
#63

Replacement parts diagram

Washer

Part #810037

Replaced by #0810037

?
Manufacturer substitution
This part replaces 810037. Substitute parts can look different from the original.
$7.86
In Stock
Gearmotor 817202
#74

Replacement parts diagram

Gearmotor

Part #817202

The manufacturer no longer makes this part, and there's no substitute part

Diagram 816772
#57

Replacement parts diagram

Diagram

Part #816772

The manufacturer no longer makes this part, and there's no substitute part

Shaft Pin 817193
#75

Replacement parts diagram

Shaft pin

Part #817193

The manufacturer no longer makes this part, and there's no substitute part
