Model # 143607062 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 143607062 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 154 parts  |

O-ring 631028
#25

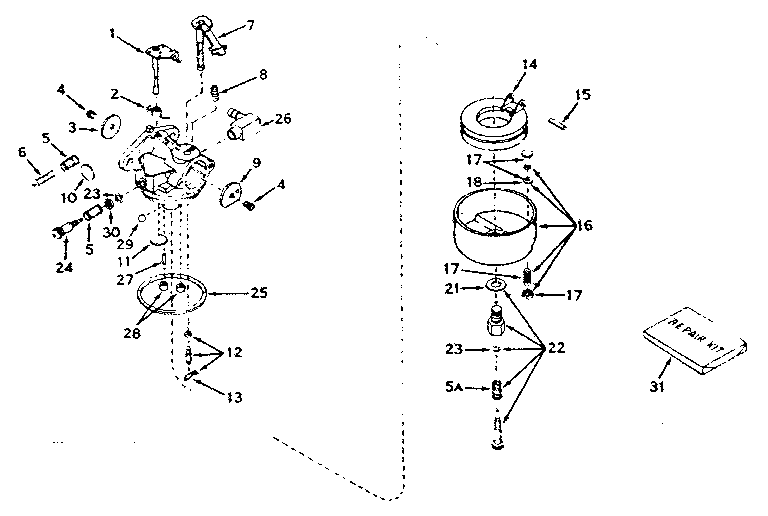

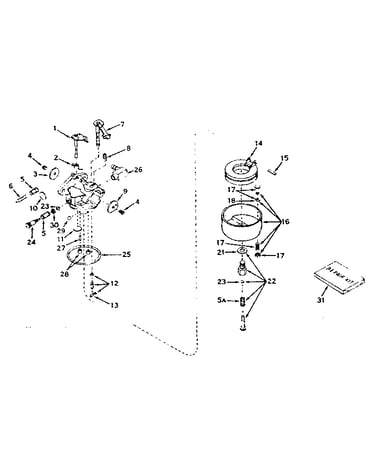

Carburetor diagram

O-ring

Part #631028

The manufacturer no longer makes this part, and there's no substitute part

Needl/seat 631021
#12

Carburetor diagram

Needl/seat

Part #631021

The manufacturer no longer makes this part, and there's no substitute part

Gasket 27110
#21

Carburetor diagram

Gasket

Part #27110

The manufacturer no longer makes this part, and there's no substitute part

/carb Float 631023
#14

Carburetor diagram

/carb float

Part #631023

The manufacturer no longer makes this part, and there's no substitute part

Plug Cover 27276
#27

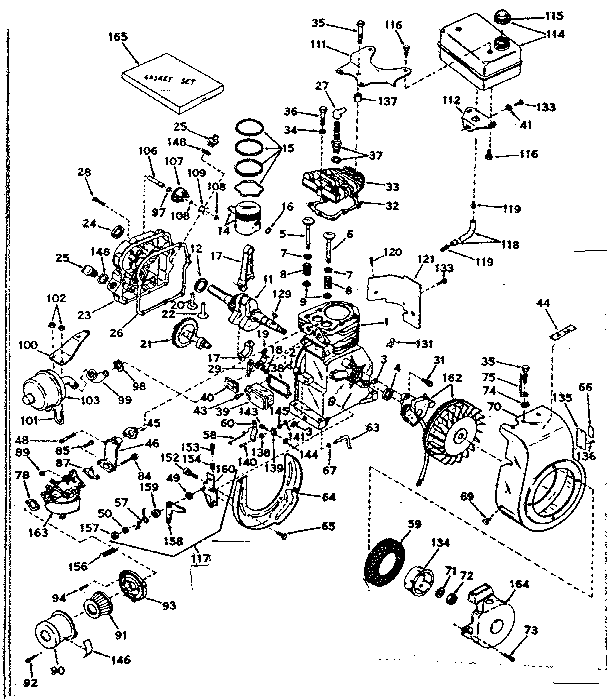

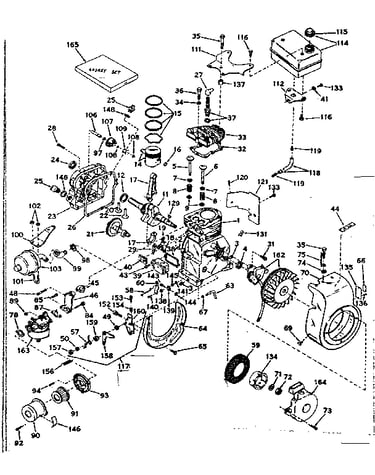

Basic engine diagram

Plug cover

Part #27276

The manufacturer no longer makes this part, and there's no substitute part

Fuel Fitting 631470
#26

Carburetor diagram

Fuel fitting

Part #631470

The manufacturer no longer makes this part, and there's no substitute part

Element 31410
#40

Basic engine diagram

Element

Part #31410

The manufacturer no longer makes this part, and there's no substitute part

Spring 31426
#156

Basic engine diagram

Spring

Part #31426

The manufacturer no longer makes this part, and there's no substitute part

Spring 31672
#8

Basic engine diagram

Spring

Part #31672

The manufacturer no longer makes this part, and there's no substitute part

Gasket 27554
#18

Carburetor diagram

Gasket

Part #27554

The manufacturer no longer makes this part, and there's no substitute part
