Model # 350E20AD Official Devilbiss air compressor

Here are the diagrams and repair parts for Official Devilbiss 350E20AD air compressor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 51 parts |

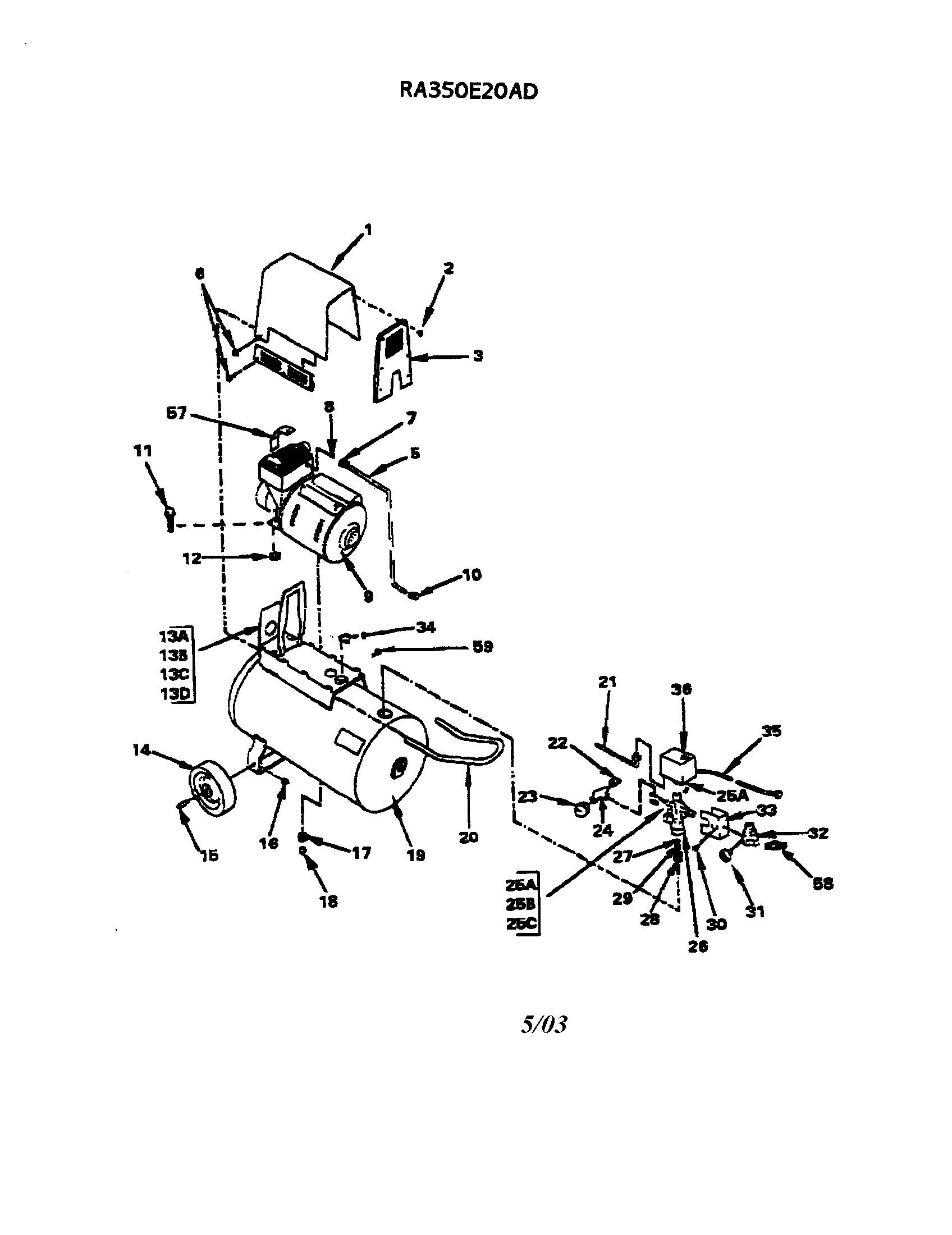

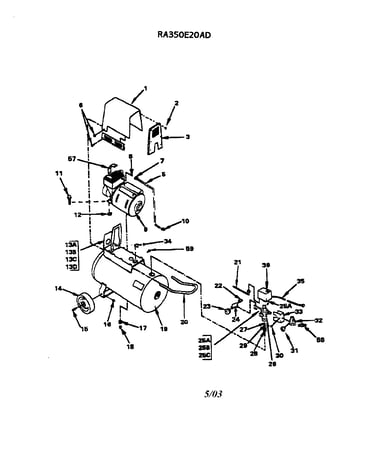

Shroud/handle/front cover diagram

Air compressor compression nut

Part #SSP-7821-1

The manufacturer no longer makes this part, and there's no substitute part

#43

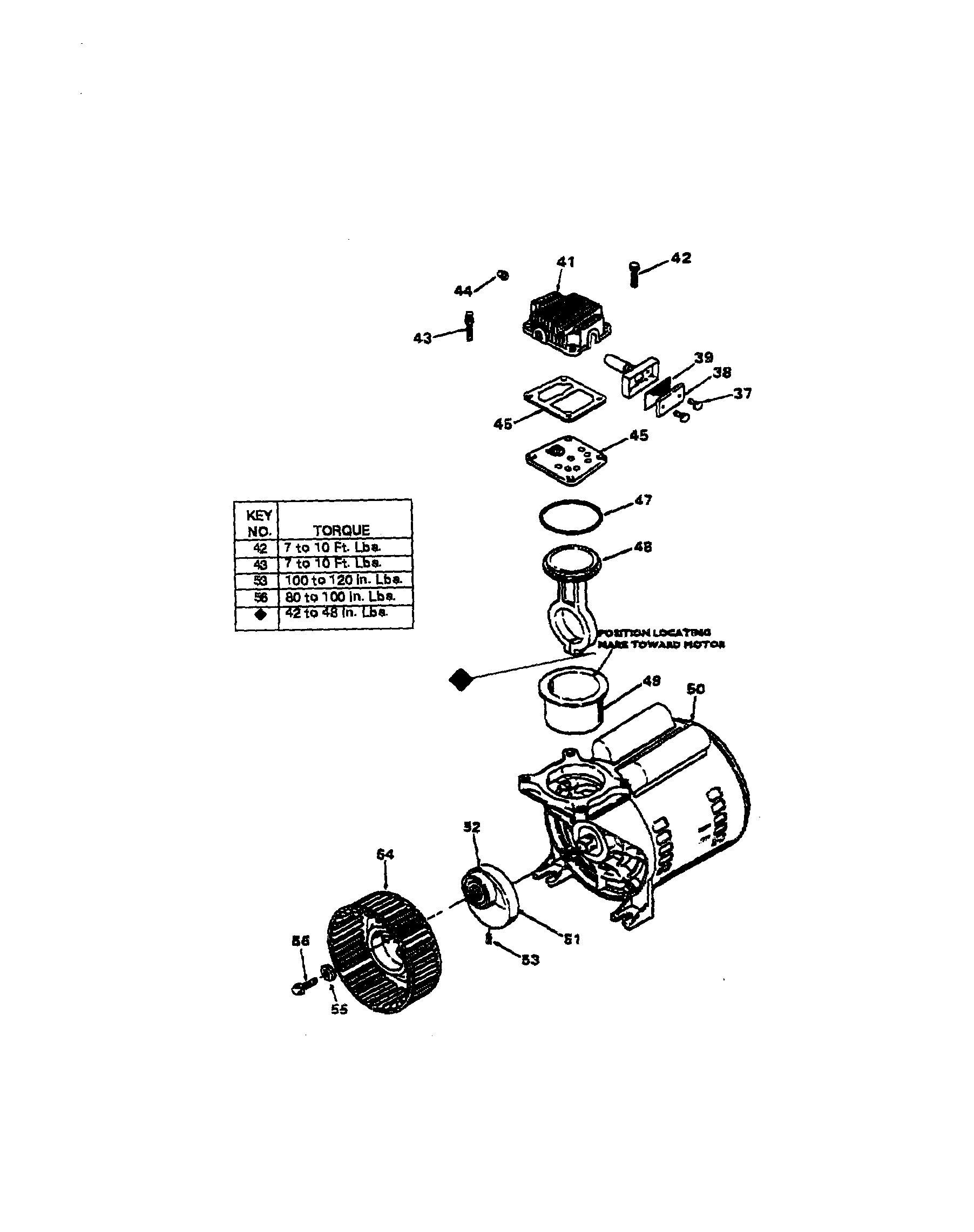

Head/motor/cylinder sleeve diagram

Screw

Part #SSF-990

The manufacturer no longer makes this part, and there's no substitute part

#25C

Shroud/handle/front cover diagram

Air compressor nut and sleeve

Part #SSP-7811

The manufacturer no longer makes this part, and there's no substitute part

Air Compressor Drain Petcock Bushing Reducer SSP-1138

#17

Shroud/handle/front cover diagram

Air compressor drain petcock bushing reducer

Part #SSP-1138

The manufacturer no longer makes this part, and there's no substitute part

#15

Shroud/handle/front cover diagram

Companion air compressor screw

Part #CAC-60

The manufacturer no longer makes this part, and there's no substitute part

Devilbiss Air Compressor Pressure Relief Tube CAC-1085-1

#25A

Shroud/handle/front cover diagram

Devilbiss air compressor pressure relief tube

Part #CAC-1085-1

The manufacturer no longer makes this part, and there's no substitute part

#38

Head/motor/cylinder sleeve diagram

Air compressor air filter

Part #DAC-143

The manufacturer no longer makes this part, and there's no substitute part

Air Compressor Safety Valve, 150-psi 97503734

#22

Shroud/handle/front cover diagram

Air compressor safety valve, 150-psi

Part #97503734

The manufacturer no longer makes this part, and there's no substitute part

#10

Shroud/handle/front cover diagram

Air compressor compression nut

Part #SSP-7813

The manufacturer no longer makes this part, and there's no substitute part

#35

Shroud/handle/front cover diagram

Air compressor power cord

Part #SUDL-413-2

The manufacturer no longer makes this part, and there's no substitute part
