Top-Mount Refrigerator

Model # GTT15FBRFRCC Official GE refrigerator - r series

Here are the diagrams and repair parts for Official GE GTT15FBRFRCC refrigerator - r series, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
GTT15FBRFRCC Refrigerators
Dryer Filter WR86X0096
#740

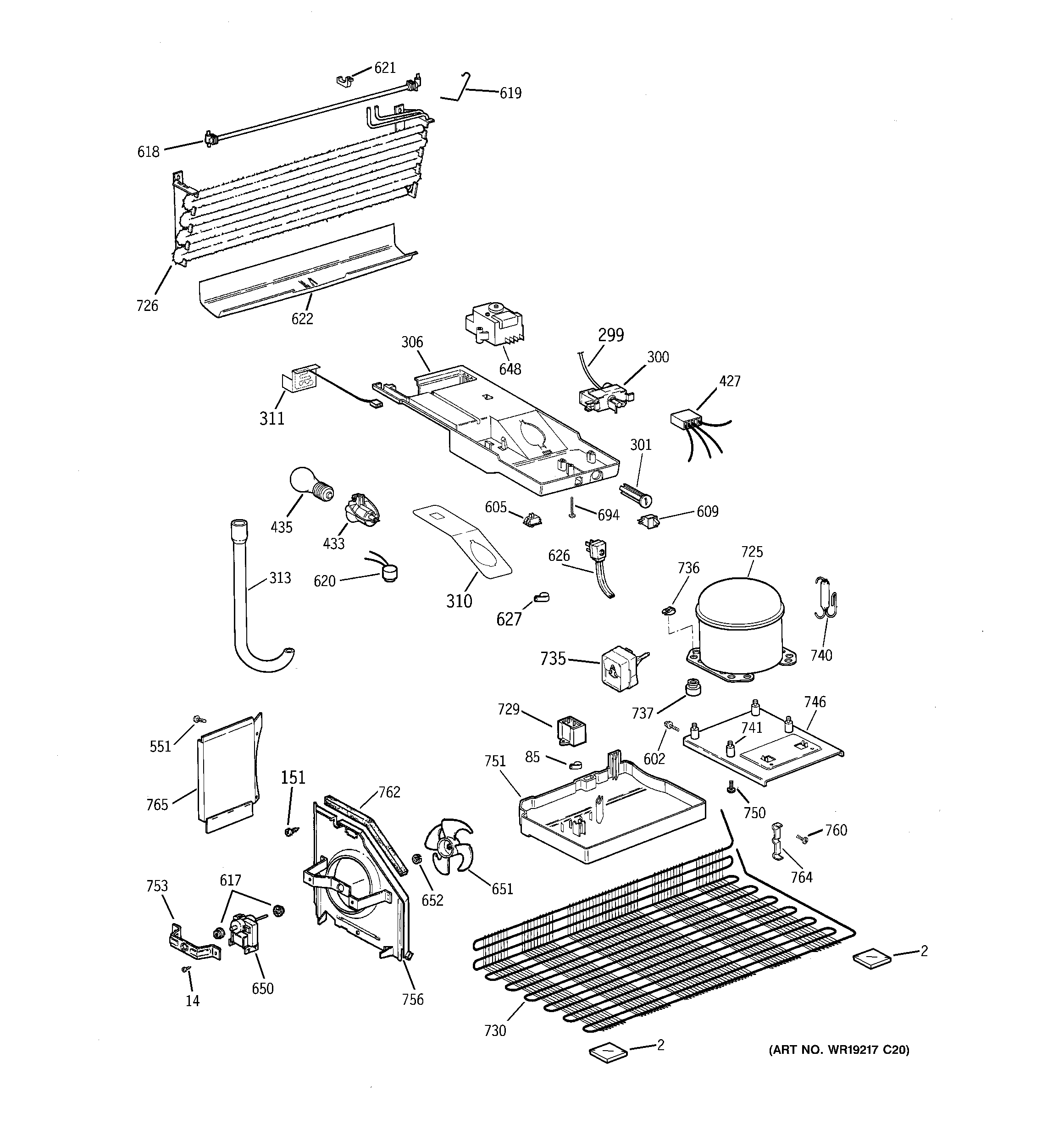

Unit parts diagram

Dryer filter

Part #WR86X0096

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0096. Substitute parts can look different from the original.
BEST SELLER
$74.11 |
7% OFF Phone Price : $80.11
In Stock
G.e. Appliance Light Bulb, 40-watt (replaces -2pk, 60a, 60a15rvl, Std398091, Wr02x12328, Wx12x1510) 40A15
#435

Unit parts diagram

G.e. appliance light bulb, 40-watt (replaces -2pk, 60a, 60a15rvl, std398091, wr02x12328, wx12x1510)

Part #40A15

1.72 (18)
BEST SELLER
$15.31 |
20% OFF Phone Price : $19.23
In Stock
Refrigerator Ac/dc Motor WR60X10138
#610

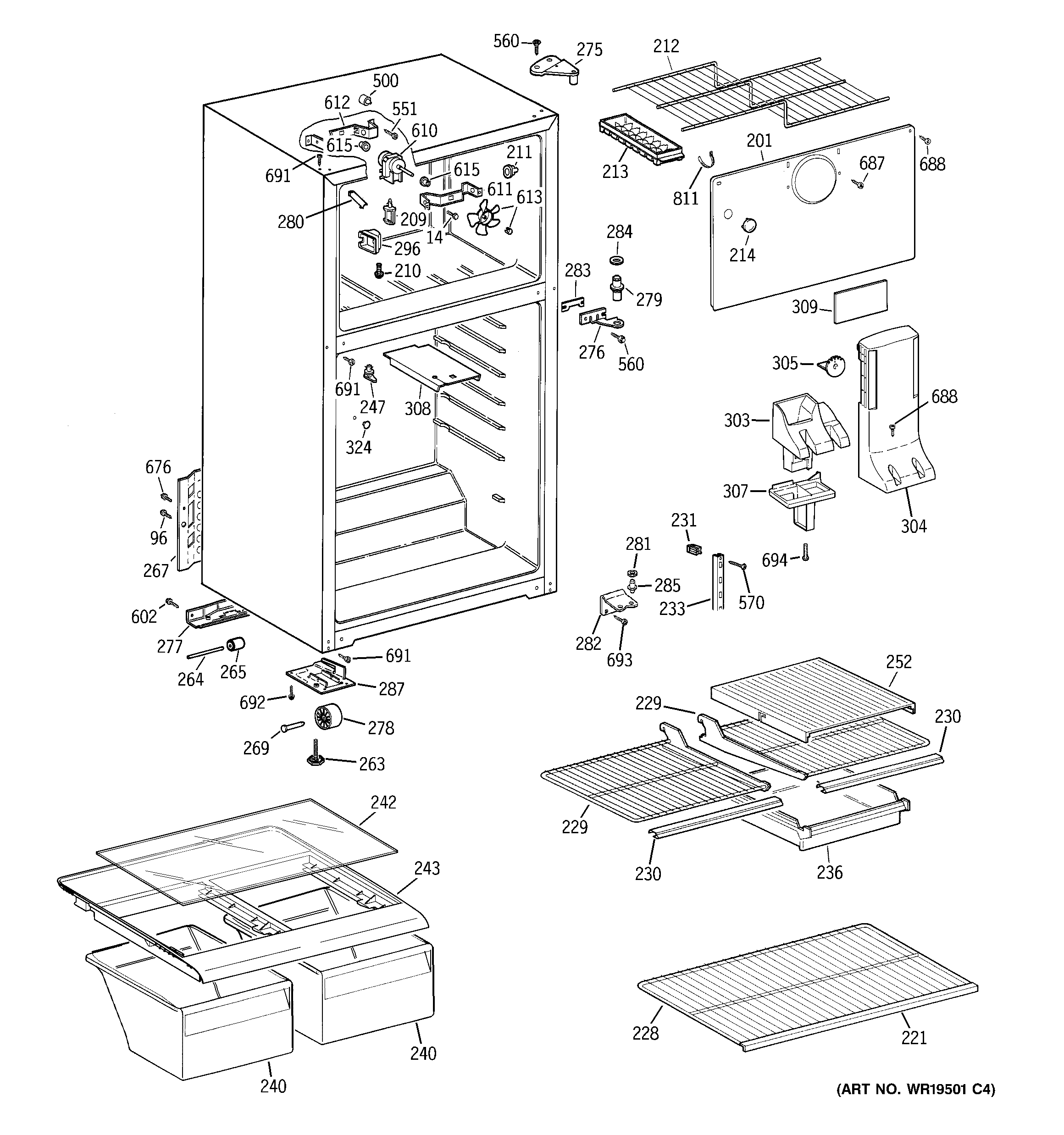

Cabinet diagram

Refrigerator ac/dc motor

Part #WR60X10138

Replaced by #WR60X31522

?
Manufacturer substitution
This part replaces WR60X10138. Substitute parts can look different from the original.
BEST SELLER
$75.63
In Stock
Capacitor WR62X0079
#729

Unit parts diagram

Capacitor

Part #WR62X0079

Replaced by #WR55X24064

?
Manufacturer substitution
This part replaces WR62X0079. Substitute parts can look different from the original.
4.33 (3)
BEST SELLER
$55.55 |
5% OFF Phone Price : $58.77
In Stock
Refrigerator Compressor WR87X10085
#725

Unit parts diagram

Refrigerator compressor

Part #WR87X10085

Replaced by #WR87X10224

?
Manufacturer substitution
This part replaces WR87X10085. Substitute parts can look different from the original.
BEST SELLER
$488.54 |
8% OFF Phone Price : $529.27
In Stock
Refrigerator Evaporator Fan Blade WR60X10047
#613

Cabinet diagram

Refrigerator evaporator fan blade

Part #WR60X10047

Replaced by #WR60X10204

?
Manufacturer substitution
This part replaces WR60X10047. Substitute parts can look different from the original.
BEST SELLER
$19.94 |
9% OFF Phone Price : $21.94
In Stock
Condenser Fan Blade WR60X10088
#651

Unit parts diagram

Condenser fan blade

Part #WR60X10088

Replaced by #WR60X10207

?
Manufacturer substitution
This part replaces WR60X10088. Substitute parts can look different from the original.
5 (2)
BEST SELLER
This item is not returnable
$10.51 |
16% OFF Phone Price : $12.51
In Stock
Refrigerator Defrost Heater WR51X10038
#618

Unit parts diagram

Refrigerator defrost heater

Part #WR51X10038

BEST SELLER
$66.79 |
8% OFF Phone Price : $72.79
In Stock
Refrigerator Evaporator Fan Motor Grommet (replaces Wr02x12008) WR02X10519
#615

Cabinet diagram

Refrigerator evaporator fan motor grommet (replaces wr02x12008)

Part #WR02X10519

Replaced by #WR02X12008

?
Manufacturer substitution
This part replaces WR02X10519. Substitute parts can look different from the original.
BEST SELLER
$37.63
In Stock
Defrost Eco WR50X10021
#620

Unit parts diagram

Defrost eco

Part #WR50X10021

Replaced by #WR50X10071

?
Manufacturer substitution
This part replaces WR50X10021. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$25.18 |
19% OFF Phone Price : $31.18
In Stock
