Model # 58051300000 Official Kenmore dehumidifier

Here are the diagrams and repair parts for Official Kenmore 58051300000 dehumidifier, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 32 parts |

Friedrich Room Air Conditioner Compressor Grommet 5040AR4195A

#7-C

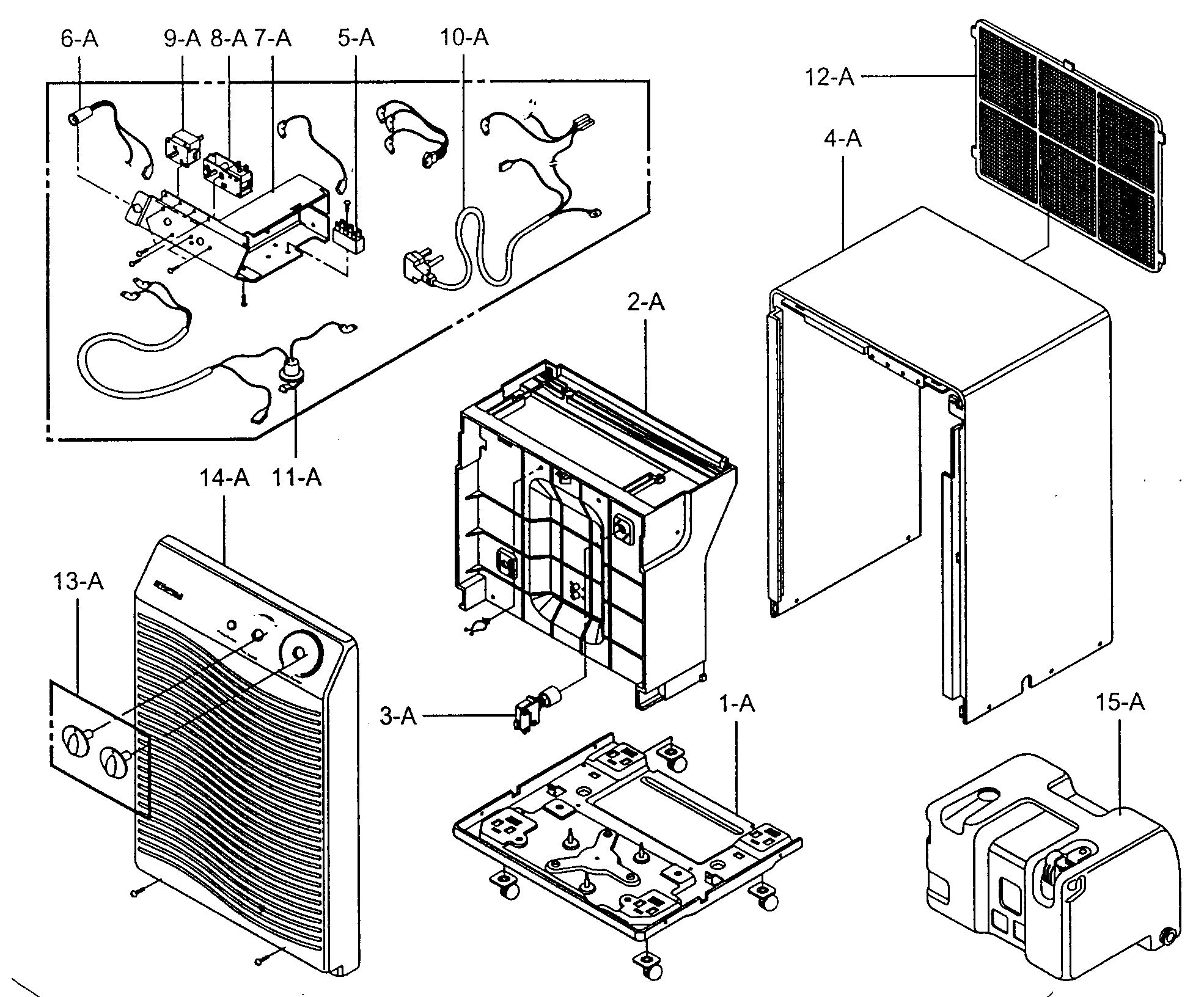

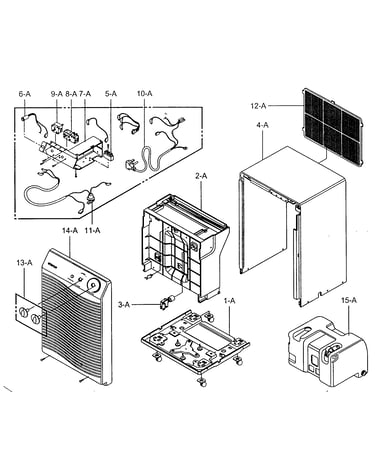

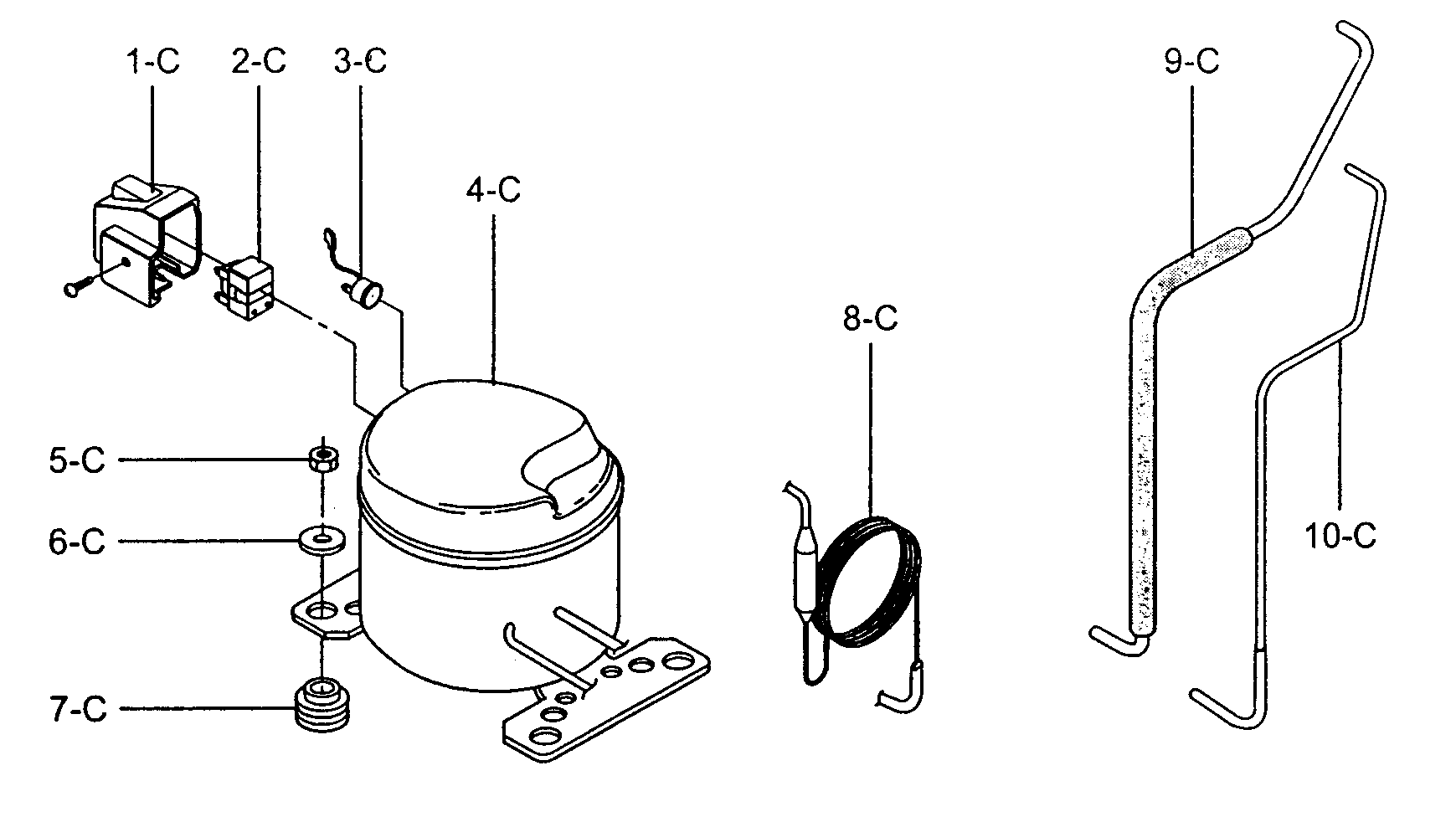

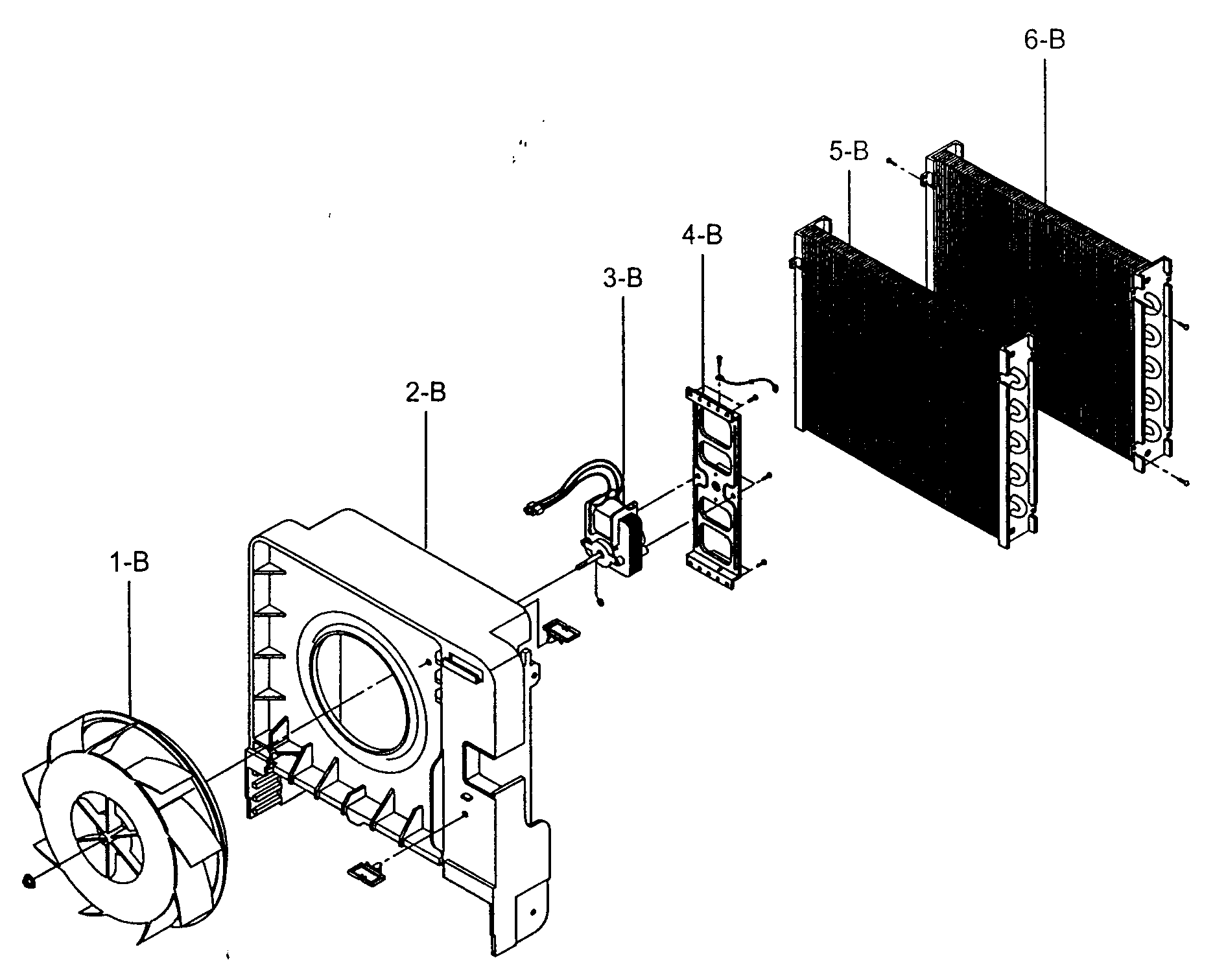

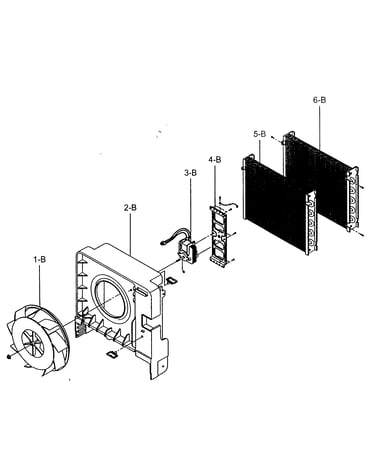

Cabinet parts diagram

Friedrich room air conditioner compressor grommet

Part #5040AR4195A

This item is not returnable

$4.51

In Stock

Qty

#2-C

Cabinet parts diagram

P.t.c.

Part #6748C-0003A

$25.20

In Stock

Qty

#6-C

Cabinet parts diagram

Washer

Part #4H00972G

This item is not returnable

$4.51

In Stock

Qty

#5-C

Cabinet parts diagram

Hex nut

Part #1NHA0801206

This item is not returnable

$4.51

In Stock

Qty

#1-AA

Cabinet parts diagram

Caster

Part #4441A30001B

Replaced by #MHA62753001

$14.51

In Stock

Qty

#6-B

Cabinet parts diagram

Evaporator

Part #5421A10009B

Replaced by #ADL73080901

$71.93

In Stock

Qty

#1-B

Cabinet parts diagram

Fan

Part #5900A20007A

Replaced by #5900A20007B

This item is not returnable

$10.60

In Stock

Qty

#9-A

Cabinet parts diagram

Switch

Part #6600A20001A

The manufacturer no longer makes this part, and there's no substitute part

#4-B

Cabinet parts diagram

Mount

Part #4960A20009A

The manufacturer no longer makes this part, and there's no substitute part

#12-A

Cabinet parts diagram

Filter

Part #5230AD3005A

The manufacturer no longer makes this part, and there's no substitute part
