Model # NT17HX3GLA/8D75B Official Maytag refrigerator

Here are the diagrams and repair parts for Official Maytag NT17HX3GLA-8D75B refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 142 parts  |
Drier 13900
#13

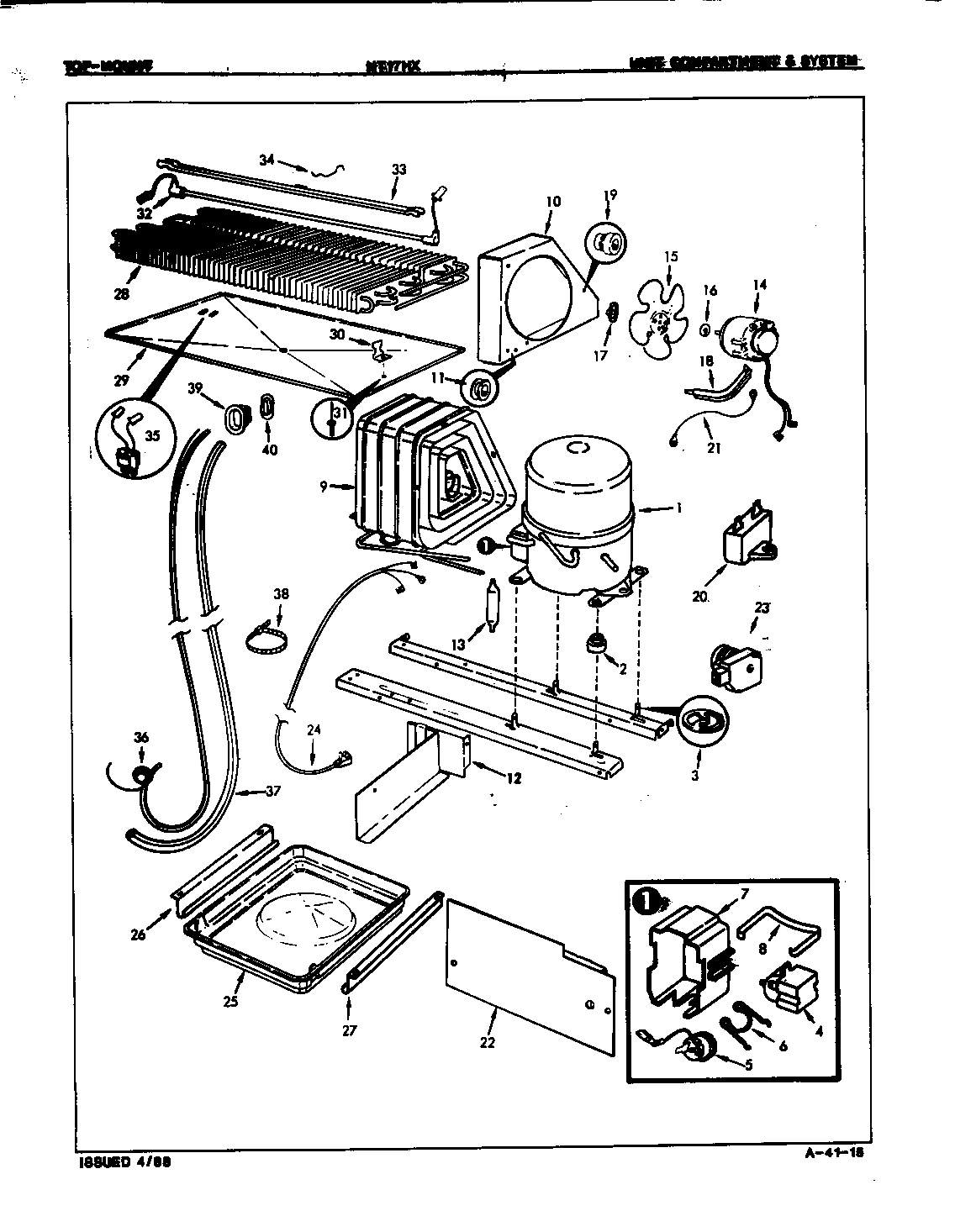

Unit compartment & system diagram

Drier

Part #13900

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces 13900. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Light Switch 55732-1
#23

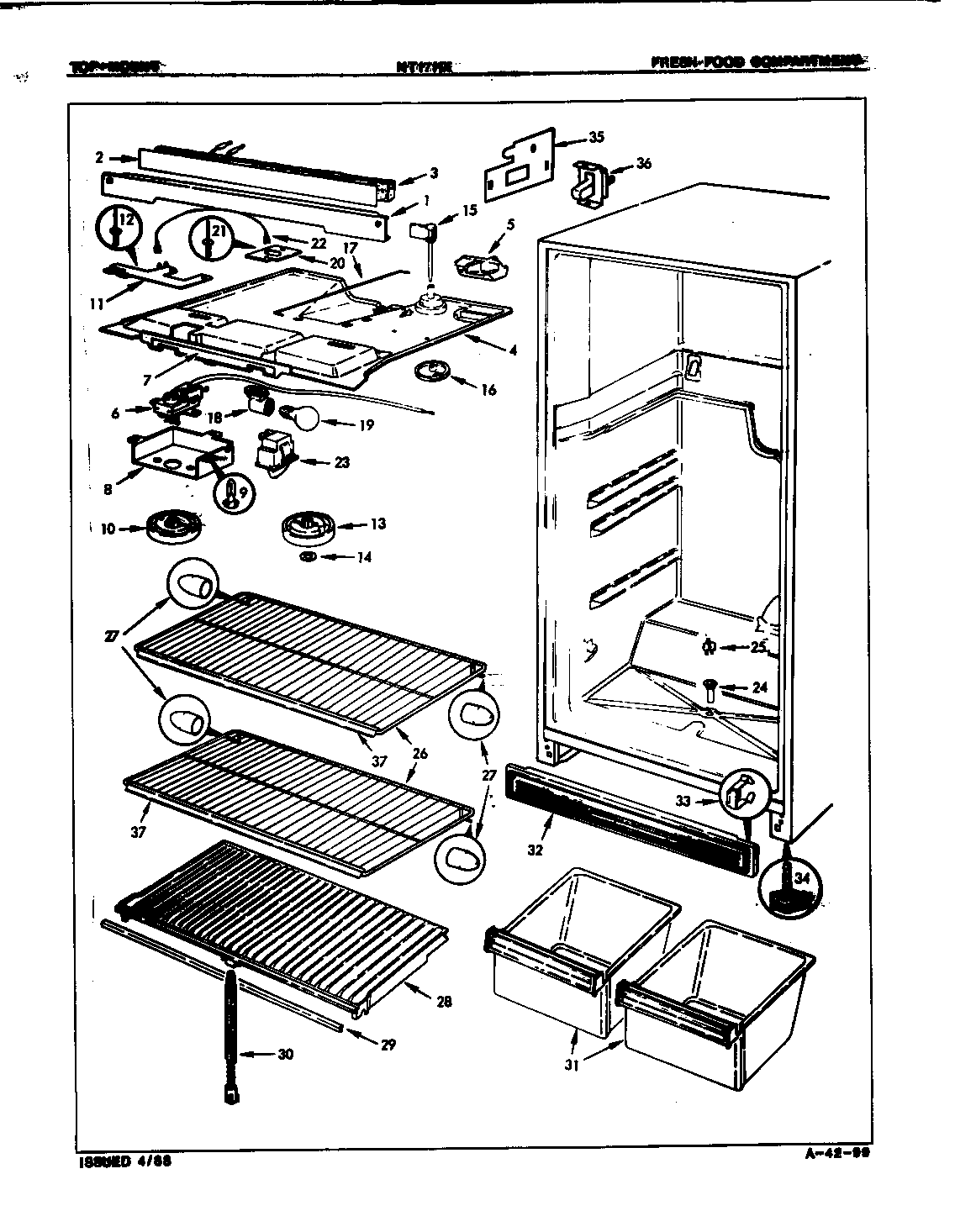

Fresh food compartment diagram

Light switch

Part #55732-1

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 55732-1. Substitute parts can look different from the original.
BEST SELLER
$23.57 |
20% OFF Phone Price : $29.57
In Stock
Screw 9986-45
#22A

Unit compartment & system diagram

Screw

Part #9986-45

Replaced by #WP488729

?
Manufacturer substitution
This part replaces 9986-45. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 400015-12
#4A

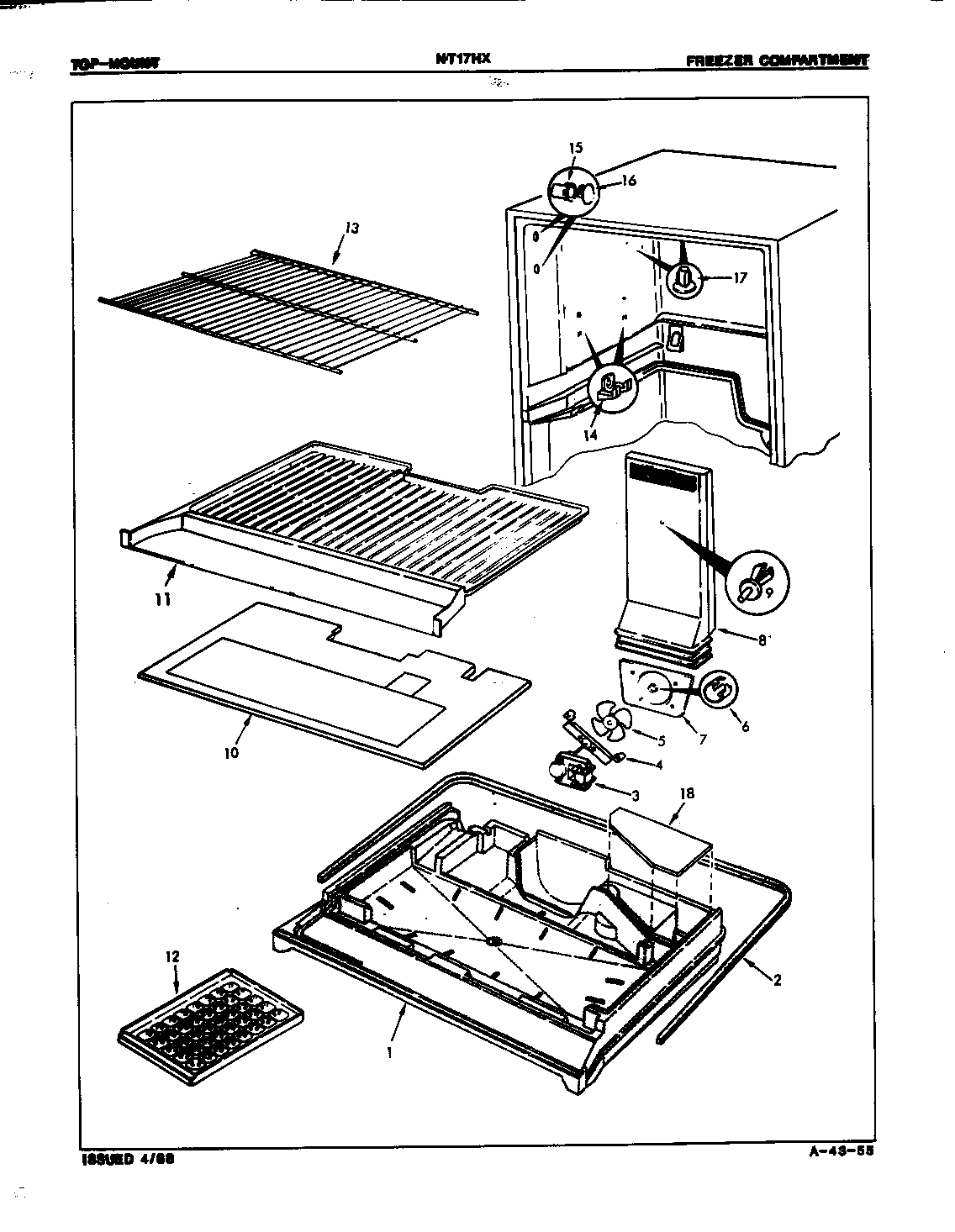

Freezer compartment diagram

Screw

Part #400015-12

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 400015-12. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Refrigerator Temperature Control 68119-1
#6

Fresh food compartment diagram

Refrigerator temperature control

Part #68119-1

Replaced by #WP68601-6

?
Manufacturer substitution
This part replaces 68119-1. Substitute parts can look different from the original.
$127.63 |
9% OFF Phone Price : $139.63
In Stock
Refrigerator Thermostat 52085-25
#35

Unit compartment & system diagram

Refrigerator thermostat

Part #52085-25

Replaced by #WP52085-28

?
Manufacturer substitution
This part replaces 52085-25. Substitute parts can look different from the original.
$60.29 |
9% OFF Phone Price : $66.29
In Stock
Ice Cube Tray 60112-1
#12

Freezer compartment diagram

Ice cube tray

Part #60112-1

Replaced by #WP61002140

?
Manufacturer substitution
This part replaces 60112-1. Substitute parts can look different from the original.
$19.32 |
9% OFF Phone Price : $21.32
In Stock
Refrigerator Screw 405012-1
#8A

Fresh food compartment diagram

Refrigerator screw

Part #405012-1

Replaced by #W11380570

?
Manufacturer substitution
This part replaces 405012-1. Substitute parts can look different from the original.
This item is not returnable
$18.19 |
10% OFF Phone Price : $20.19
In Stock
Refrigerator Light Bulb 24082-1
#19

Fresh food compartment diagram

Refrigerator light bulb

Part #24082-1

Replaced by #WP67002552

?
Manufacturer substitution
This part replaces 24082-1. Substitute parts can look different from the original.
This item is not returnable
$3.59 |
22% OFF Phone Price : $4.59
In Stock
Refrigerator Door Shelf Retainer Clip 65245-1
#24

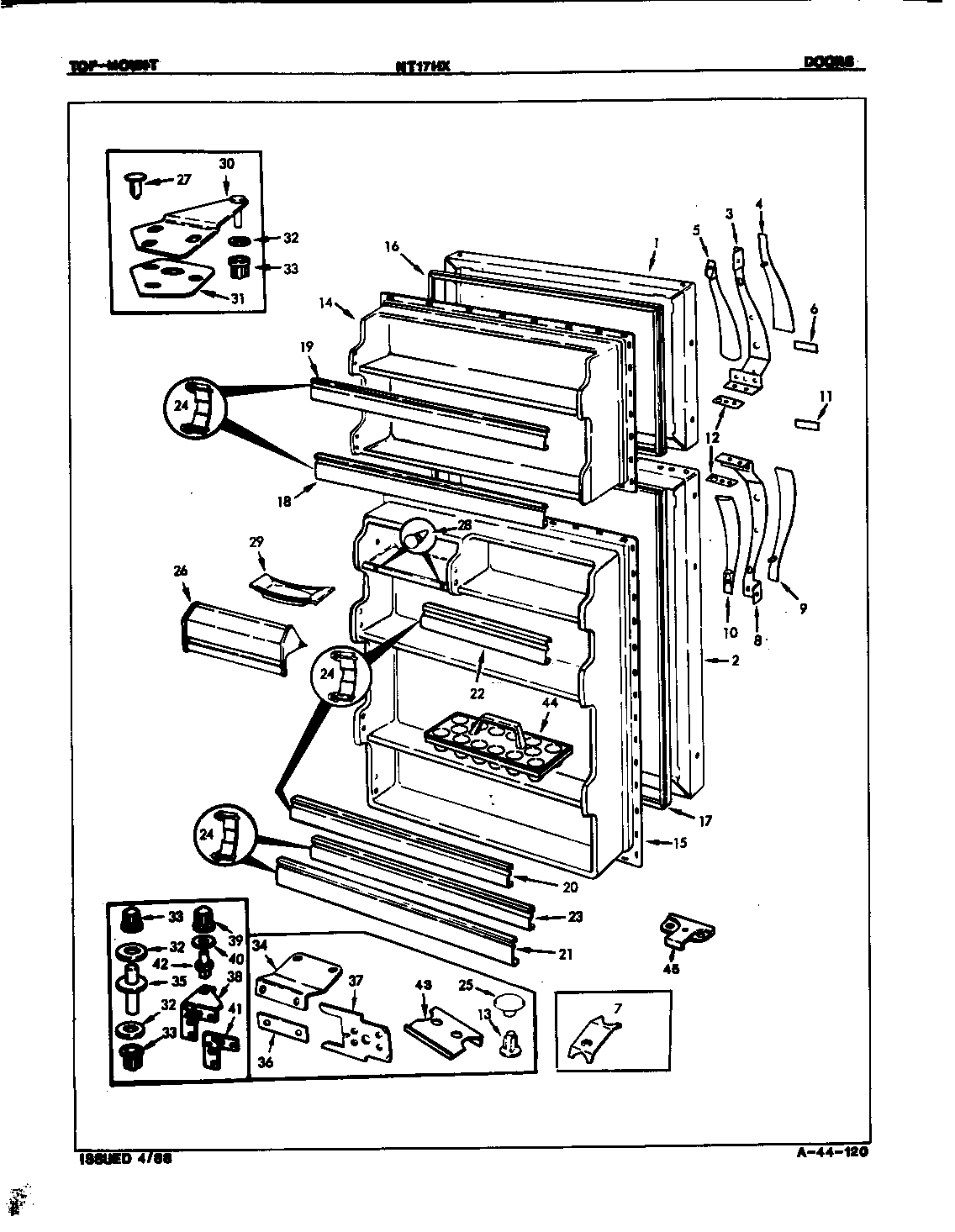

Doors diagram

Refrigerator door shelf retainer clip

Part #65245-1

Replaced by #WP65245-1

?
Manufacturer substitution
This part replaces 65245-1. Substitute parts can look different from the original.
$7.61 |
12% OFF Phone Price : $8.61
In Stock
