Maytag
Dryer

Model # MDE9420AZW Official Maytag dryer

Here are the diagrams and repair parts for Official Maytag MDE9420AZW dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

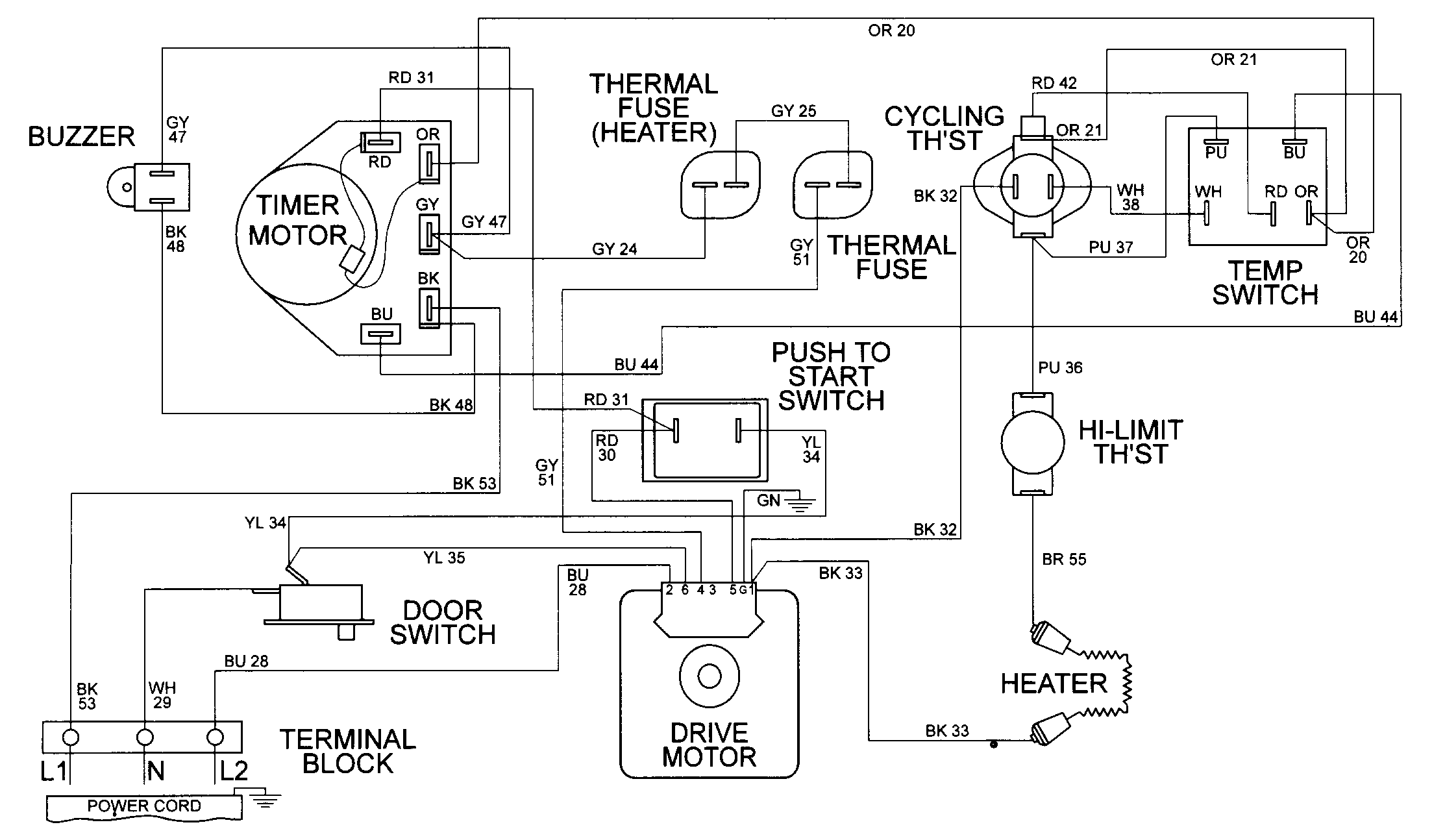

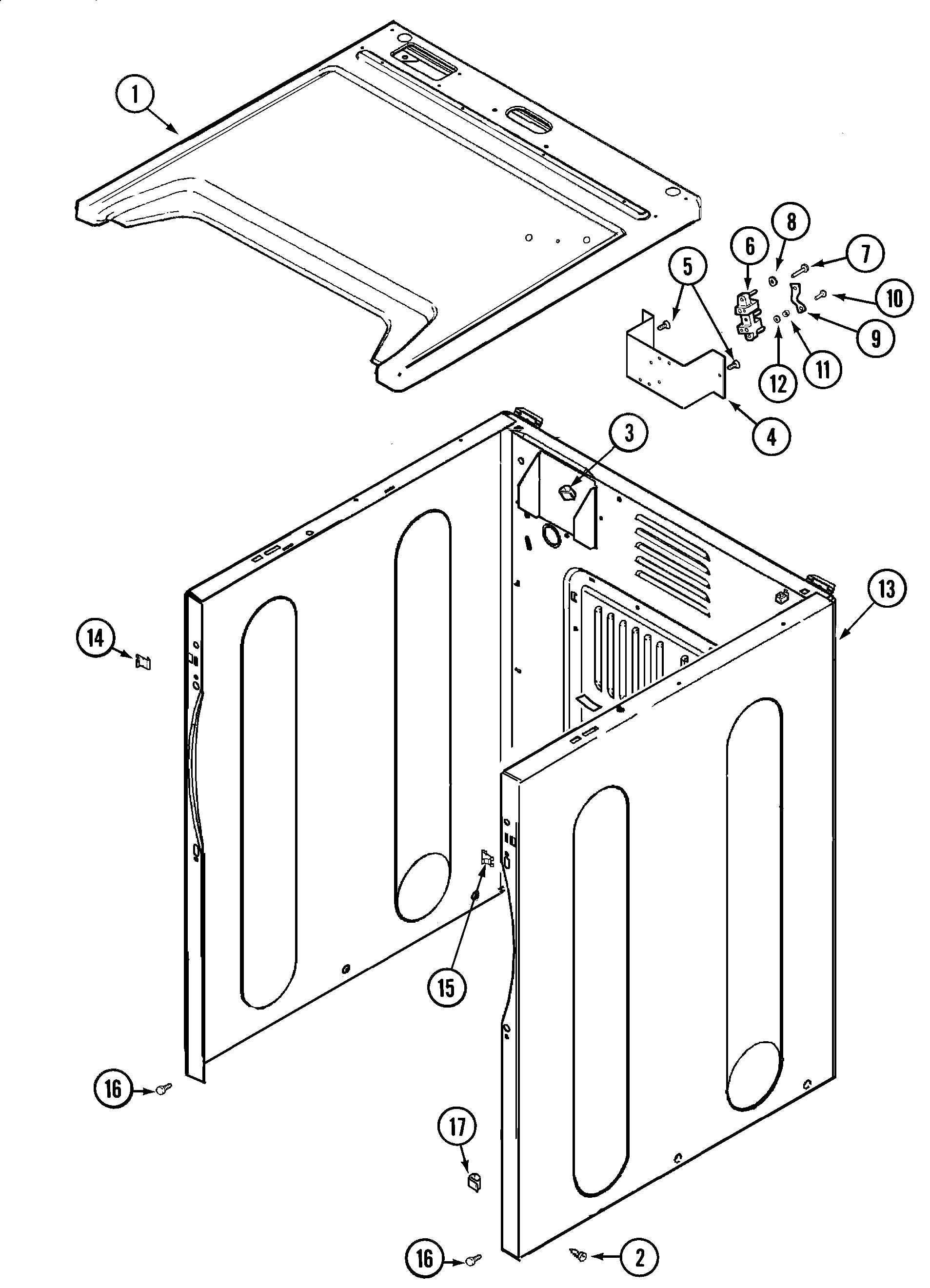

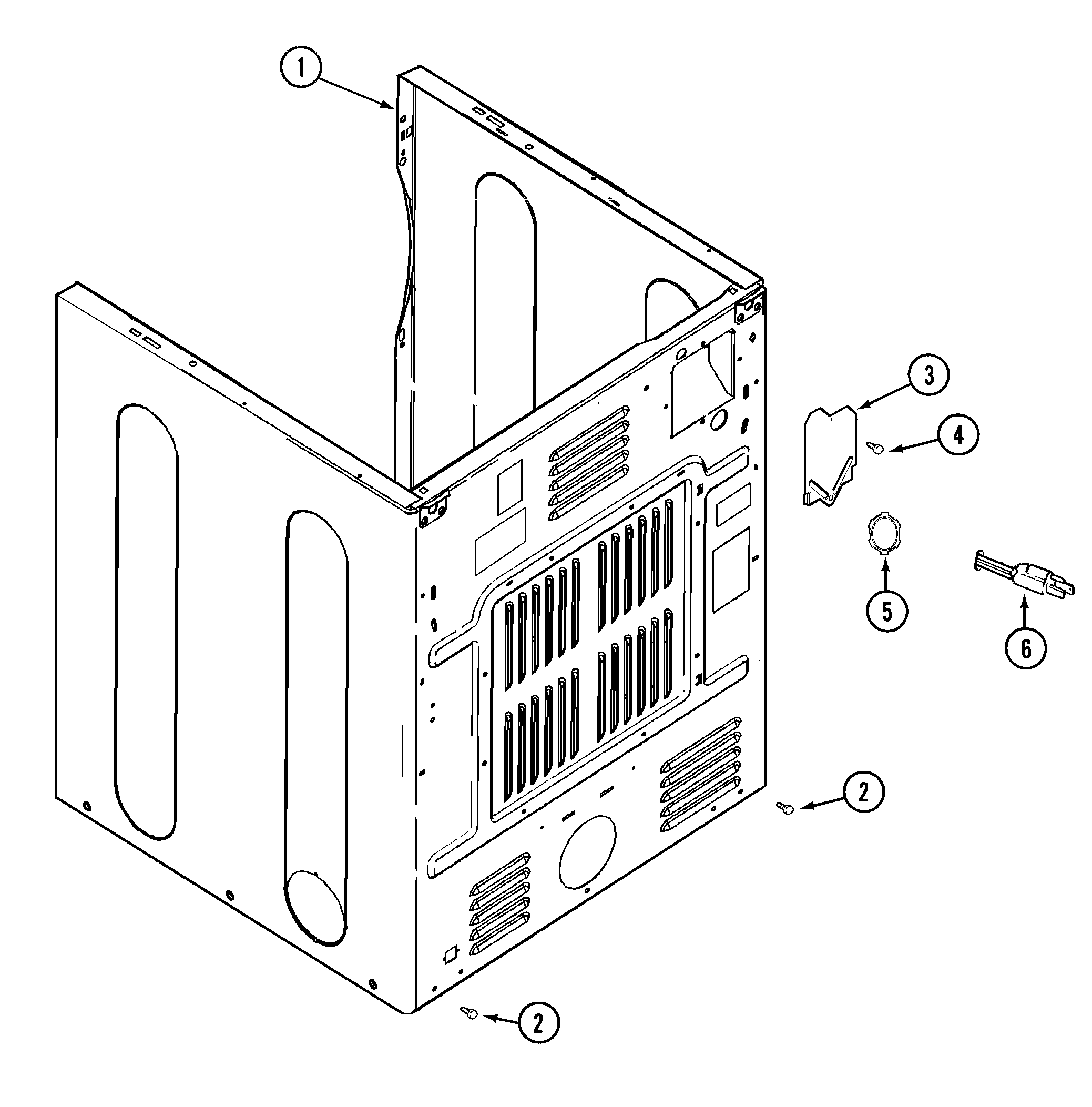

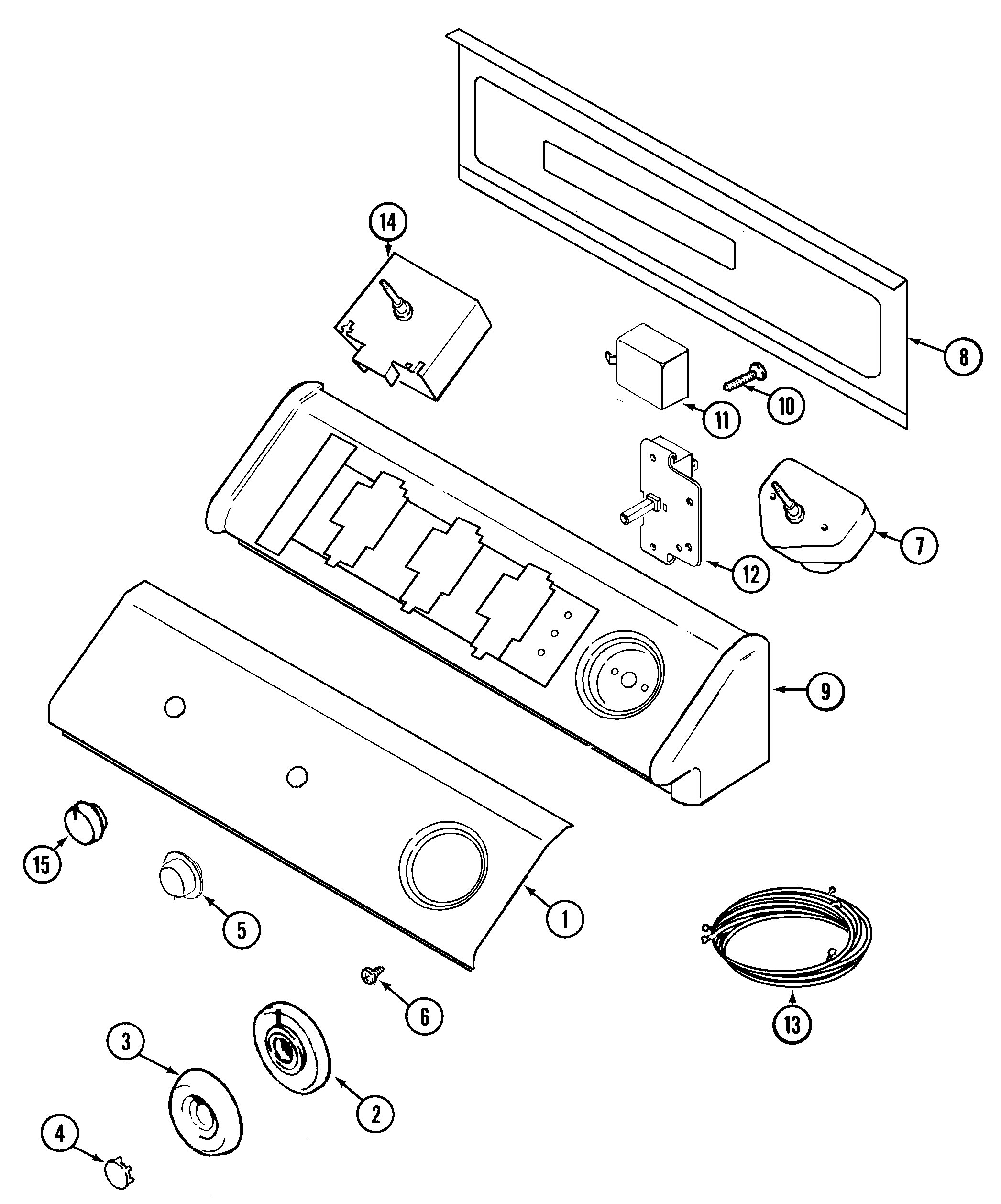

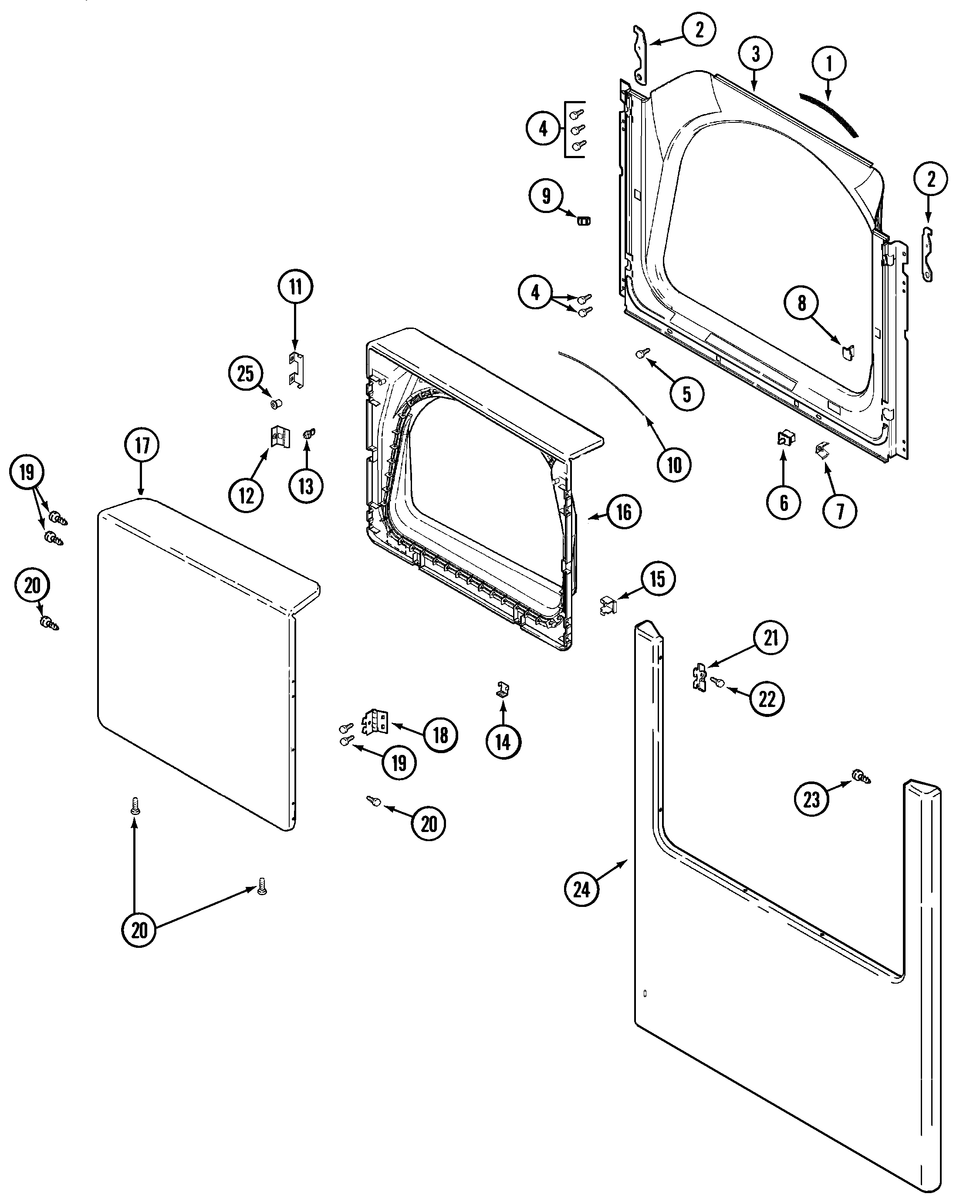

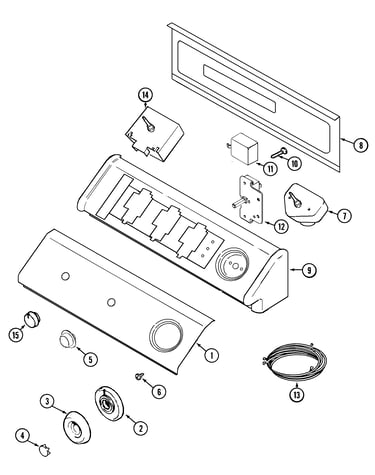

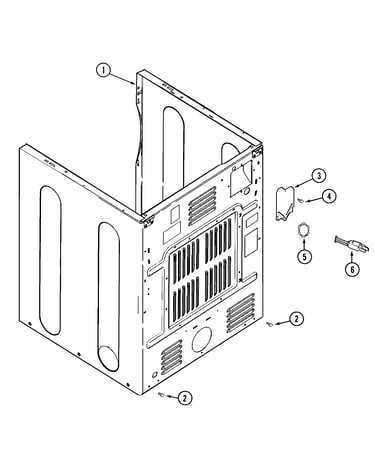

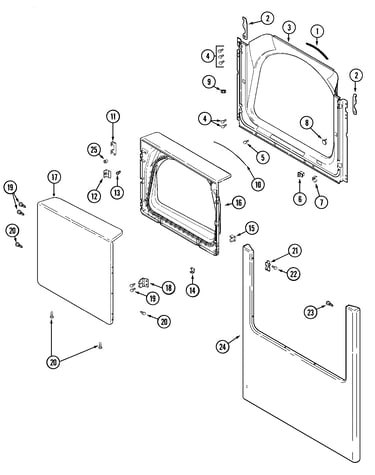

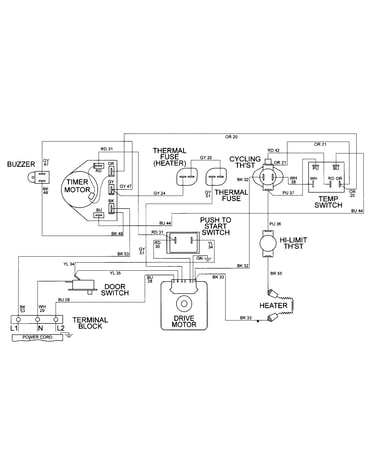

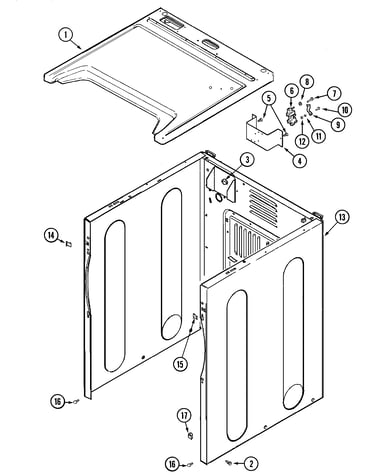

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 149 parts  |
Roller W/bea 303373
#24

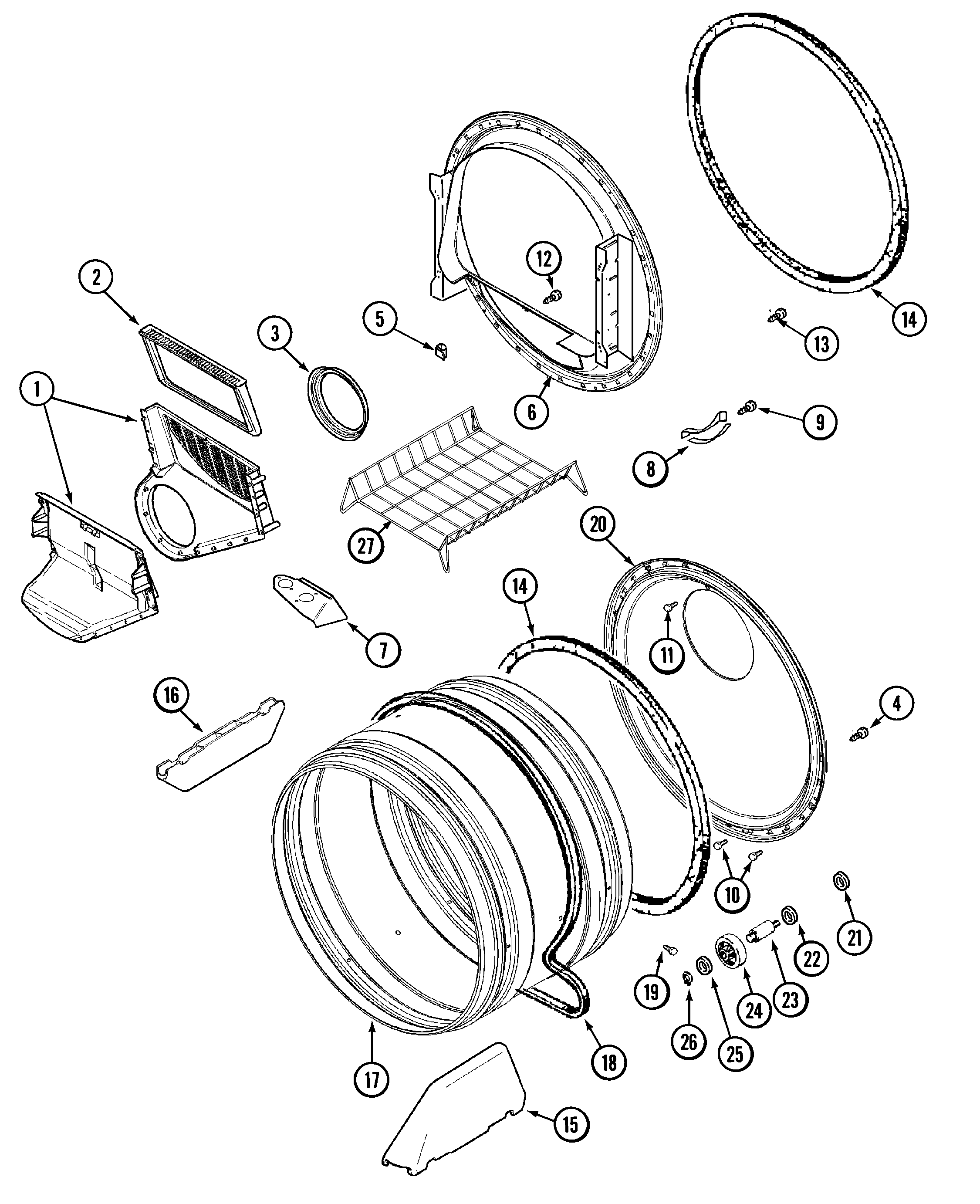

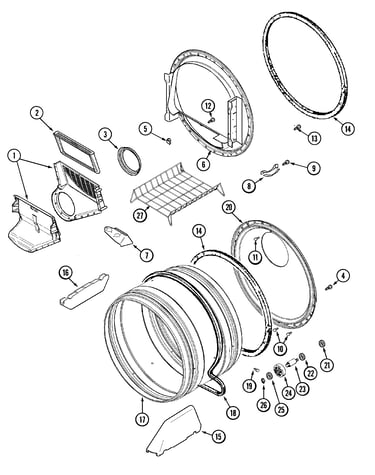

Tumbler diagram

Roller w/bea

Part #303373

Replaced by #12001541

?
Manufacturer substitution
This part replaces 303373. Substitute parts can look different from the original.
BEST SELLER
$27.69 |
18% OFF Phone Price : $33.69
In Stock
Belt, Tumble 33001777
#18

Tumbler diagram

Belt, tumble

Part #33001777

Replaced by #WP33002535

?
Manufacturer substitution
This part replaces 33001777. Substitute parts can look different from the original.
BEST SELLER
$25.83 |
19% OFF Phone Price : $31.83
In Stock
Idler Pulley 33001783
#21

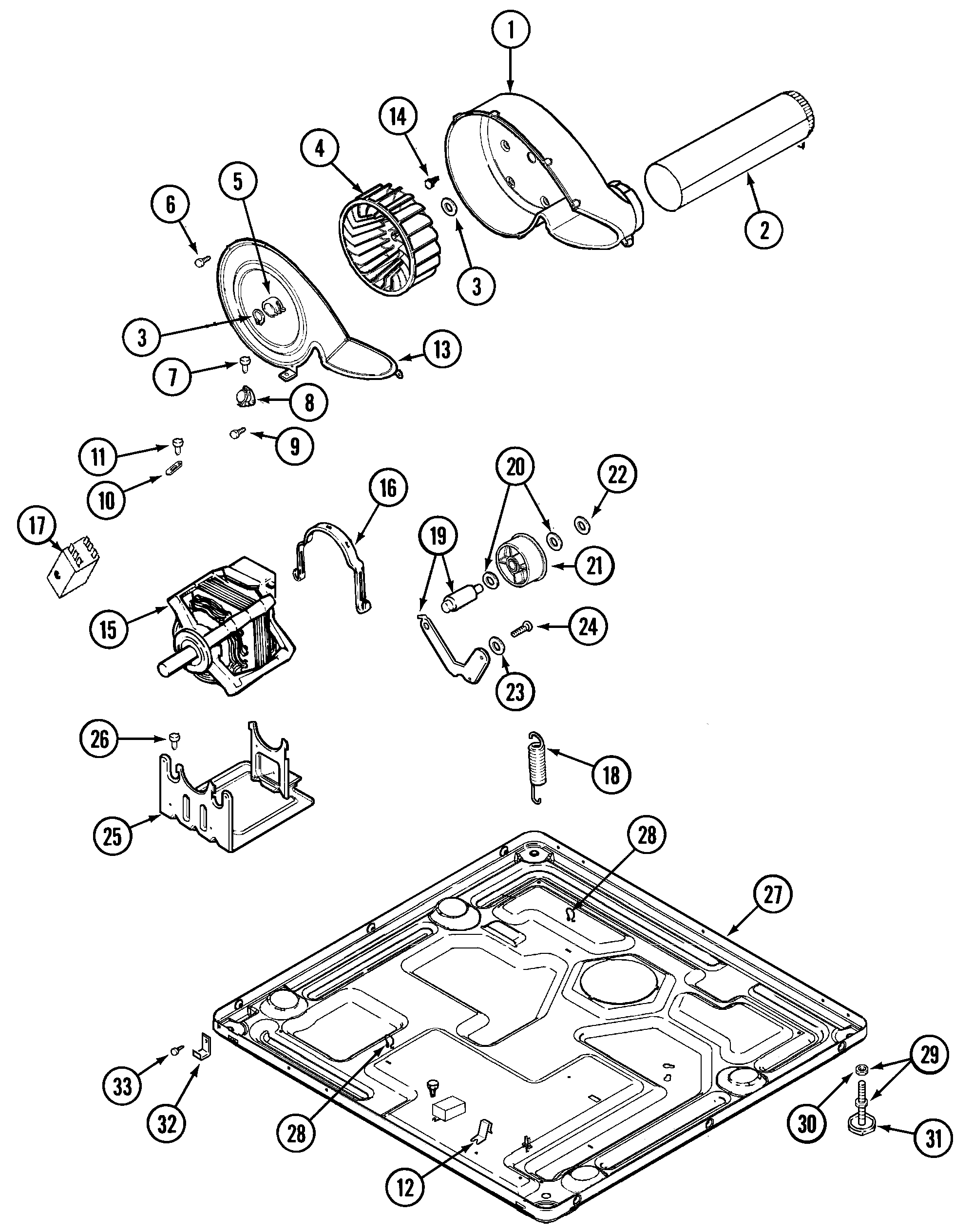

Motor drive diagram

Idler pulley

Part #33001783

Replaced by #WP6-3700340

?
Manufacturer substitution
This part replaces 33001783. Substitute parts can look different from the original.
BEST SELLER
$17.67 |
10% OFF Phone Price : $19.67
In Stock
Dryer Drum Bearing Kit (replaces 312940, 312941) 306508
#8

Tumbler diagram

Dryer drum bearing kit (replaces 312940, 312941)

Part #306508

BEST SELLER
$12.59 |
14% OFF Phone Price : $14.59
In Stock
Idler Arm 33001840
#19

Motor drive diagram

Idler arm

Part #33001840

Replaced by #WP6-3705180

?
Manufacturer substitution
This part replaces 33001840. Substitute parts can look different from the original.
BEST SELLER
$37.97 |
14% OFF Phone Price : $43.97
In Stock
Blower Wheel Clamp 312967
#5

Motor drive diagram

Blower wheel clamp

Part #312967

Replaced by #WP312967

?
Manufacturer substitution
This part replaces 312967. Substitute parts can look different from the original.
BEST SELLER
$8.39 |
11% OFF Phone Price : $9.39
In Stock
Tumbler Shaft 312948
#23

Tumbler diagram

Tumbler shaft

Part #312948

Replaced by #WP6-3129480

?
Manufacturer substitution
This part replaces 312948. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$7.19 |
12% OFF Phone Price : $8.19
In Stock
Washer Screw 211294
#1

Heater diagram

Washer screw

Part #211294

Replaced by #WP90767

?
Manufacturer substitution
This part replaces 211294. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Dryer Drum Baffle 33001755
#16

Tumbler diagram

Dryer drum baffle

Part #33001755

Replaced by #WP33001755

?
Manufacturer substitution
This part replaces 33001755. Substitute parts can look different from the original.
BEST SELLER
$23.39 |
20% OFF Phone Price : $29.39
In Stock
Dryer Drum Rear Seal 33001807
#14

Tumbler diagram

Dryer drum rear seal

Part #33001807

Replaced by #WP33001807

?
Manufacturer substitution
This part replaces 33001807. Substitute parts can look different from the original.
BEST SELLER
$15.73 |
11% OFF Phone Price : $17.73
In Stock

Most common symptoms to help you fix your dryers

Choose a symptom to see related dryer repairs.

View all

Why is my dryer making a rattling noise?

Main causes: bad drum support roller, damaged idler pulley, broken blower fan blade, worn drum glide bearing, bad drive …

Read more

Why won't my dryer heat?

Main causes: bad gas valve coils, broken heating element, tripped safety thermostat or fuse, bad operating thermostat, c…

Read more

Why won't my dryer door stay shut?

Main causes: damaged door strike, worn door catch…

Read more

Why won't my dryer shut off?

Main causes: bad timer or electronic control board, door switch failure…

Read more

Why doesn't my dryer work?

Main causes: lack of electrical power, bad power cord, wiring failure, bad control board, blown thermal fuse, bad door s…

Read more

Why does my dryer start then stop?

Main causes: clogged exhaust vent, bad motor relay, loose dryer door catch, bad door switch, control system failure, fau…

Read more

Why isn't my dryer getting my laundry dry?

Main causes: clogged exhaust system, heating system failure, deposits on moisture sensor, control system failure…

Read more

Why won't my dryer start?

Main causes: door switch failure, lack of power, broken belt, blown thermal fuse, bad drive motor, control system failur…

Read more
