Model # MC30S7GUNA Official Gibson electric dehumidifier - lg34587010
Here are the diagrams and repair parts for Official Gibson MC30S7GUNA electric dehumidifier - lg34587010, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
SELECT DIAGRAM
Browse Parts for
MC30S7GUNA Electric Dehumidifier - LG34587010
Shroud screw
Part #WA124508
Replaced by #5303286239
?
Manufacturer substitution
This part replaces WA124508. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
#5

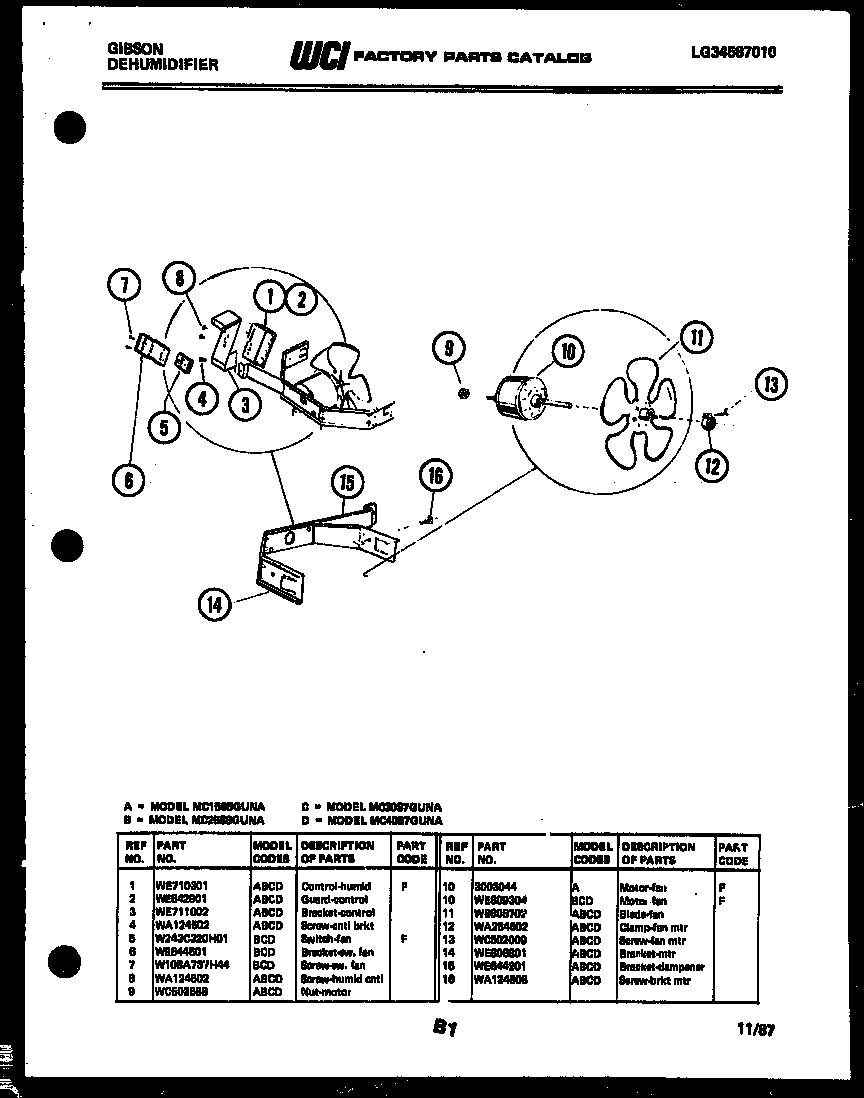

Air control parts diagram
Switch-on/of
Part #W243C320H01
Replaced by #5303012345
?
Manufacturer substitution
This part replaces W243C320H01. Substitute parts can look different from the original.
$50.93
In Stock
#1

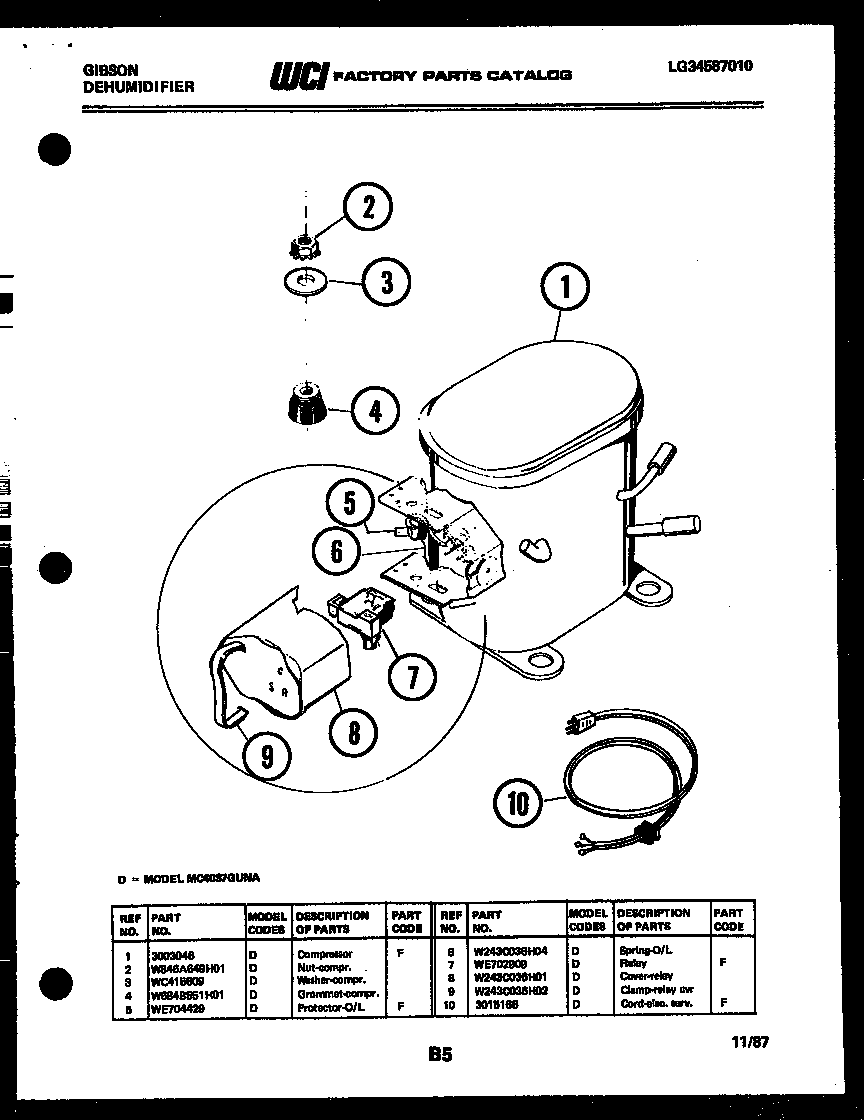

Compressor parts diagram
Compressor
Part #3015383
The manufacturer no longer makes this part, and there's no substitute part
#14
Air control parts diagram
Motor bracket
Part #WE806801
The manufacturer no longer makes this part, and there's no substitute part
#3

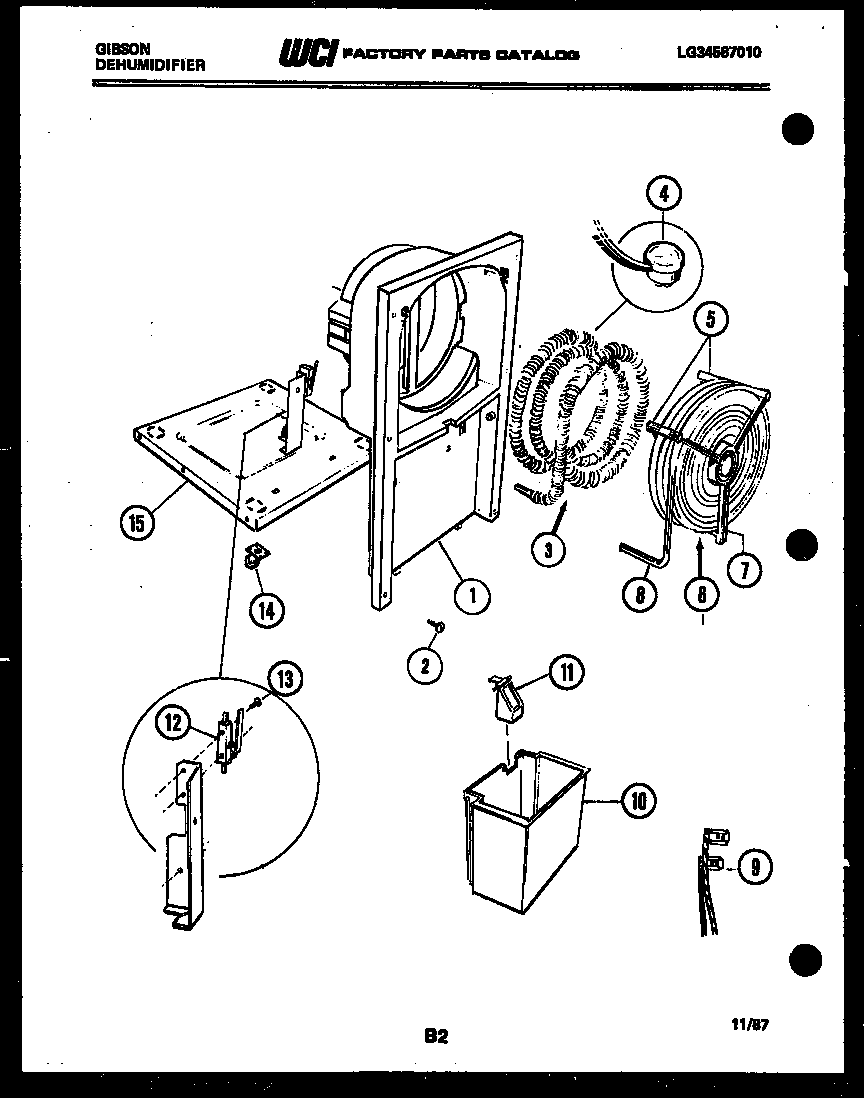

Water and condensing parts diagram
Condenser
Part #WE807503
The manufacturer no longer makes this part, and there's no substitute part
Screw
Part #WA124502
The manufacturer no longer makes this part, and there's no substitute part
#8
Water and condensing parts diagram
Capillary tube (cut to 25") .039
Part #W743B510H08
The manufacturer no longer makes this part, and there's no substitute part
#1

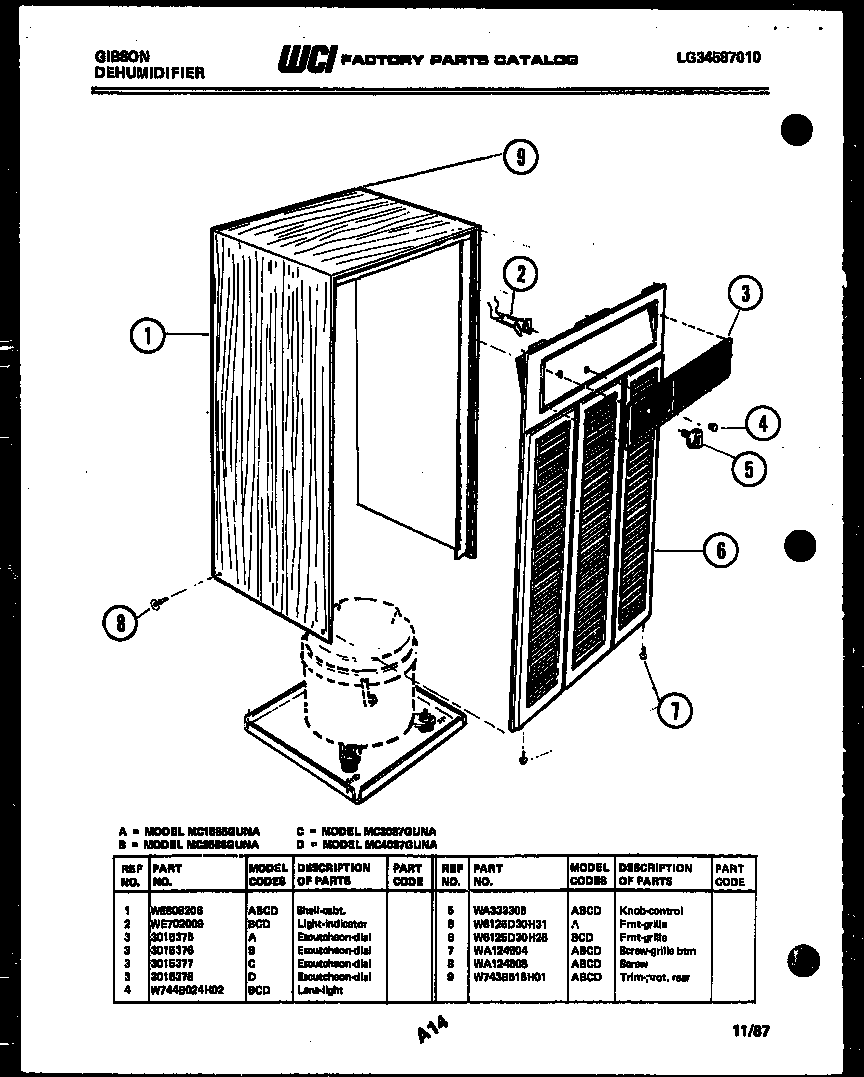

Cabinet parts diagram
Wrapper
Part #WE808206
The manufacturer no longer makes this part, and there's no substitute part
#10
Compressor parts diagram
Cord
Part #3015166
The manufacturer no longer makes this part, and there's no substitute part
#12
Water and condensing parts diagram
Switch-auto
Part #WE643101
The manufacturer no longer makes this part, and there's no substitute part
