GE
Electric Cooktop

Model # JP3849R1BL Official GE counter unit

Here are the diagrams and repair parts for Official GE JP3849R1BL counter unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 40 parts  |
Surface Unit, 8" WB30X5072
#46

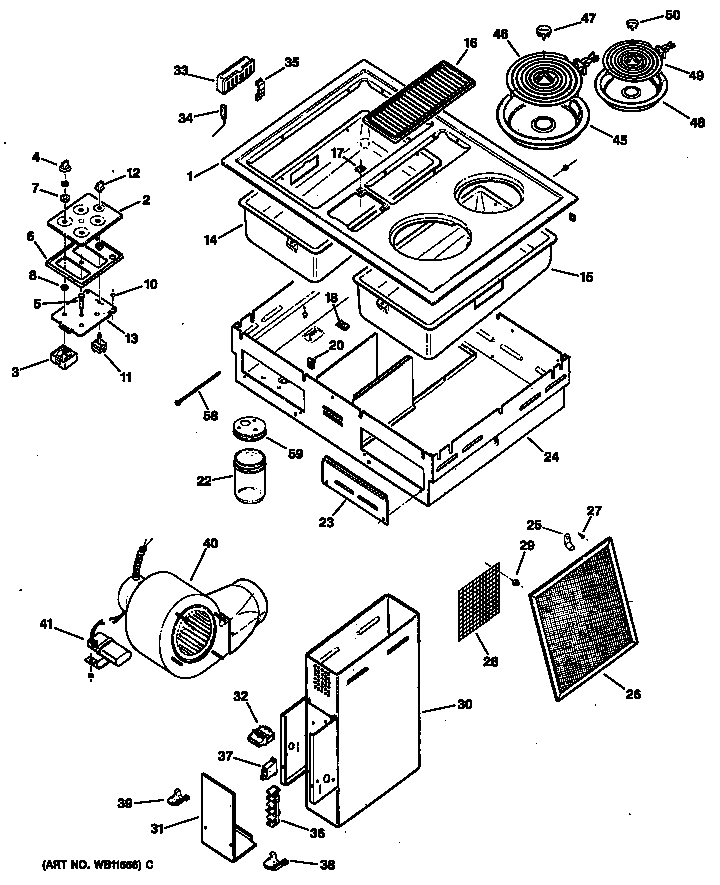

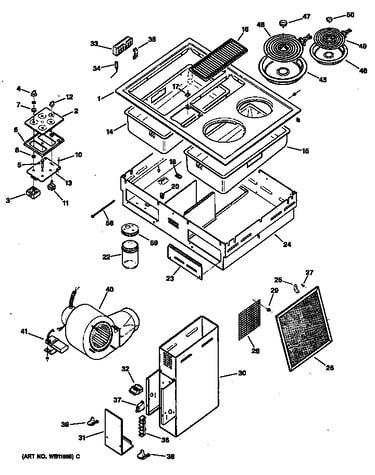

Cooktop diagram

Surface unit, 8"

Part #WB30X5072

Replaced by #WB30M2

?
Manufacturer substitution
This part replaces WB30X5072. Substitute parts can look different from the original.
BEST SELLER
$46.48 |
11% OFF Phone Price : $52.48
In Stock
8" Surf Elem WB30M0002
#47A

Cooktop diagram

8" surf elem

Part #WB30M0002

Replaced by #WB30M2

?
Manufacturer substitution
This part replaces WB30M0002. Substitute parts can look different from the original.
BEST SELLER
$46.48 |
11% OFF Phone Price : $52.48
In Stock
Surface Unit, 6" WB30X5071
#49B

Cooktop diagram

Surface unit, 6"

Part #WB30X5071

Replaced by #WB30M1

?
Manufacturer substitution
This part replaces WB30X5071. Substitute parts can look different from the original.
$38.22 |
14% OFF Phone Price : $44.22
In Stock
Cooktop Dsm WB62X5394
#1

Cooktop diagram

Cooktop dsm

Part #WB62X5394

Replaced by #WB2X8228

?
Manufacturer substitution
This part replaces WB62X5394. Substitute parts can look different from the original.
This item is not returnable
$30.23 |
17% OFF Phone Price : $36.23
Back Order
Receptacle WB17X5094

#NI

All parts diagram

Receptacle

Part #WB17X5094

Replaced by #WB17X5113

?
Manufacturer substitution
This part replaces WB17X5094. Substitute parts can look different from the original.
This item is not returnable
$31.51 |
16% OFF Phone Price : $37.51
In Stock
Range Drip Pan (black) WB32X5070
#48

Cooktop diagram

Range drip pan (black)

Part #WB32X5070

Replaced by #WB31M20

?
Manufacturer substitution
This part replaces WB32X5070. Substitute parts can look different from the original.
$10.93 |
15% OFF Phone Price : $12.93
In Stock
Pan WB32X5069
#45

Cooktop diagram

Pan

Part #WB32X5069

Replaced by #WB31M19

?
Manufacturer substitution
This part replaces WB32X5069. Substitute parts can look different from the original.
This item is not returnable
$16.56 |
11% OFF Phone Price : $18.56
In Stock
30" Dsn Case WB49X5507
#24

Cooktop diagram

30" dsn case

Part #WB49X5507

The manufacturer no longer makes this part, and there's no substitute part

Wire Clip WB2X8140
#20

Cooktop diagram

Wire clip

Part #WB2X8140

The manufacturer no longer makes this part, and there's no substitute part

Range Surface Element Terminal Block Pin WB17X5106
#34

Cooktop diagram

Range surface element terminal block pin

Part #WB17X5106

The manufacturer no longer makes this part, and there's no substitute part
