Model # 4KCDS250T2 Official KitchenAid garbage disposal

Here are the diagrams and repair parts for Official KitchenAid 4KCDS250T2 garbage disposal, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 59 parts  |

Wrench 4211435
#32

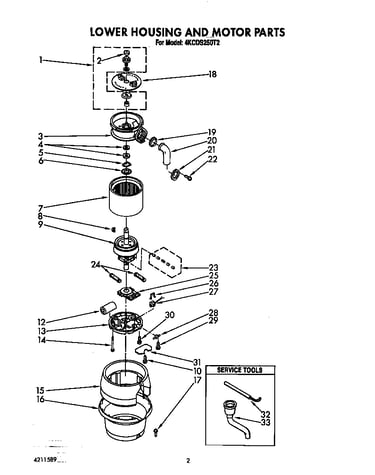

Lower housing and motor diagram

Wrench

Part #4211435

Replaced by #WP8174310

?
Manufacturer substitution
This part replaces 4211435. Substitute parts can look different from the original.
This item is not returnable
$17.59
10% OFF Phone Price : $19.59
In Stock
Whirlpool Flange 4211303
#10

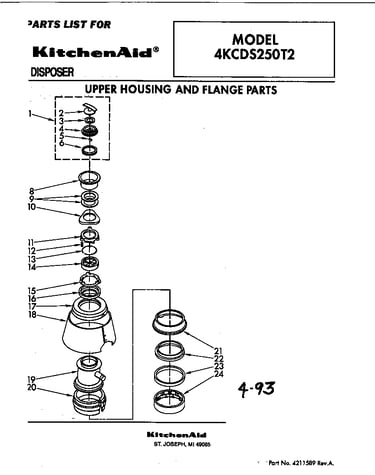

Upper housing and flange diagram

Whirlpool flange

Part #4211303

In Stock
Whirlpool Garbage Disposal Mounting Flange 4211304
#11

Upper housing and flange diagram

Whirlpool garbage disposal mounting flange

Part #4211304

In Stock
Whirlpool Adapter 4211396
#33

Lower housing and motor diagram

Whirlpool adapter

Part #4211396

In Stock
Whirlpool Garbage Disposal Mounting Flange Screw 4211305
#12

Upper housing and flange diagram

Whirlpool garbage disposal mounting flange screw

Part #4211305

$16.79
11% OFF Phone Price : $18.79
In Stock
Whirlpool Sleeve 4211578
Whirlpool sleeve

Part #4211578

In Stock
Gasket 4211355
#3

Upper housing and flange diagram

Gasket

Part #4211355

This item is not returnable
In Stock
Whirlpool Ring 4211306
#13

Upper housing and flange diagram

Whirlpool ring

Part #4211306

This item is not returnable
In Stock
Plug 4211341
#2

Lower housing and motor diagram

Plug

Part #4211341

Replaced by #4211578

?
Manufacturer substitution
This part replaces 4211341. Substitute parts can look different from the original.
In Stock
Garbage Disposal Mounting Gasket 4211334
#14

Upper housing and flange diagram

Garbage disposal mounting gasket

Part #4211334

Replaced by #WP4211334

?
Manufacturer substitution
This part replaces 4211334. Substitute parts can look different from the original.
This item is not returnable
$22.59
21% OFF Phone Price : $28.59
In Stock
