Model # MR15N1 Official Frigidaire dehumidifier - lf34590020

Here are the diagrams and repair parts for Official Frigidaire MR15N1 dehumidifier - lf34590020, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 38 parts  |
Screw 08016435
Screw

Part #08016435

This item is not returnable
$2.16
In Stock
Kelvinator Room Air Conditioner Lock Nut 08007481
#3

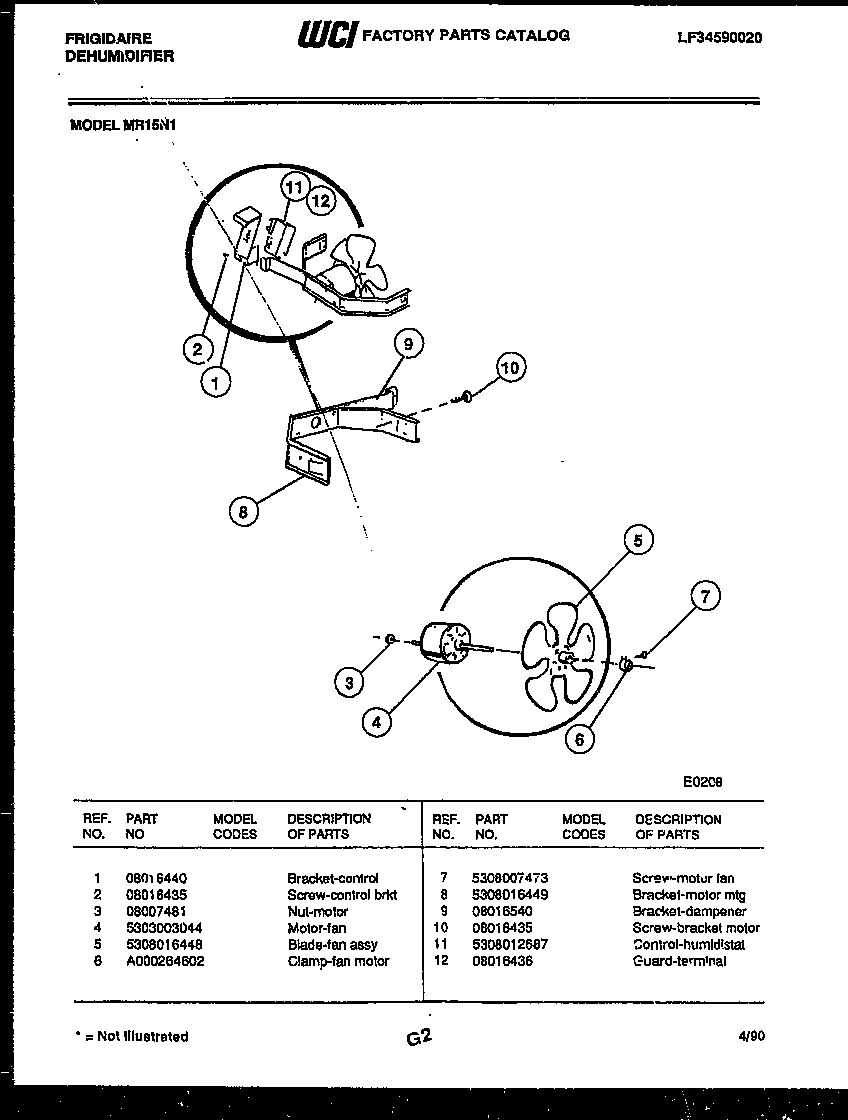

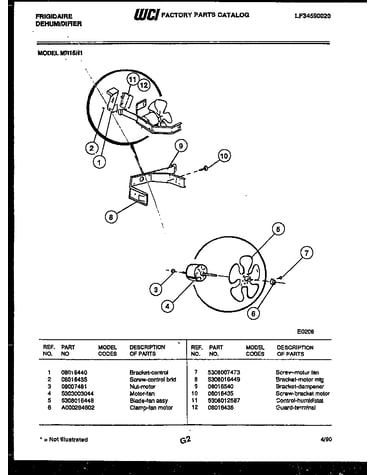

Air control parts diagram

Kelvinator room air conditioner lock nut

Part #08007481

This item is not returnable
$5.74
In Stock
Screw 5308007473
#7

Air control parts diagram

Screw

Part #5308007473

Replaced by #5304455651

?
Manufacturer substitution
This part replaces 5308007473. Substitute parts can look different from the original.
$13.26
In Stock
Strainer 3012363

#NI

All parts diagram

Strainer

Part #3012363

The manufacturer no longer makes this part, and there's no substitute part

Retainer 3003006
#7

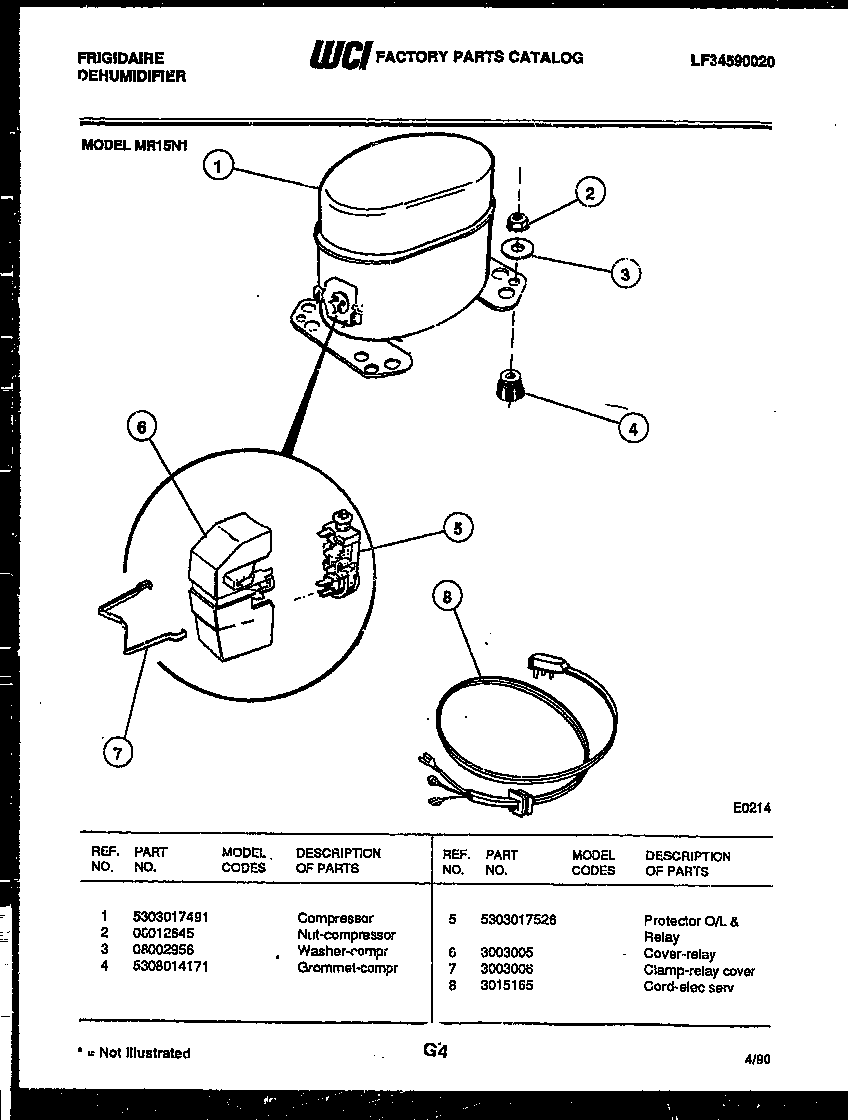

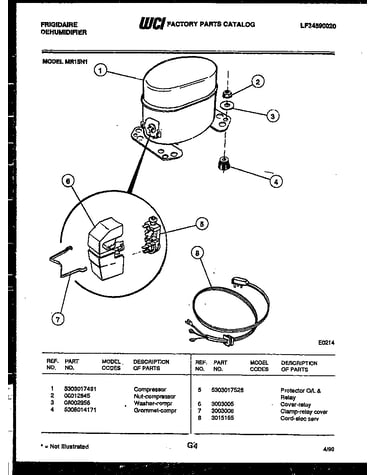

Compressor parts diagram

Retainer

Part #3003006

The manufacturer no longer makes this part, and there's no substitute part

Trim 3002958
#7

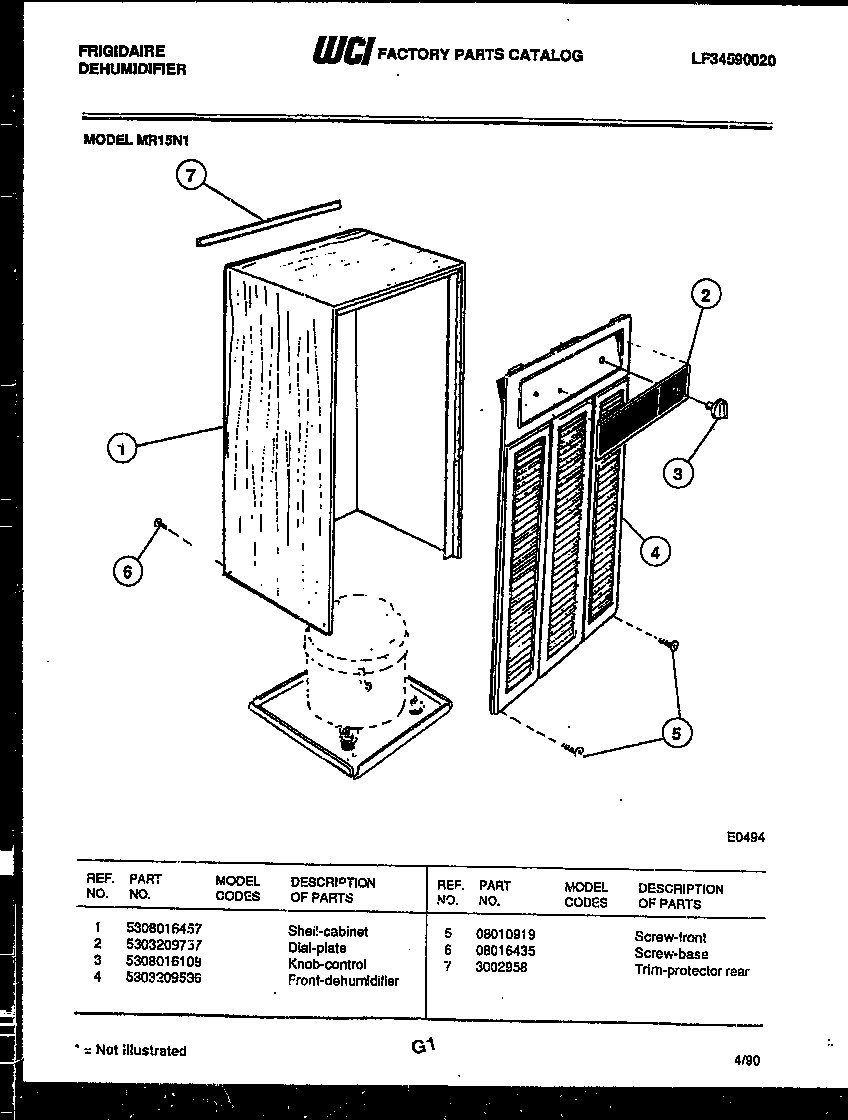

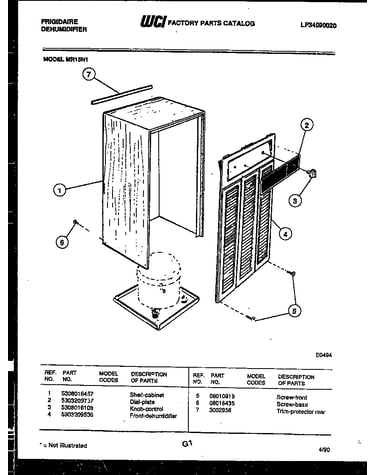

Cabinet and control parts diagram

Trim

Part #3002958

The manufacturer no longer makes this part, and there's no substitute part

Tube 3014460
#7

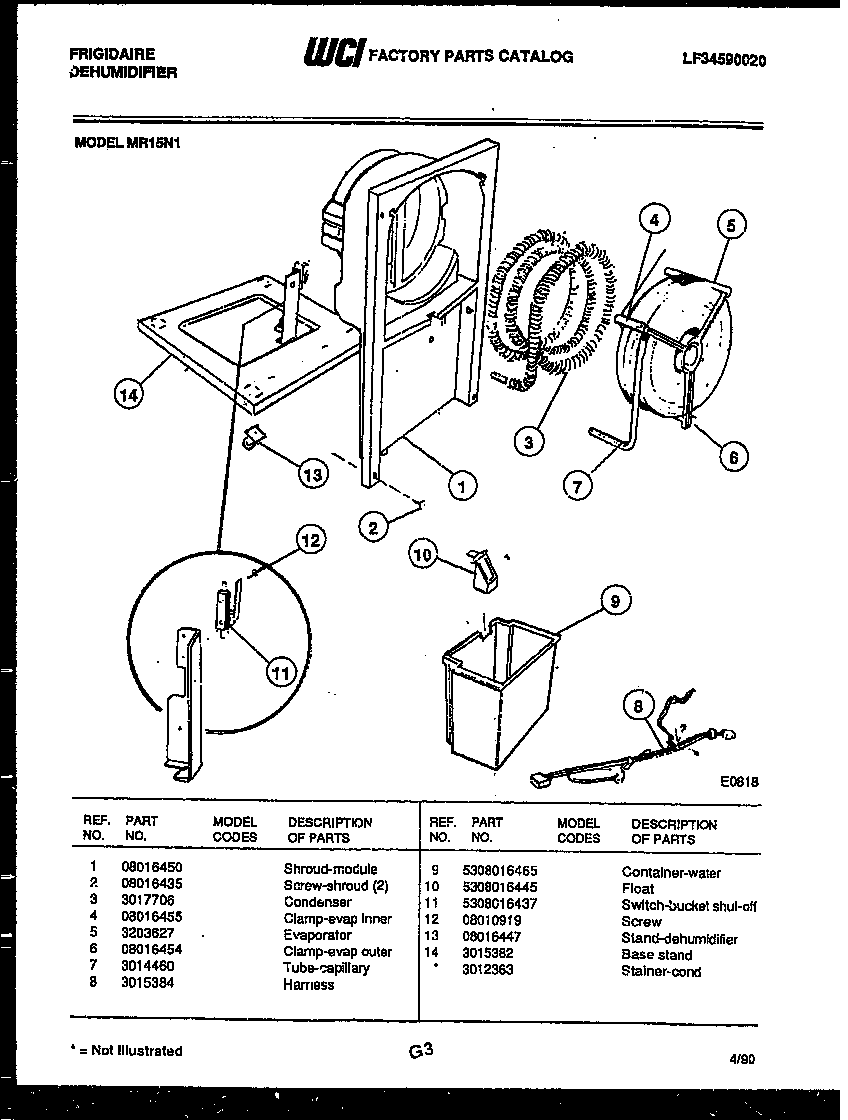

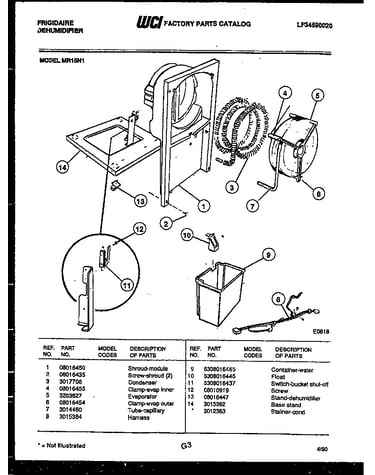

Water and condensing parts diagram

Tube

Part #3014460

The manufacturer no longer makes this part, and there's no substitute part

Float 5308016445
#10

Water and condensing parts diagram

Float

Part #5308016445

The manufacturer no longer makes this part, and there's no substitute part

Cord 3015165
#8

Compressor parts diagram

Cord

Part #3015165

The manufacturer no longer makes this part, and there's no substitute part

Clamp A000264602
#6

Air control parts diagram

Clamp

Part #A000264602

The manufacturer no longer makes this part, and there's no substitute part
