Model # MDR231RBR0 Official Universal/Multiflex (Frigidaire) 18" built-in dishwasher - 5995253977

Here are the diagrams and repair parts for Official Universal/Multiflex (Frigidaire) MDR231RBR0 18" built-in dishwasher - 5995253977, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

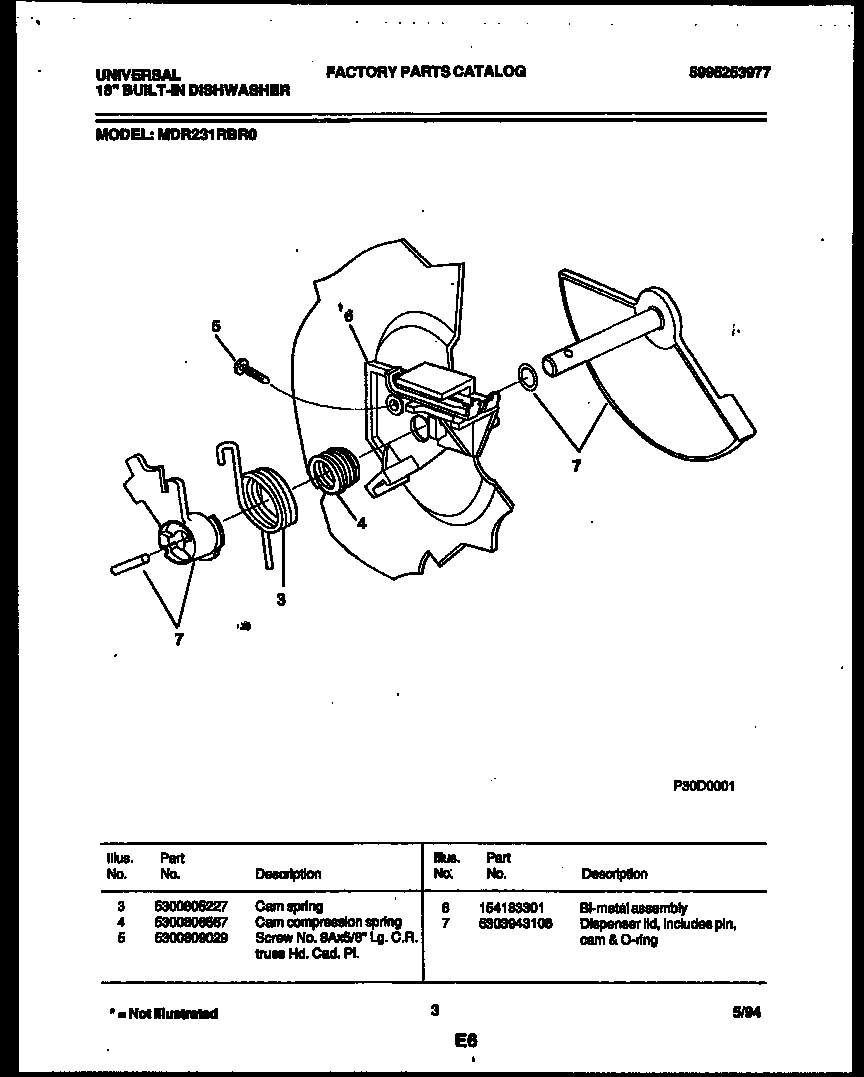

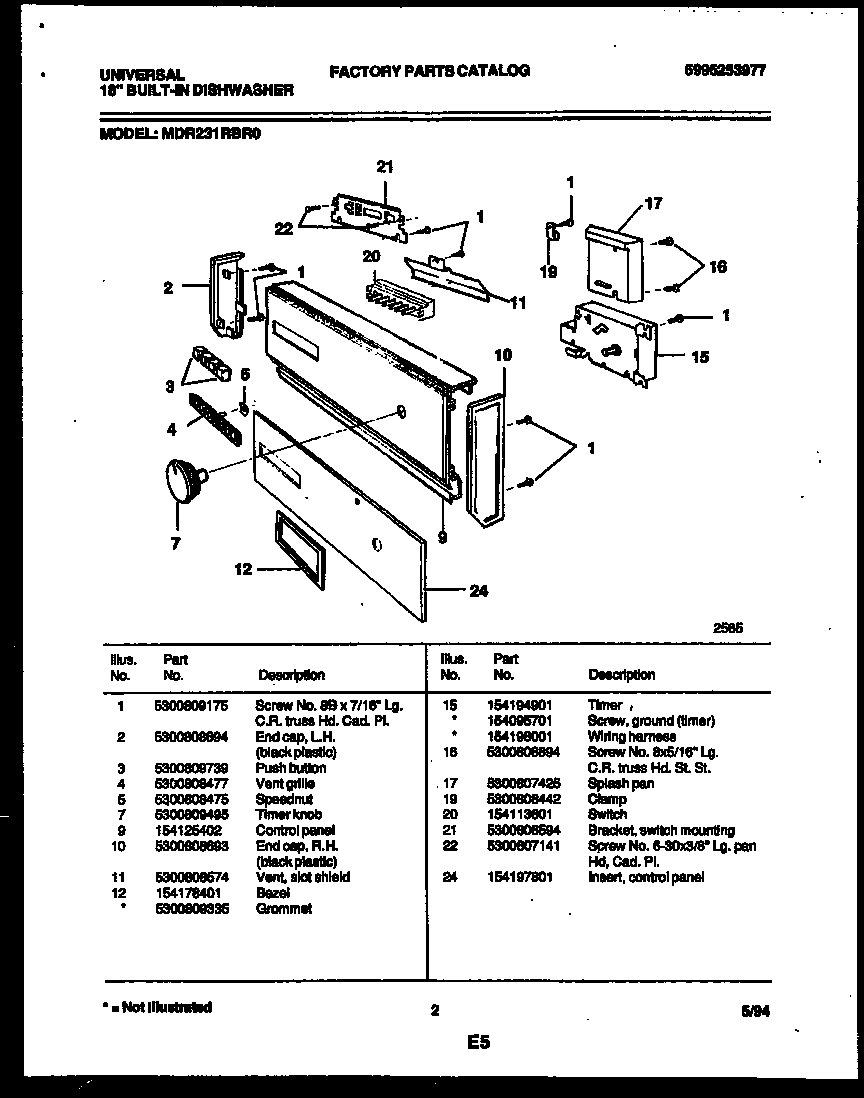

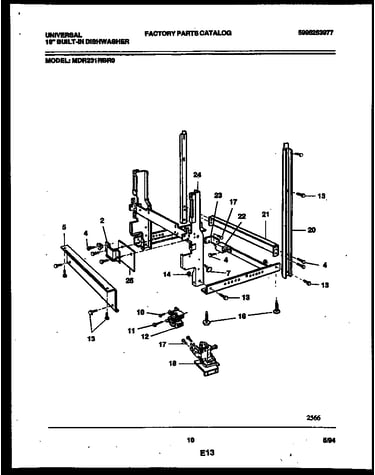

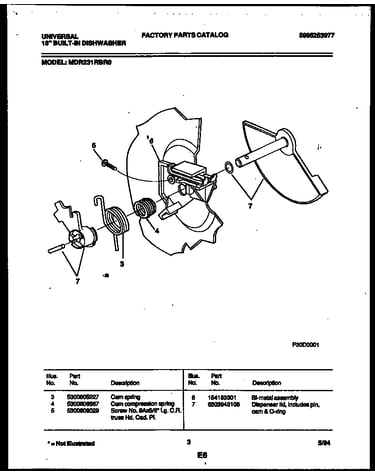

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 154 parts  |

Dishwasher Dishrack Roller, Lower 5300809640
#1

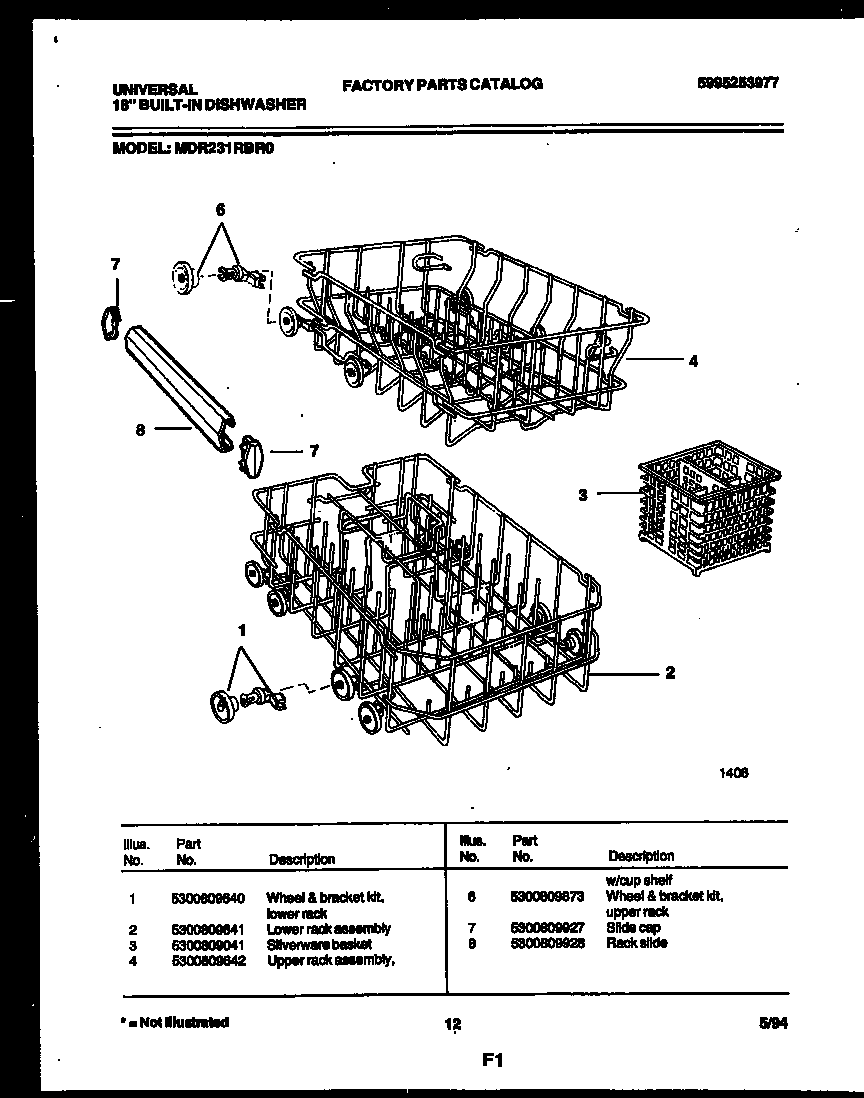

Racks and trays diagram

Dishwasher dishrack roller, lower

Part #5300809640

Replaced by #5304532229

?
Manufacturer substitution
This part replaces 5300809640. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.88
17% OFF Phone Price : $5.88
In Stock
Heating Element Nut 154106201
#19

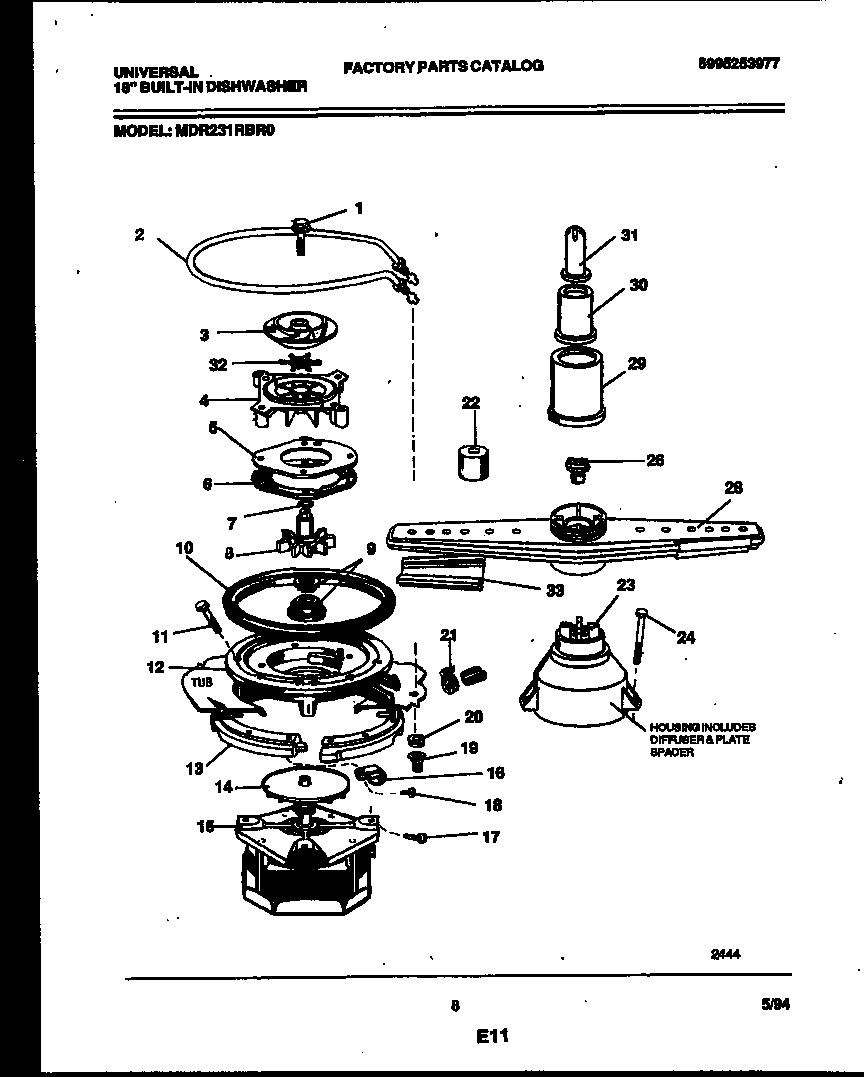

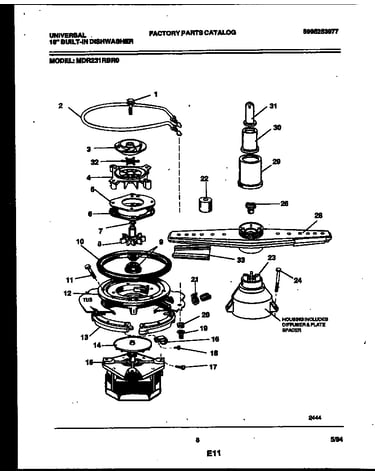

Motor pump parts diagram

Heating element nut

Part #154106201

Replaced by #154106202

?
Manufacturer substitution
This part replaces 154106201. Substitute parts can look different from the original.
BEST SELLER
$7.99
11% OFF Phone Price : $8.99
In Stock
Lock Nut 5300808470
#37

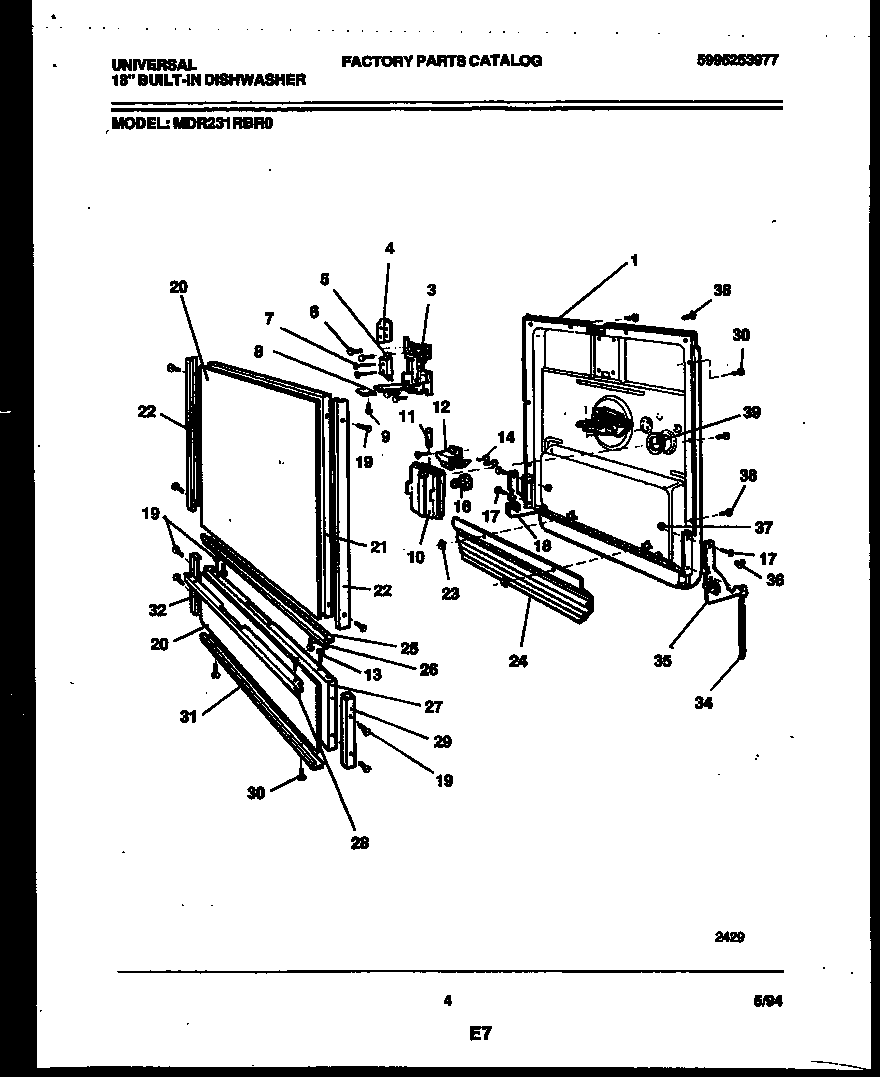

Door parts diagram

Lock nut

Part #5300808470

Replaced by #5303013272

?
Manufacturer substitution
This part replaces 5300808470. Substitute parts can look different from the original.
This item is not returnable
$18.59
10% OFF Phone Price : $20.59
In Stock
Roller 154080001
#11

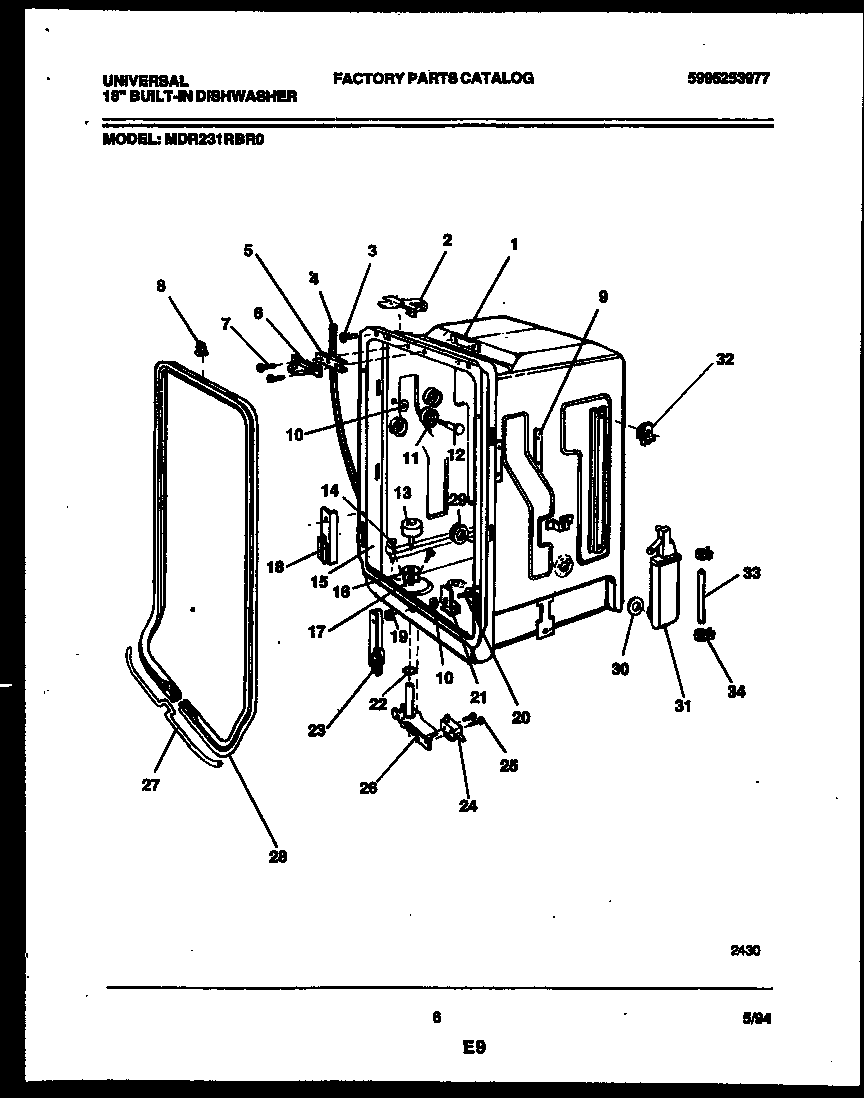

Tub and frame parts diagram

Roller

Part #154080001

Replaced by #5304507405

?
Manufacturer substitution
This part replaces 154080001. Substitute parts can look different from the original.
This item is not returnable
In Stock
Insulation 5303208369

#NI

All parts diagram

Insulation

Part #5303208369

Replaced by #154641601

?
Manufacturer substitution
This part replaces 5303208369. Substitute parts can look different from the original.
$33.02
15% OFF Phone Price : $39.02
In Stock
Dishwasher Tub Gasket Clip Set 5300805763
#8

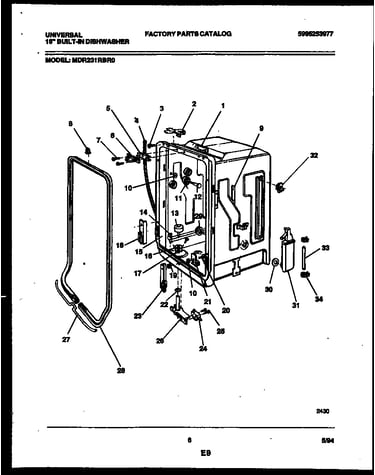

Tub and frame parts diagram

Dishwasher tub gasket clip set

Part #5300805763

In Stock
Wire Tie 5300809418
Wire tie

Part #5300809418

This item is not returnable
In Stock
Universal/multiflex (frigidaire) Screw 5300809048
#12

Tub and frame parts diagram

Universal/multiflex (frigidaire) screw

Part #5300809048

In Stock
Dishwasher Screw 5300807270
#18

Motor pump parts diagram

Dishwasher screw

Part #5300807270

This item is not returnable
In Stock
Dishwasher Circulation Impeller 5300809918
#3

Motor pump parts diagram

Dishwasher circulation impeller

Part #5300809918

In Stock
