Model # HN41240X Official Maytag water heater
Here are the diagrams and repair parts for Official Maytag HN41240X water heater, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
SELECT DIAGRAM
Browse Parts for
HN41240X Water Heaters
#20B

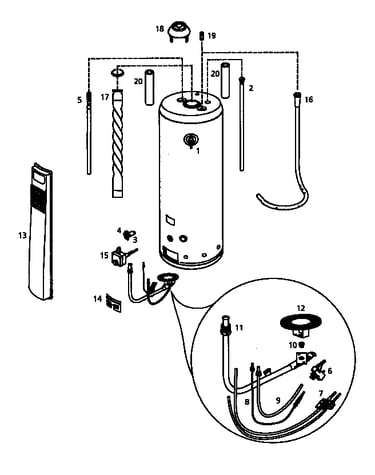

Body diagram
Manual, use & care - series 12
Part #66001089
The manufacturer no longer makes this part, and there's no substitute part
#5
Body diagram
Anode, secondary - series 12
Part #9002419
The manufacturer no longer makes this part, and there's no substitute part
#13
Body diagram
Door (outer) - series 12
Part #9002410
The manufacturer no longer makes this part, and there's no substitute part
#7
Body diagram
"e" ring - series 1
Part #N/P
The manufacturer no longer makes this part, and there's no substitute part
#20A
Body diagram
Tank, expansion (2 gal.) - series 10
Part #66001013
The manufacturer no longer makes this part, and there's no substitute part
#20
Body diagram
Insulation, pipe (2 ea)
Part #66001034
The manufacturer no longer makes this part, and there's no substitute part
#3
Body diagram
Valve, drain (2" long)
Part #66001015
The manufacturer no longer makes this part, and there's no substitute part
#10A
Body diagram
Burner orifice - series 10
Part #0230141
The manufacturer no longer makes this part, and there's no substitute part
#16
Body diagram
Dip tube
Part #66001030
The manufacturer no longer makes this part, and there's no substitute part
#19
Body diagram
Trap, cold water inlet
Part #66001033
The manufacturer no longer makes this part, and there's no substitute part
