GE
Electric Cooktop

Model # JP3889T1BL Official GE counter unit

Here are the diagrams and repair parts for Official GE JP3889T1BL counter unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 46 parts  |

Harn Asm C.p WB18X5132
#32

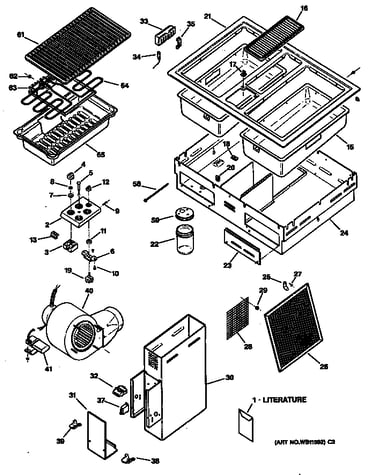

Cooktop diagram

Harn asm c.p

Part #WB18X5132

The manufacturer no longer makes this part, and there's no substitute part

Wiring Guard WB2X8142
#28

Cooktop diagram

Wiring guard

Part #WB2X8142

The manufacturer no longer makes this part, and there's no substitute part

Wire Cover WB2X8135
#31

Cooktop diagram

Wire cover

Part #WB2X8135

The manufacturer no longer makes this part, and there's no substitute part

Knob Bl W WB3X5798
#12

Cooktop diagram

Knob bl w

Part #WB3X5798

The manufacturer no longer makes this part, and there's no substitute part

Cooktop Downdraft Vent Grille (black) WB7X7150
#16

Cooktop diagram

Cooktop downdraft vent grille (black)

Part #WB7X7150

The manufacturer no longer makes this part, and there's no substitute part

Cooktop Main Top Assembly WB62X5392
#1

Cooktop diagram

Cooktop main top assembly

Part #WB62X5392

The manufacturer no longer makes this part, and there's no substitute part

Terminal Housing WB17X5096
#33A

Cooktop diagram

Terminal housing

Part #WB17X5096

The manufacturer no longer makes this part, and there's no substitute part

T-washer WB3X8139
#7

Cooktop diagram

T-washer

Part #WB3X8139

The manufacturer no longer makes this part, and there's no substitute part

Indicator Light WB2X8359
#5

Cooktop diagram

Indicator light

Part #WB2X8359

The manufacturer no longer makes this part, and there's no substitute part

Rh Tub Asm WB49X5512
#15

Cooktop diagram

Rh tub asm

Part #WB49X5512

The manufacturer no longer makes this part, and there's no substitute part
