Dynasty
Gas Grill

Model # DOBQ3001B Official Dynasty lp gas grill - dobq30

Here are the diagrams and repair parts for Official Dynasty DOBQ3001B lp gas grill - dobq30, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 22 parts  |
Side Assy, L 70002705
#14A

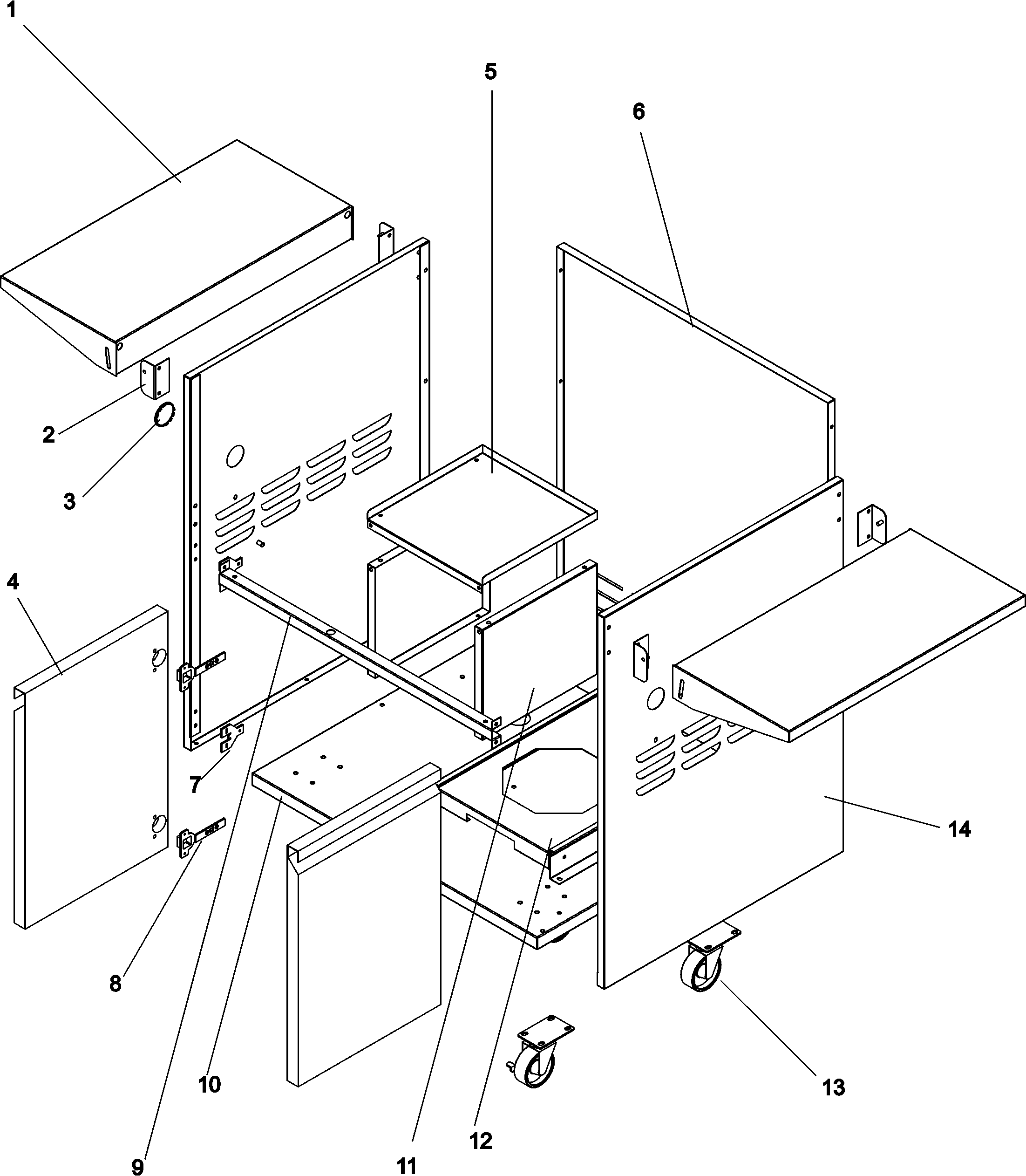

Dobb-3003a base diagram

Side assy, l

Part #70002705

The manufacturer no longer makes this part, and there's no substitute part

Inner Shelf Top, Dobb-30 (series 10) 70002697
#5

Dobb-3003a base diagram

Inner shelf top, dobb-30 (series 10)

Part #70002697

The manufacturer no longer makes this part, and there's no substitute part

Caster 70001734
#13A

Dobb-3003a base diagram

Caster

Part #70001734

The manufacturer no longer makes this part, and there's no substitute part

Hinge Clip 70002219
#8

Dobb-3003a base diagram

Hinge clip

Part #70002219

The manufacturer no longer makes this part, and there's no substitute part

Screw 70001795
#7A

Dobb-3003a base diagram

Screw

Part #70001795

The manufacturer no longer makes this part, and there's no substitute part

Nut 70001791
#13B

Dobb-3003a base diagram

Nut

Part #70001791

The manufacturer no longer makes this part, and there's no substitute part

Door Assy, L 70002702
#4

Dobb-3003a base diagram

Door assy, l

Part #70002702

The manufacturer no longer makes this part, and there's no substitute part

Side Assy, Rh, Dobb-30/42 (series 10) 70002699
#14

Dobb-3003a base diagram

Side assy, rh, dobb-30/42 (series 10)

Part #70002699

The manufacturer no longer makes this part, and there's no substitute part

Screw (1/4x2 70001803
#13C

Dobb-3003a base diagram

Screw (1/4x2

Part #70001803

The manufacturer no longer makes this part, and there's no substitute part

Face Plate 70002076
#7

Dobb-3003a base diagram

Face plate

Part #70002076

The manufacturer no longer makes this part, and there's no substitute part
