Model # DCL333GY0WW Official GE gas dryer

Here are the diagrams and repair parts for Official GE DCL333GY0WW gas dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

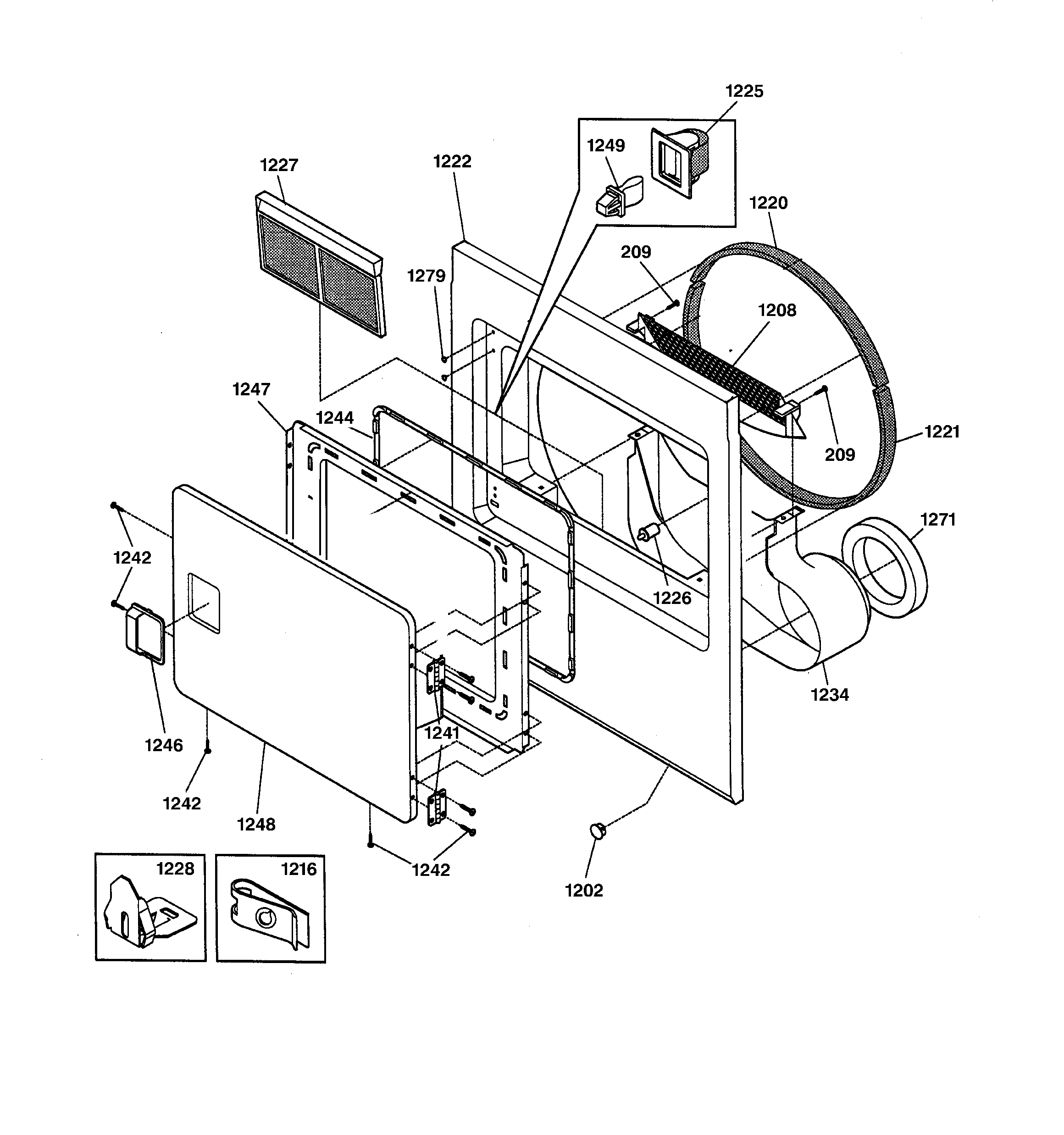

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 118 parts  |
Dryer Start Switch WE04X10033
#15

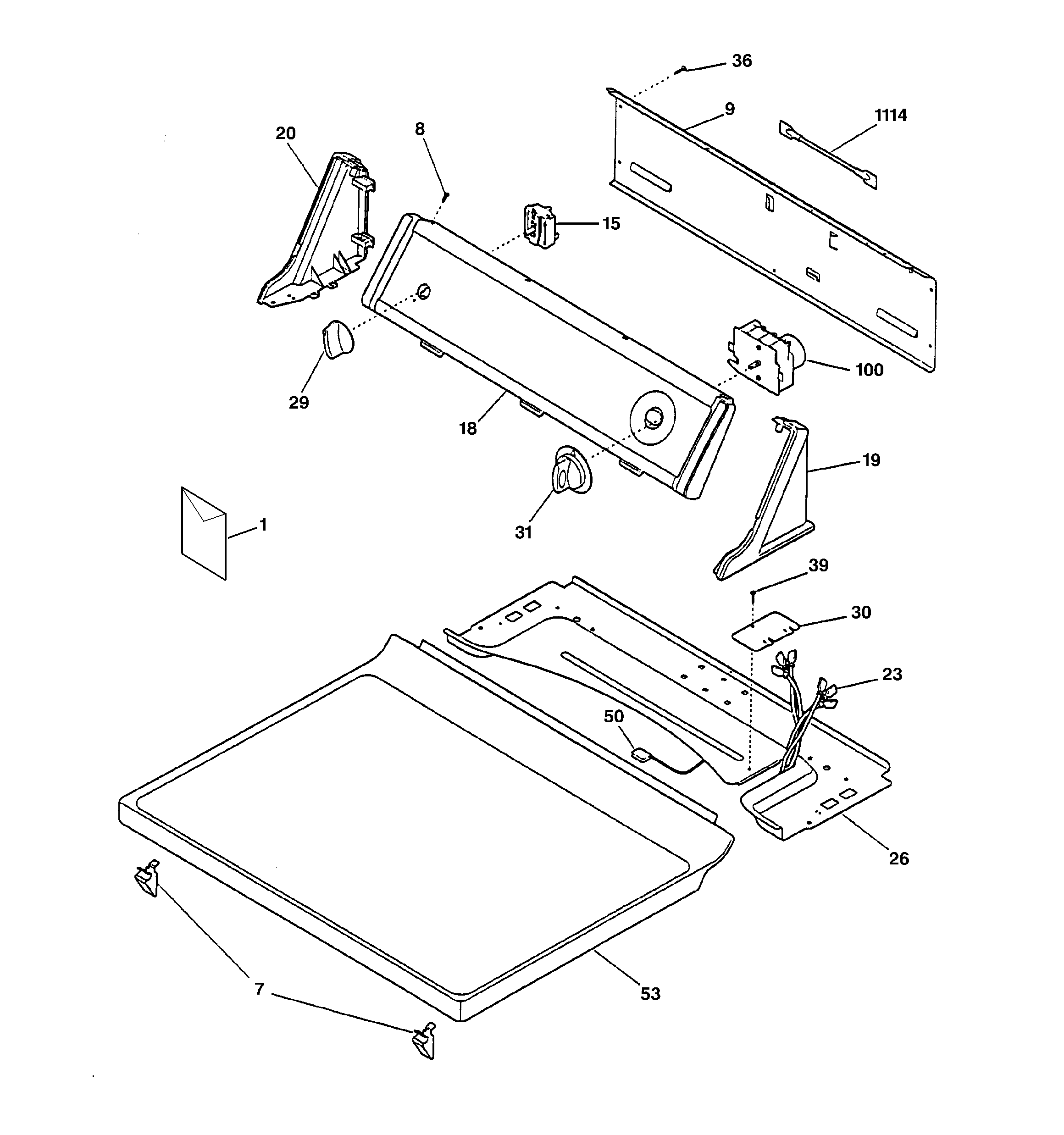

Controls & top panel diagram

Dryer start switch

Part #WE04X10033

Replaced by #WE4X881

?
Manufacturer substitution
This part replaces WE04X10033. Substitute parts can look different from the original.
BEST SELLER
$56.01 |
10% OFF Phone Price : $62.01
In Stock
Dryer Belt WE12X10001
#1325

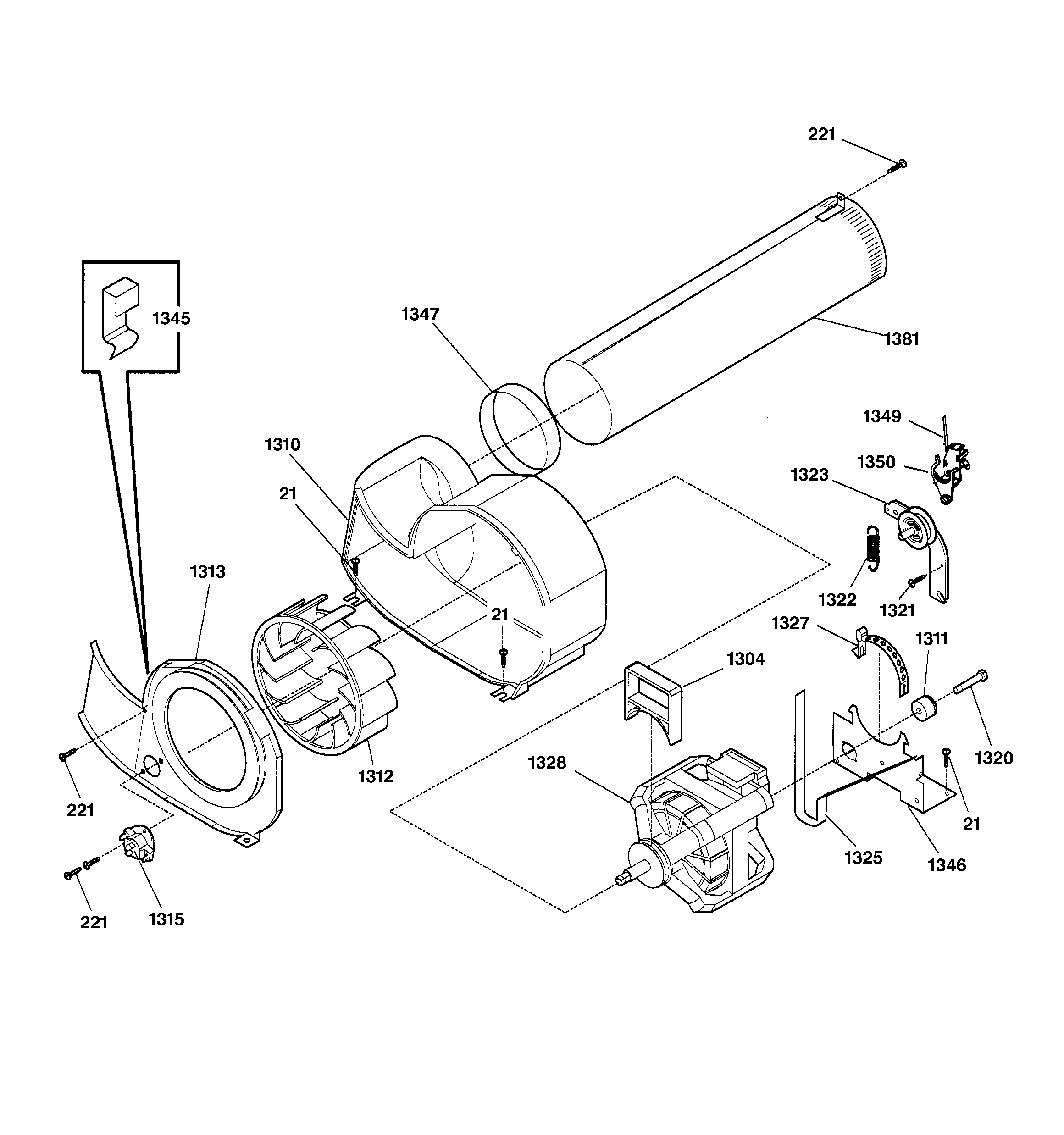

Motor diagram

Dryer belt

Part #WE12X10001

Replaced by #WE12X10009

?
Manufacturer substitution
This part replaces WE12X10001. Substitute parts can look different from the original.
$68.77 |
8% OFF Phone Price : $74.77
In Stock
Dryer Drum Bearing Bracket WE13X10009
#1213

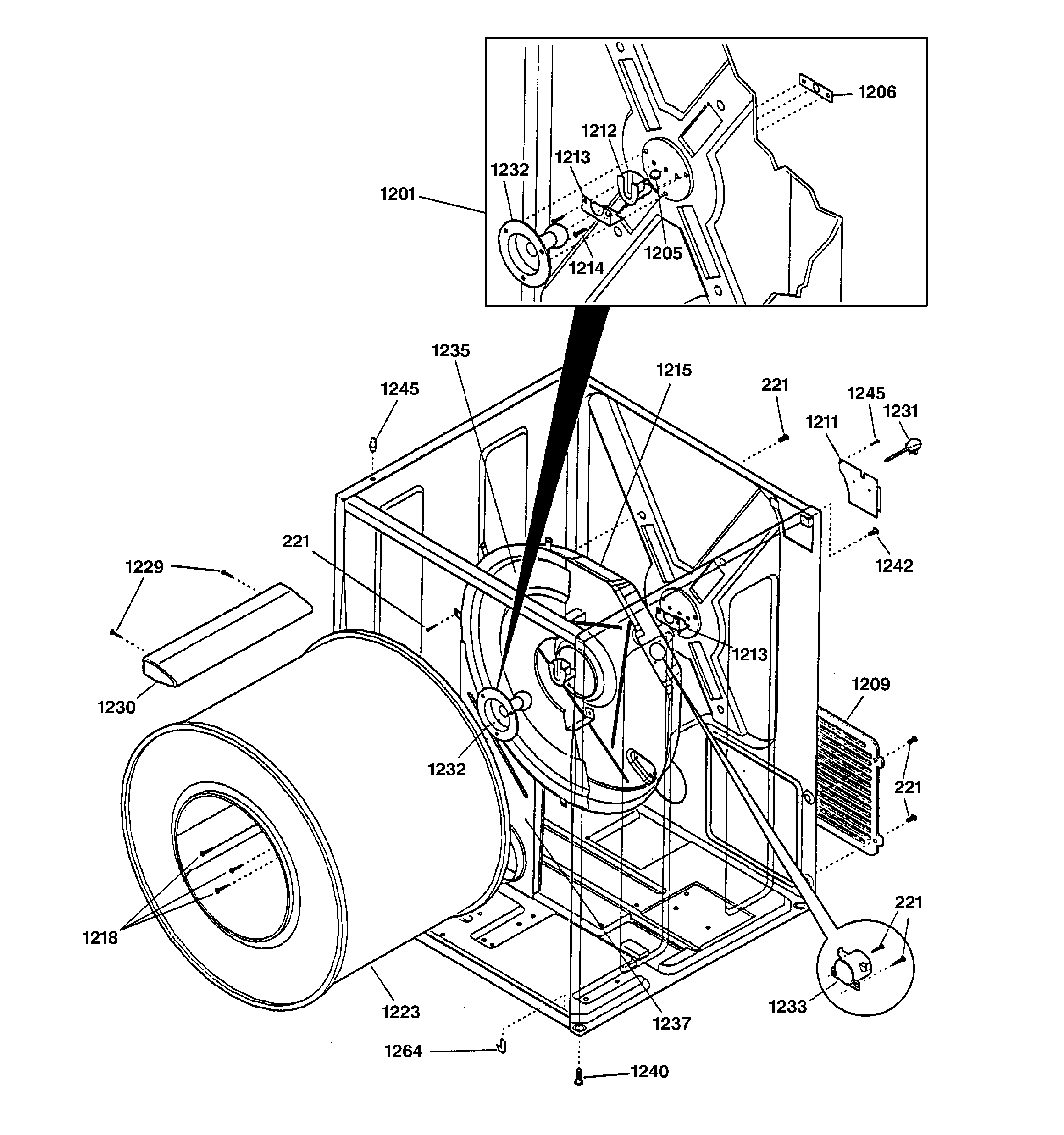

Cabinet & drum diagram

Dryer drum bearing bracket

Part #WE13X10009

Replaced by #WE13X28680

?
Manufacturer substitution
This part replaces WE13X10009. Substitute parts can look different from the original.
$36.40
In Stock
Dvl223 - Njl 49-9996
#1

Controls & top panel diagram

Dvl223 - njl

Part #49-9996

$8.59 |
10% OFF Phone Price : $9.59
In Stock
Screw WE02X10011
#NI

Controls & top panel diagram

Screw

Part #WE02X10011

$23.71
In Stock
Gas Harness WE08X10003
#1355

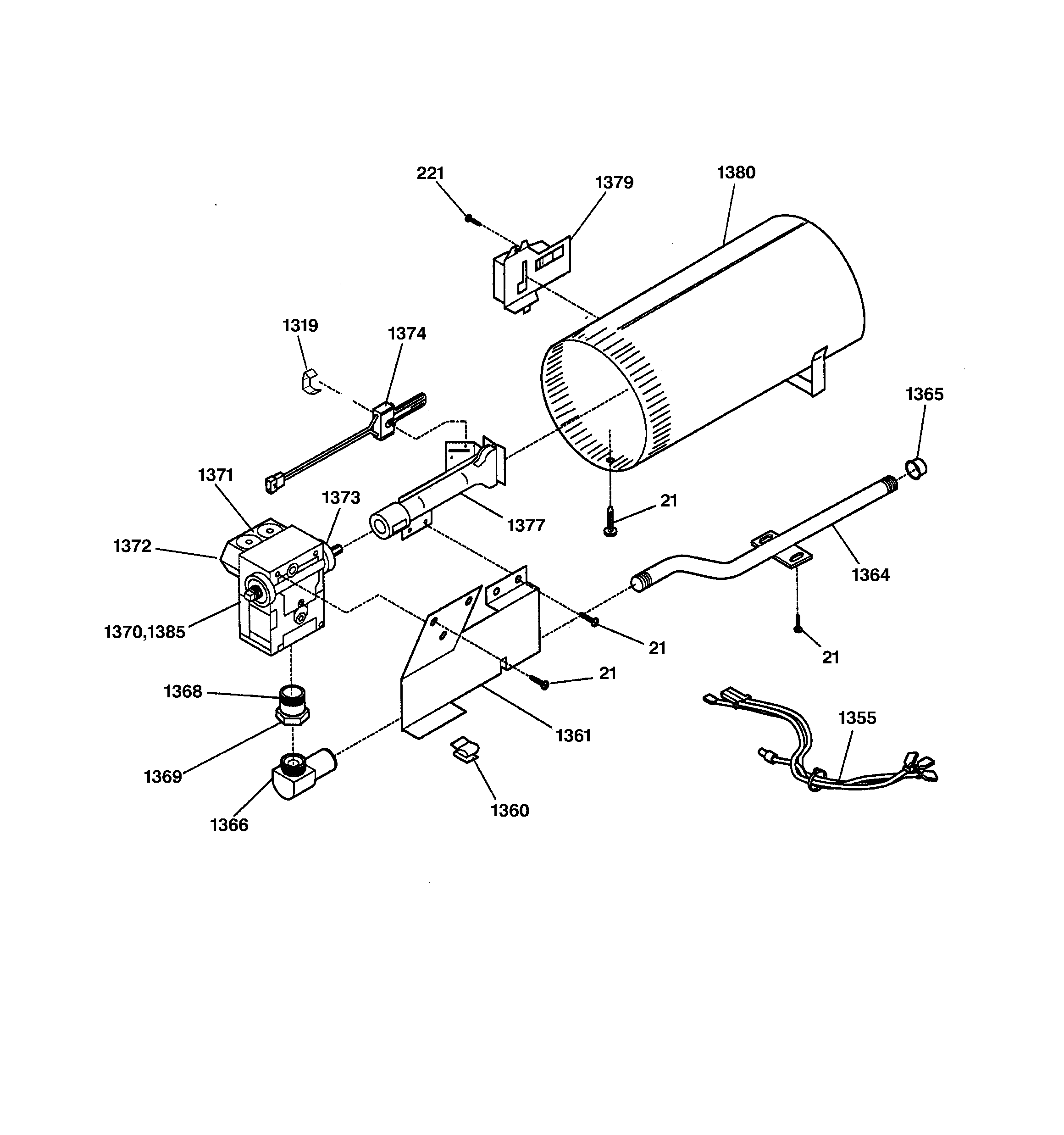

Burner diagram
