Model # 2538293680 Official Kenmore upright freezer
Here are the diagrams and repair parts for Official Kenmore 2538293680 upright freezer, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for2538293680 Freestanding Freezers
- #10

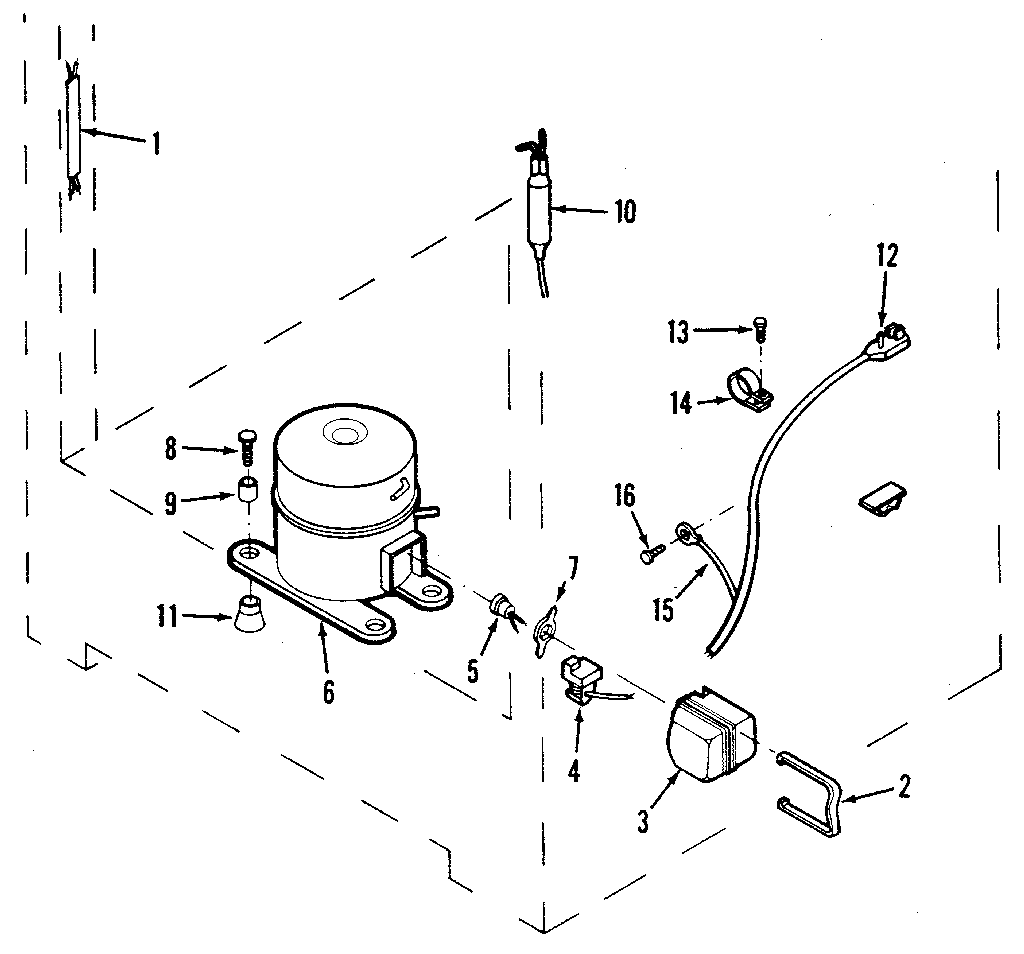

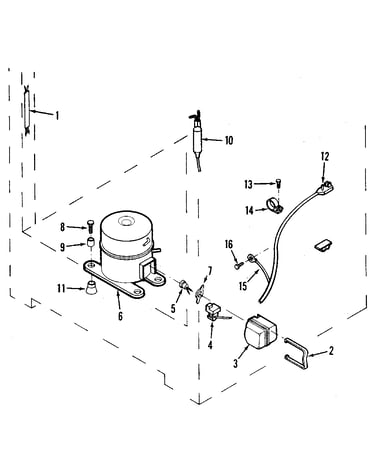

Unit diagram
DrierPart #152474
Replaced by #5303305677
?Manufacturer substitutionThis part replaces 152474. Substitute parts can look different from the original.$23.67 |20% OFF Phone Price : $29.67In Stock - #12

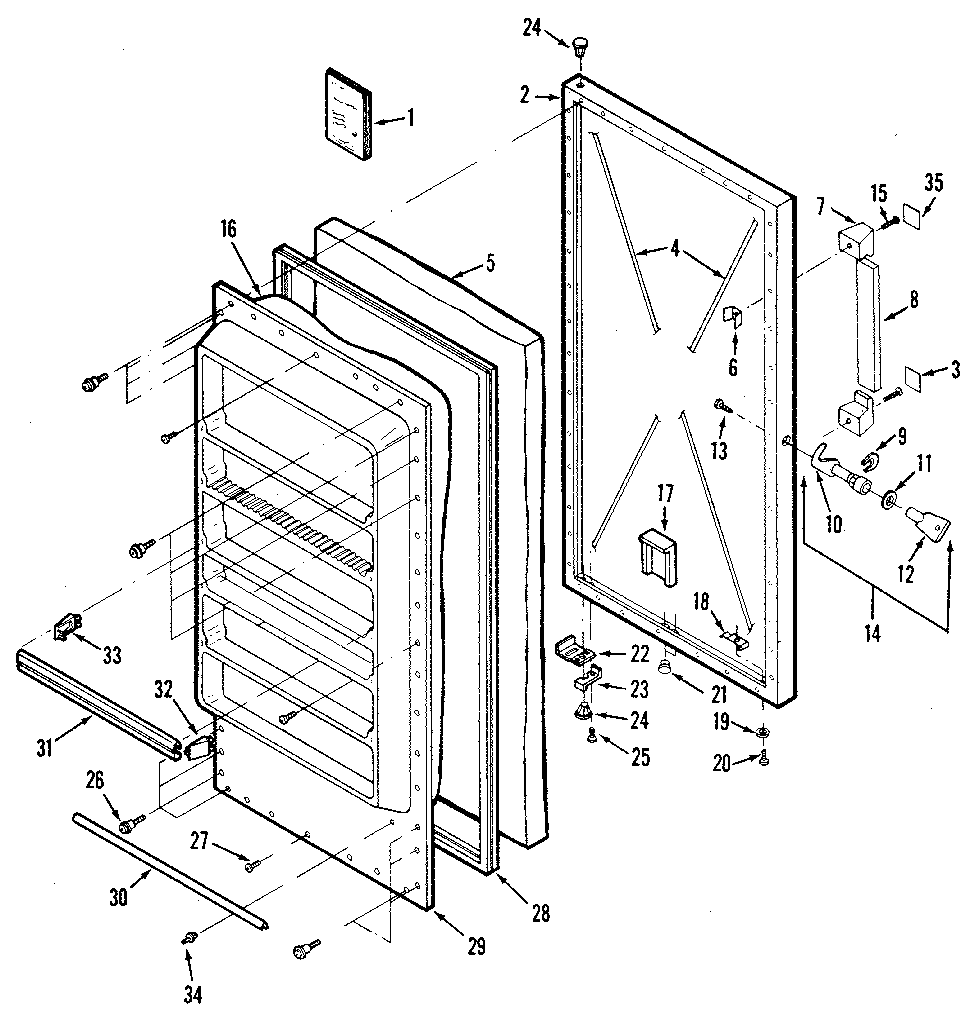

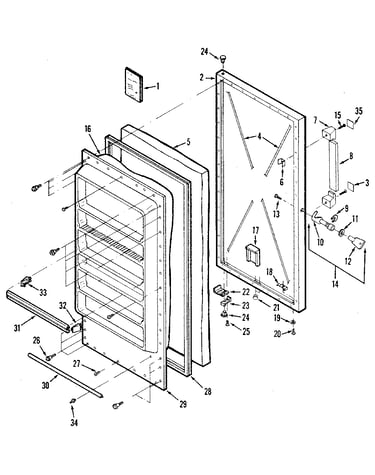

Door diagram
KeyPart #08037402
Replaced by #297147700
?Manufacturer substitutionThis part replaces 08037402. Substitute parts can look different from the original.$8.48 |11% OFF Phone Price : $9.48In Stock - #2

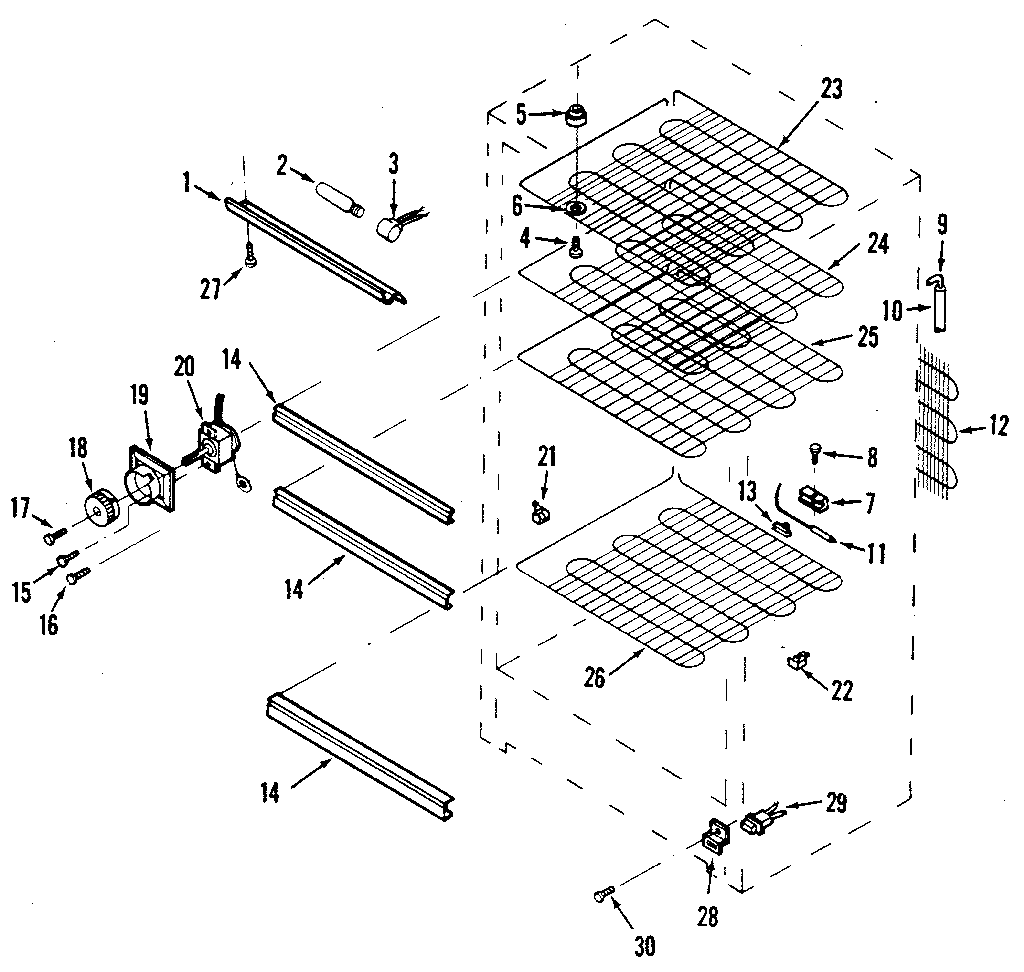

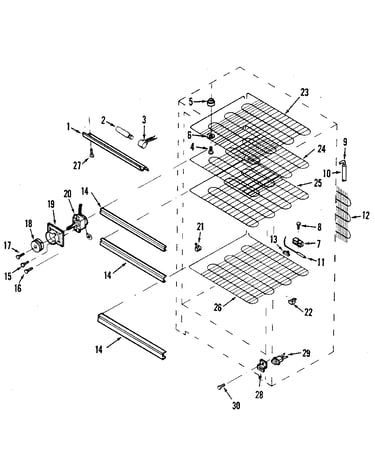

Liner diagram
BulbPart #3091423
Replaced by #5304517886
?Manufacturer substitutionThis part replaces 3091423. Substitute parts can look different from the original.$51.58 |10% OFF Phone Price : $57.58In Stock - #12

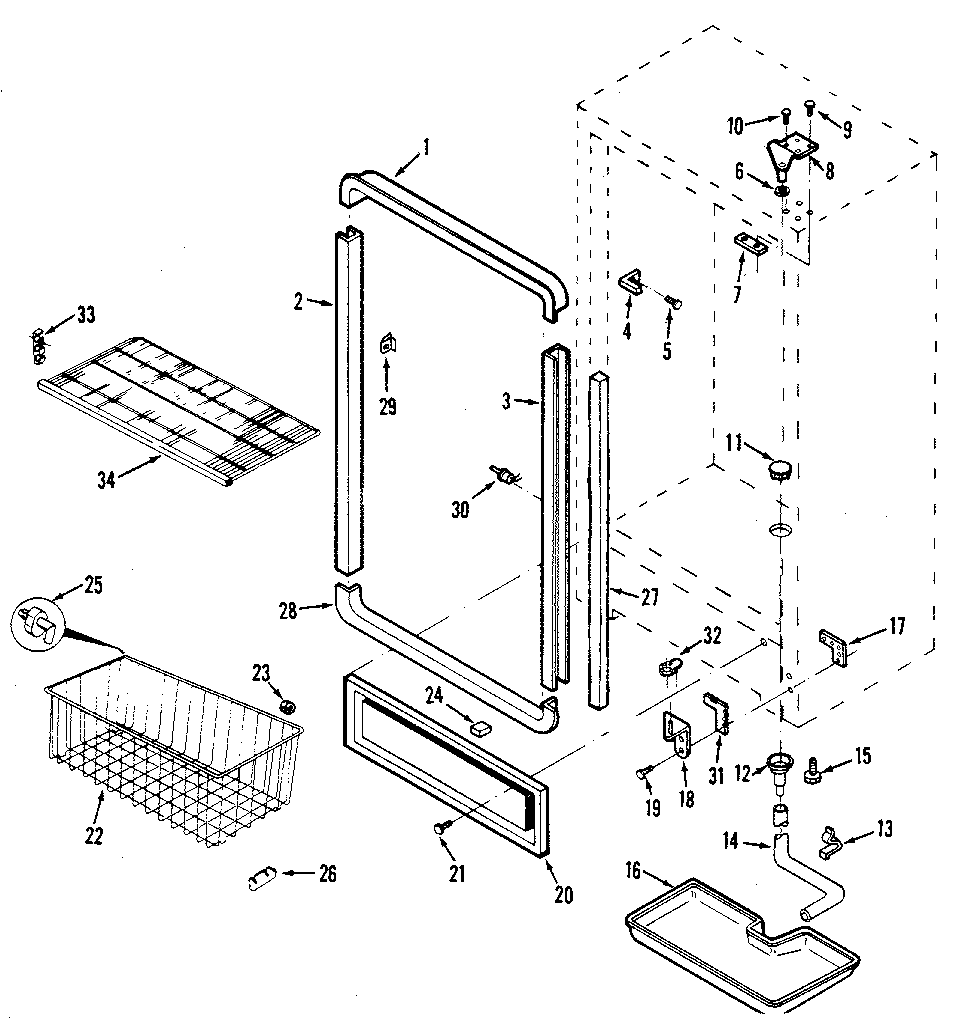

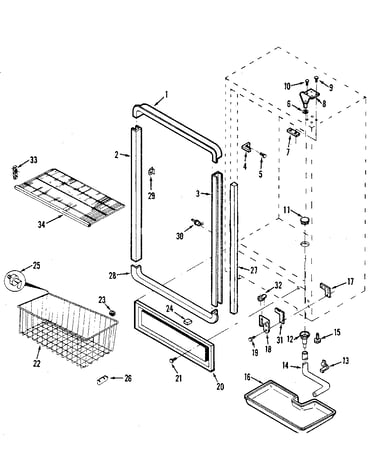

Cabinet diagram
DrainPart #08005500
Replaced by #5304511843
?Manufacturer substitutionThis part replaces 08005500. Substitute parts can look different from the original.This item is not returnable$13.52 |13% OFF Phone Price : $15.52In Stock - #14
Cabinet diagram
HosePart #129678
Replaced by #5304512272
?Manufacturer substitutionThis part replaces 129678. Substitute parts can look different from the original.This item is not returnable$16.36 |11% OFF Phone Price : $18.36In Stock - #11
Liner diagram
SleevePart #08037932
Replaced by #5303916855
?Manufacturer substitutionThis part replaces 08037932. Substitute parts can look different from the original.$48.96 |11% OFF Phone Price : $54.96In Stock - #21
Liner diagram
SupportPart #08037995
Replaced by #297001600
?Manufacturer substitutionThis part replaces 08037995. Substitute parts can look different from the original.This item is not returnable$16.67 |11% OFF Phone Price : $18.67In Stock - #26
Cabinet diagram
GlidePart #1123942
Replaced by #08009560
?Manufacturer substitutionThis part replaces 1123942. Substitute parts can look different from the original.$27.07 |18% OFF Phone Price : $33.07In Stock - #16
Door diagram
InsulationPart #116171-50
Replaced by #5303925098
?Manufacturer substitutionThis part replaces 116171-50. Substitute parts can look different from the original.$98.69 |11% OFF Phone Price : $110.69In Stock - Screw
Part #08037935
The manufacturer no longer makes this part, and there's no substitute part
Most common symptoms to help you fix your freestanding freezers
Choose a symptom to see related freezer repairs.
Main causes: lack of power, bad compressor, refrigerant leak, bad thermistor, defrost system failure, dirty condenser co…
Main causes: dirty condenser coils, condenser fan failure, dirty bottom front grill, leaky door or lid gasket…
Main causes: excessive frost, bad defrost heater, bad defrost bi-metal, control system failure, low refrigerant charge, …
Main causes: burned out light bulb, bad door or lid switch, faulty LED light board, wiring failure, control system failu…
Main causes: damaged door or lid gasket, cracked cabinet liner, bad defrost bi-metal thermostat, broken defrost heater, …
Main causes: compressor failure, no refrigerant, faulty sensor, control failure, broken defrost heater, bad defrost bi-m…
Main causes: leaky door or lid gasket, broken defrost heater, bad defrost bi-metal thermostat, defrost control failure, …
Main causes: lack of power, control system failure, broken compressor start relay, locked up compressor, compressor moto…
