Ryobi
Router

Model # R160K Official Ryobi router

Here are the diagrams and repair parts for Official Ryobi R160K router, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 63 parts  |
Lower Bearing Plate 973659001
#30

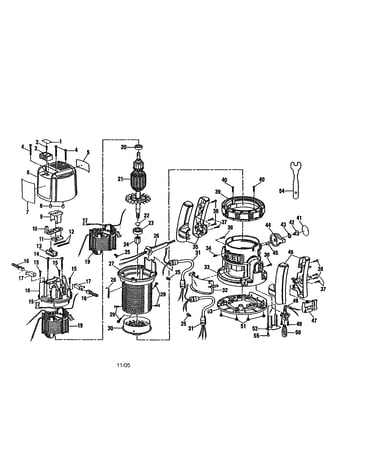

Router diagram

Lower bearing plate

Part #973659001

The manufacturer no longer makes this part, and there's no substitute part

End Cap 973658001
#6

Router diagram

End cap

Part #973658001

The manufacturer no longer makes this part, and there's no substitute part

Screw (#8-32 X 7/16 In Flt Poi 726676002
#34

Router diagram

Screw (#8-32 x 7/16 in flt poi

Part #726676002

The manufacturer no longer makes this part, and there's no substitute part

Data Plate (r160) 973677001
#5

Router diagram

Data plate (r160)

Part #973677001

The manufacturer no longer makes this part, and there's no substitute part

Carrying Case 973953000

#NI01

All parts diagram

Carrying case

Part #973953000

The manufacturer no longer makes this part, and there's no substitute part

Top Bearing Plate 612848007
#18

Router diagram

Top bearing plate

Part #612848007

The manufacturer no longer makes this part, and there's no substitute part

Retainer Clip 989573001
#9

Router diagram

Retainer clip

Part #989573001

The manufacturer no longer makes this part, and there's no substitute part

Cord 970105020
#26

Router diagram

Cord

Part #970105020

The manufacturer no longer makes this part, and there's no substitute part

Screw (#10-32 X 5/16 In Pan Hd) 970712002
#42

Router diagram

Screw (#10-32 x 5/16 in pan hd)

Part #970712002

The manufacturer no longer makes this part, and there's no substitute part

Field (r165) 968307120
#19A

Router diagram

Field (r165)

Part #968307120

The manufacturer no longer makes this part, and there's no substitute part
