Kenmore
Garbage Disposal

Model # 17565280 Official Kenmore garbage disposal

Here are the diagrams and repair parts for Official Kenmore 17565280 garbage disposal, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

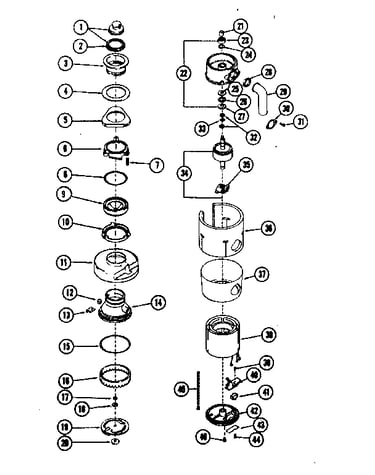

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 46 parts  |
Bracket 1485
#13

Replacement parts diagram

Bracket

Part #1485

The manufacturer no longer makes this part, and there's no substitute part

Insinkerator Garbage Disposal Support Ring 5166
#8

Replacement parts diagram

Insinkerator garbage disposal support ring

Part #5166

The manufacturer no longer makes this part, and there's no substitute part

Washr, Thrus 1472
#32

Replacement parts diagram

Washr, thrus

Part #1472

The manufacturer no longer makes this part, and there's no substitute part

Screw 8221
#39

Replacement parts diagram

Screw

Part #8221

The manufacturer no longer makes this part, and there's no substitute part

Thrust Washer 1432
#24

Replacement parts diagram

Thrust washer

Part #1432

The manufacturer no longer makes this part, and there's no substitute part

Garbage Disposal Motor Shaft Seal 4250
#23

Replacement parts diagram

Garbage disposal motor shaft seal

Part #4250

The manufacturer no longer makes this part, and there's no substitute part

Garbage Disposal Drain Stopper Gasket 5029
#2

Replacement parts diagram

Garbage disposal drain stopper gasket

Part #5029

The manufacturer no longer makes this part, and there's no substitute part

Insinkerator Garbage Disposal Sink Flange 5141
#6

Replacement parts diagram

Insinkerator garbage disposal sink flange

Part #5141

The manufacturer no longer makes this part, and there's no substitute part

Insinkerator Garbage Disposal Sink Flange Gasket 1160
#4

Replacement parts diagram

Insinkerator garbage disposal sink flange gasket

Part #1160

The manufacturer no longer makes this part, and there's no substitute part

Garbage Disposal Container O-ring 1473
#15

Replacement parts diagram

Garbage disposal container o-ring

Part #1473

The manufacturer no longer makes this part, and there's no substitute part
