Craftsman
Front-Engine Lawn Tractor

Model # 917278041 Official Craftsman tractor

Here are the diagrams and repair parts for Official Craftsman 917278041 tractor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

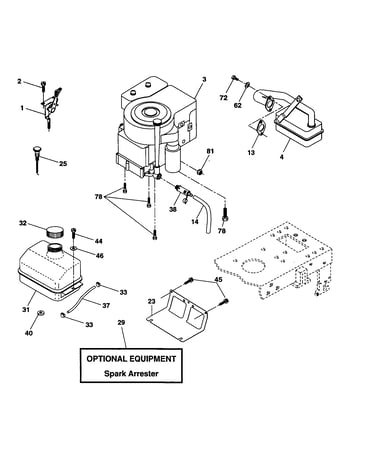

  View engine

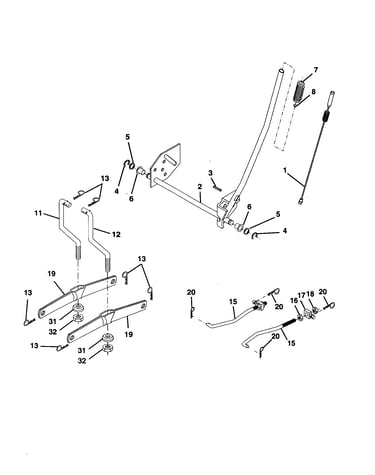

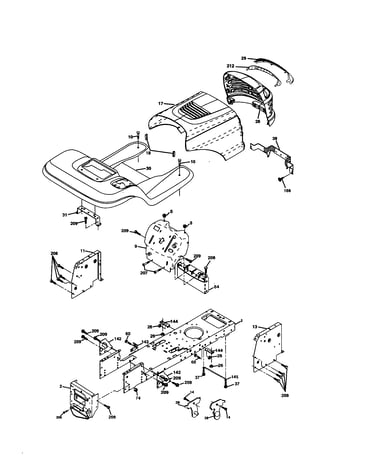

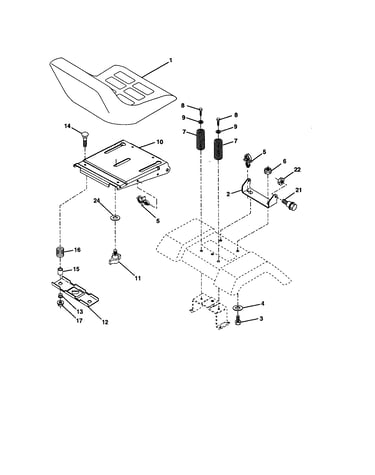

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 594 parts  |
Lawn Tractor Axle Cap 104757X428
#11

Wheels and tires diagram

Lawn tractor axle cap

Part #104757X428

Replaced by #532104757

?
Manufacturer substitution
This part replaces 104757X428. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lock Nut 73900600
#120

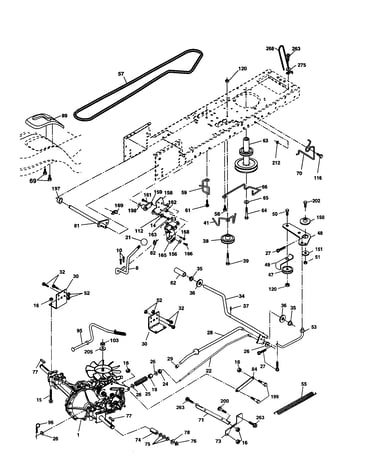

Drive diagram

Lock nut

Part #73900600

Replaced by #532409149

?
Manufacturer substitution
This part replaces 73900600. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Hex Flange Lock Nut 145212
Hex flange lock nut

Part #145212

Replaced by #532409149

?
Manufacturer substitution
This part replaces 145212. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lawn Tractor Bolt 173984
#30

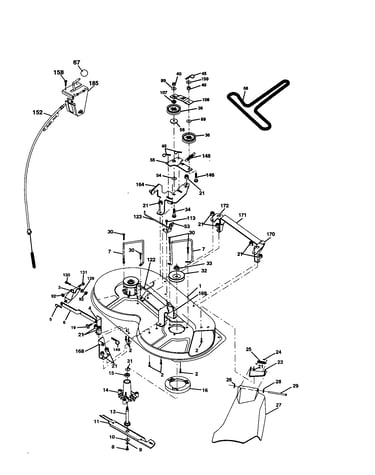

Mower diagram

Lawn tractor bolt

Part #173984

Replaced by #584953901

?
Manufacturer substitution
This part replaces 173984. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lawn Tractor Ground Drive Belt, 1/2 X 82-in 140294
#57

Drive diagram

Lawn tractor ground drive belt, 1/2 x 82-in

Part #140294

Replaced by #532140294

?
Manufacturer substitution
This part replaces 140294. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$32.99 |
15% OFF Phone Price : $38.99
In Stock
Solenoid With Brass Plunger 178861
#43

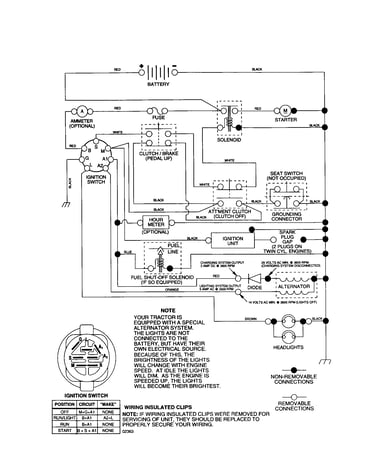

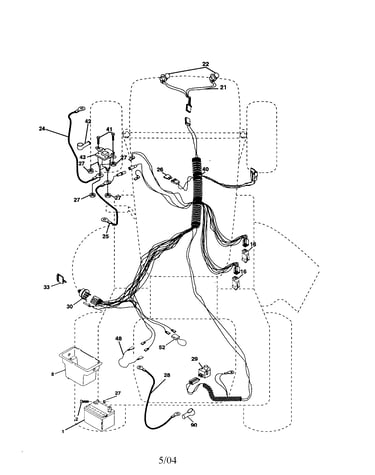

Electrical diagram

Solenoid with brass plunger

Part #178861

Replaced by #532146154

?
Manufacturer substitution
This part replaces 178861. Substitute parts can look different from the original.
BEST SELLER
$24.60 |
20% OFF Phone Price : $30.60
In Stock
Tower Lawn Tractor Ignition Switch (replaces 163968, 189687, 5321755-66, 5321896-87, 539107541) 175566
#30

Electrical diagram

Tower lawn tractor ignition switch (replaces 163968, 189687, 5321755-66, 5321896-87, 539107541)

Part #175566

BEST SELLER
$11.39 |
15% OFF Phone Price : $13.39
In Stock
Tire 106222X
#3

Wheels and tires diagram

Tire

Part #106222X

Replaced by #532122073

?
Manufacturer substitution
This part replaces 106222X. Substitute parts can look different from the original.
BEST SELLER
$61.64 |
9% OFF Phone Price : $67.64
In Stock
Axle Assembly 175131
#2

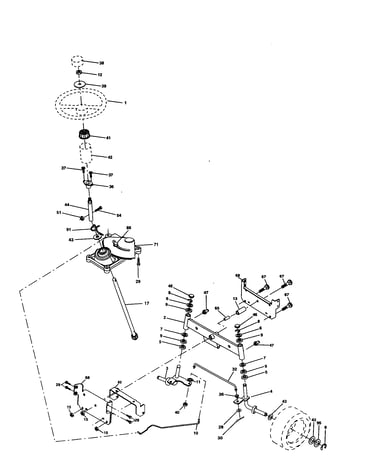

Steering assembly diagram

Axle assembly

Part #175131

Replaced by #531171101

?
Manufacturer substitution
This part replaces 175131. Substitute parts can look different from the original.
BEST SELLER
$55.37 |
10% OFF Phone Price : $61.37
In Stock
Flanged Toplock Nut 178342
#33

Mower diagram

Flanged toplock nut

Part #178342

Replaced by #596134801

?
Manufacturer substitution
This part replaces 178342. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
