Top-Mount Refrigerator

Model # TT14DKXEW10 Official Estate refrigerator

Here are the diagrams and repair parts for Official Estate TT14DKXEW10 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

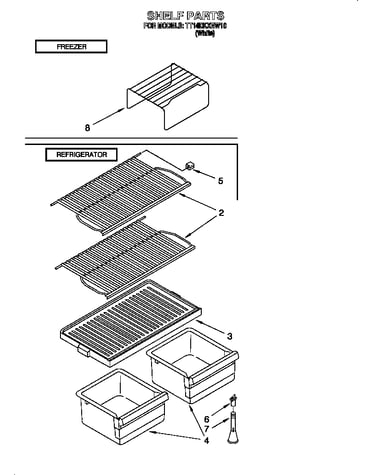

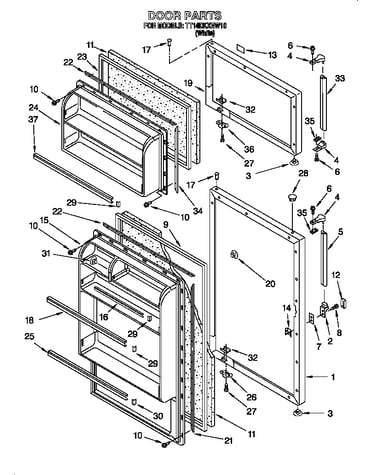

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 174 parts  |
Light Bulb 946059
#17

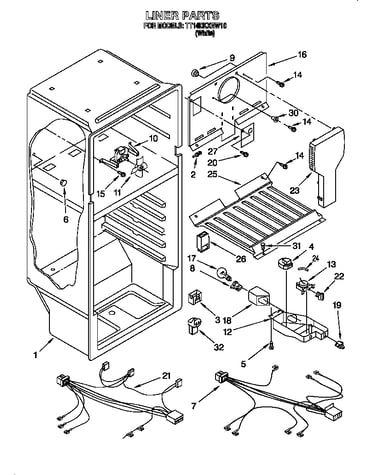

Liner parts diagram

Light bulb

Part #946059

Replaced by #40A15

?
Manufacturer substitution
This part replaces 946059. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Refrigerator Light Switch 1118894
#19

Liner parts diagram

Refrigerator light switch

Part #1118894

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 1118894. Substitute parts can look different from the original.
BEST SELLER
$23.57 |
20% OFF Phone Price : $29.57
In Stock
Drier Tube 2174865
#29

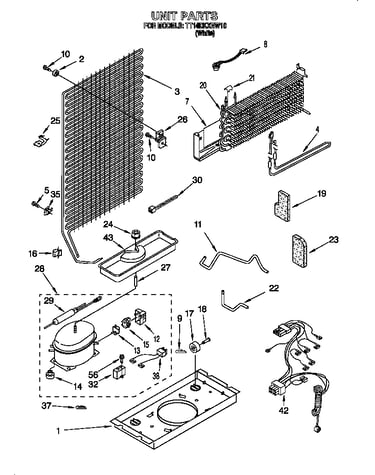

Unit parts diagram

Drier tube

Part #2174865

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 2174865. Substitute parts can look different from the original.
BEST SELLER
$31.58 |
16% OFF Phone Price : $37.58
In Stock
Ice Maker 2155469

#NI

All parts diagram

Ice maker

Part #2155469

Replaced by #W11510803

?
Manufacturer substitution
This part replaces 2155469. Substitute parts can look different from the original.
BEST SELLER
$108.60 |
10% OFF Phone Price : $120.60
In Stock
Danby Appliance Touch-up Paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, W10813125, Y058028) 72017

#NI

All parts diagram

Danby appliance touch-up paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, w10813125, y058028)

Part #72017

BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Refrigerator Compressor 2176660
#28

Unit parts diagram

Refrigerator compressor

Part #2176660

Replaced by #W10823815

?
Manufacturer substitution
This part replaces 2176660. Substitute parts can look different from the original.
BEST SELLER
$364.37 |
$12.00 OFF Phone Price : $376.37
In Stock
Refrigerator Washer 487576
#4

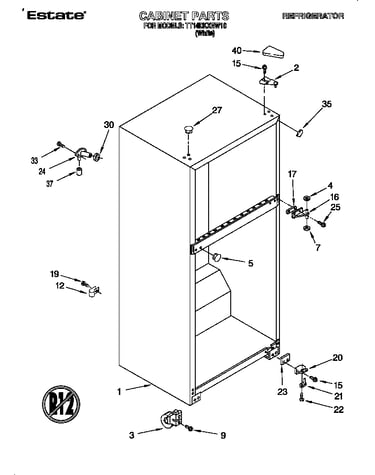

Cabinet parts diagram

Refrigerator washer

Part #487576

Replaced by #WP487576

?
Manufacturer substitution
This part replaces 487576. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.24 |
14% OFF Phone Price : $7.24
In Stock
Refrigerator Fitting 2174760
#24

Cabinet parts diagram

Refrigerator fitting

Part #2174760

Replaced by #WP2196157

?
Manufacturer substitution
This part replaces 2174760. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.30 |
14% OFF Phone Price : $7.30
In Stock
Spray Paint (white) 350930

#NI

All parts diagram

Spray paint (white)

Part #350930

Replaced by #350930

?
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$15.69 |
11% OFF Phone Price : $17.69
In Stock
Screw 489242
#15

Liner parts diagram

Screw

Part #489242

Replaced by #WP489478

?
Manufacturer substitution
This part replaces 489242. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
