Model # 65787 Official Craftsman tool chest

Here are the diagrams and repair parts for Official Craftsman 65787 tool chest, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 9 of 9 parts  |
Drawer A9109RED
#2

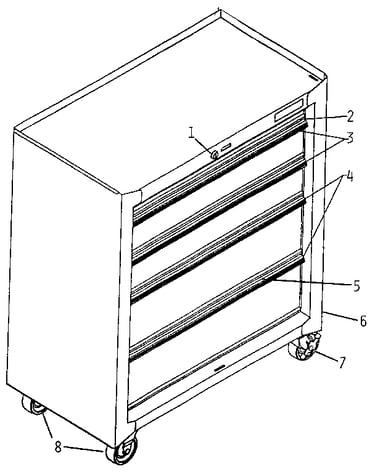

Unit parts diagram

Drawer

Part #A9109RED

The manufacturer no longer makes this part, and there's no substitute part

Drawer A9110RED
#3

Unit parts diagram

Drawer

Part #A9110RED

The manufacturer no longer makes this part, and there's no substitute part

Caster 3in A5548
#8

Unit parts diagram

Caster 3in

Part #A5548

The manufacturer no longer makes this part, and there's no substitute part

Swr Pull T13840A18
#5

Unit parts diagram

Swr pull

Part #T13840A18

The manufacturer no longer makes this part, and there's no substitute part

Lock M10017A3SS
#1

Unit parts diagram

Lock

Part #M10017A3SS

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Drawer Slide T14153A5

#NI

All parts diagram

Tool chest drawer slide

Part #T14153A5

The manufacturer no longer makes this part, and there's no substitute part

Caster 3in A7416
#7

Unit parts diagram

Caster 3in

Part #A7416

The manufacturer no longer makes this part, and there's no substitute part

Swivel Caste A8146
#6

Unit parts diagram

Swivel caste

Part #A8146

The manufacturer no longer makes this part, and there's no substitute part

Bar Lockng T14933RED

#NI

All parts diagram

Bar lockng

Part #T14933RED

The manufacturer no longer makes this part, and there's no substitute part
