Model # 2302 Official Delavan pressure relief valve

Here are the diagrams and repair parts for Official Delavan 2302 pressure relief valve, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 32 parts  |
Spring 24-1344
#4

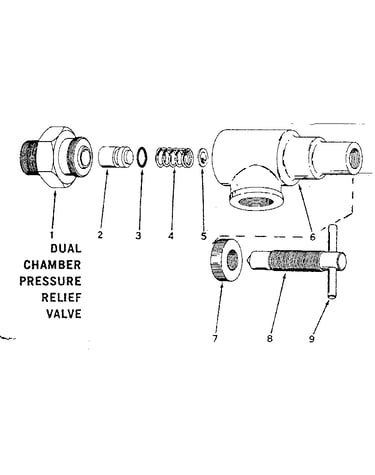

Dual chamber pressure relief valve diagram

Spring

Part #24-1344

The manufacturer no longer makes this part, and there's no substitute part

Valve Body 24-2775
#5

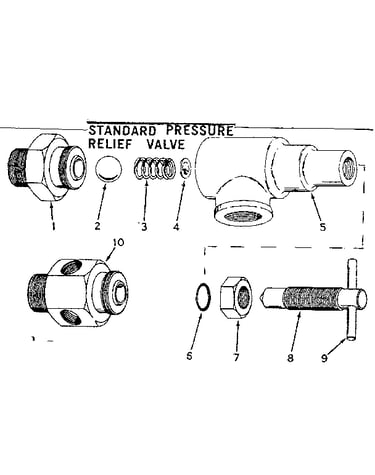

Standard pressure relief valve diagram

Valve body

Part #24-2775

The manufacturer no longer makes this part, and there's no substitute part

Adapter For 3/4" Valve (model 8153) 24-8734
#1A

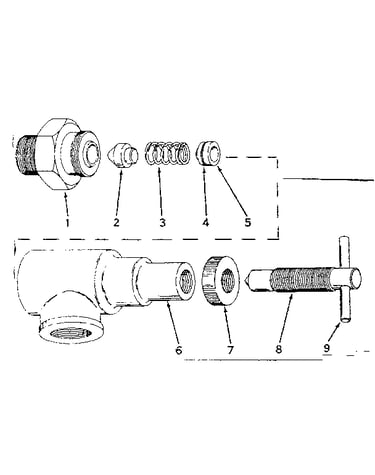

High pressure relief valve diagram

Adapter for 3/4" valve (model 8153)

Part #24-8734

The manufacturer no longer makes this part, and there's no substitute part

O-ring 24-1343
O-ring

Part #24-1343

The manufacturer no longer makes this part, and there's no substitute part

Adapter 24-8927
#10A

Standard pressure relief valve diagram

Adapter

Part #24-8927

The manufacturer no longer makes this part, and there's no substitute part

Valve Seat 24-13588
#10

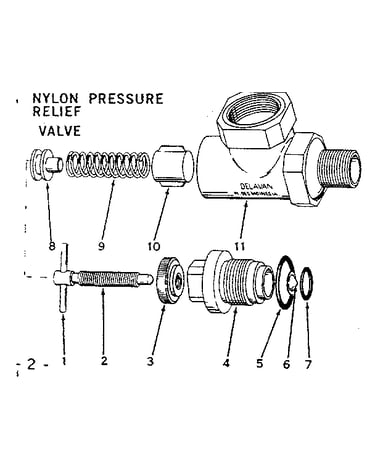

Nylon pressure relief valve diagram

Valve seat

Part #24-13588

The manufacturer no longer makes this part, and there's no substitute part

Adapter For 1/2" Valve (model 8152) 24-8543
#1

High pressure relief valve diagram

Adapter for 1/2" valve (model 8152)

Part #24-8543

The manufacturer no longer makes this part, and there's no substitute part

Ball 24-2357
#2

Standard pressure relief valve diagram

Ball

Part #24-2357

The manufacturer no longer makes this part, and there's no substitute part

Screw 24-1340
Screw

Part #24-1340

The manufacturer no longer makes this part, and there's no substitute part

Handle 24-1341
Handle

Part #24-1341

The manufacturer no longer makes this part, and there's no substitute part
