Whirlpool
Room Air Conditioner

Model # W5WCE085YW0 Official Whirlpool air conditioner

Here are the diagrams and repair parts for Official Whirlpool W5WCE085YW0 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 64 parts  |
Curtain W10361848
#18

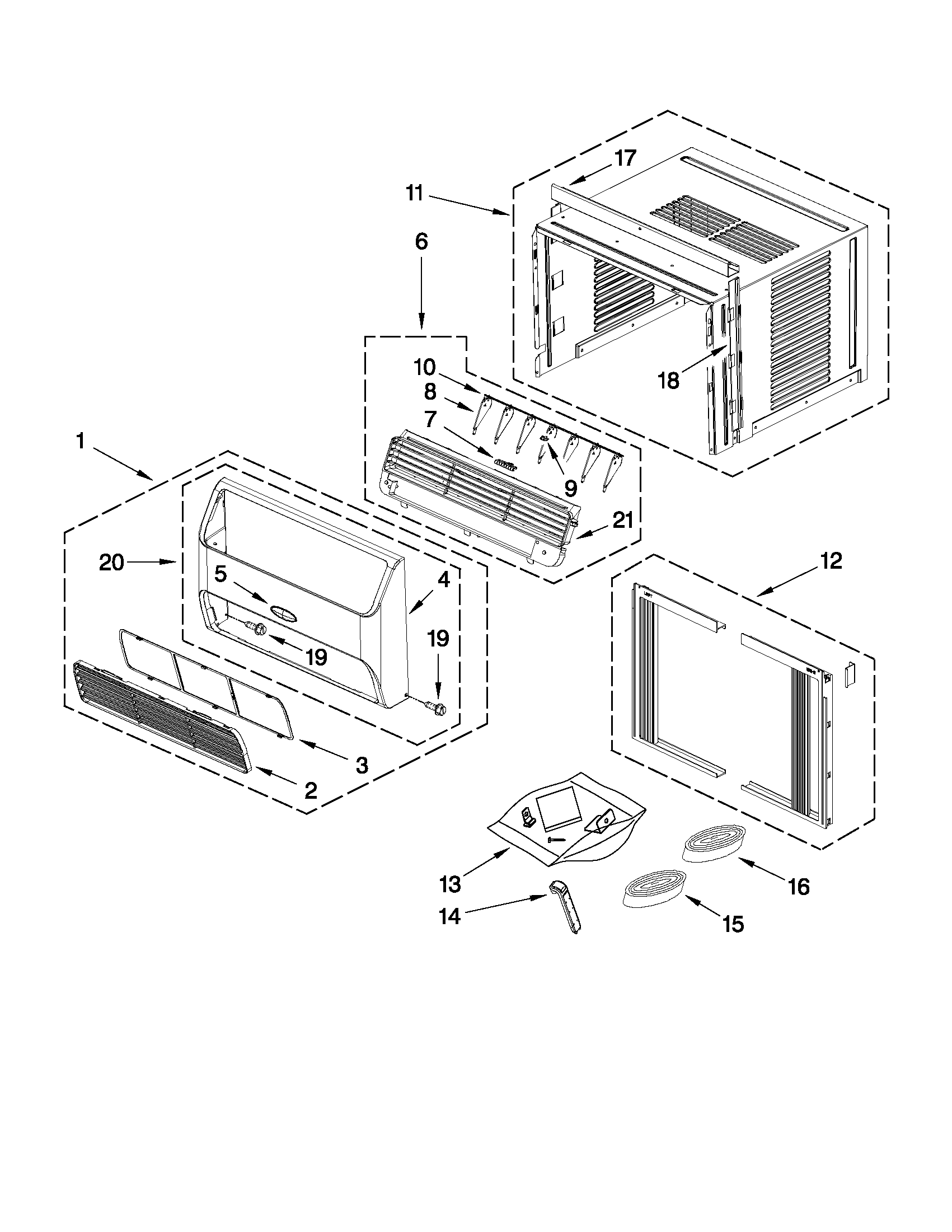

Cabinet parts diagram

Curtain

Part #W10361848

$12.70
In Stock
Fan Blade W10361428
#10

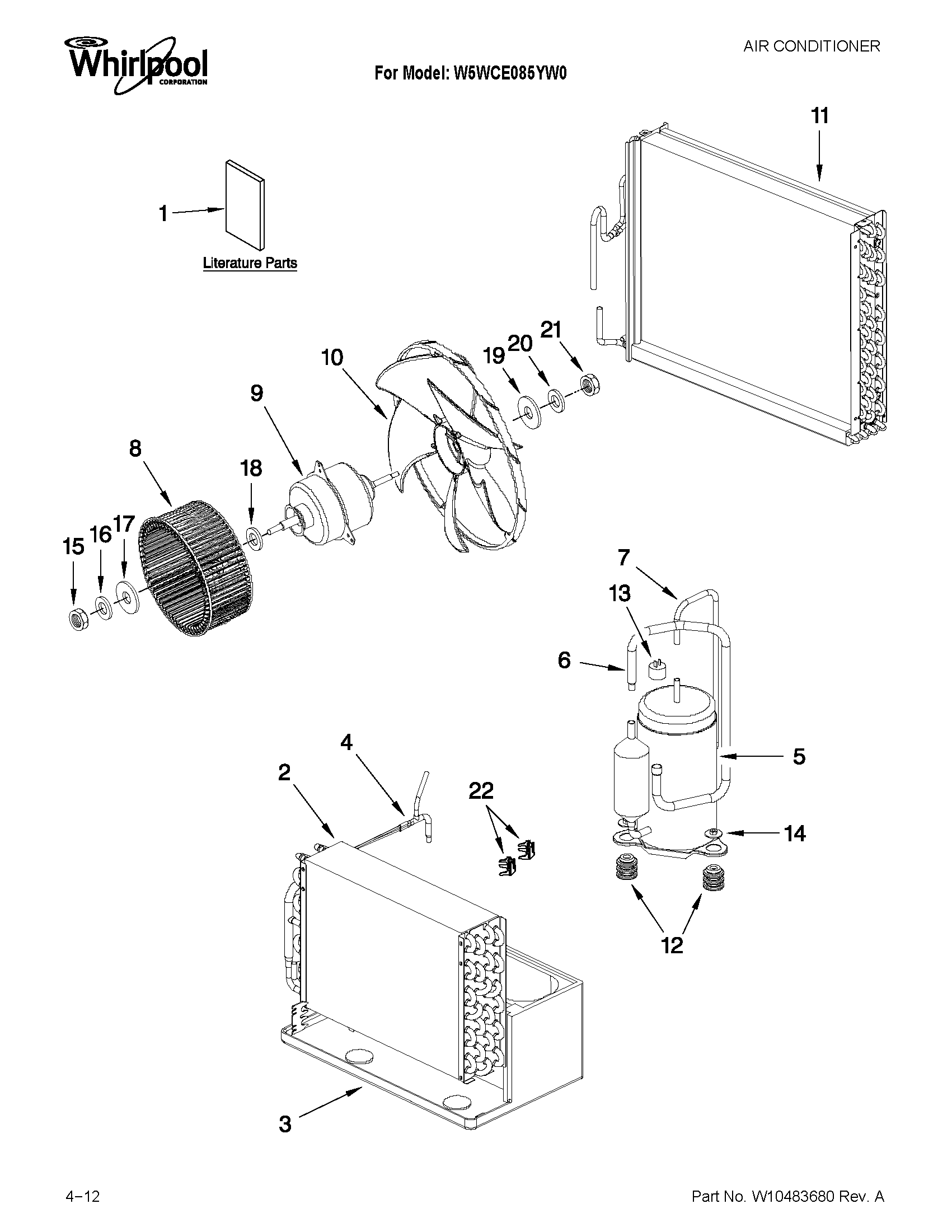

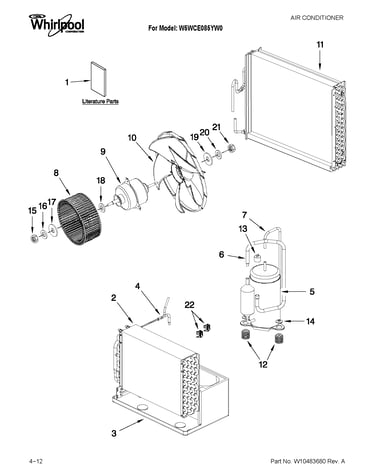

Unit parts diagram

Fan blade

Part #W10361428

$49.49
In Stock
Fan Motor W10362233
#9

Unit parts diagram

Fan motor

Part #W10362233

$325.76
In Stock
Power Cord W10369612
#6

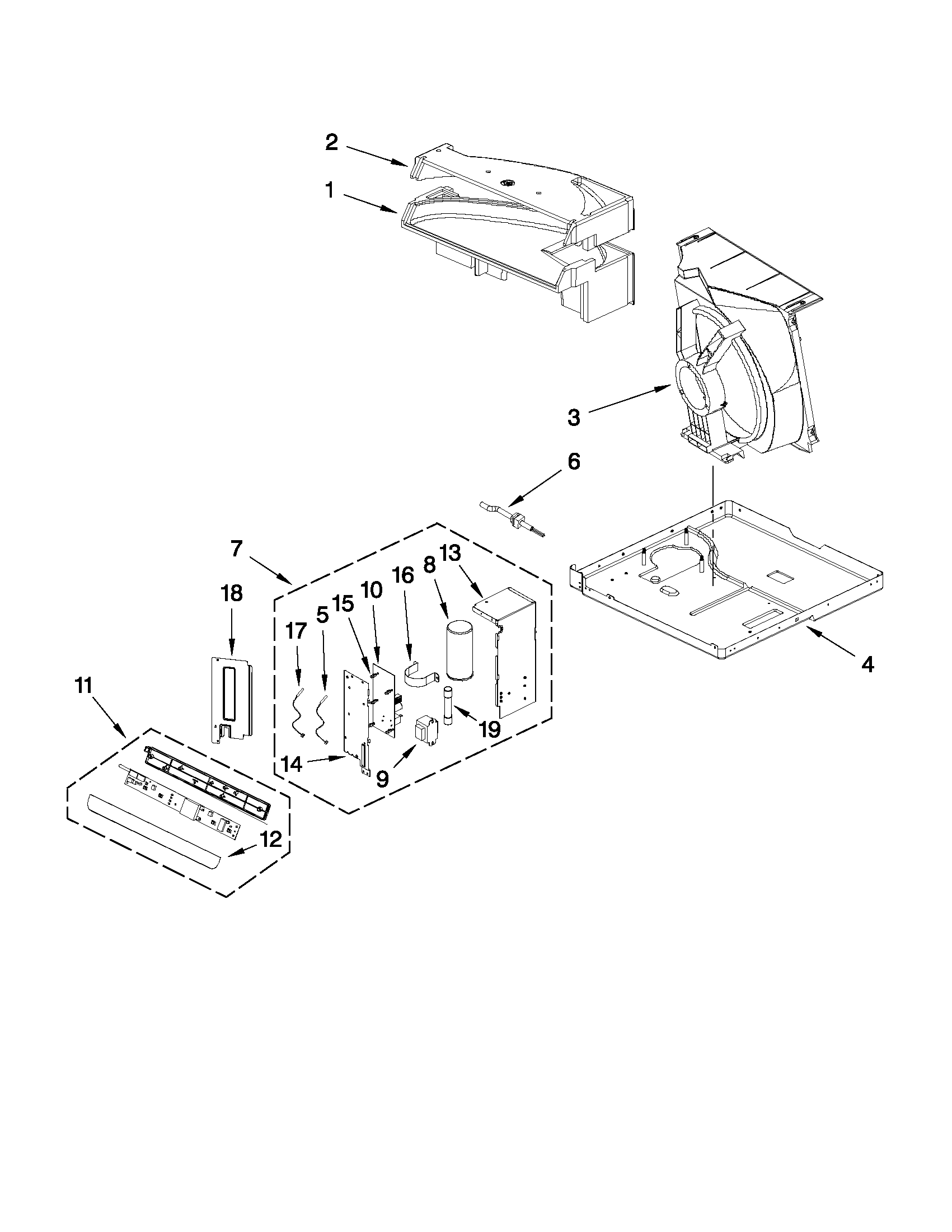

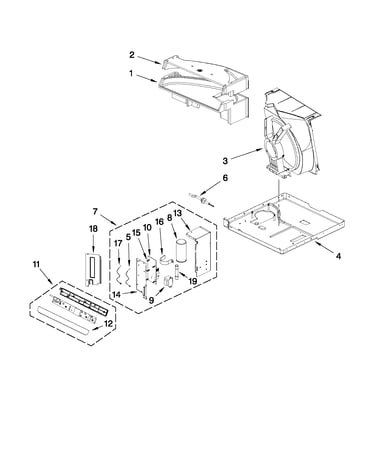

Air flow and control parts diagram

Power cord

Part #W10369612

$127.47
In Stock
Whirlpool Overload W10484819
#13

Unit parts diagram

Whirlpool overload

Part #W10484819

$69.27
In Stock
Bracket 8215050
#16

Air flow and control parts diagram

Bracket

Part #8215050

$10.79
In Stock
Control Box W10362235
#7

Air flow and control parts diagram

Control box

Part #W10362235

$148.44
In Stock
Control Box W10388543
#13

Air flow and control parts diagram

Control box

Part #W10388543

$29.89
In Stock
Capacitor W10362236
#8

Air flow and control parts diagram

Capacitor

Part #W10362236

$59.47
In Stock
Fuse W10487251
#19

Air flow and control parts diagram

Fuse

Part #W10487251

$17.89
In Stock
