Microwave/Hood Combo

Model # IMH172FS0 Official Ikea microwave/hood combo

Here are the diagrams and repair parts for Official Ikea IMH172FS0 microwave/hood combo, as well as links to manuals and error code tables, if available.

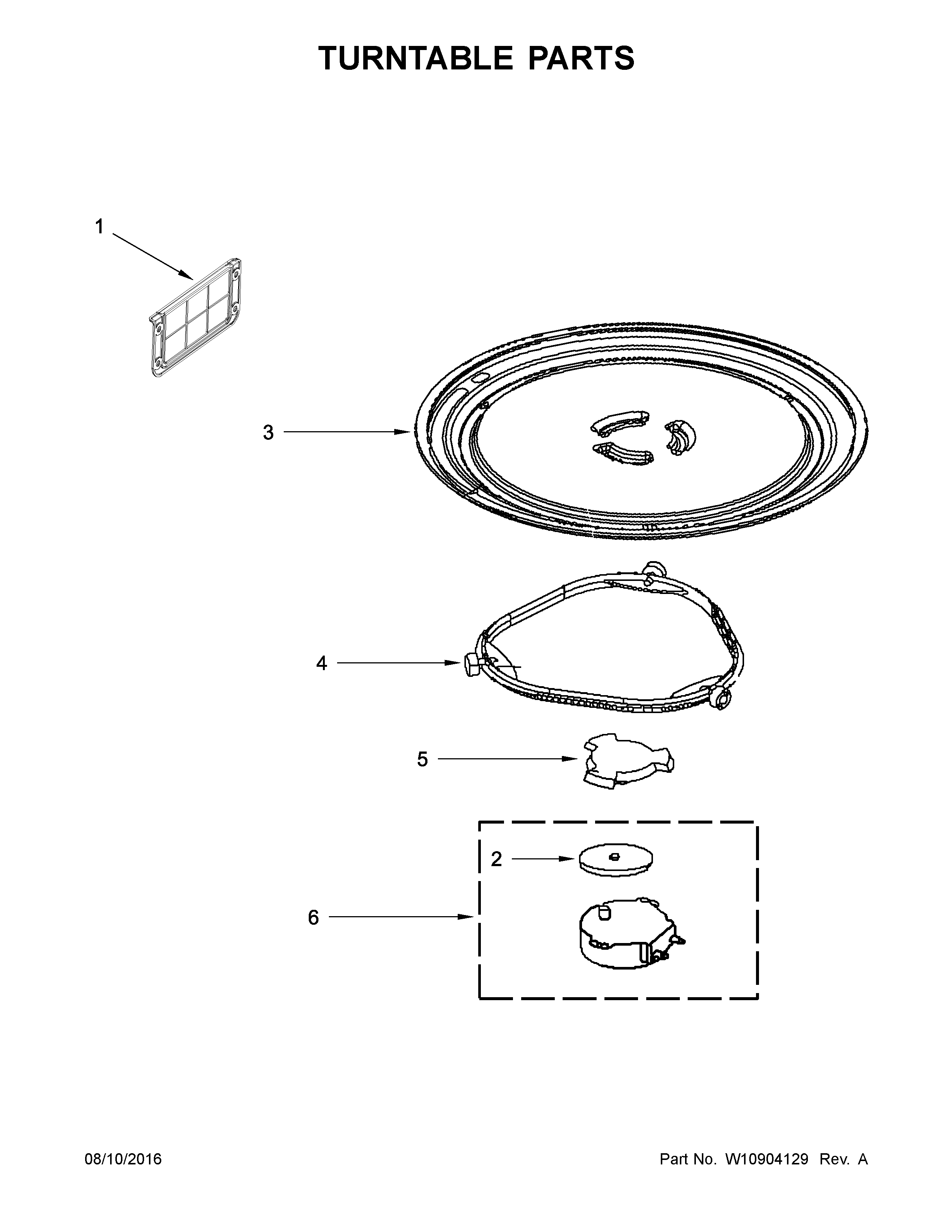

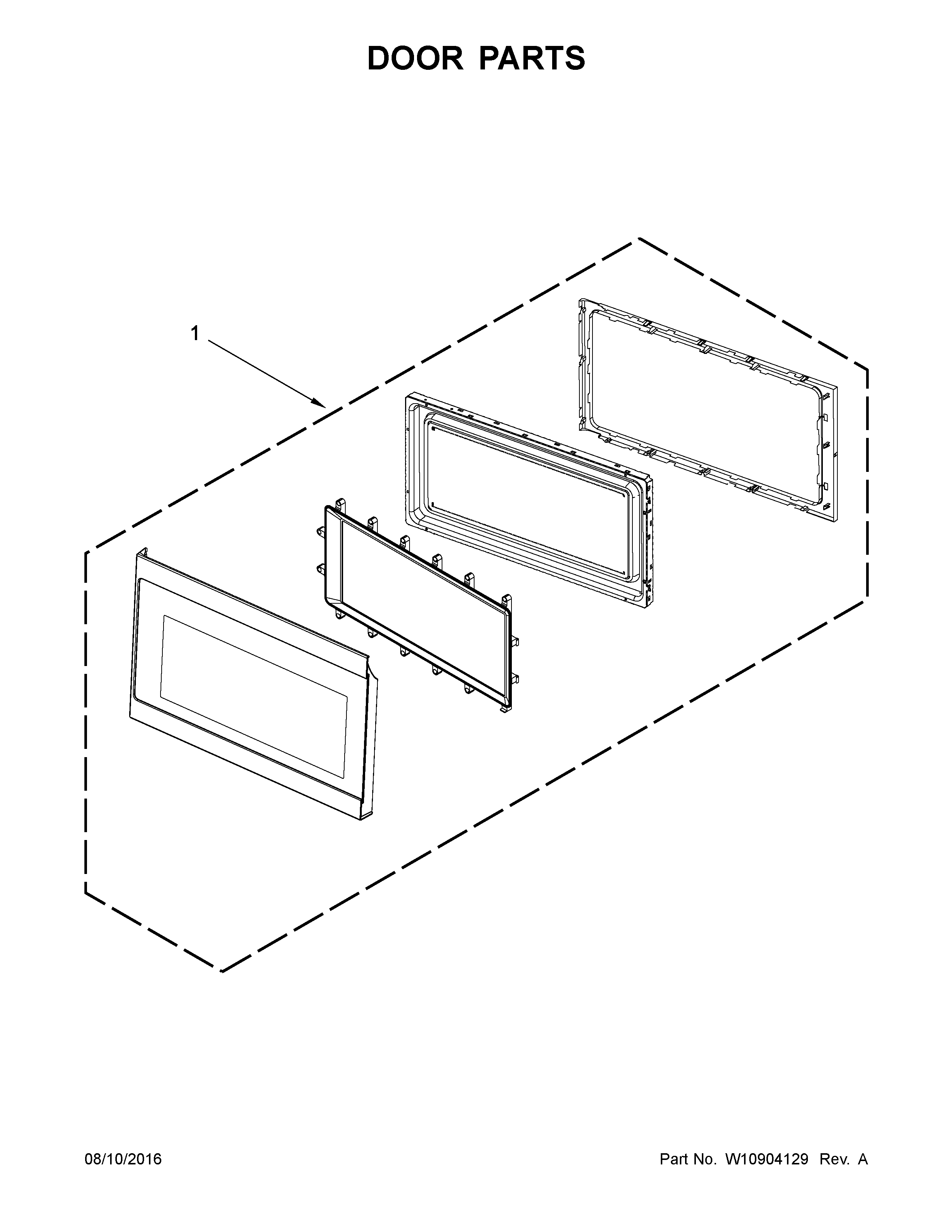

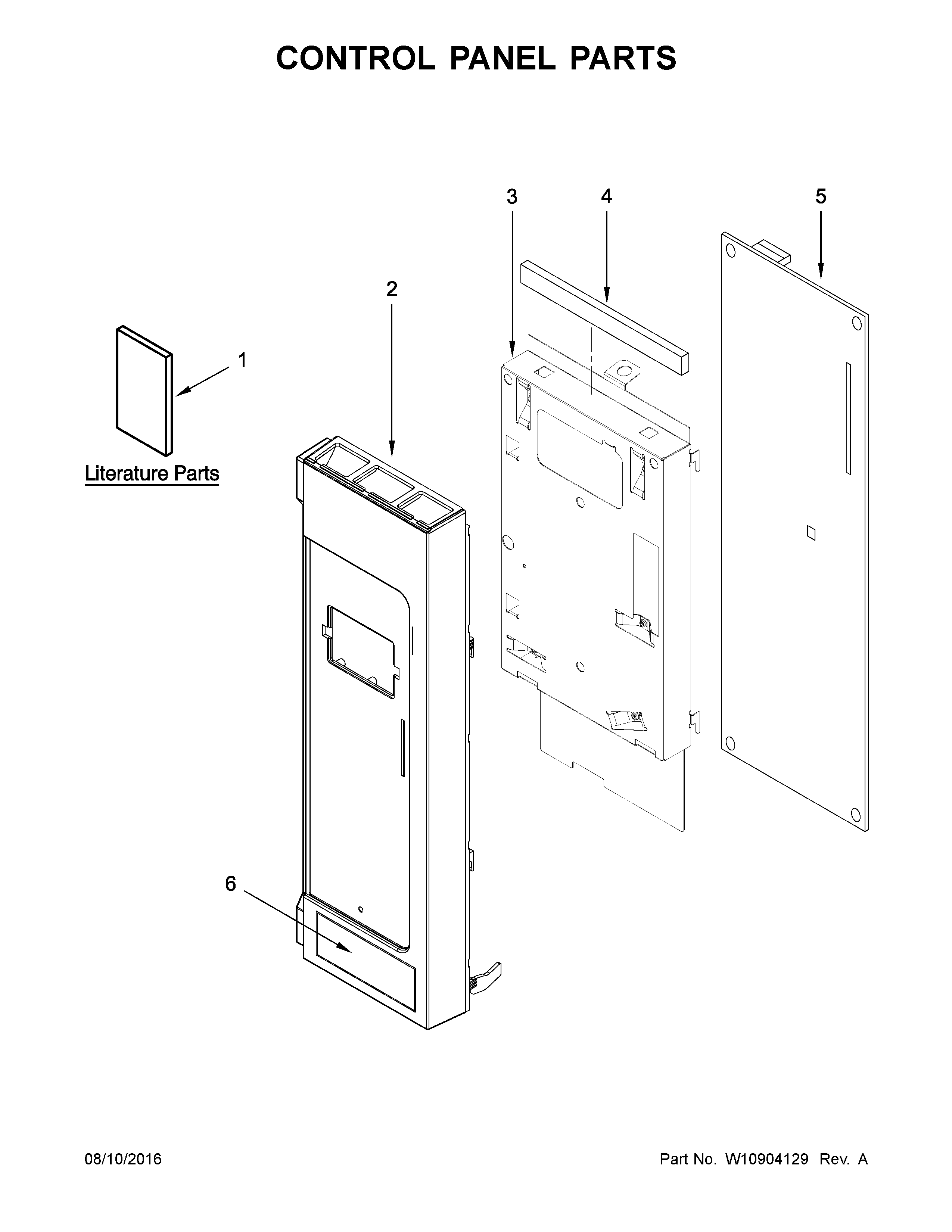

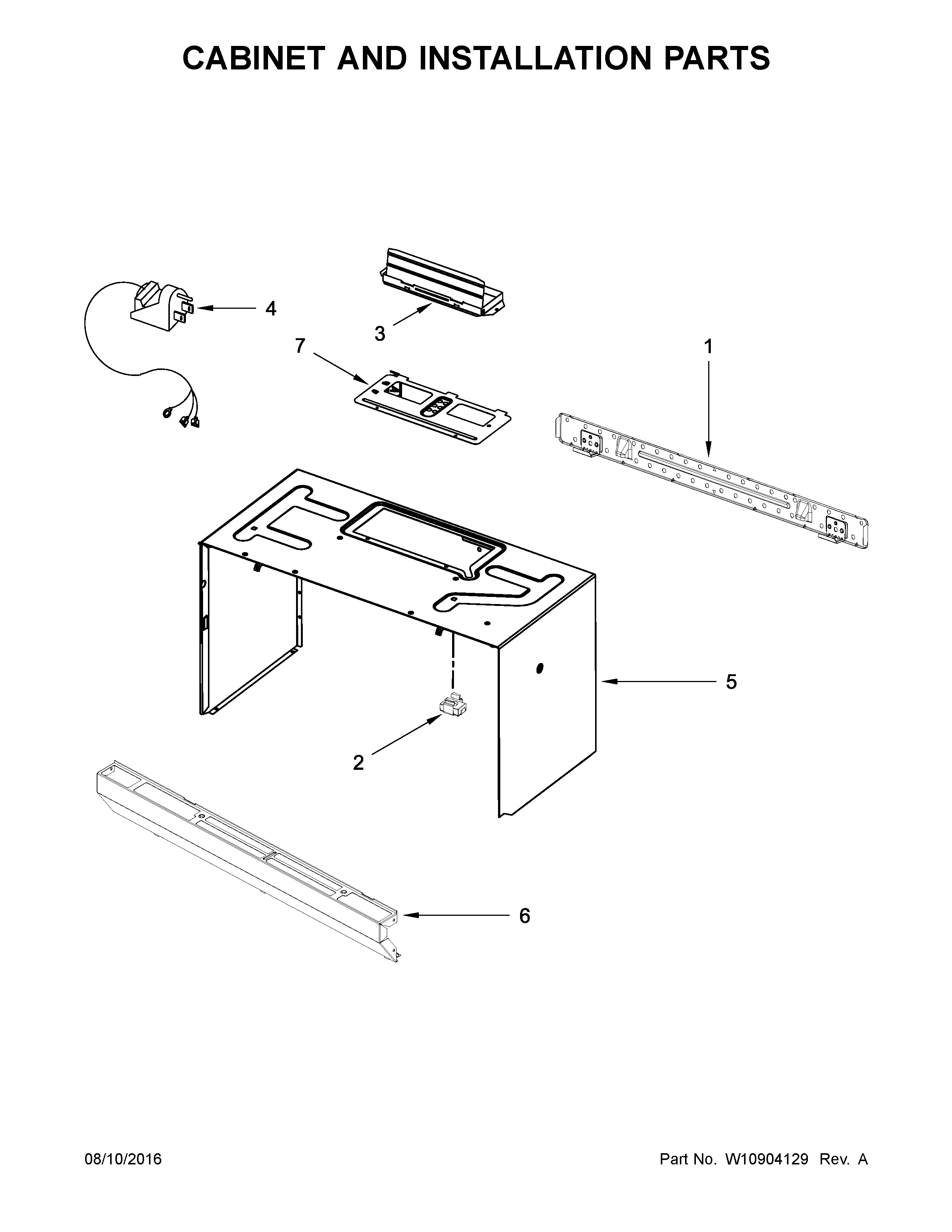

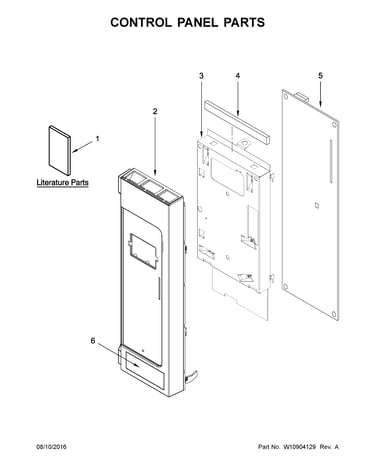

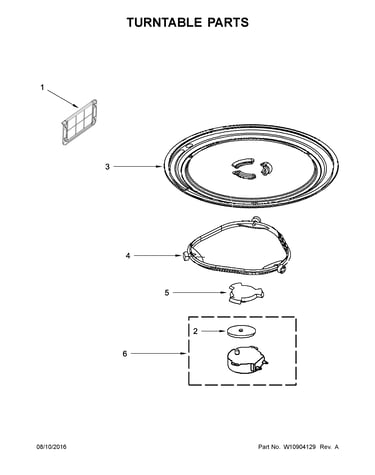

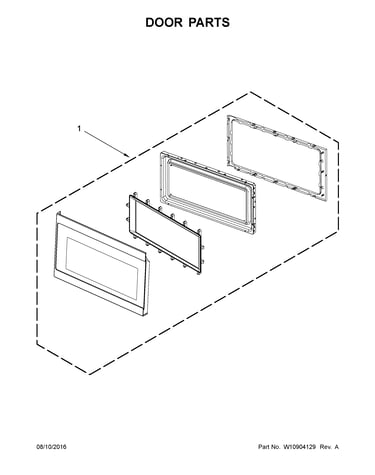

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
IMH172FS0 Microwave/Hood Combo
Diode W10886077
#23

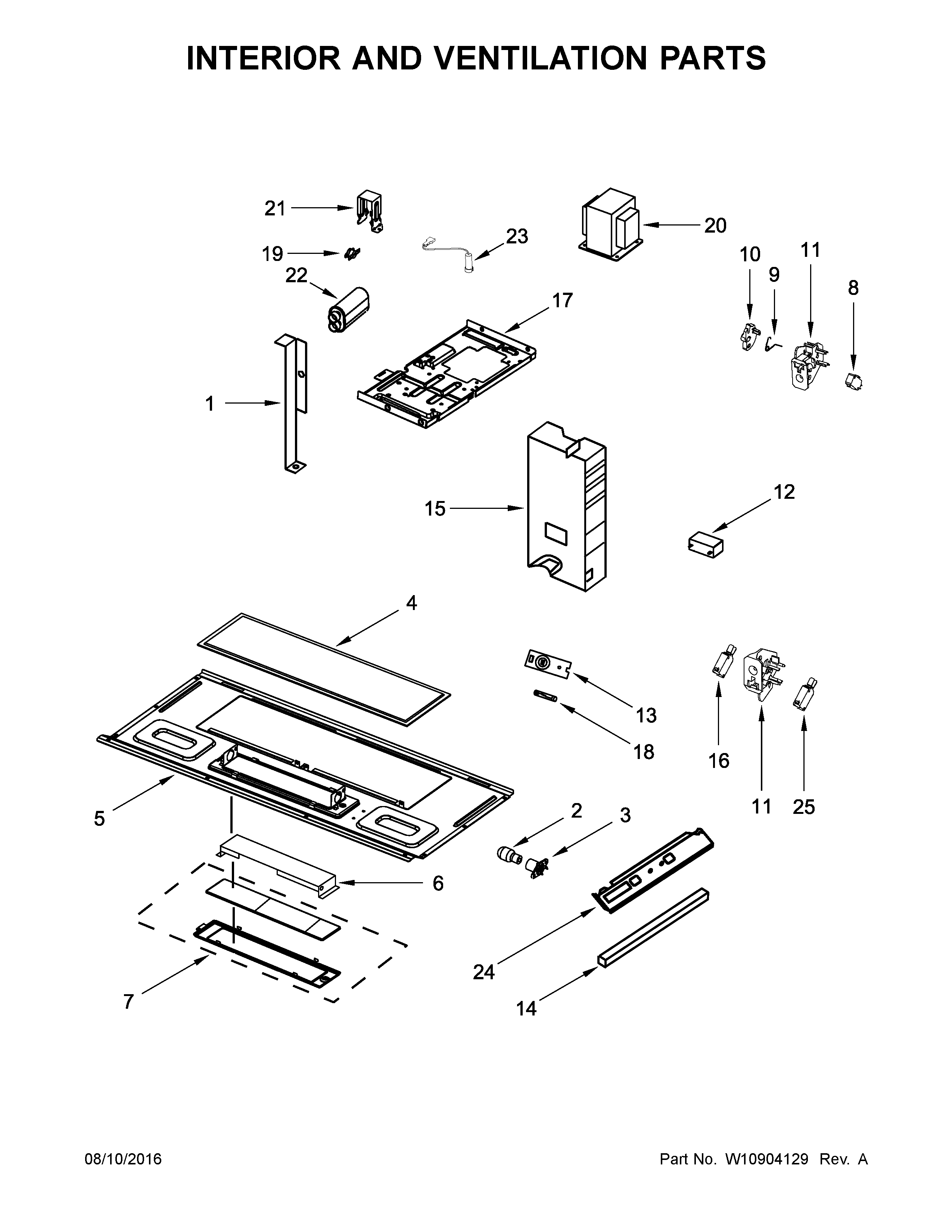

Interior and ventilation parts diagram

Diode

Part #W10886077

Replaced by #W11256462

?
Manufacturer substitution
This part replaces W10886077. Substitute parts can look different from the original.
BEST SELLER
$24.65 |
20% OFF Phone Price : $30.65
In Stock
Microwave Door Switch W10269457
#16

Interior and ventilation parts diagram

Microwave door switch

Part #W10269457

Replaced by #W10727360

?
Manufacturer substitution
This part replaces W10269457. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.04 |
17% OFF Phone Price : $6.04
In Stock
Microwave Door Interlock Switch (replaces W10211973) W10269458
#25

Interior and ventilation parts diagram

Microwave door interlock switch (replaces w10211973)

Part #W10269458

BEST SELLER
$24.27 |
20% OFF Phone Price : $30.27
In Stock
Lamp Assembly 4393681
#3

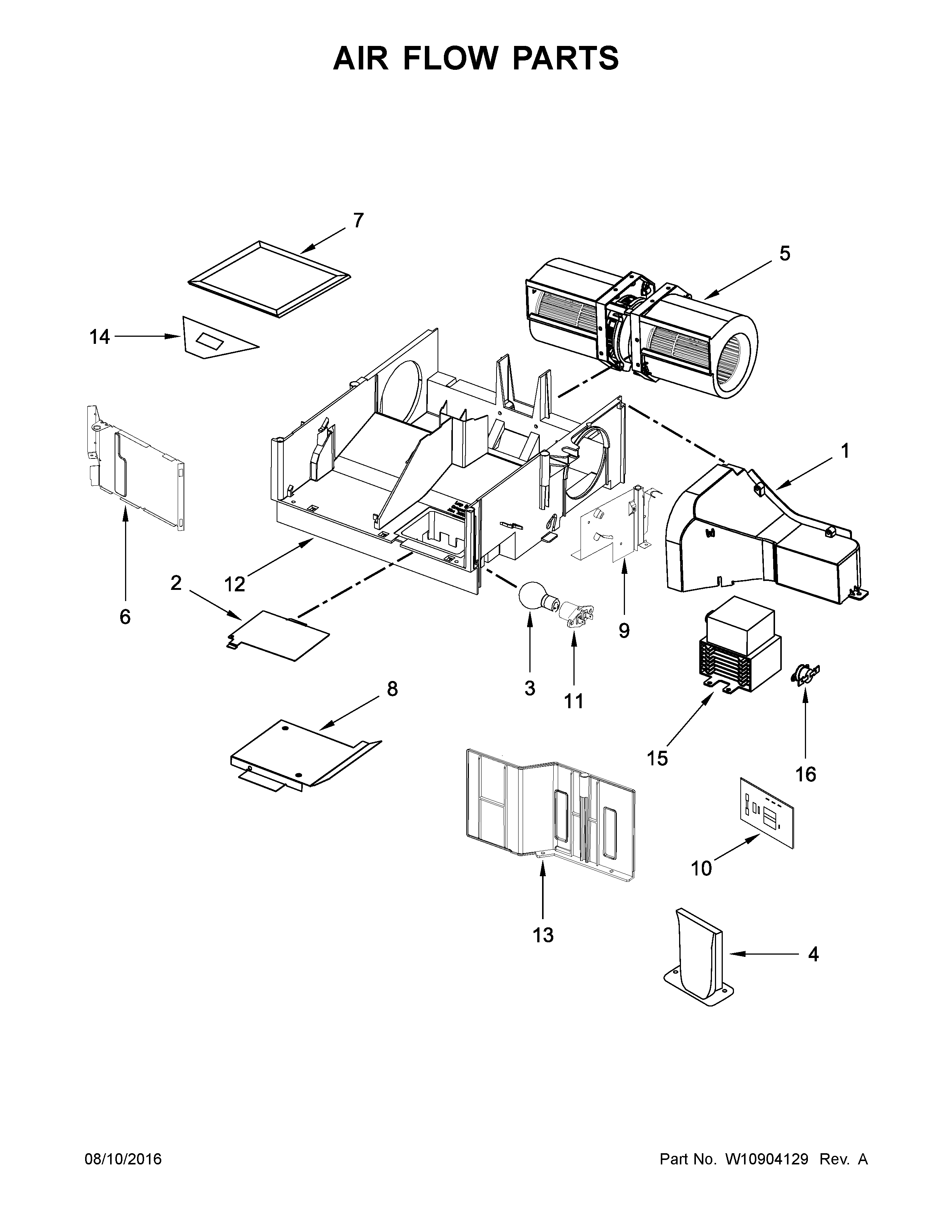

Air flow parts diagram

Lamp assembly

Part #4393681

Replaced by #8206232A

?
Manufacturer substitution
This part replaces 4393681. Substitute parts can look different from the original.
BEST SELLER
$8.63 |
10% OFF Phone Price : $9.63
In Stock
Microwave/hood Light Bulb 8206232
#2

Interior and ventilation parts diagram

Microwave/hood light bulb

Part #8206232

Replaced by #8206232A

?
Manufacturer substitution
This part replaces 8206232. Substitute parts can look different from the original.
BEST SELLER
$8.63 |
10% OFF Phone Price : $9.63
In Stock
Microwave Fuse (replaces W10422951) W10138793
#18

Interior and ventilation parts diagram

Microwave fuse (replaces w10422951)

Part #W10138793

Replaced by #W11707984

?
Manufacturer substitution
This part replaces W10138793. Substitute parts can look different from the original.
BEST SELLER
$53.15
In Stock
Microwave Door Interlock Support, Upper 8206419
#11

Interior and ventilation parts diagram

Microwave door interlock support, upper

Part #8206419

Replaced by #WP8206419

?
Manufacturer substitution
This part replaces 8206419. Substitute parts can look different from the original.
BEST SELLER
$12.11 |
14% OFF Phone Price : $14.11
In Stock
Microwave Door Interlock Switch W10269460
#8

Interior and ventilation parts diagram

Microwave door interlock switch

Part #W10269460

BEST SELLER
$39.99 |
13% OFF Phone Price : $45.99
In Stock
Interlock W10156813
#11A

Interior and ventilation parts diagram

Interlock

Part #W10156813

Replaced by #WPW10156813

?
Manufacturer substitution
This part replaces W10156813. Substitute parts can look different from the original.
BEST SELLER
$7.56 |
12% OFF Phone Price : $8.56
In Stock
Microwave Vent Louver Motor Cam Plate (replaces W10508437) W10562613
#10

Interior and ventilation parts diagram

Microwave vent louver motor cam plate (replaces w10508437)

Part #W10562613

BEST SELLER
$11.59 |
15% OFF Phone Price : $13.59
In Stock
