Model # 48GP060115300 Official Carrier central package

Here are the diagrams and repair parts for Official Carrier 48GP060115300 central package, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

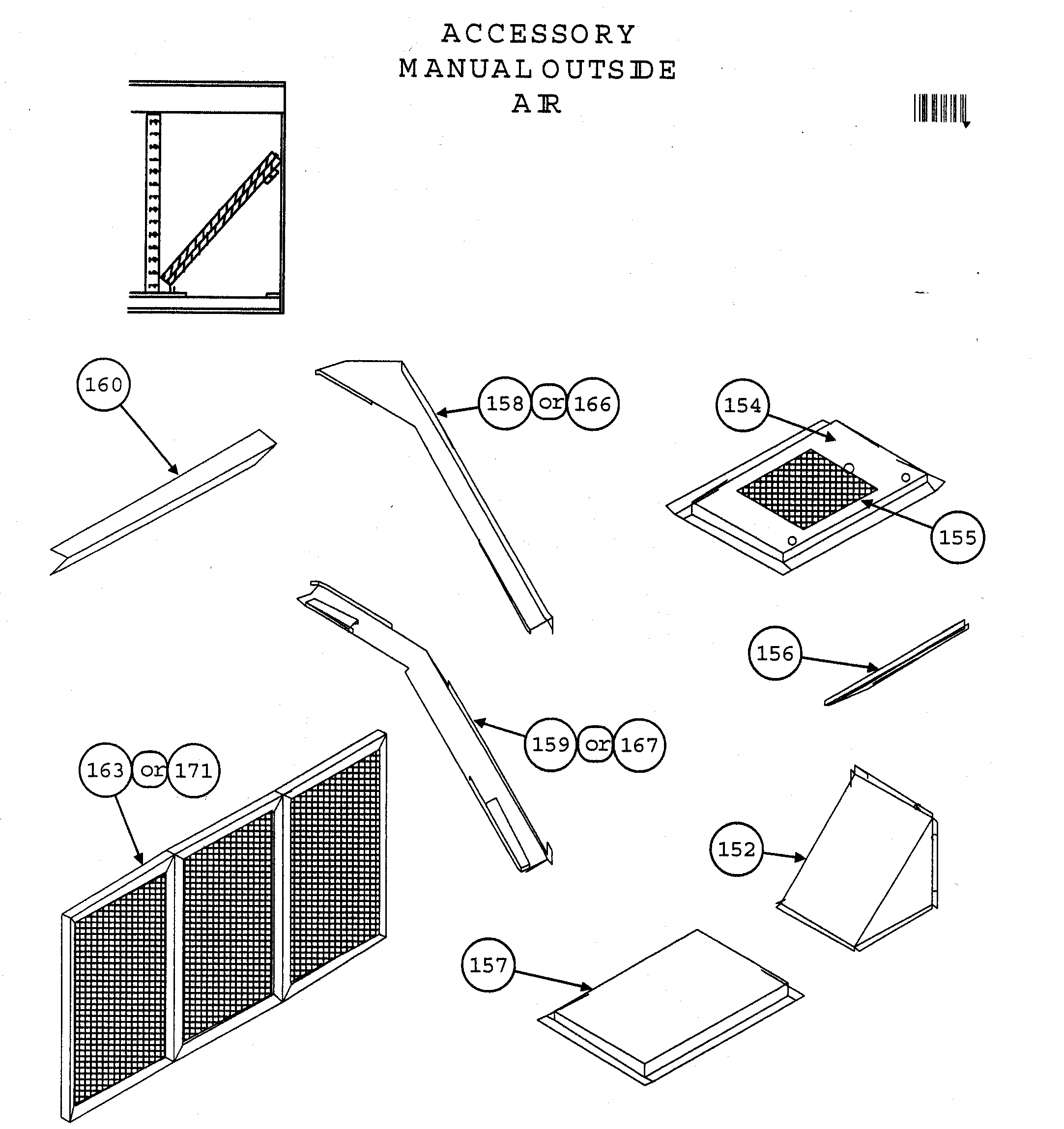

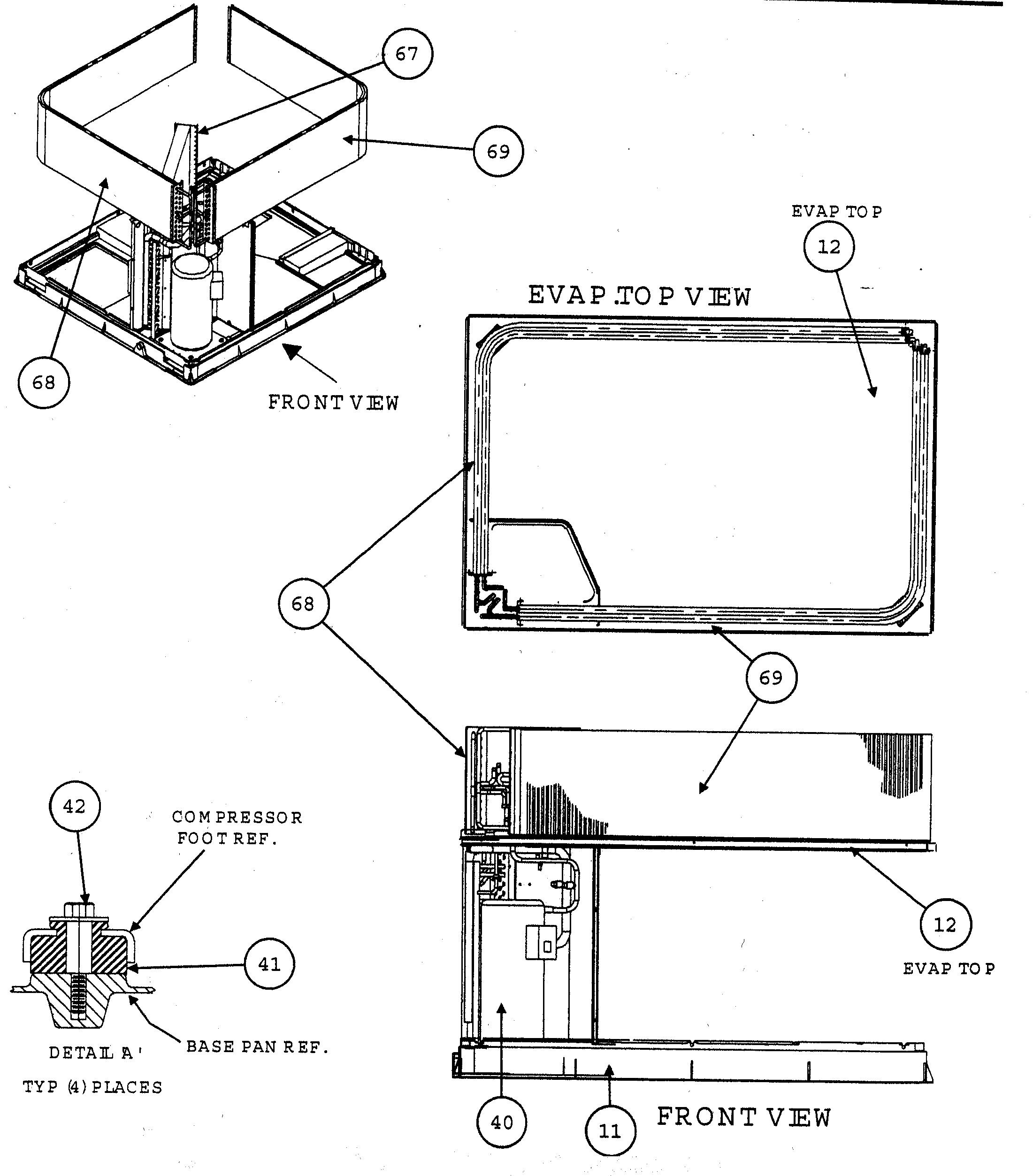

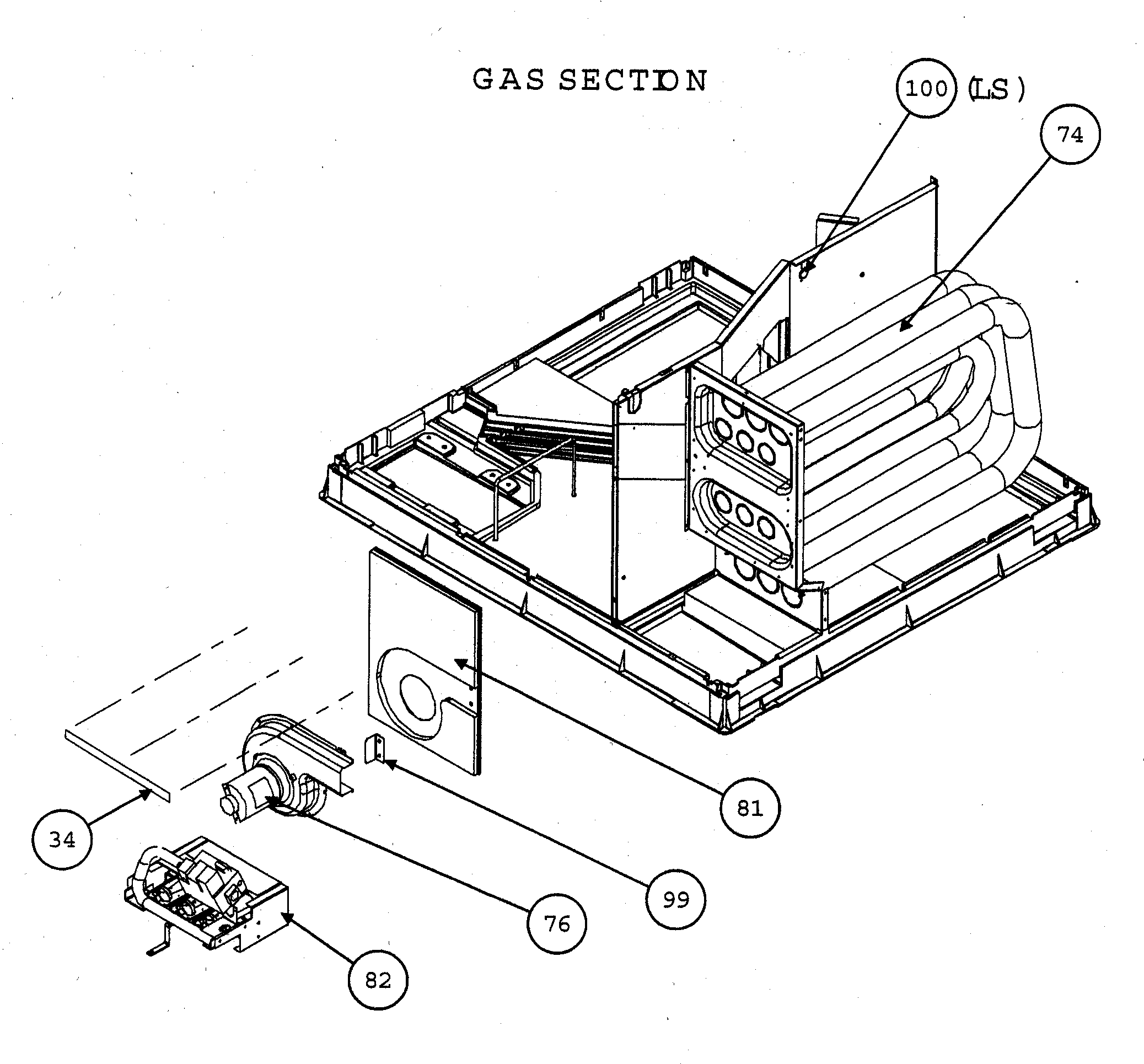

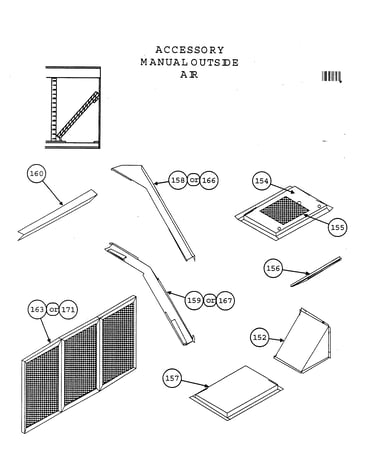

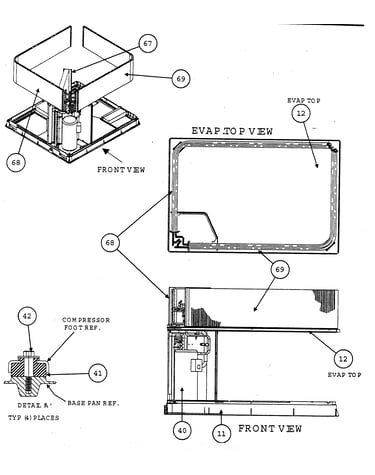

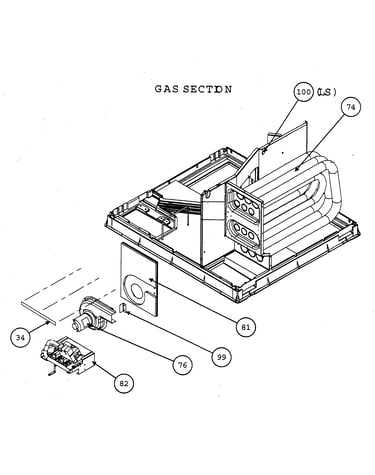

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 111 parts  |
Contactor HN51JD024
#48

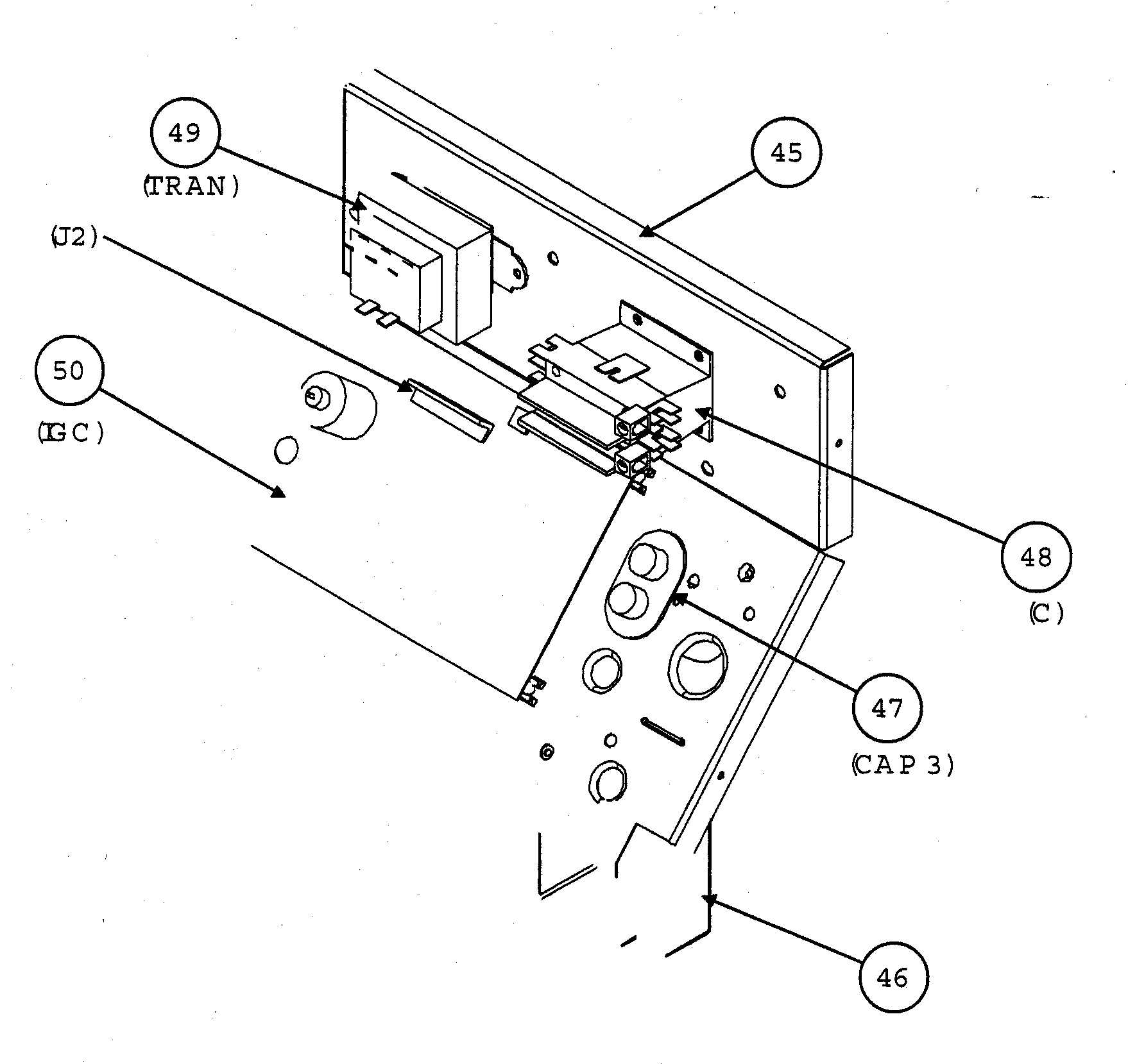

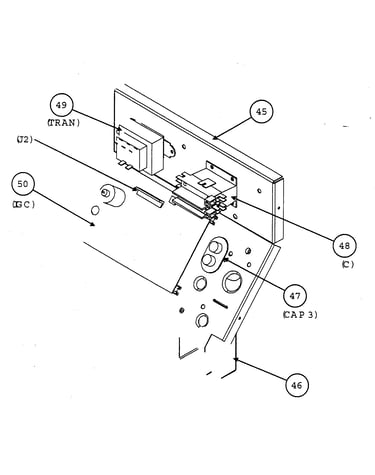

Control box diagram

Contactor

Part #HN51JD024

Replaced by #90-244

?
Manufacturer substitution
This part replaces HN51JD024. Substitute parts can look different from the original.
BEST SELLER
$26.61 |
18% OFF Phone Price : $32.61
In Stock

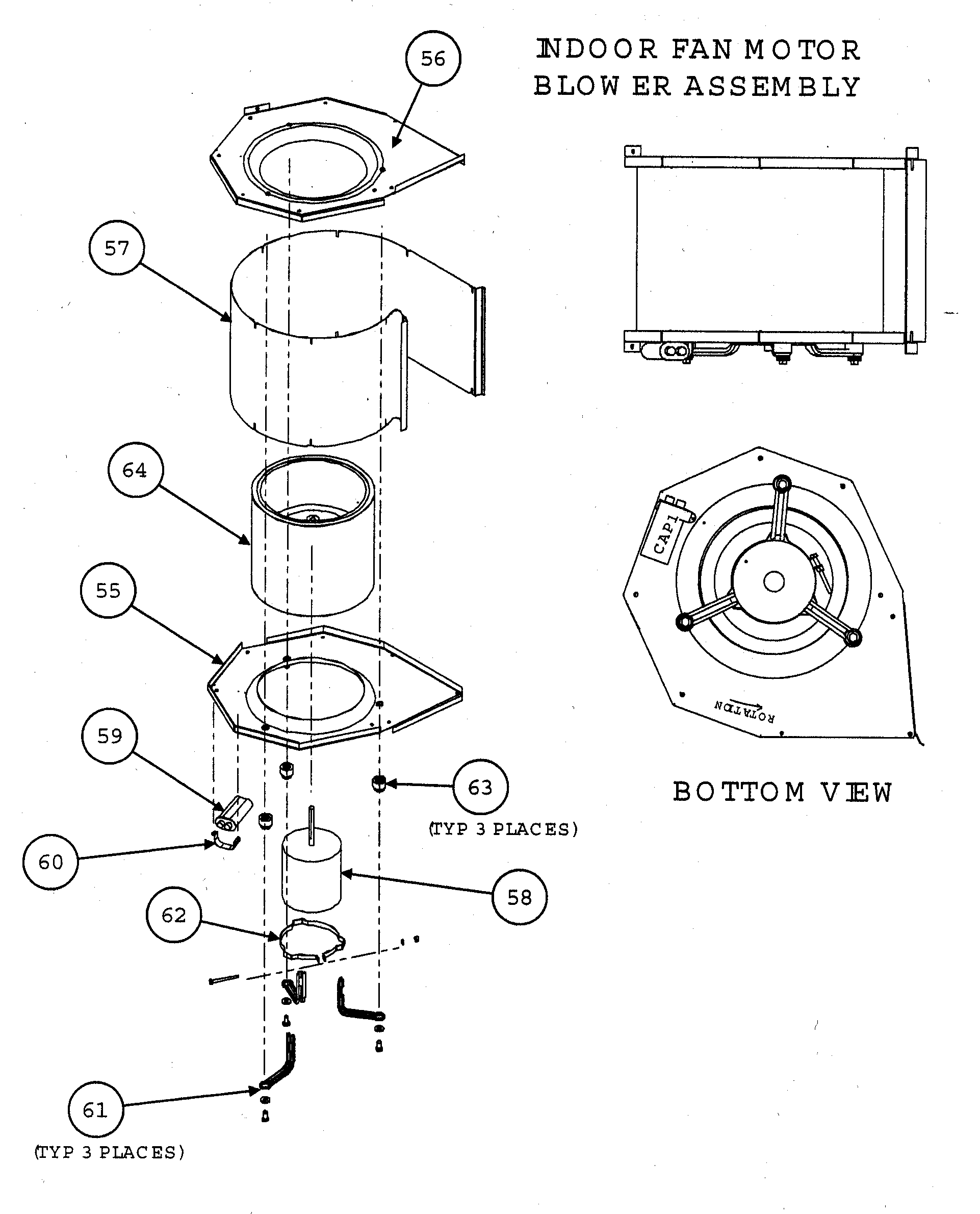

Blower Assembly 48GX400129
#54

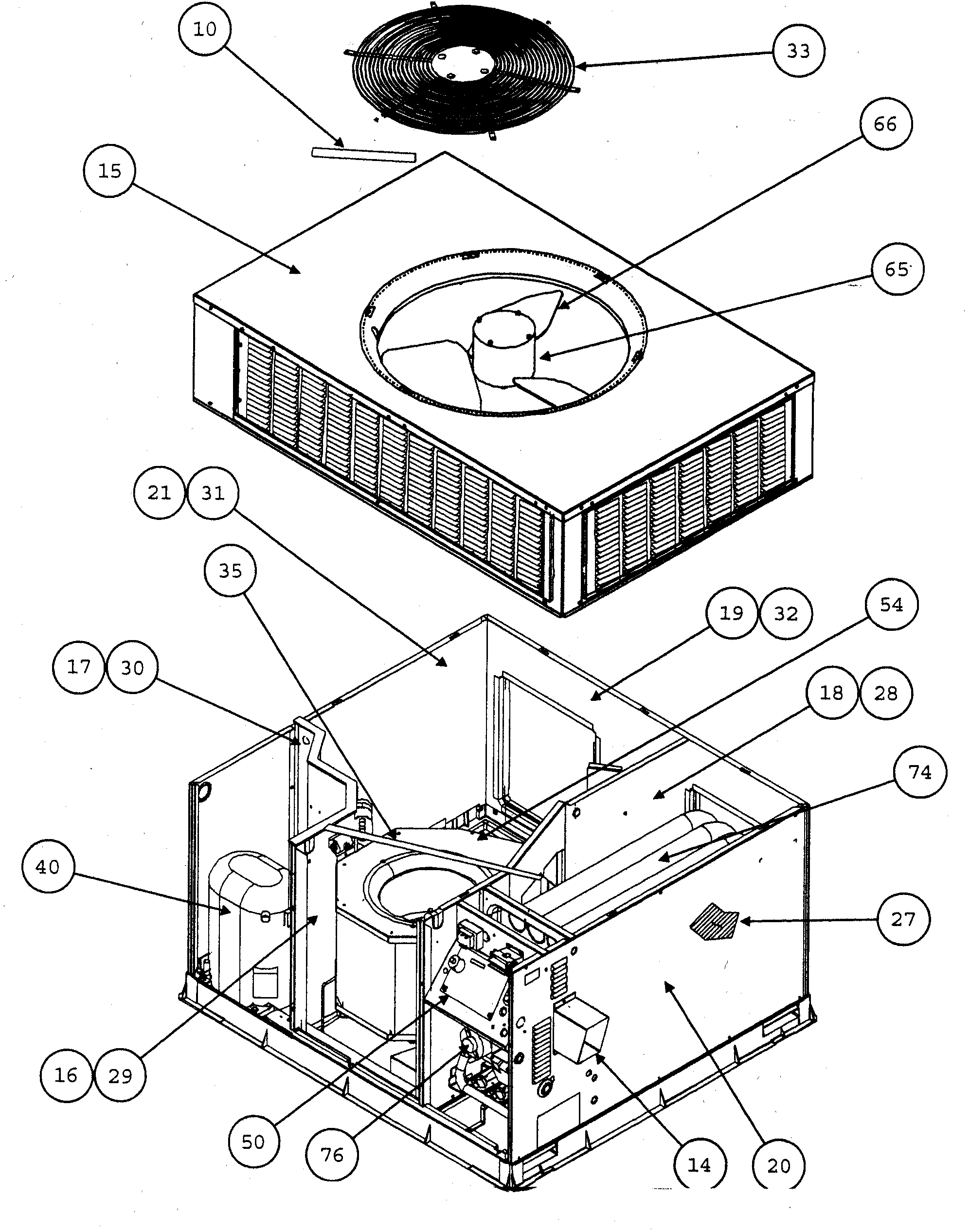

Top view diagram

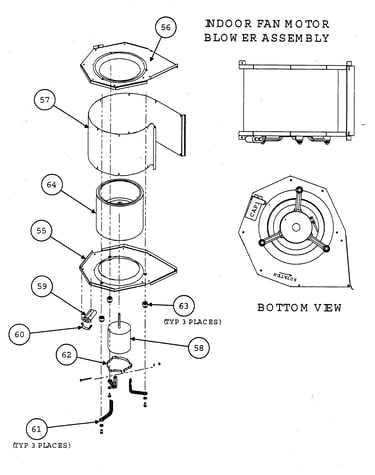

Blower assembly

Part #48GX400129

$1230.72
In Stock
Temp Swtch HH18HA211
#97

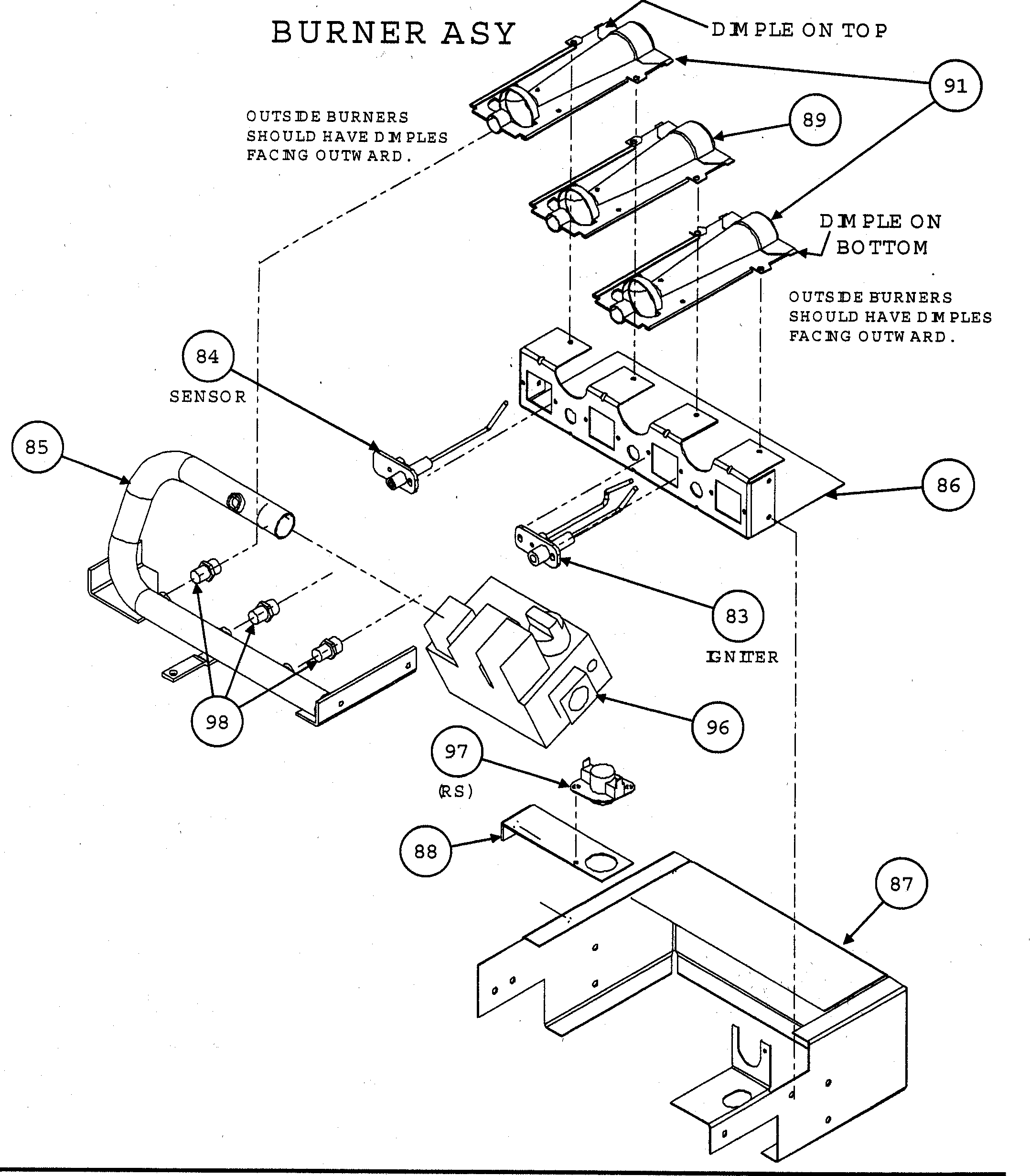

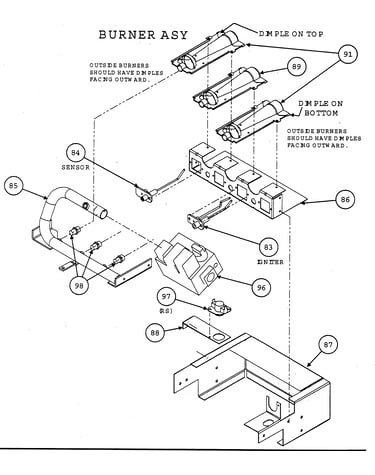

Burner assy diagram

Temp swtch

Part #HH18HA211

$27.49
In Stock
Filter 9460-4900
Filter

Part #9460-4900

$617.05
In Stock
Panel,crnr 48GS500368
#8

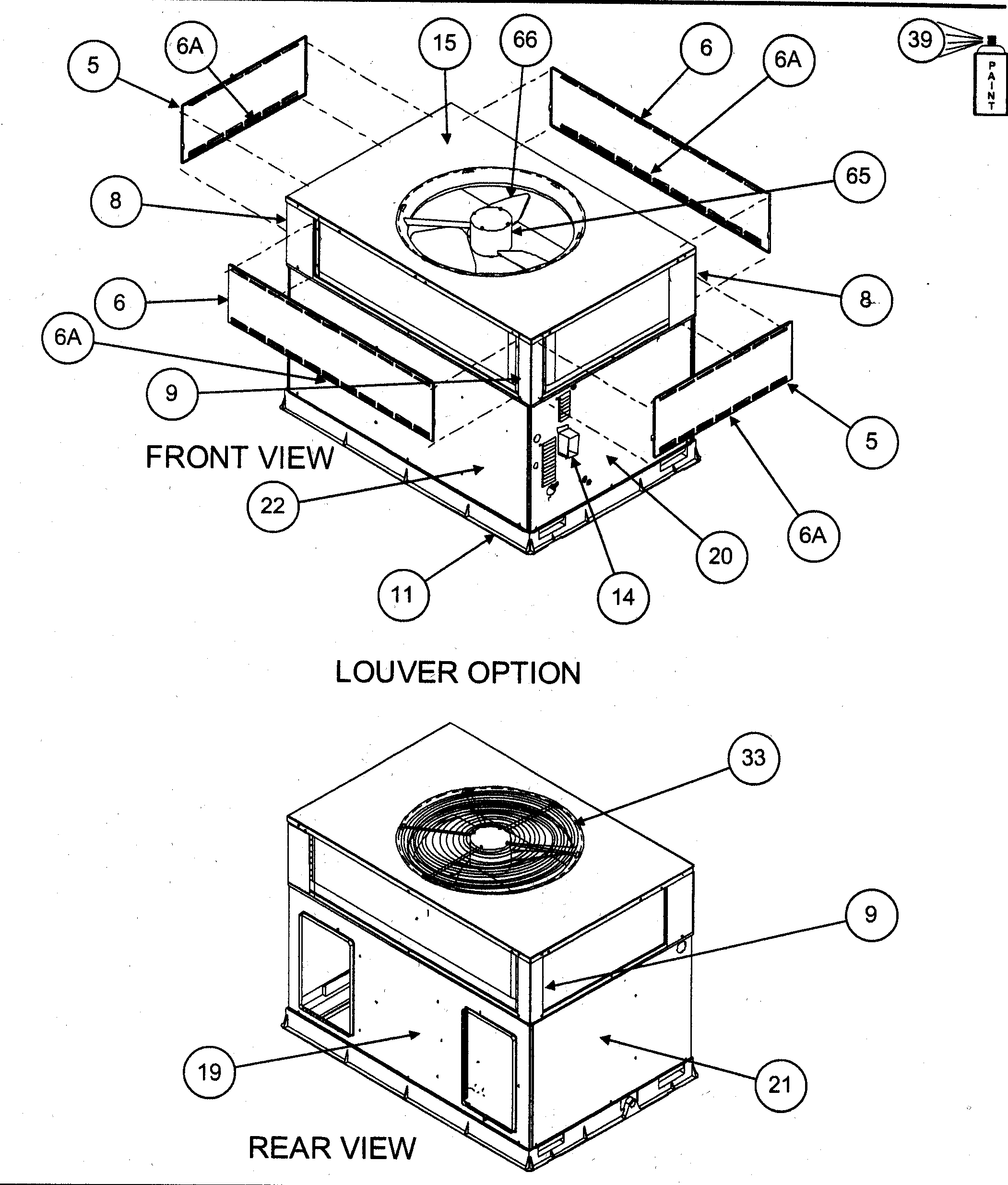

Front view/rear view diagram

Panel,crnr

Part #48GS500368

$79.20
In Stock
Sensor 48GS400192
#84

Burner assy diagram

Sensor

Part #48GS400192

$26.54
In Stock
Insulation 48GS500307
#32

Top view diagram

Insulation

Part #48GS500307

$63.60
In Stock
Payne Panel,frnt 48GS400500
#5

Front view/rear view diagram

Payne panel,frnt

Part #48GS400500

$307.45
In Stock
Plate Assembly 48GS400310
#55

Blower assy diagram

Plate assembly

Part #48GS400310

$288.69
In Stock
Motor M7415A1006
#109

Accessory economizer diagram

Motor

Part #M7415A1006

$743.27
In Stock
