Model # HGIP054UC/06 Official Bosch gas slide-in range

Here are the diagrams and repair parts for Official Bosch HGIP054UC-06 gas slide-in range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

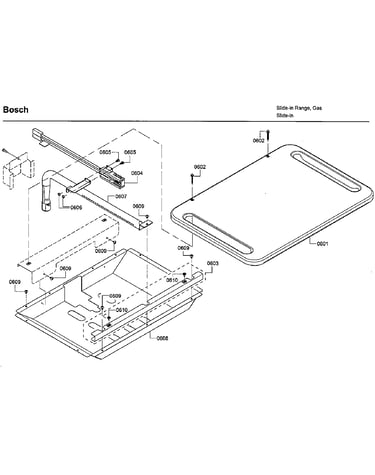

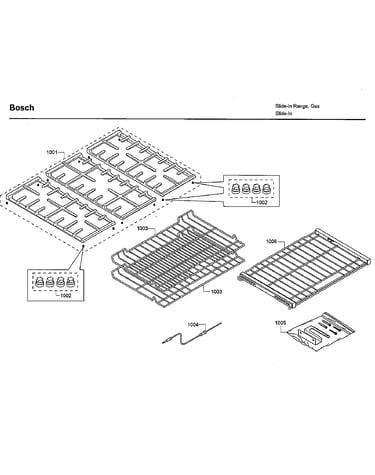

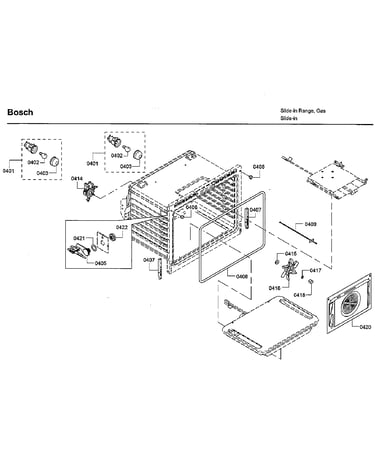

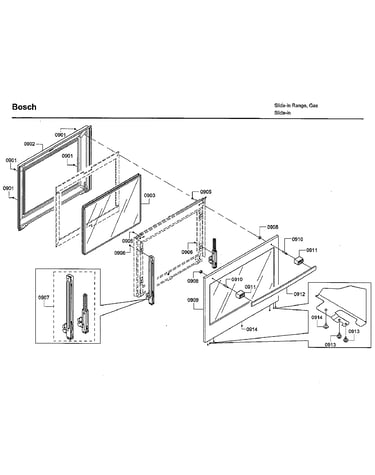

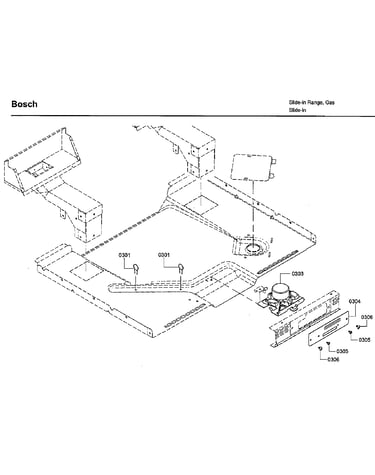

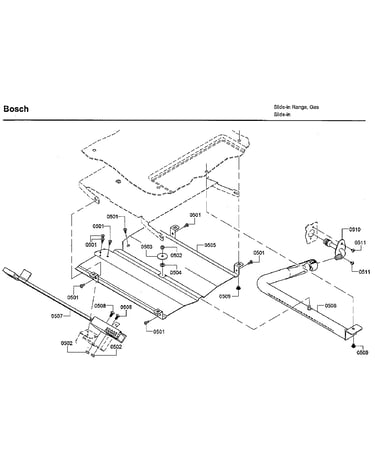

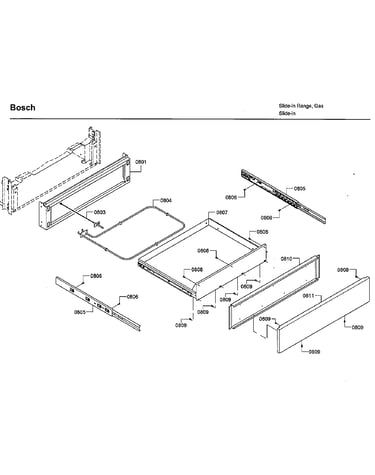

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 153 parts  |
Range Oven Burner Igniter (replaces 755058) 00755058
Range oven burner igniter (replaces 755058)

Part #00755058

BEST SELLER
$110.29 |
10% OFF Phone Price : $122.29
In Stock
Range Surface Burner Igniter (replaces 631633) 00631633
#206

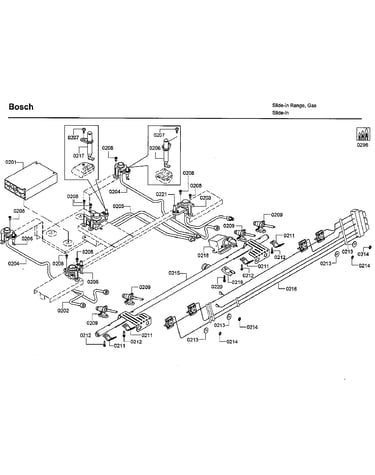

Switches diagram

Range surface burner igniter (replaces 631633)

Part #00631633

BEST SELLER
$28.55 |
17% OFF Phone Price : $34.55
In Stock
Wall Oven Display Control Board 00758968
#111

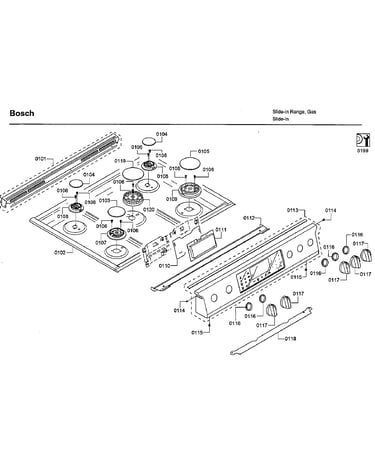

Top assy diagram

Wall oven display control board

Part #00758968

Replaced by #12029207

?
Manufacturer substitution
This part replaces 00758968. Substitute parts can look different from the original.
BEST SELLER
$160.40 |
7% OFF Phone Price : $172.40
In Stock
Wall Oven Temperature Sensor (replaces 630873) 00630873
Wall oven temperature sensor (replaces 630873)

Part #00630873

BEST SELLER
$50.89 |
11% OFF Phone Price : $56.89
In Stock
Range Spark Module 12004873
#201

Switches diagram

Range spark module

Part #12004873

$133.37 |
8% OFF Phone Price : $145.37
In Stock
Range Oven Cooling Fan Assembly (replaces 12003340) 12011471
#706

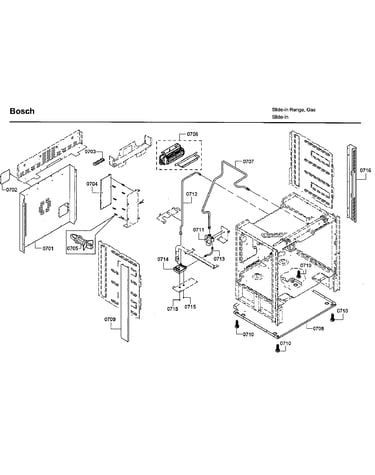

Cabinet diagram

Range oven cooling fan assembly (replaces 12003340)

Part #12011471

$192.24
In Stock
Range Oven Control Board (replaces 12006849) 12012946
#704

Cabinet diagram

Range oven control board (replaces 12006849)

Part #12012946

$245.75 |
5% OFF Phone Price : $257.75
In Stock
Screw 00617527
Screw

Part #00617527

$15.20
In Stock
Range Surface Burner Head (replaces 631630) 00631630
#107

Top assy diagram

Range surface burner head (replaces 631630)

Part #00631630

This item is not returnable
$25.49 |
19% OFF Phone Price : $31.49
In Stock
Tube Assembly 12003348
#202

Switches diagram

Tube assembly

Part #12003348

$51.04
In Stock
