Model # BC20N-P602354W Official Amana bottom-mount refrigerator
Here are the diagrams and repair parts for Official Amana BC20N-P602354W bottom-mount refrigerator, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

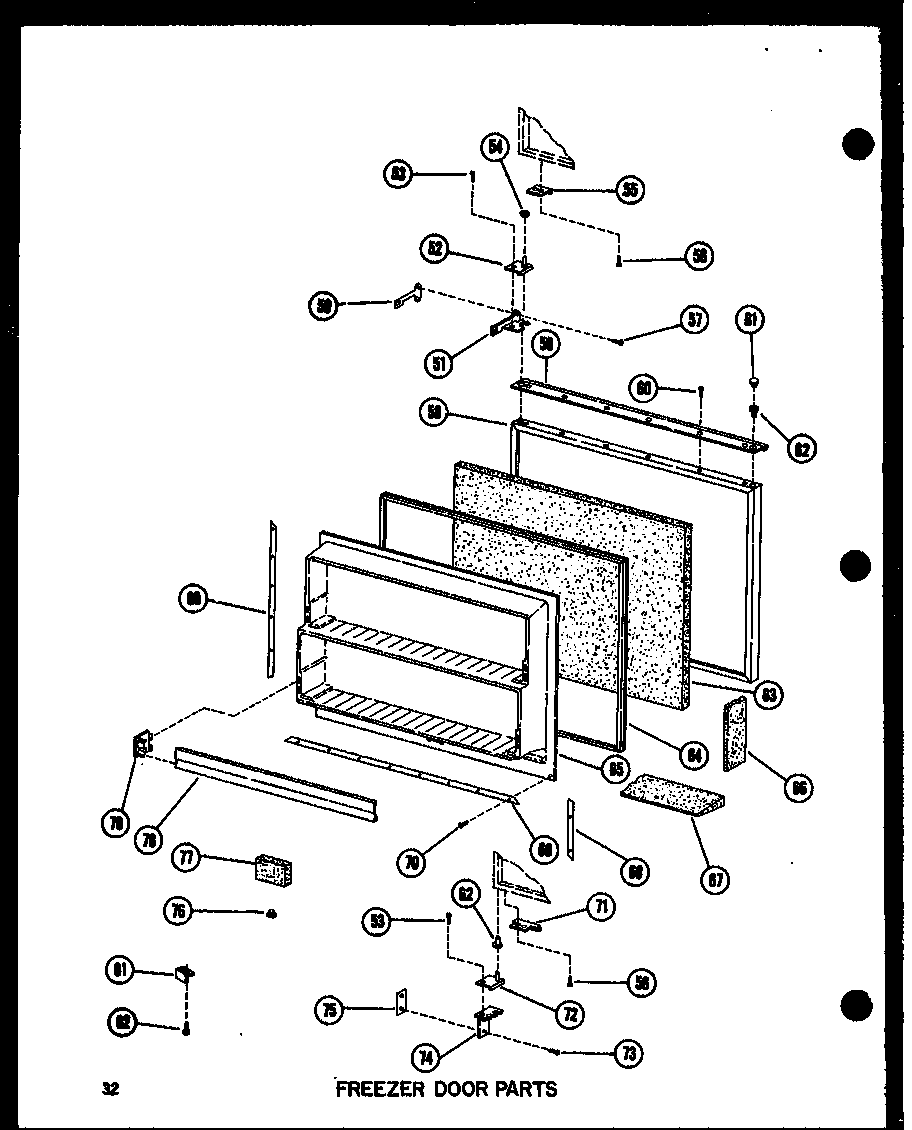

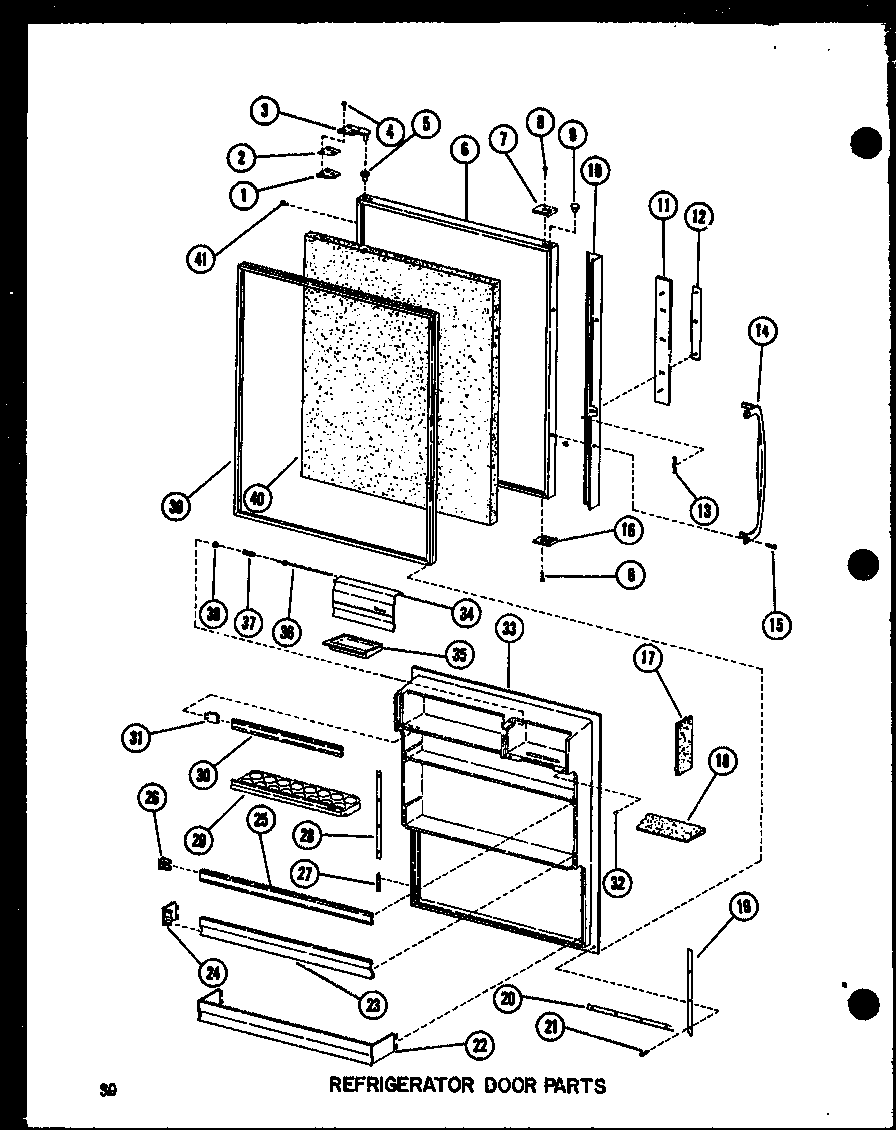

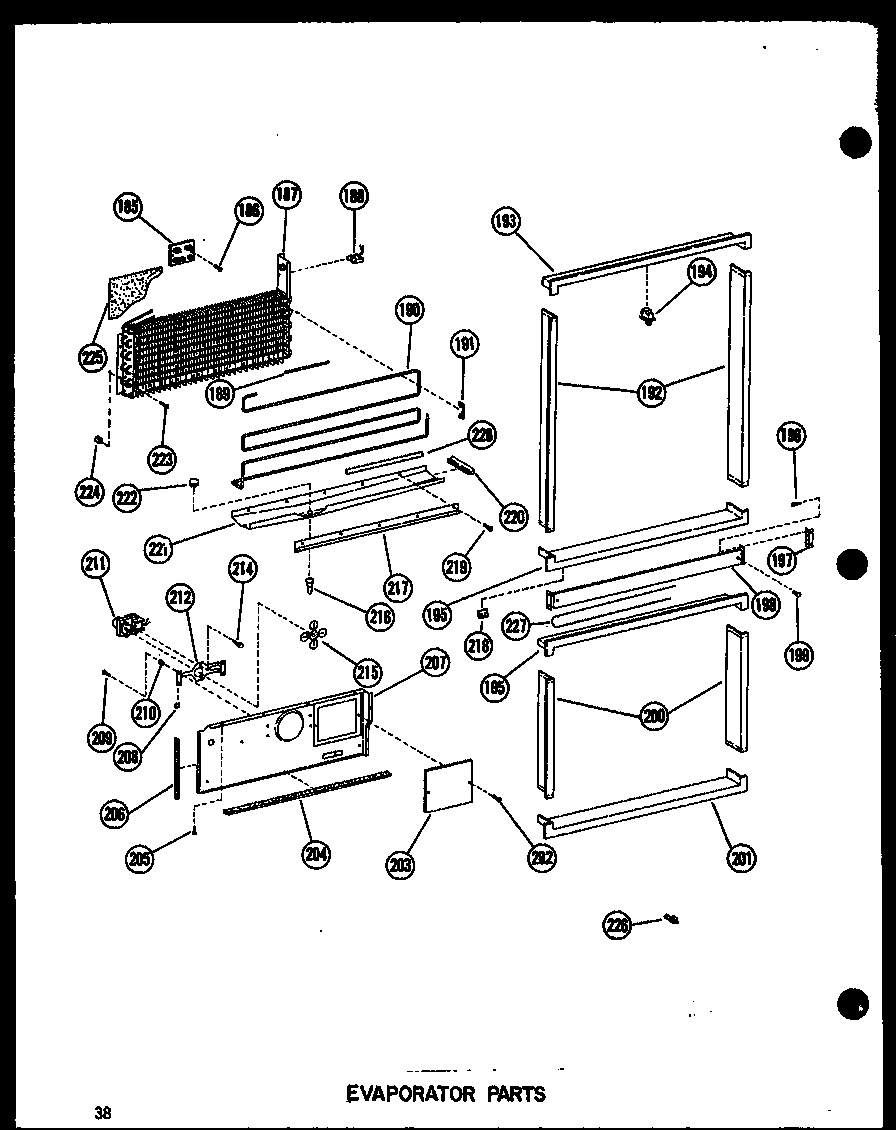

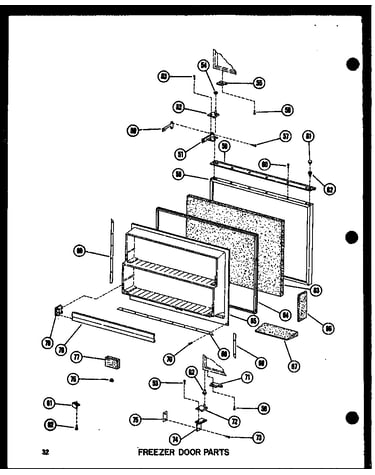

SELECT DIAGRAM
Browse Parts forBC20N-P602354W Refrigerators
- #287

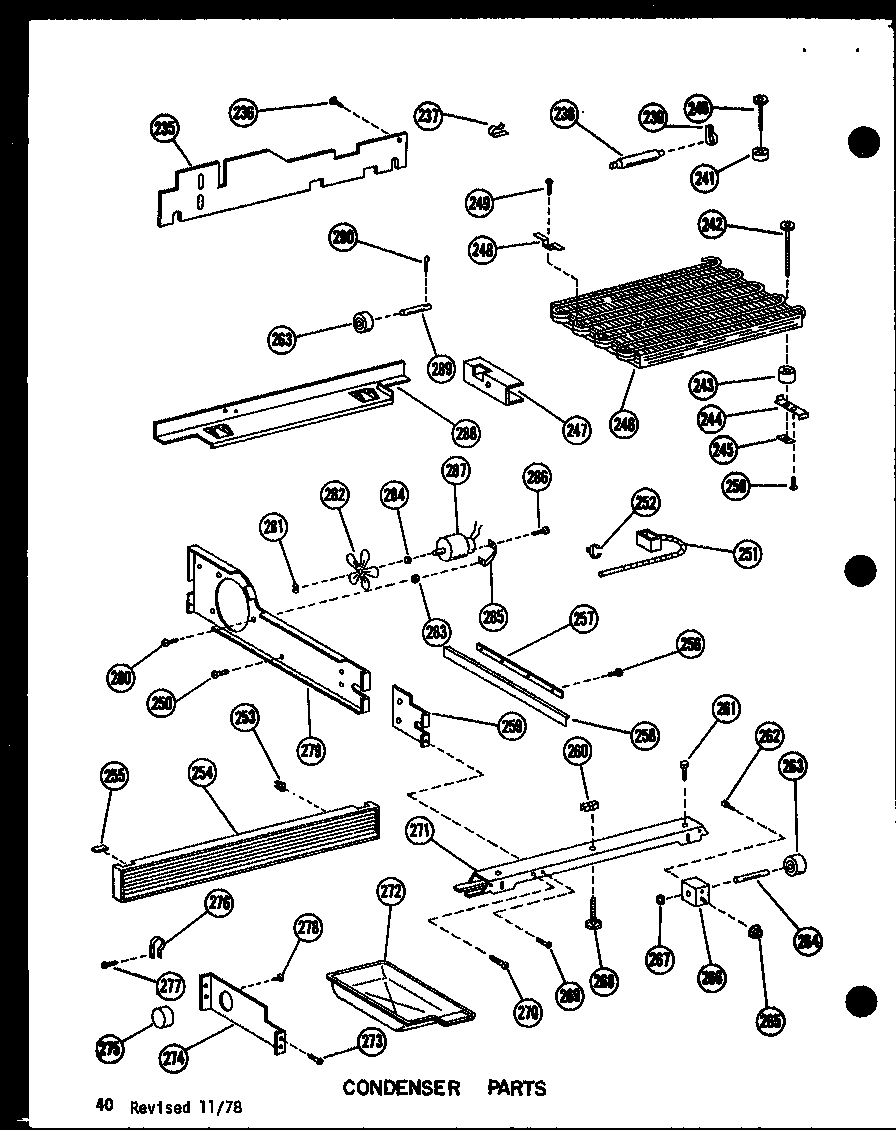

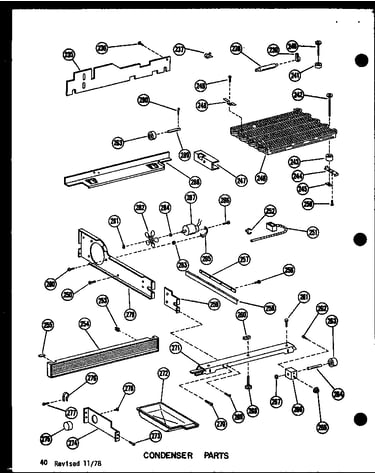

Condenser parts diagram
Refrigerator fan motorPart #C3661701
Replaced by #833697
?Manufacturer substitutionThis part replaces C3661701. Substitute parts can look different from the original.$55.55 |10% OFF Phone Price : $61.55In Stock - #238
Condenser parts diagram
DrierPart #B2150501
Replaced by #WPB2150504
?Manufacturer substitutionThis part replaces B2150501. Substitute parts can look different from the original.$82.49 |7% OFF Phone Price : $88.49In Stock - #103

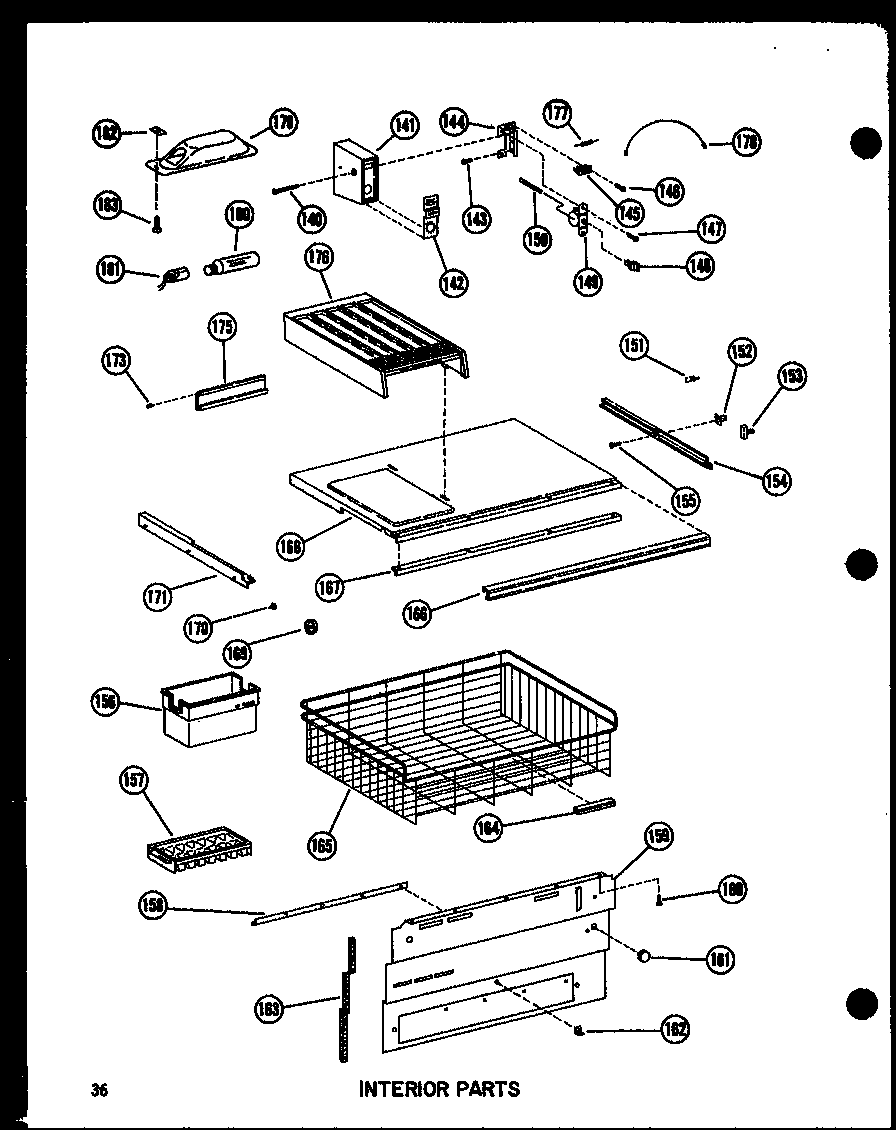

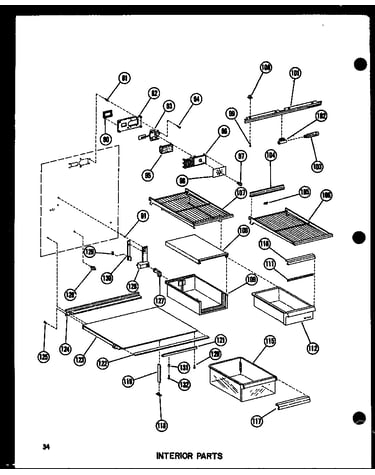

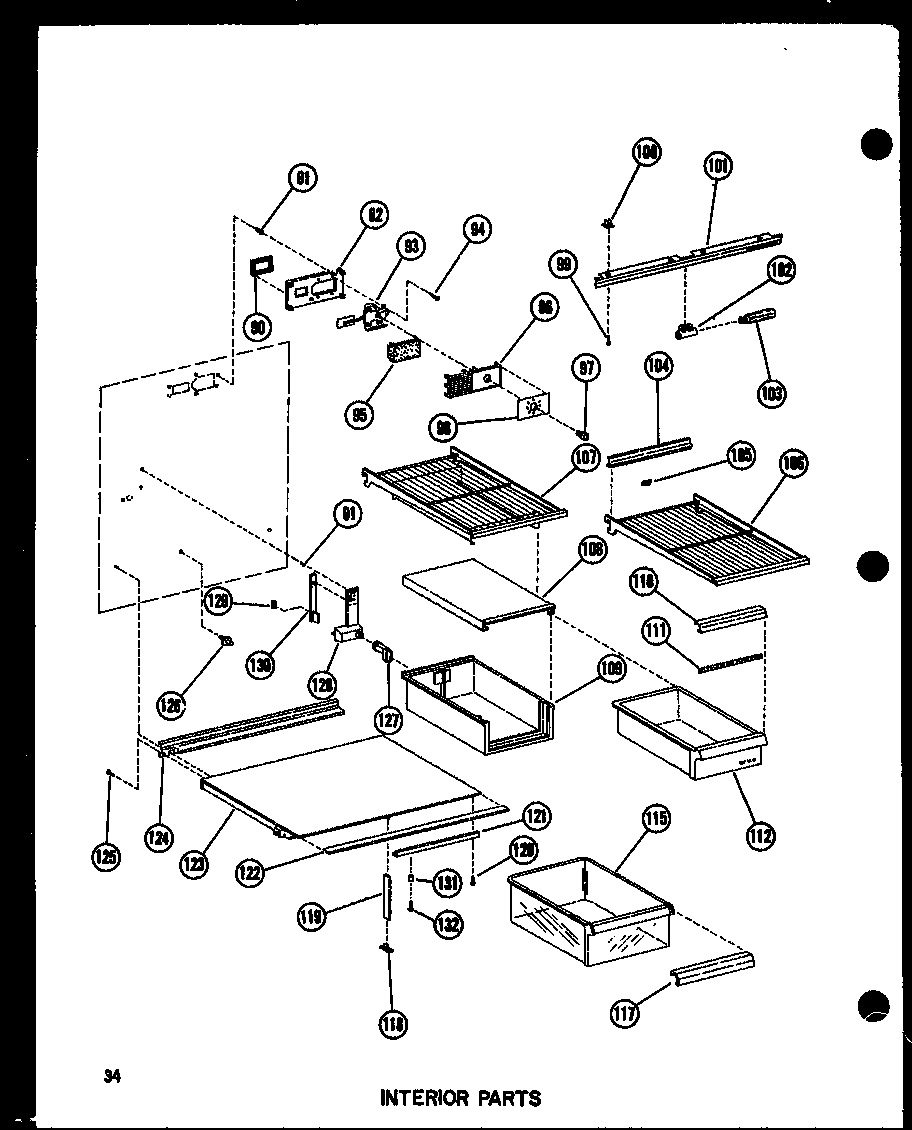

Interior parts diagram
Refrigerator bulbPart #A3079001
Replaced by #WPA3073101
?Manufacturer substitutionThis part replaces A3079001. Substitute parts can look different from the original.$10.57 |42% OFF Was : $18.12In Stock - #317

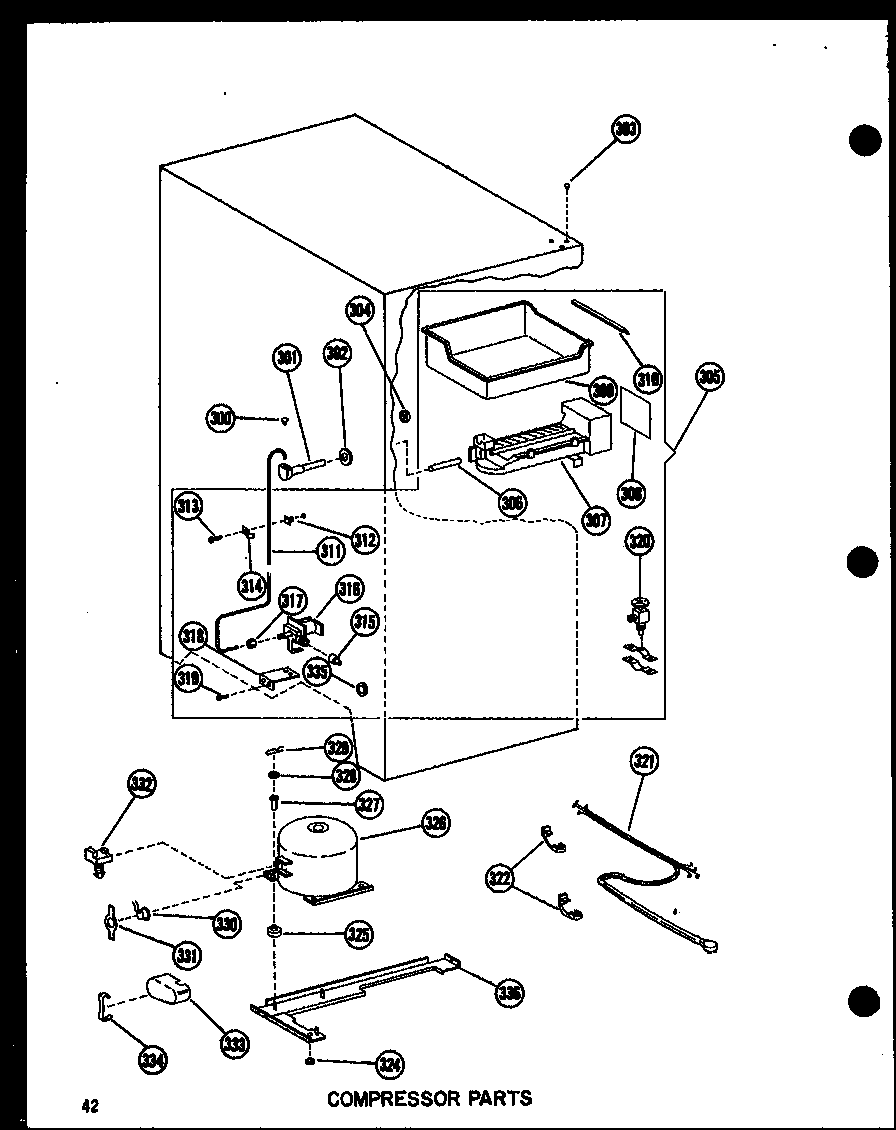

Compressor parts diagram
FittingPart #M0753001
The manufacturer no longer makes this part, and there's no substitute part
- #1

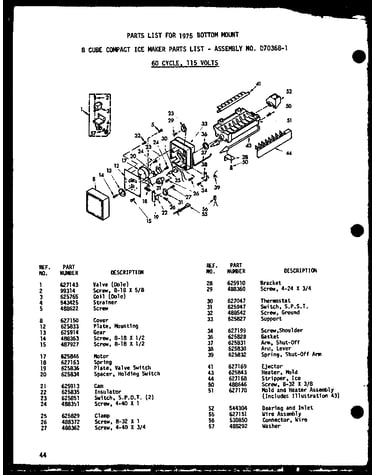

8 cube compact ice maker diagram
ValvePart #627143
Replaced by #4318047
?Manufacturer substitutionThis part replaces 627143. Substitute parts can look different from the original.$42.42 |27% OFF Was : $57.87In Stock - #316
Compressor parts diagram
Water valvePart #D7036803
Replaced by #4318047
?Manufacturer substitutionThis part replaces D7036803. Substitute parts can look different from the original.$42.42 |27% OFF Was : $57.87In Stock - Screw
Part #M0230917
Replaced by #67006425
?Manufacturer substitutionThis part replaces M0230917. Substitute parts can look different from the original.This item is not returnable$4.33 |19% OFF Phone Price : $5.33In Stock - #253
Condenser parts diagram
ClipPart #M0117301
Replaced by #WPM0117303
?Manufacturer substitutionThis part replaces M0117301. Substitute parts can look different from the original.This item is not returnable$6.60 |13% OFF Phone Price : $7.60In Stock - #273
Condenser parts diagram
ScrewPart #M0211317
Replaced by #WP489464
?Manufacturer substitutionThis part replaces M0211317. Substitute parts can look different from the original.This item is not returnable$6.60 |13% OFF Phone Price : $7.60In Stock - Screw
Part #M0211217
Replaced by #WP489464
?Manufacturer substitutionThis part replaces M0211217. Substitute parts can look different from the original.This item is not returnable$6.60 |13% OFF Phone Price : $7.60In Stock
