Jenn-Air
Gas Cooktop

Model # CCG457B Official Jenn-Air gas cooktop

Here are the diagrams and repair parts for Official Jenn-Air CCG457B gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 77 parts  |
Valve Switch 705861
#13

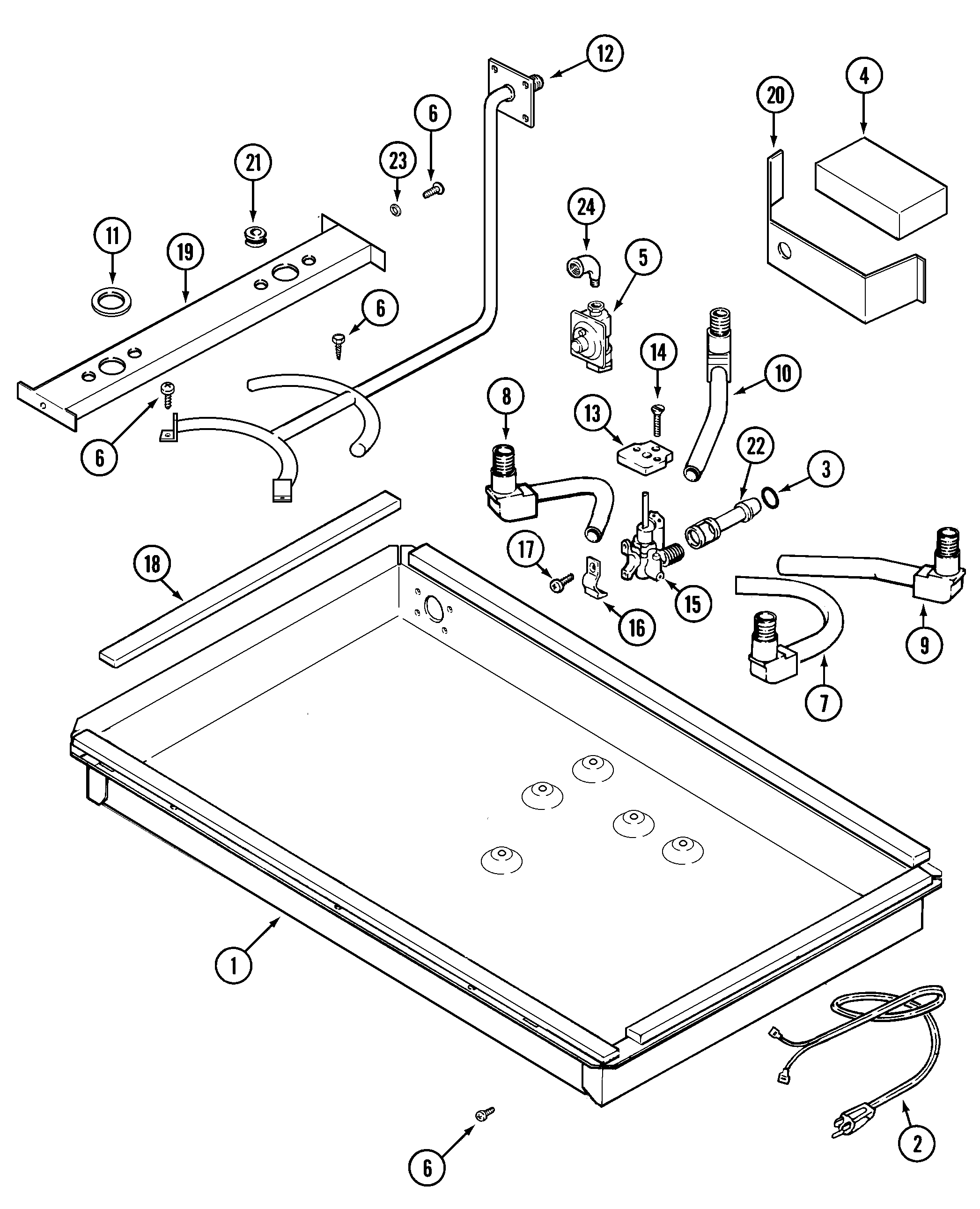

Body diagram

Valve switch

Part #705861

Replaced by #WPY705861

?
Manufacturer substitution
This part replaces 705861. Substitute parts can look different from the original.
$49.96
In Stock
Screw, Switc 705862
#14

Body diagram

Screw, switc

Part #705862

The manufacturer no longer makes this part, and there's no substitute part

Seal, Pan (l 705828
#11

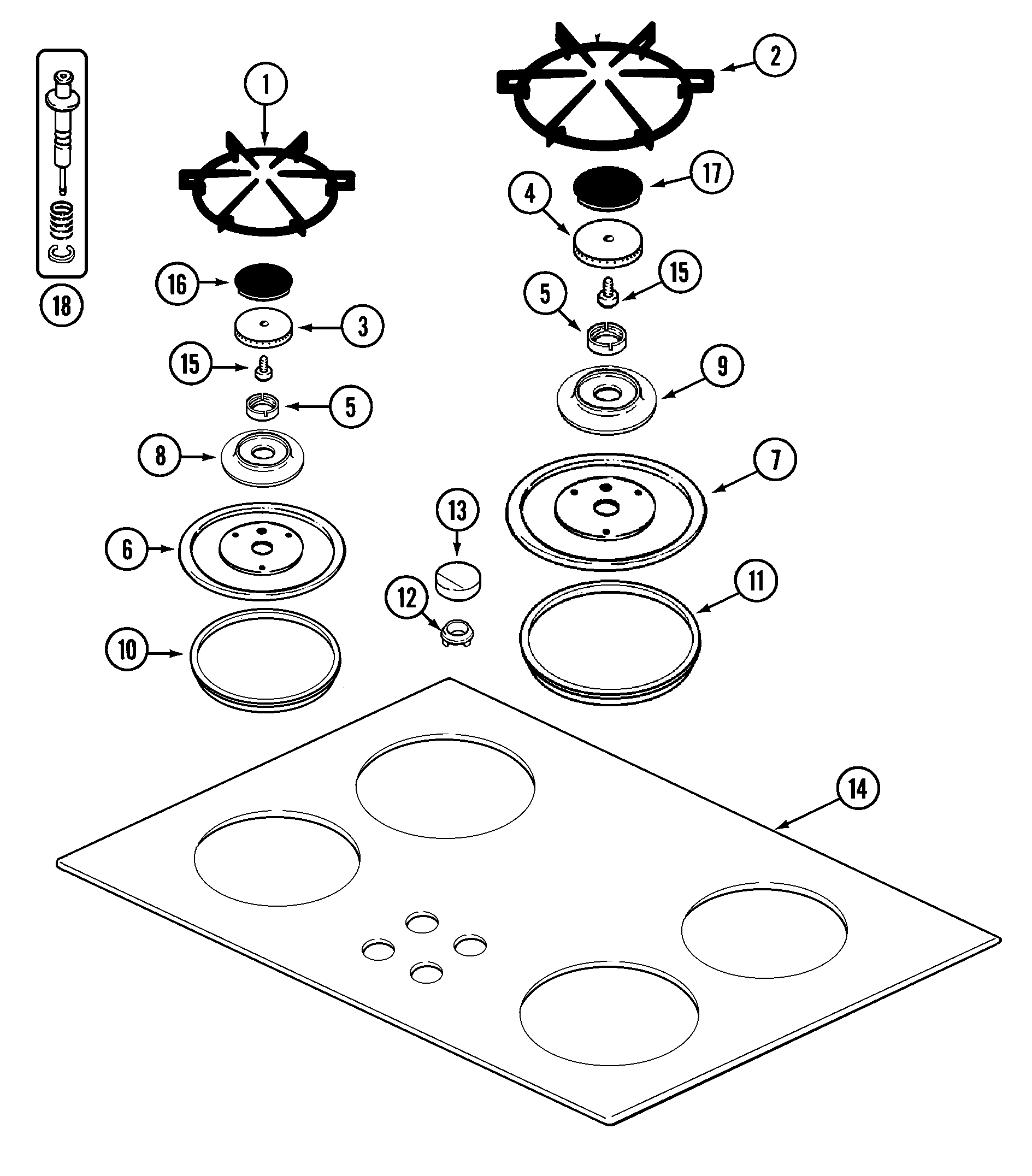

Top assembly diagram

Seal, pan (l

Part #705828

The manufacturer no longer makes this part, and there's no substitute part

Grommet (blk 04100306
#12

Top assembly diagram

Grommet (blk

Part #04100306

The manufacturer no longer makes this part, and there's no substitute part

Grate (sm-bl 705806
#1

Top assembly diagram

Grate (sm-bl

Part #705806

The manufacturer no longer makes this part, and there's no substitute part

Grate (lg-bl 705807
#2

Top assembly diagram

Grate (lg-bl

Part #705807

The manufacturer no longer makes this part, and there's no substitute part

Bracket Valve 705859
#16

Body diagram

Bracket valve

Part #705859

The manufacturer no longer makes this part, and there's no substitute part

Burner Nut 705817
#5A

Top assembly diagram

Burner nut

Part #705817

The manufacturer no longer makes this part, and there's no substitute part

Bolt Cover 705873
#15

Top assembly diagram

Bolt cover

Part #705873

The manufacturer no longer makes this part, and there's no substitute part

Pan (lg-blk) 705809
#7

Top assembly diagram

Pan (lg-blk)

Part #705809

The manufacturer no longer makes this part, and there's no substitute part
