Microwave

Model # PEB1590DJ1BB Official GE microwave

Here are the diagrams and repair parts for Official GE PEB1590DJ1BB microwave, as well as links to manuals and error code tables, if available.

By Schematic

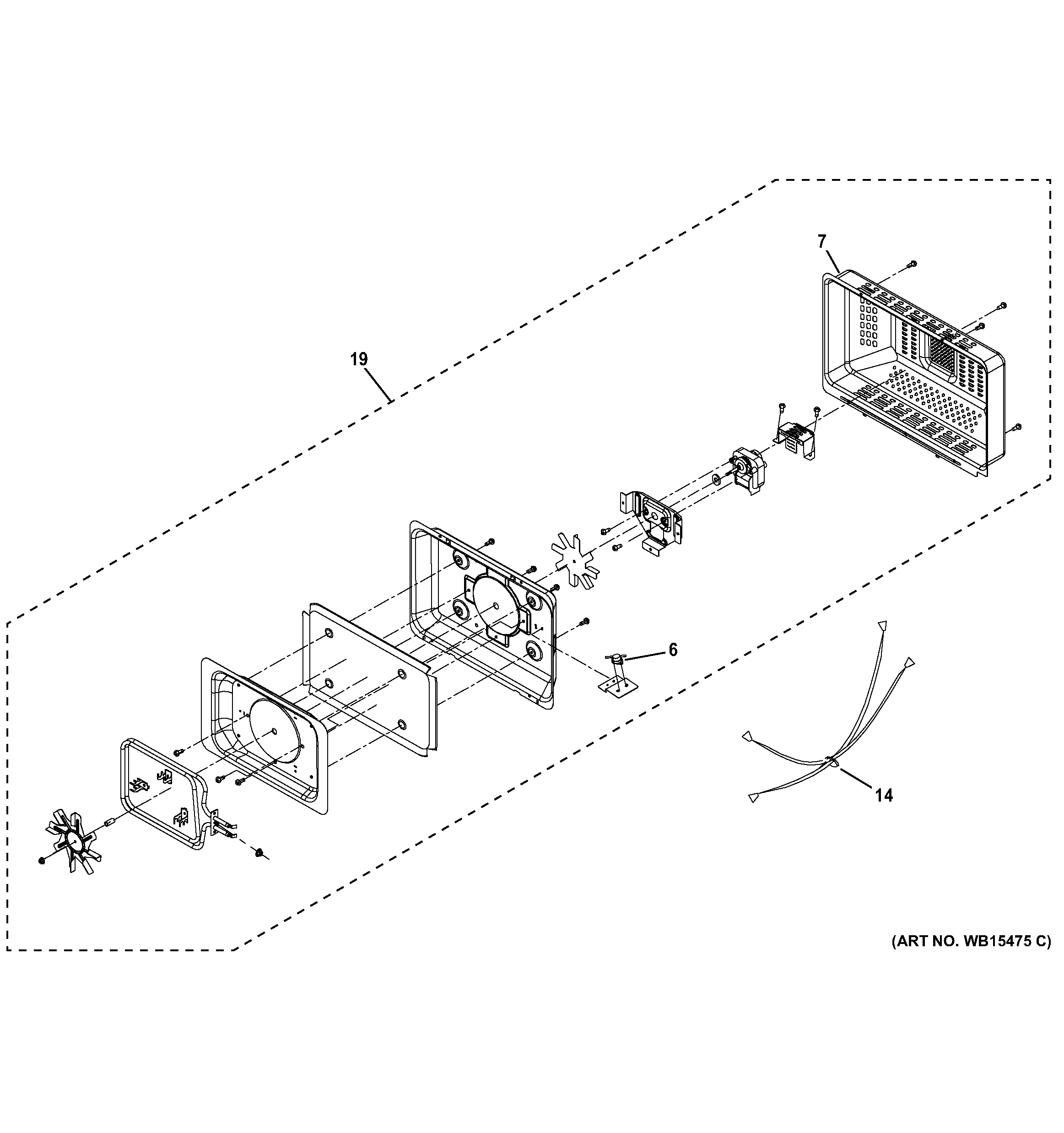

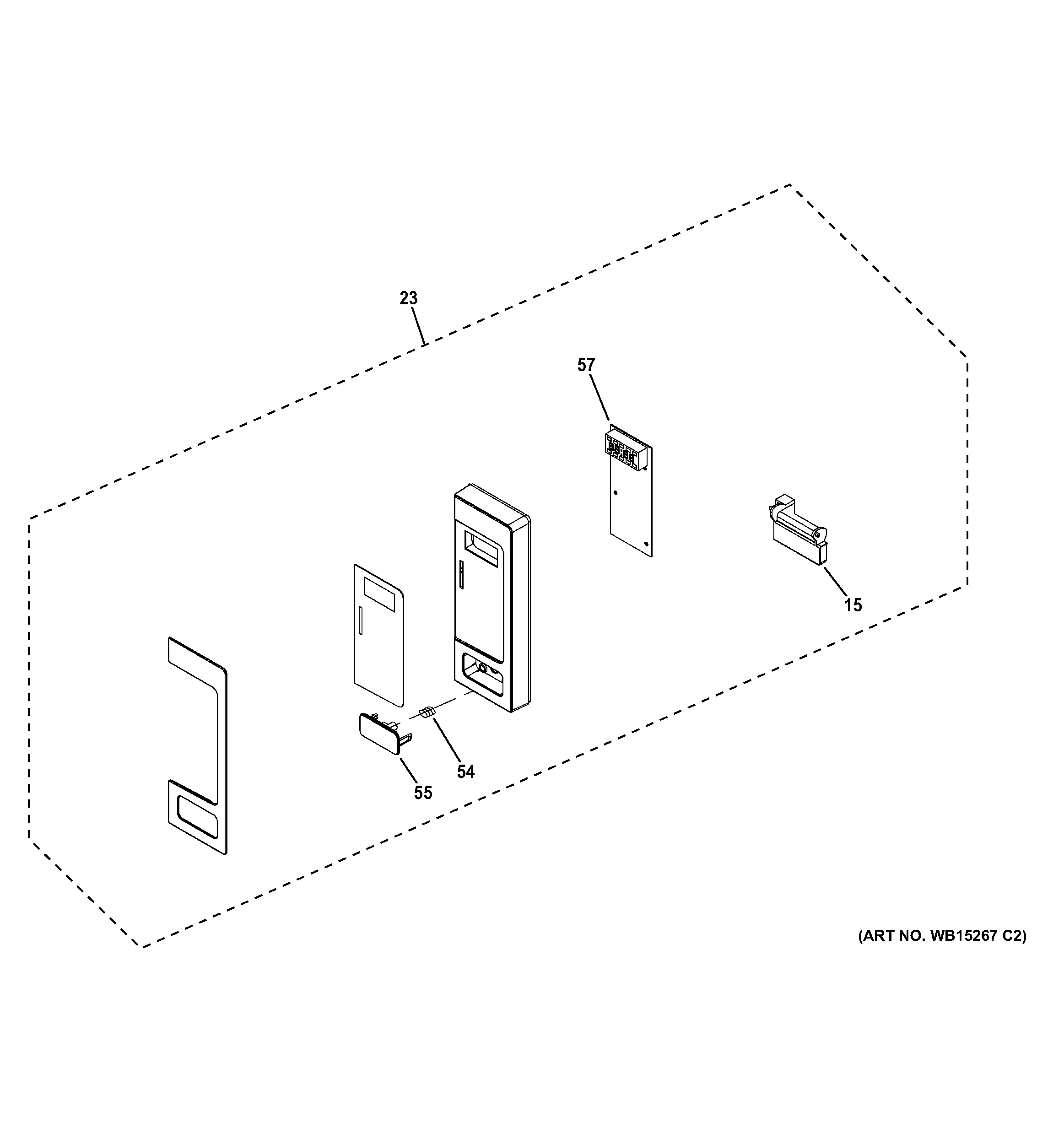

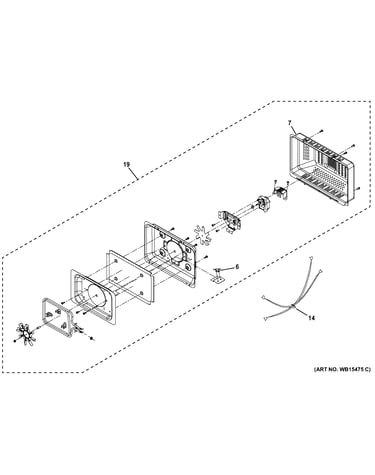

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
PEB1590DJ1BB Microwave
Microwave Fuse WB27X11138
#1

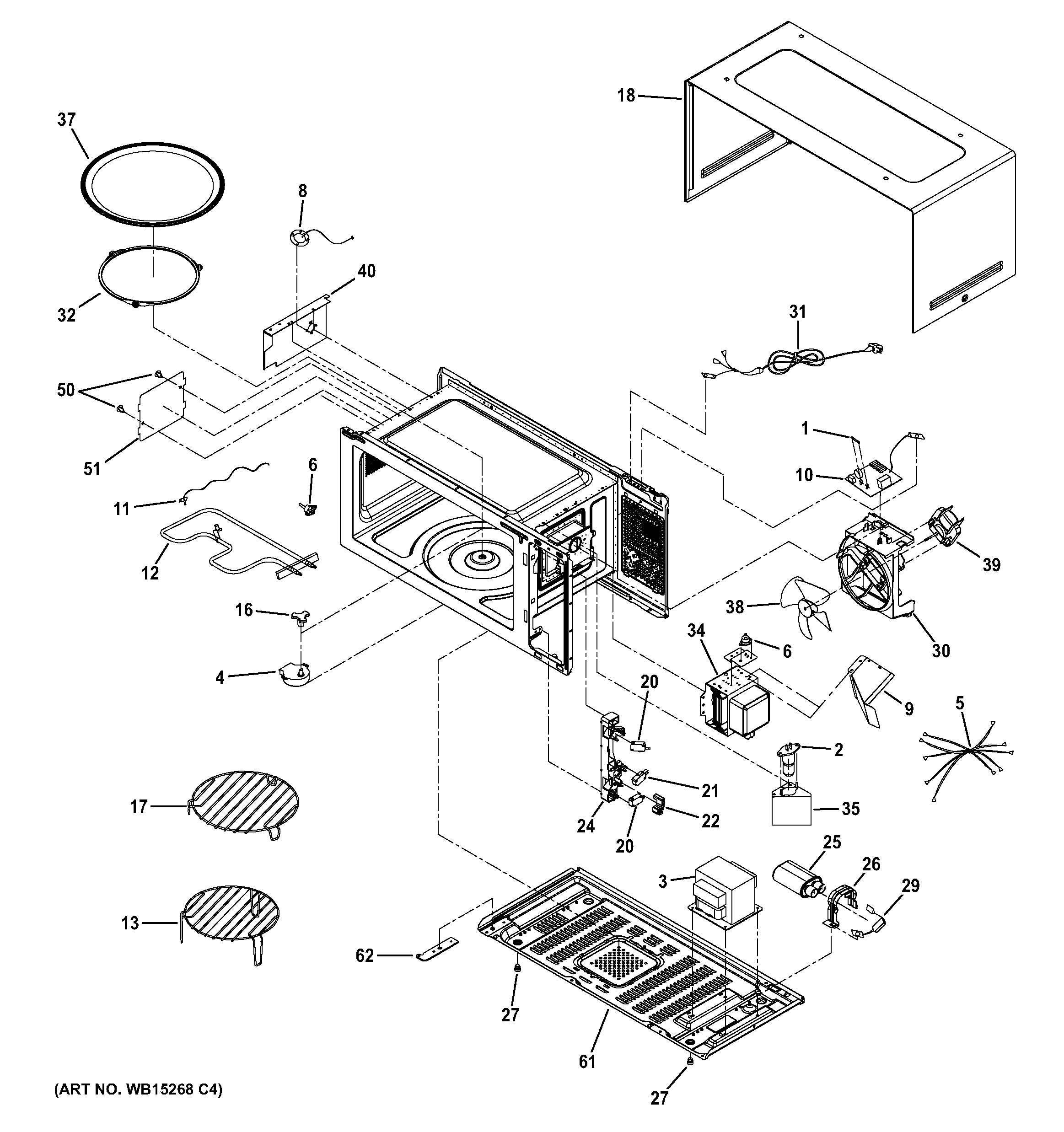

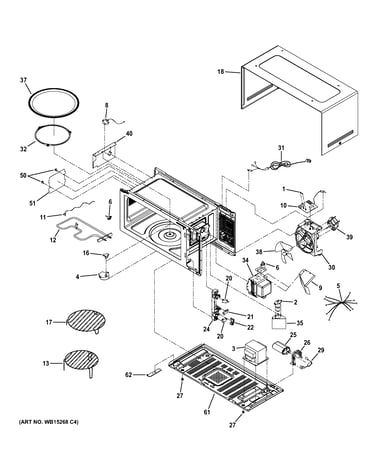

Oven cavity parts diagram

Microwave fuse

Part #WB27X11138

BEST SELLER
$50.37
11% OFF Phone Price : $56.37
In Stock
Microwave Door Interlock Switch (replaces Wb24x28941) WB24X10146
#20

Oven cavity parts diagram

Microwave door interlock switch (replaces wb24x28941)

Part #WB24X10146

BEST SELLER
$32.79
15% OFF Phone Price : $38.79
In Stock
Microwave Door Interlock Switch Bracket WB14X10049
#24

Oven cavity parts diagram

Microwave door interlock switch bracket

Part #WB14X10049

BEST SELLER
$39.59
13% OFF Phone Price : $45.59
In Stock
Microwave Door Interlock Switch WB24X10190
#21

Oven cavity parts diagram

Microwave door interlock switch

Part #WB24X10190

BEST SELLER
$30.11
17% OFF Phone Price : $36.11
In Stock
Microwave Magnetron WB27X11211
#34

Oven cavity parts diagram

Microwave magnetron

Part #WB27X11211

Replaced by #WB26X23320

?
Manufacturer substitution
This part replaces WB27X11211. Substitute parts can look different from the original.
BEST SELLER
In Stock
Microwave Noise Filter WB27X11140
#10

Oven cavity parts diagram

Microwave noise filter

Part #WB27X11140

BEST SELLER
$136.07
10% OFF Was : $151.19
In Stock
Microwave High-voltage Diode WB27X10849
#29

Oven cavity parts diagram

Microwave high-voltage diode

Part #WB27X10849

Replaced by #WB26X28935

?
Manufacturer substitution
This part replaces WB27X10849. Substitute parts can look different from the original.
BEST SELLER
$50.11
11% OFF Phone Price : $56.11
In Stock
Microwave Turntable Motor WB26X10176
#4

Oven cavity parts diagram

Microwave turntable motor

Part #WB26X10176

Replaced by #WB26X32190

?
Manufacturer substitution
This part replaces WB26X10176. Substitute parts can look different from the original.
$51.05
11% OFF Phone Price : $57.05
In Stock

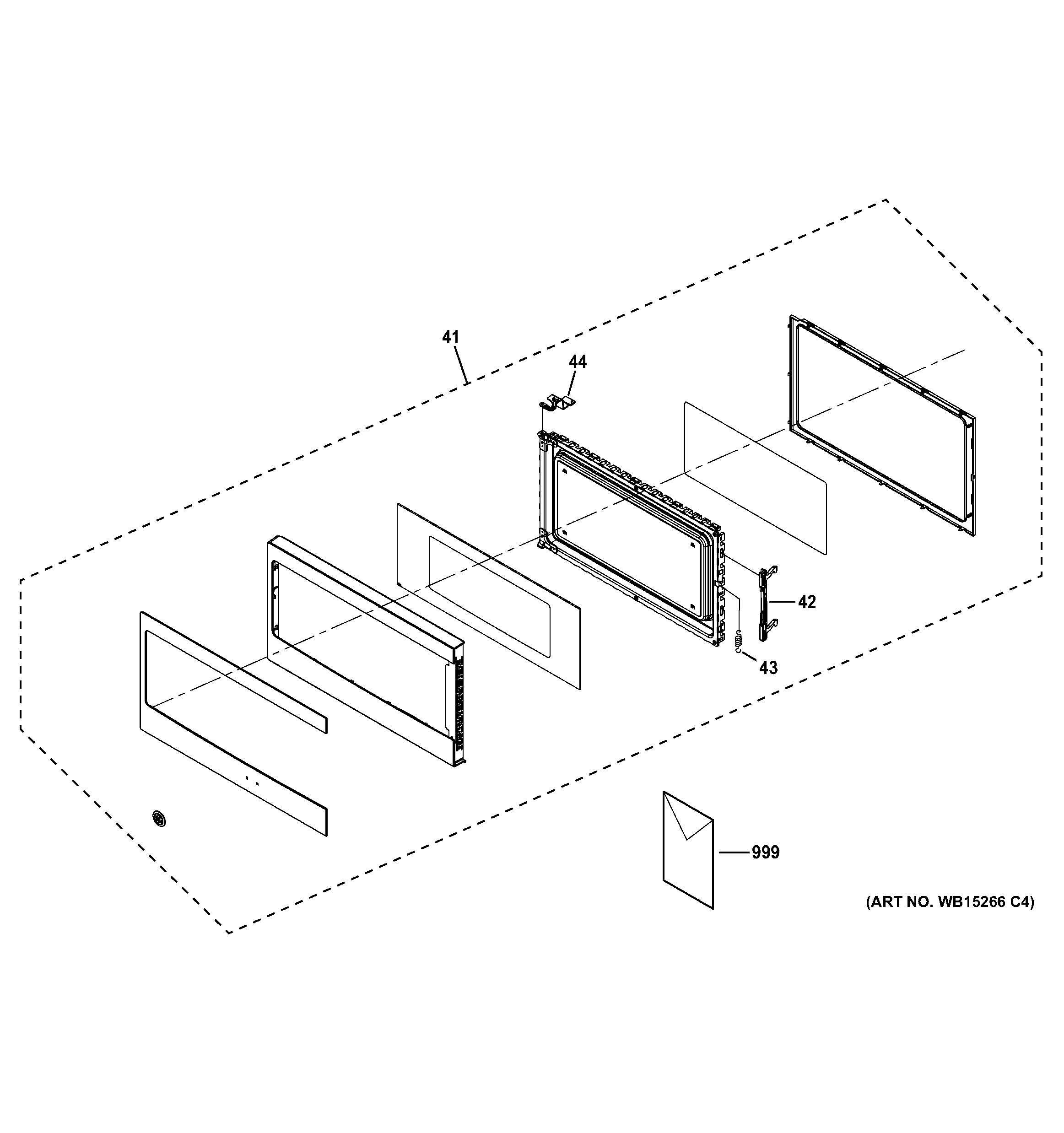

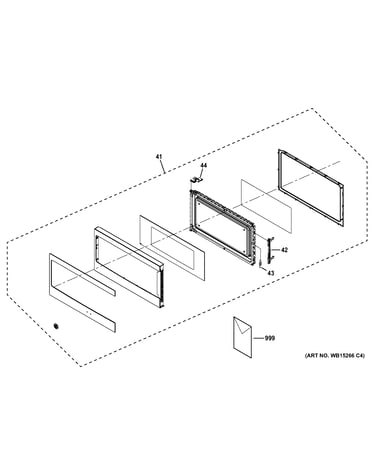

Door Latch WB10X27074
#42

Door parts diagram

Door latch

Part #WB10X27074

Replaced by #WB10X30407

?
Manufacturer substitution
This part replaces WB10X27074. Substitute parts can look different from the original.
This item is not returnable
$7.88
11% OFF Phone Price : $8.88
In Stock
Humidity Sensor WB24X21307
#8

Oven cavity parts diagram

Humidity sensor

Part #WB24X21307

$122.38
9% OFF Phone Price : $134.38
In Stock
