Model # 13191162 Official Craftsman 18" rotary lawn mower

Here are the diagrams and repair parts for Official Craftsman 13191162 18" rotary lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

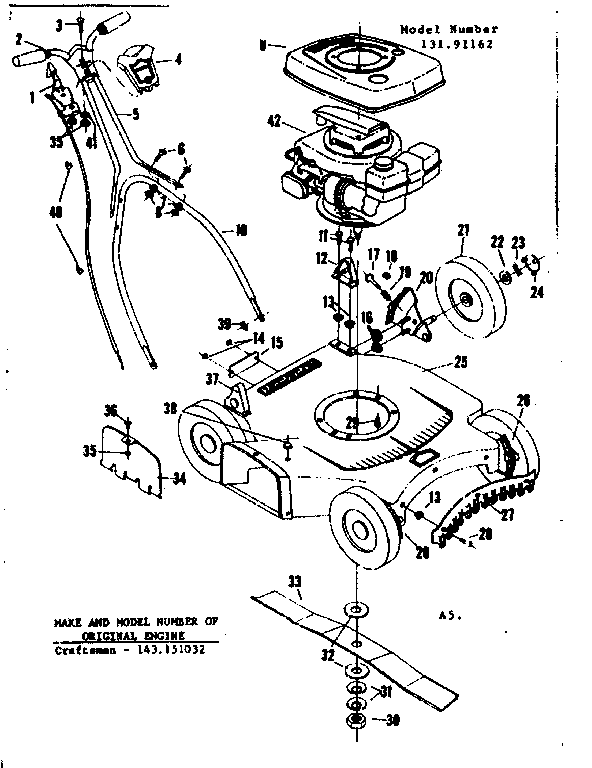

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 44 parts  |
Lawn & Garden Equipment Washer 52784
#41

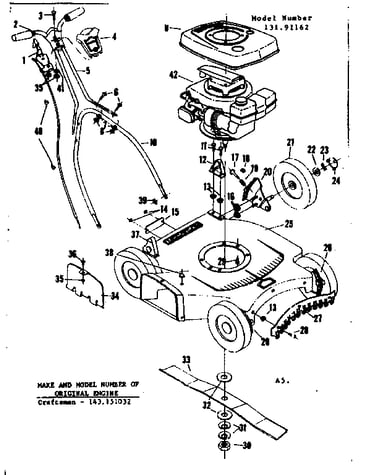

Replacement parts diagram

Lawn & garden equipment washer

Part #52784

Replaced by #819061216

?
Manufacturer substitution
This part replaces 52784. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Washer 52160
#22

Replacement parts diagram

Washer

Part #52160

Replaced by #596040101

?
Manufacturer substitution
This part replaces 52160. Substitute parts can look different from the original.
This item is not returnable
$5.11
In Stock
Cotter Pin 455563
#39

Replacement parts diagram

Cotter pin

Part #455563

Replaced by #532051793

?
Manufacturer substitution
This part replaces 455563. Substitute parts can look different from the original.
This item is not returnable
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Lawn Mower Retainer Clip, 4-pack 55015
#23

Replacement parts diagram

Lawn mower retainer clip, 4-pack

Part #55015

Replaced by #582934801

?
Manufacturer substitution
This part replaces 55015. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Bolt 54395
#11

Replacement parts diagram

Bolt

Part #54395

The manufacturer no longer makes this part, and there's no substitute part

Washer Screw 423561
#29

Replacement parts diagram

Washer screw

Part #423561

The manufacturer no longer makes this part, and there's no substitute part

Stop Nut 271166
#35

Replacement parts diagram

Stop nut

Part #271166

The manufacturer no longer makes this part, and there's no substitute part

Washer 50885
#32

Replacement parts diagram

Washer

Part #50885

The manufacturer no longer makes this part, and there's no substitute part

Blade 50670
#33

Replacement parts diagram

Blade

Part #50670

The manufacturer no longer makes this part, and there's no substitute part

Handle 52576
#10

Replacement parts diagram

Handle

Part #52576

The manufacturer no longer makes this part, and there's no substitute part
