Kenmore Elite
Gas Range

Model # 79031042803 Official Kenmore Elite gas range

Here are the diagrams and repair parts for Official Kenmore Elite 79031042803 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

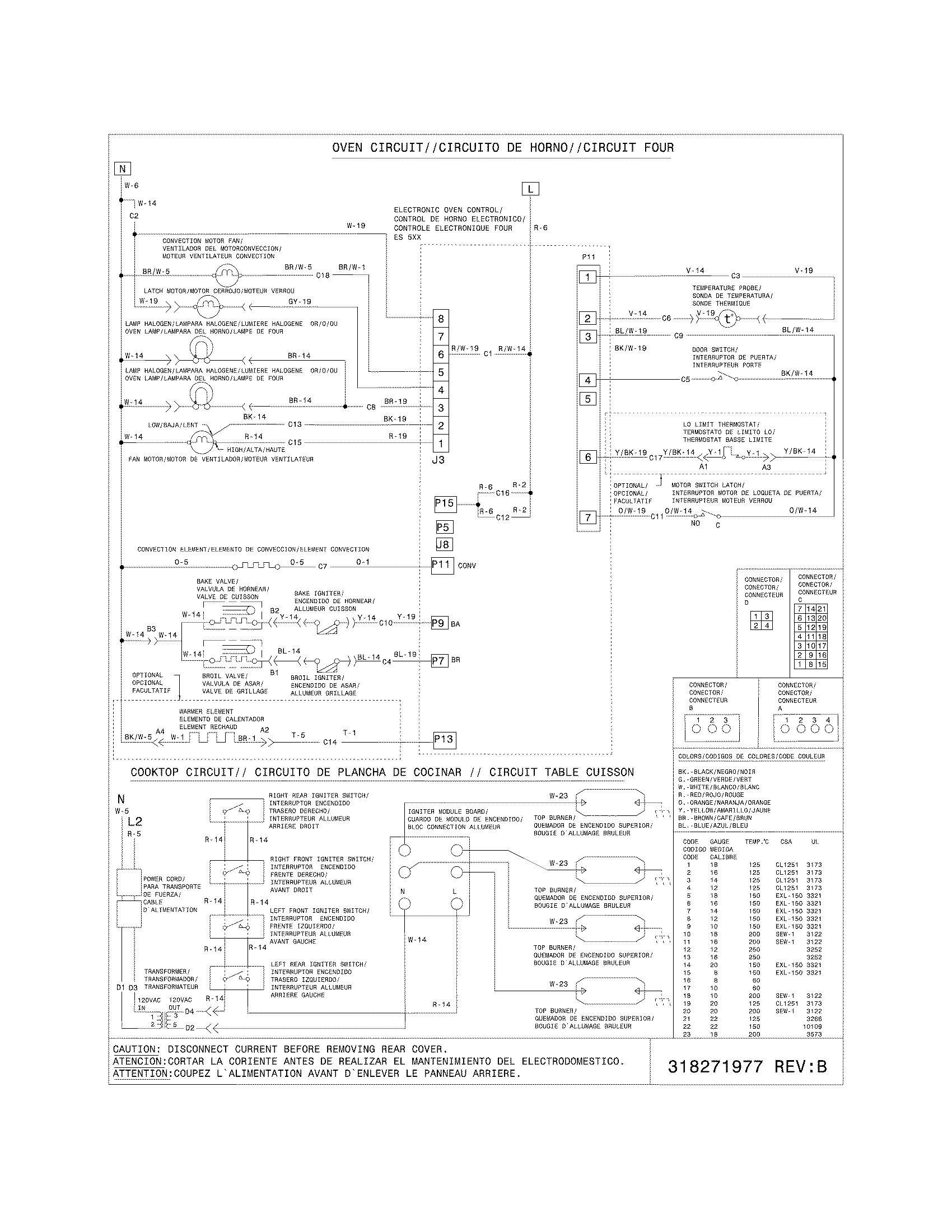

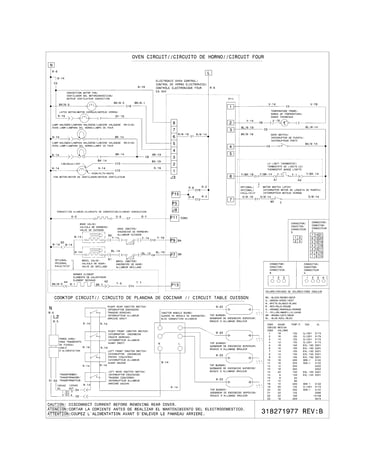

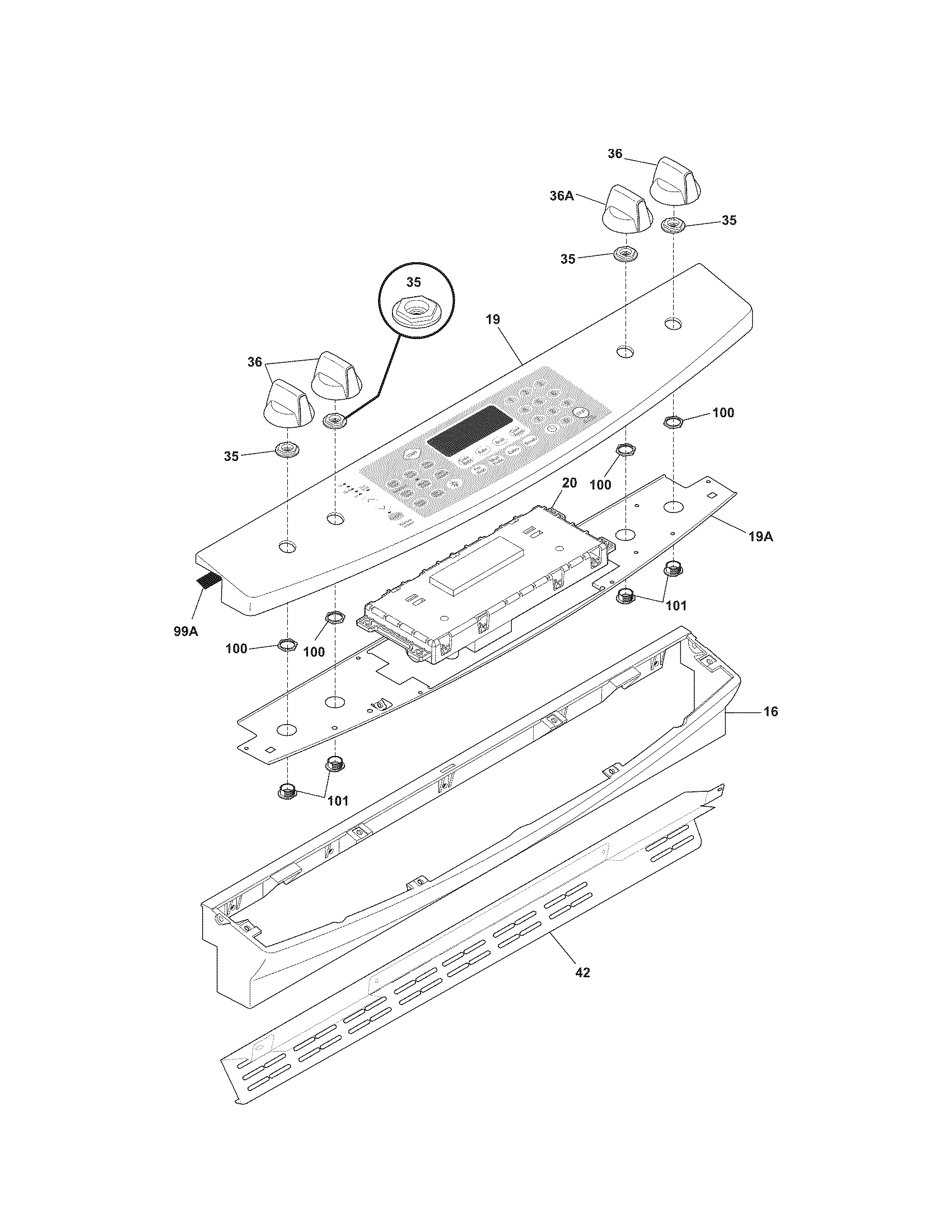

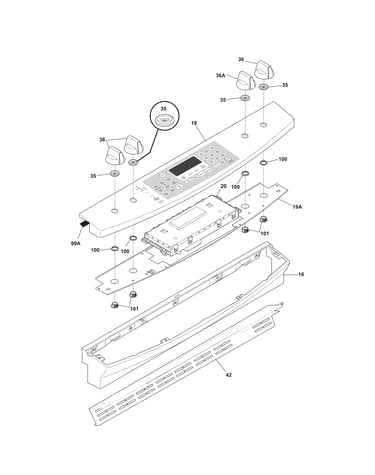

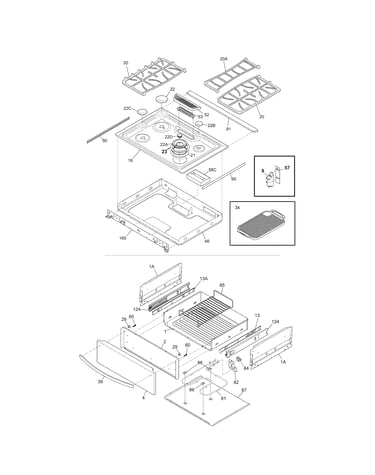

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 201 parts  |
Range Oven Temperature Sensor 318562500
#37

Body diagram

Range oven temperature sensor

Part #318562500

Replaced by #5304525427

?
Manufacturer substitution
This part replaces 318562500. Substitute parts can look different from the original.
BEST SELLER
$32.51 |
16% OFF Phone Price : $38.51
In Stock
Frigidaire Range Oven Burner Igniter (replaces 316428600, 5303308452, 5303308468, 7316428600, 7318177710) 318177710
#26

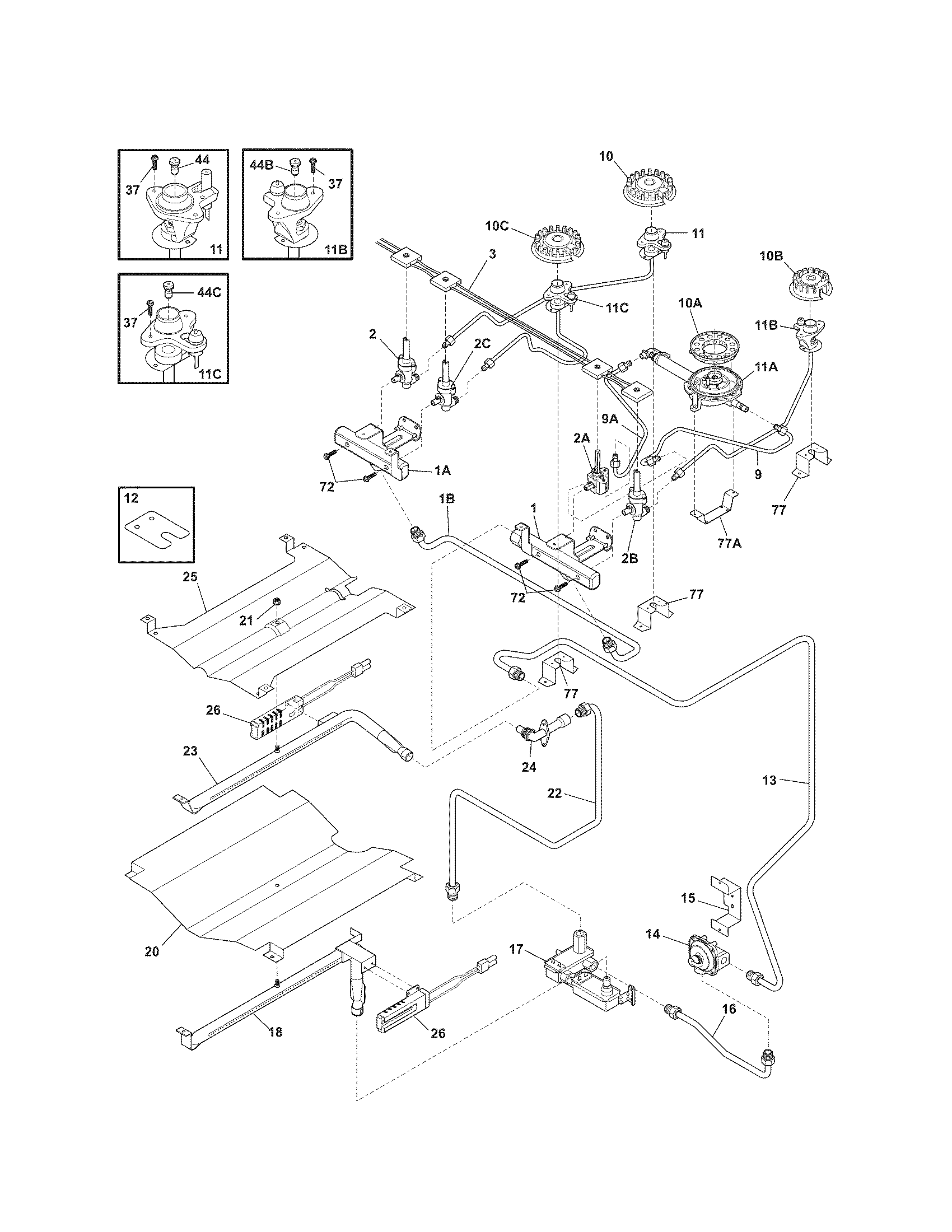

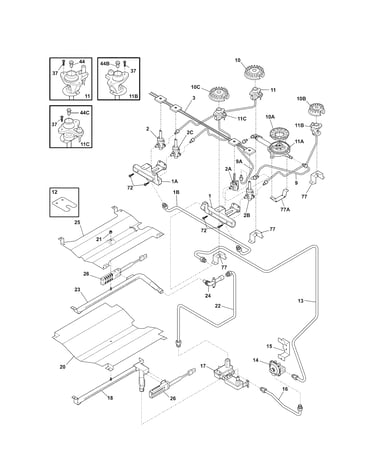

Burner diagram

Frigidaire range oven burner igniter (replaces 316428600, 5303308452, 5303308468, 7316428600, 7318177710)

Part #318177710

BEST SELLER
$152.42 |
7% OFF Phone Price : $164.42
In Stock
Range Screw (replaces 5304472956, 7316240600) 316240600
#37

Burner diagram

Range screw (replaces 5304472956, 7316240600)

Part #316240600

BEST SELLER
$10.87 |
16% OFF Phone Price : $12.87
In Stock
Range Oven Door Inner Glass 316117500
#8

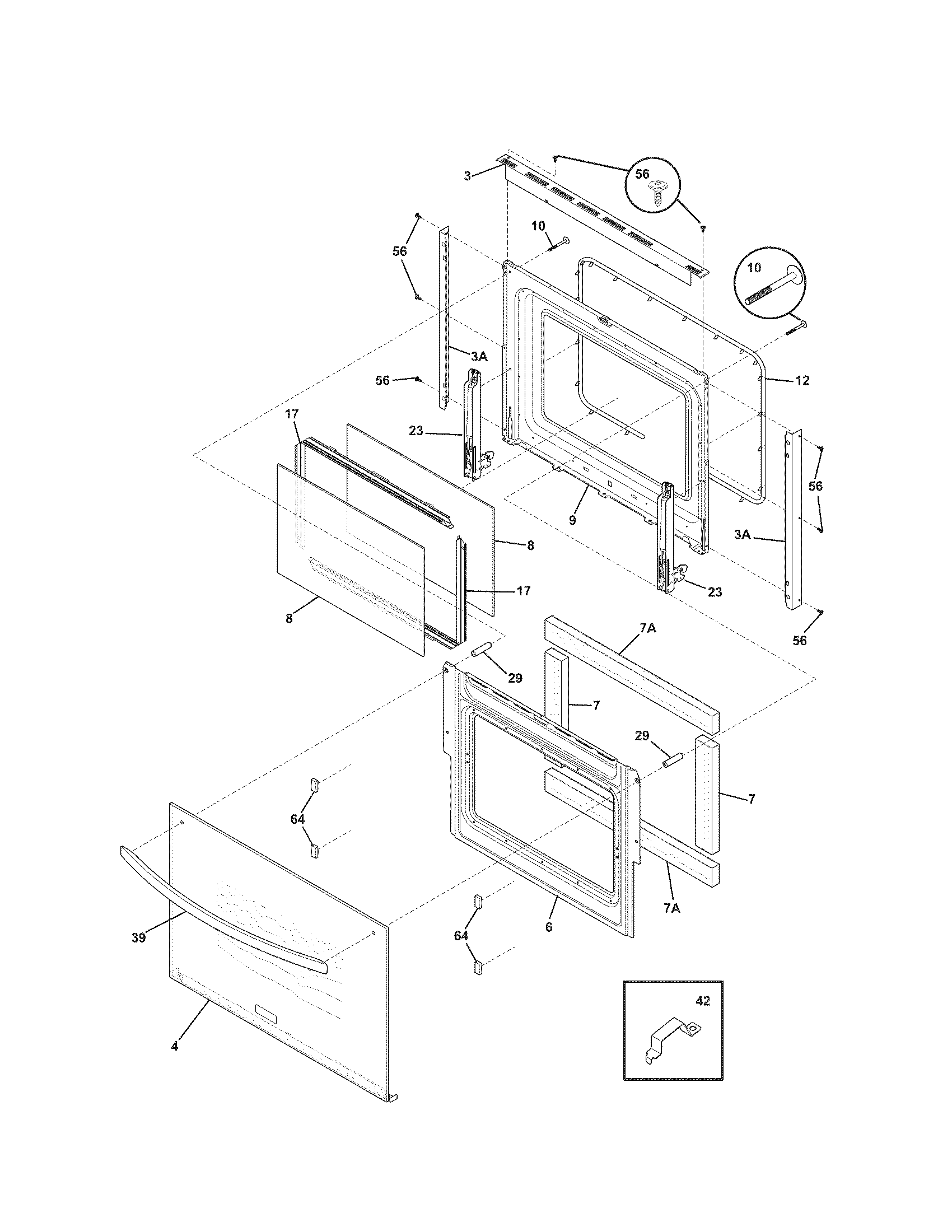

Door diagram

Range oven door inner glass

Part #316117500

Replaced by #5304503232

?
Manufacturer substitution
This part replaces 316117500. Substitute parts can look different from the original.
BEST SELLER
$76.50 |
7% OFF Phone Price : $82.50
In Stock
Range Surface Burner Head (replaces 7316212400) 316212400
#10C

Burner diagram

Range surface burner head (replaces 7316212400)

Part #316212400

BEST SELLER
$30.40 |
16% OFF Phone Price : $36.40
In Stock
Range Oven Gas Valve (replaces 7316404901) 316404901
#17

Burner diagram

Range oven gas valve (replaces 7316404901)

Part #316404901

BEST SELLER
$221.36 |
5% OFF Phone Price : $233.36
In Stock
Electrolux Range Sealed Surface Burner (replaces 316206400, 7316206401) 316206401
#10B

Burner diagram

Electrolux range sealed surface burner (replaces 316206400, 7316206401)

Part #316206401

BEST SELLER
$58.89 |
9% OFF Phone Price : $64.89
In Stock
Range Oven Door Switch (replaces 3016298, 316407101, 318089900, 318089915, 318089917, 5303311157, 7316445501, P351140) 316445501
#12

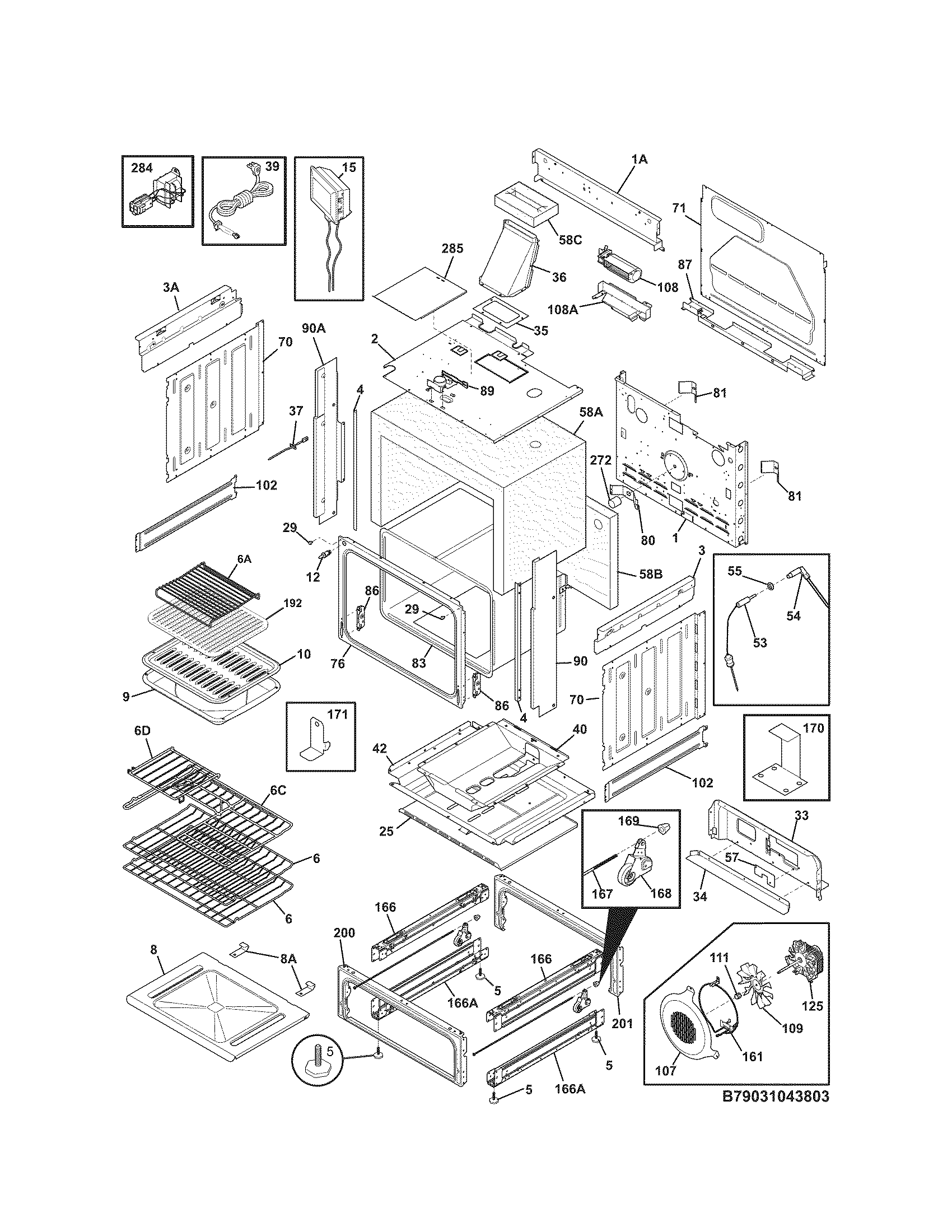

Body diagram

Range oven door switch (replaces 3016298, 316407101, 318089900, 318089915, 318089917, 5303311157, 7316445501, p351140)

Part #316445501

$63.47 |
9% OFF Phone Price : $69.47
In Stock
Lamp 318241005
#15

Body diagram

Lamp

Part #318241005

Replaced by #318241008

?
Manufacturer substitution
This part replaces 318241005. Substitute parts can look different from the original.
$85.45 |
7% OFF Phone Price : $91.45
In Stock
Range Oven Meat Probe Sensor 318601302
#53

Body diagram

Range oven meat probe sensor

Part #318601302

Replaced by #5304504202

?
Manufacturer substitution
This part replaces 318601302. Substitute parts can look different from the original.
$89.51 |
6% OFF Phone Price : $95.51
In Stock
