Caloric
Electric Cooktop

Model # ETR645 Official Caloric electric built-in cooktop with griddle

Here are the diagrams and repair parts for Official Caloric ETR645 electric built-in cooktop with griddle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 40 parts  |
Term Bl 42147
Term bl

Part #42147

Replaced by #330031

?
Manufacturer substitution
This part replaces 42147. Substitute parts can look different from the original.
BEST SELLER
$10.13 |
16% OFF Phone Price : $12.13
In Stock
Lg Pan 42144
#12

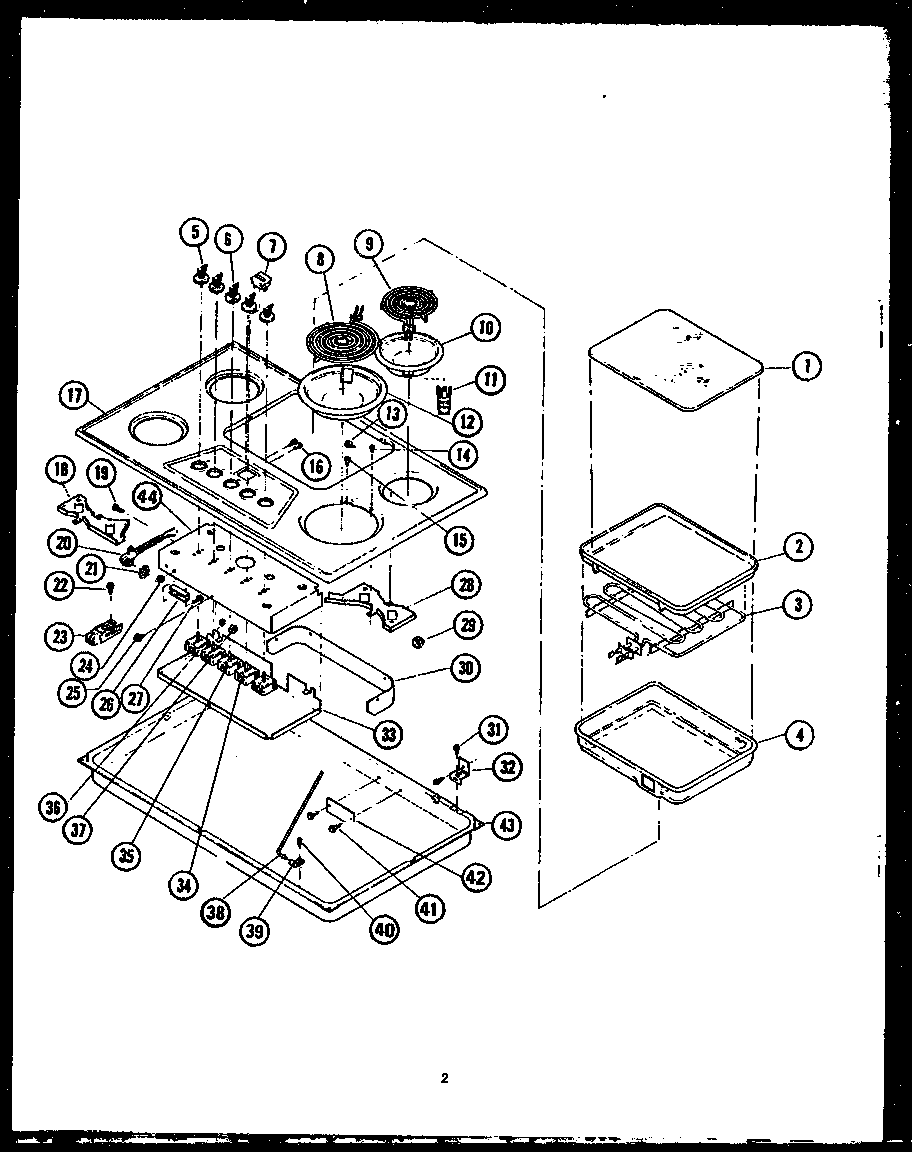

Cooktop diagram

Lg pan

Part #42144

Replaced by #WPW10196405

?
Manufacturer substitution
This part replaces 42144. Substitute parts can look different from the original.
BEST SELLER
$8.52 |
11% OFF Phone Price : $9.52
In Stock
S Pan 42143
#10

Cooktop diagram

S pan

Part #42143

Replaced by #W10196406RW

?
Manufacturer substitution
This part replaces 42143. Substitute parts can look different from the original.
$12.95 |
13% OFF Phone Price : $14.95
In Stock
Dark Copper 43775
#17C

Cooktop diagram

Dark copper

Part #43775

The manufacturer no longer makes this part, and there's no substitute part

Screw, Plug Block Mtg. 41784
Screw, plug block mtg.

Part #41784

The manufacturer no longer makes this part, and there's no substitute part

Element - Large 42127
#8

Cooktop diagram

Element - large

Part #42127

The manufacturer no longer makes this part, and there's no substitute part

Wire Channel Assembly, L.h. 41362
#18

Cooktop diagram

Wire channel assembly, l.h.

Part #41362

The manufacturer no longer makes this part, and there's no substitute part

Avocado 47453
#17B

Cooktop diagram

Avocado

Part #47453

The manufacturer no longer makes this part, and there's no substitute part

Infinite Switch Knob 42638
Infinite switch knob

Part #42638

The manufacturer no longer makes this part, and there's no substitute part

Main Top (white) 40111F
#17F

Cooktop diagram

Main top (white)

Part #40111F

The manufacturer no longer makes this part, and there's no substitute part
