Model # A46556-3 Official Amana counterflow coil & housing assembly

Here are the diagrams and repair parts for Official Amana A46556-3 counterflow coil & housing assembly, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 112 parts  |
Screw M0211317
#8

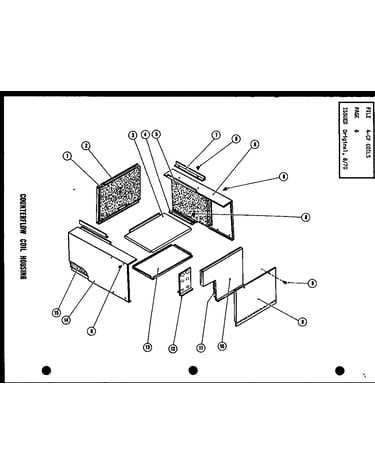

(c58390-12) (c58390-16) (c58390-20) (c58390-24) (c58390-25) diagram

Screw

Part #M0211317

Replaced by #WP489464

?
Manufacturer substitution
This part replaces M0211317. Substitute parts can look different from the original.
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock
Left Hand Side Panel Assembly R0105201
#2B

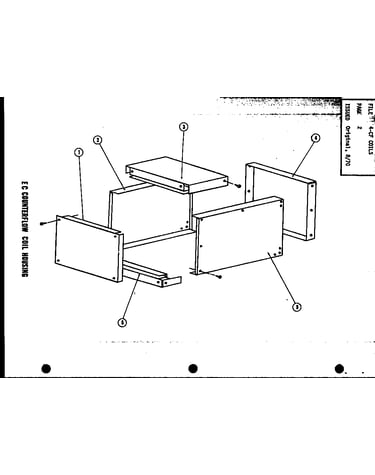

(a46556-1) (a46556-2) (a46556-3) (a46556-4) (a46556-5) diagram

Left hand side panel assembly

Part #R0105201

The manufacturer no longer makes this part, and there's no substitute part

Header Assembly R0109601
#16B

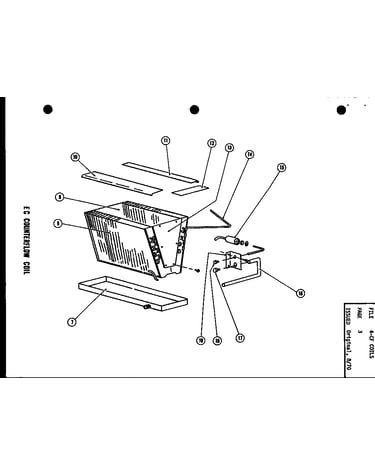

(ec18ct) (ec22ct) (ec29ct) (ec35ct) diagram

Header assembly

Part #R0109601

The manufacturer no longer makes this part, and there's no substitute part

Bottom Panel C5840803
#13D

(c58390-12) (c58390-16) (c58390-20) (c58390-24) (c58390-25) diagram

Bottom panel

Part #C5840803

The manufacturer no longer makes this part, and there's no substitute part

Furnace Alignment Angle A4664101
#7

(c58390-12) (c58390-16) (c58390-20) (c58390-24) (c58390-25) diagram

Furnace alignment angle

Part #A4664101

The manufacturer no longer makes this part, and there's no substitute part

Evaporator Coil, Right And Left R0109901
#8A

(ec18ct) (ec22ct) (ec29ct) (ec35ct) diagram

Evaporator coil, right and left

Part #R0109901

The manufacturer no longer makes this part, and there's no substitute part

Top Panel C5840701
#3A

(c58390-12) (c58390-16) (c58390-20) (c58390-24) (c58390-25) diagram

Top panel

Part #C5840701

The manufacturer no longer makes this part, and there's no substitute part

Rear Coil Support Panel R0108301
#9A

(ec18ct) (ec22ct) (ec29ct) (ec35ct) diagram

Rear coil support panel

Part #R0108301

The manufacturer no longer makes this part, and there's no substitute part

Insulation, Inner Panel B5180010
#11B

(c58390-12) (c58390-16) (c58390-20) (c58390-24) (c58390-25) diagram

Insulation, inner panel

Part #B5180010

The manufacturer no longer makes this part, and there's no substitute part

Bottom Front Panel Assembly R0106801
#6D

(a46556-1) (a46556-2) (a46556-3) (a46556-4) (a46556-5) diagram

Bottom front panel assembly

Part #R0106801

The manufacturer no longer makes this part, and there's no substitute part
