Model # 917254021 Official Craftsman 46" dozer

Here are the diagrams and repair parts for Official Craftsman 917254021 46" dozer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 46 parts  |
Ring 5027P
#15

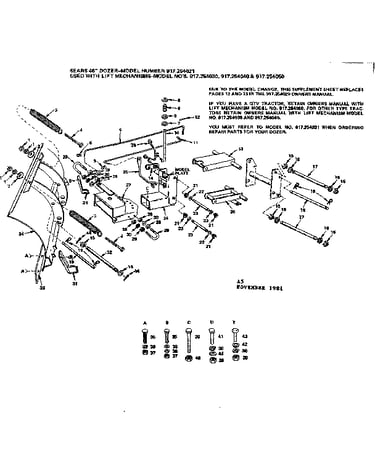

Replacement parts diagram

Ring

Part #5027P

Replaced by #812000029

?
Manufacturer substitution
This part replaces 5027P. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.50 |
22% OFF Phone Price : $4.50
In Stock
Washer 1552P
#16

Replacement parts diagram

Washer

Part #1552P

Replaced by #532121749

?
Manufacturer substitution
This part replaces 1552P. Substitute parts can look different from the original.
This item is not returnable
$3.98 |
20% OFF Phone Price : $4.98
In Stock
Ring 5026P
#21

Replacement parts diagram

Ring

Part #5026P

Replaced by #812000008

?
Manufacturer substitution
This part replaces 5026P. Substitute parts can look different from the original.
This item is not returnable
$5.11
In Stock
Shaft 3111J
#23

Replacement parts diagram

Shaft

Part #3111J

Replaced by #R3111J

?
Manufacturer substitution
This part replaces 3111J. Substitute parts can look different from the original.
$14.37
In Stock
Hitch Pin, 2-pack 4939M
#5

Replacement parts diagram

Hitch pin, 2-pack

Part #4939M

Replaced by #596919601

?
Manufacturer substitution
This part replaces 4939M. Substitute parts can look different from the original.
This item is not returnable
$3.98 |
20% OFF Phone Price : $4.98
In Stock
Lawn & Garden Equipment Roll Pin 7836M
#12

Replacement parts diagram

Lawn & garden equipment roll pin

Part #7836M

Replaced by #532001572

?
Manufacturer substitution
This part replaces 7836M. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Retainer 4940M
#19

Replacement parts diagram

Retainer

Part #4940M

The manufacturer no longer makes this part, and there's no substitute part

Bolt STD523710
#43

Replacement parts diagram

Bolt

Part #STD523710

The manufacturer no longer makes this part, and there's no substitute part

Hex Bolt 3352P
#4

Replacement parts diagram

Hex bolt

Part #3352P

The manufacturer no longer makes this part, and there's no substitute part

Bolt STD523712
#41

Replacement parts diagram

Bolt

Part #STD523712

The manufacturer no longer makes this part, and there's no substitute part
