Craftsman
Front-Engine Lawn Tractor

Model # 502255322 Official Craftsman riding tractor

Here are the diagrams and repair parts for Official Craftsman 502255322 riding tractor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

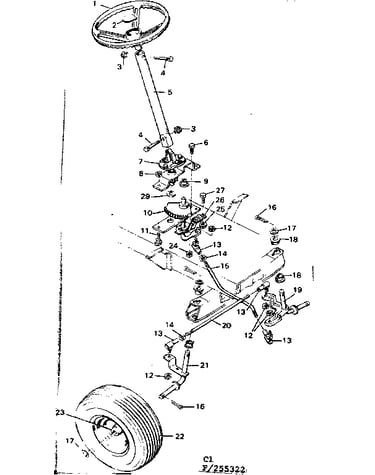

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 260 parts  |
Rim 74286
#45

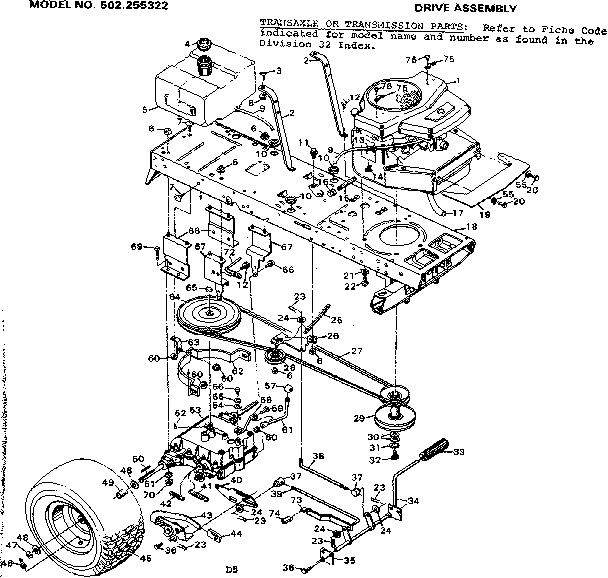

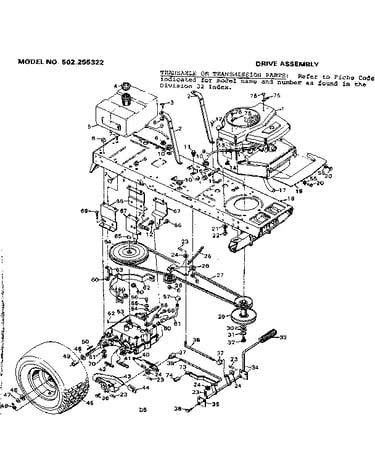

Drive assembly diagram

Rim

Part #74286

Replaced by #532106108

?
Manufacturer substitution
This part replaces 74286. Substitute parts can look different from the original.
BEST SELLER
$92.29 |
6% OFF Phone Price : $98.29
In Stock
Bolt STD533107
Bolt

Part #STD533107

The manufacturer no longer makes this part, and there's no substitute part

Pedal 21544
#33

Drive assembly diagram

Pedal

Part #21544

Replaced by #1727261SM

?
Manufacturer substitution
This part replaces 21544. Substitute parts can look different from the original.
This item is not returnable
$17.09 |
10% OFF Phone Price : $19.09
In Stock
Washer 17X124
#52

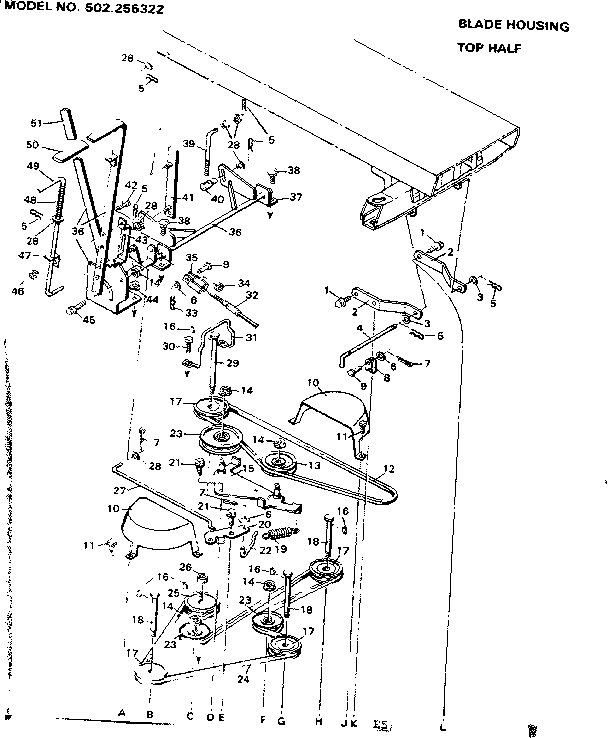

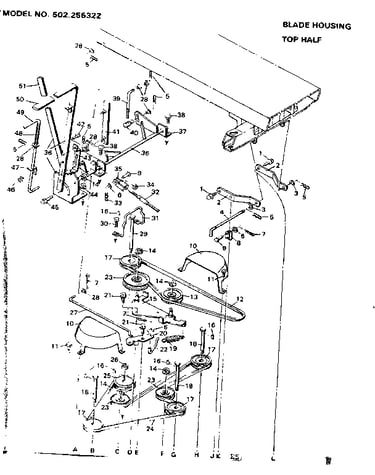

Blade housing top half diagram

Washer

Part #17X124

Replaced by #17X124MA

?
Manufacturer substitution
This part replaces 17X124. Substitute parts can look different from the original.
This item is not returnable
$7.37
In Stock
Washer 18X31
#67

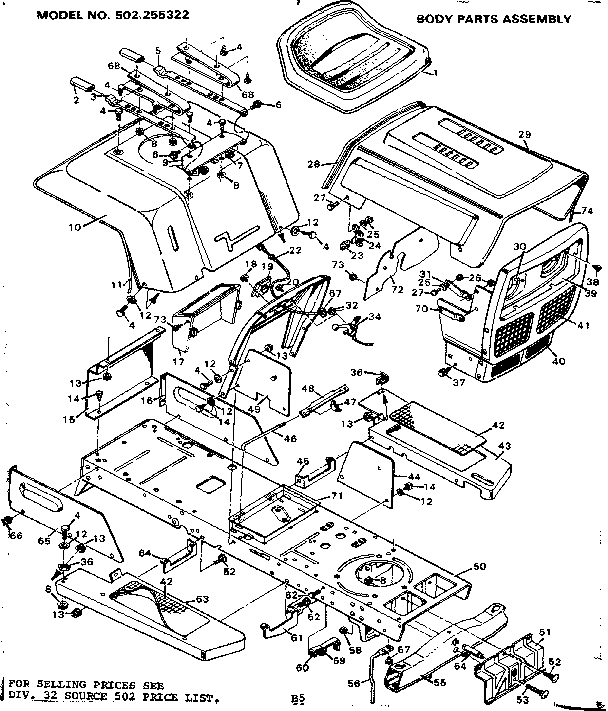

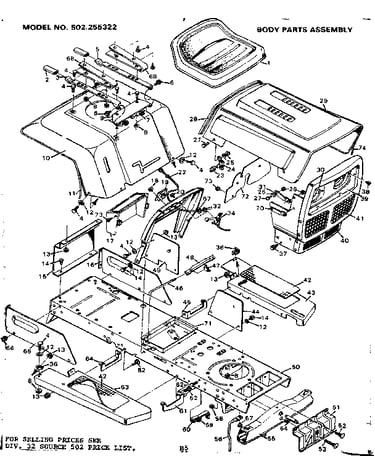

Body parts assembly diagram

Washer

Part #18X31

Replaced by #018X31MA

?
Manufacturer substitution
This part replaces 18X31. Substitute parts can look different from the original.
This item is not returnable
$2.97
In Stock
Washer 10851Z
#30

Drive assembly diagram

Washer

Part #10851Z

Replaced by #10851ZMA

?
Manufacturer substitution
This part replaces 10851Z. Substitute parts can look different from the original.
$9.97
In Stock
Housing 20551
#33

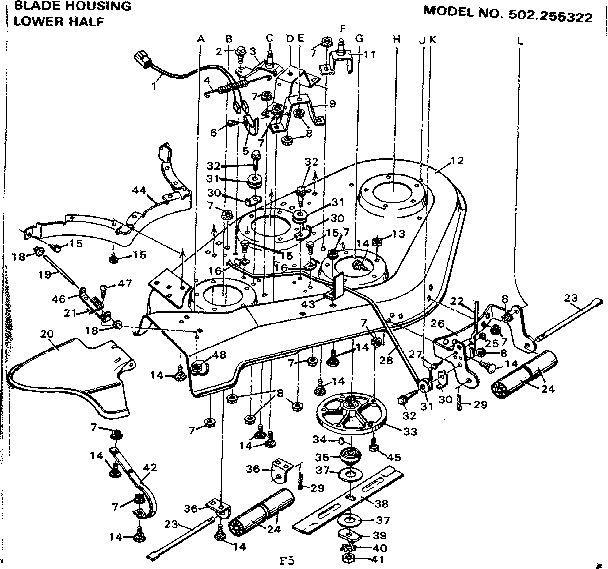

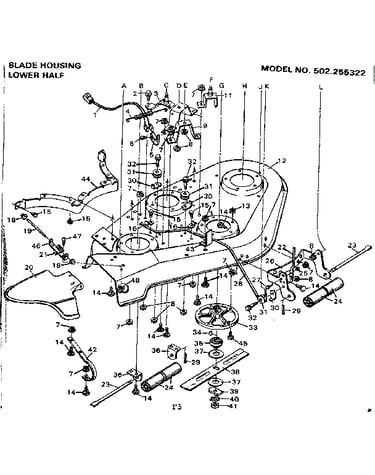

Blade housing lower half diagram

Housing

Part #20551

Replaced by #492574MA

?
Manufacturer substitution
This part replaces 20551. Substitute parts can look different from the original.
$68.99 |
8% OFF Phone Price : $74.99
In Stock
Pulley 23739
#25

Blade housing top half diagram

Pulley

Part #23739

Replaced by #23739MA

?
Manufacturer substitution
This part replaces 23739. Substitute parts can look different from the original.
$56.40
In Stock
Fuse Holder 407058
#10A

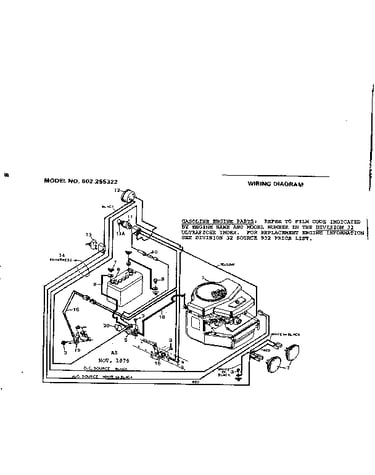

Wiring diagram diagram

Fuse holder

Part #407058

Replaced by #407078MA

?
Manufacturer substitution
This part replaces 407058. Substitute parts can look different from the original.
$29.53 |
17% OFF Phone Price : $35.53
In Stock
Tire 74277
#45A

Drive assembly diagram

Tire

Part #74277

Replaced by #532420531

?
Manufacturer substitution
This part replaces 74277. Substitute parts can look different from the original.
$106.64
In Stock
