Model # G+FD03017A Official York evaporator coil
Here are the diagrams and repair parts for Official York G+FD03017A evaporator coil, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for
G+FD03017A Evaporator Coil
#2

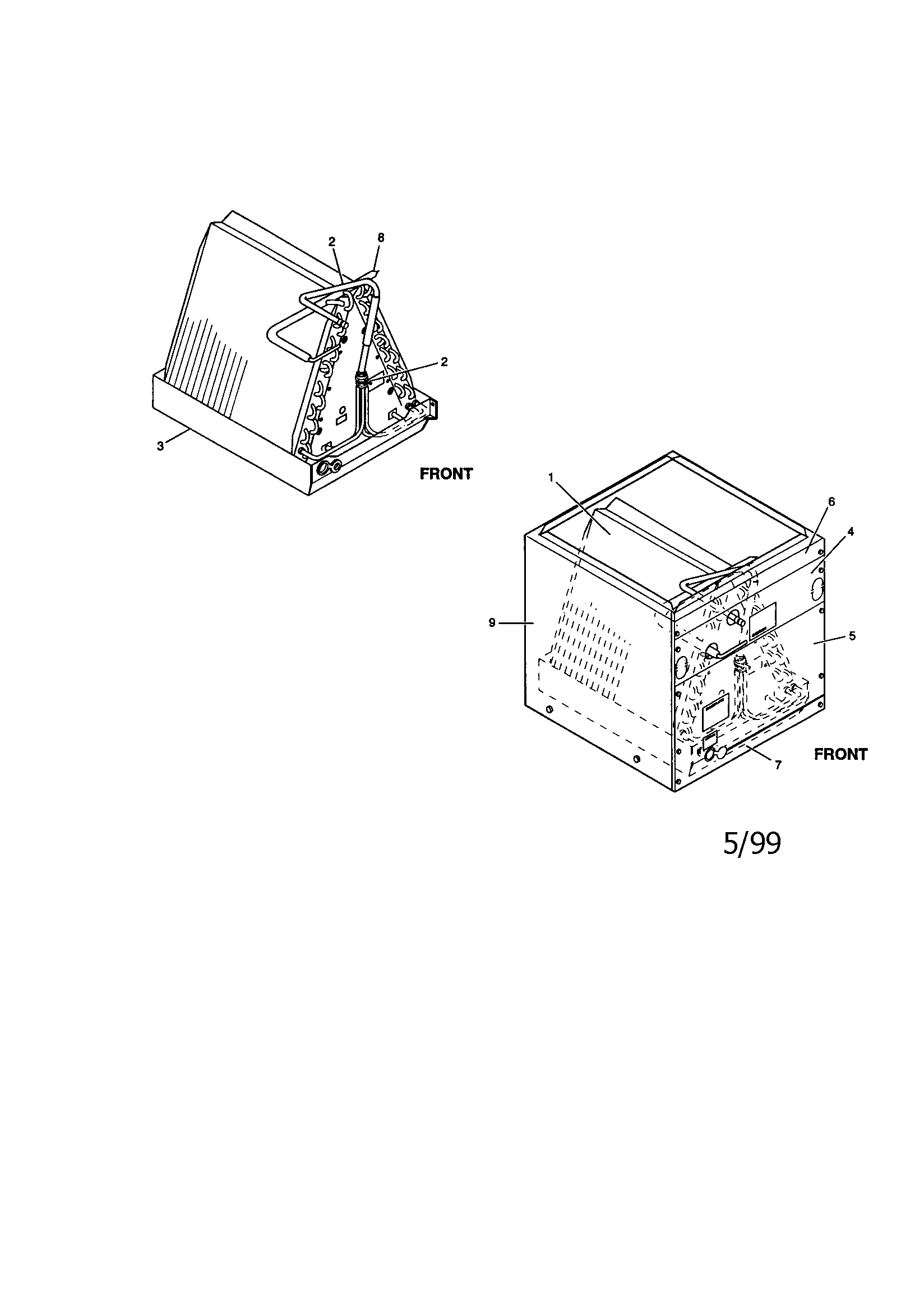

Unit coil add-on diagram
Distributor, refrigerant
Part #025-32645-065
The manufacturer no longer makes this part, and there's no substitute part
#6
Unit coil add-on diagram
Top panel
Part #373-17440-001
The manufacturer no longer makes this part, and there's no substitute part
#1
Unit coil add-on diagram
Evaporator coil
Part #G+FD030S17
The manufacturer no longer makes this part, and there's no substitute part
#8
Unit coil add-on diagram
Manifold
Part #373-14588-001
The manufacturer no longer makes this part, and there's no substitute part
#10
Unit coil add-on diagram
Grommet 3'8
Part #028-13202-000
The manufacturer no longer makes this part, and there's no substitute part
#3
Unit coil add-on diagram
Drain pan
Part #373-18170-003
The manufacturer no longer makes this part, and there's no substitute part
#7
Unit coil add-on diagram
Door, filter access
Part #373-17800-001
The manufacturer no longer makes this part, and there's no substitute part
#12
Unit coil add-on diagram
Grommet 3/4
Part #028-13204-000
The manufacturer no longer makes this part, and there's no substitute part
#9
Unit coil add-on diagram
Wrapper
Part #373-17789-002
The manufacturer no longer makes this part, and there's no substitute part
#4
Unit coil add-on diagram
Panel, access (top)
Part #373-17466-001
The manufacturer no longer makes this part, and there's no substitute part
