Model # V6-SV06 Official Dyson vacuum cleaner

Here are the diagrams and repair parts for Official Dyson V6-SV06 vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

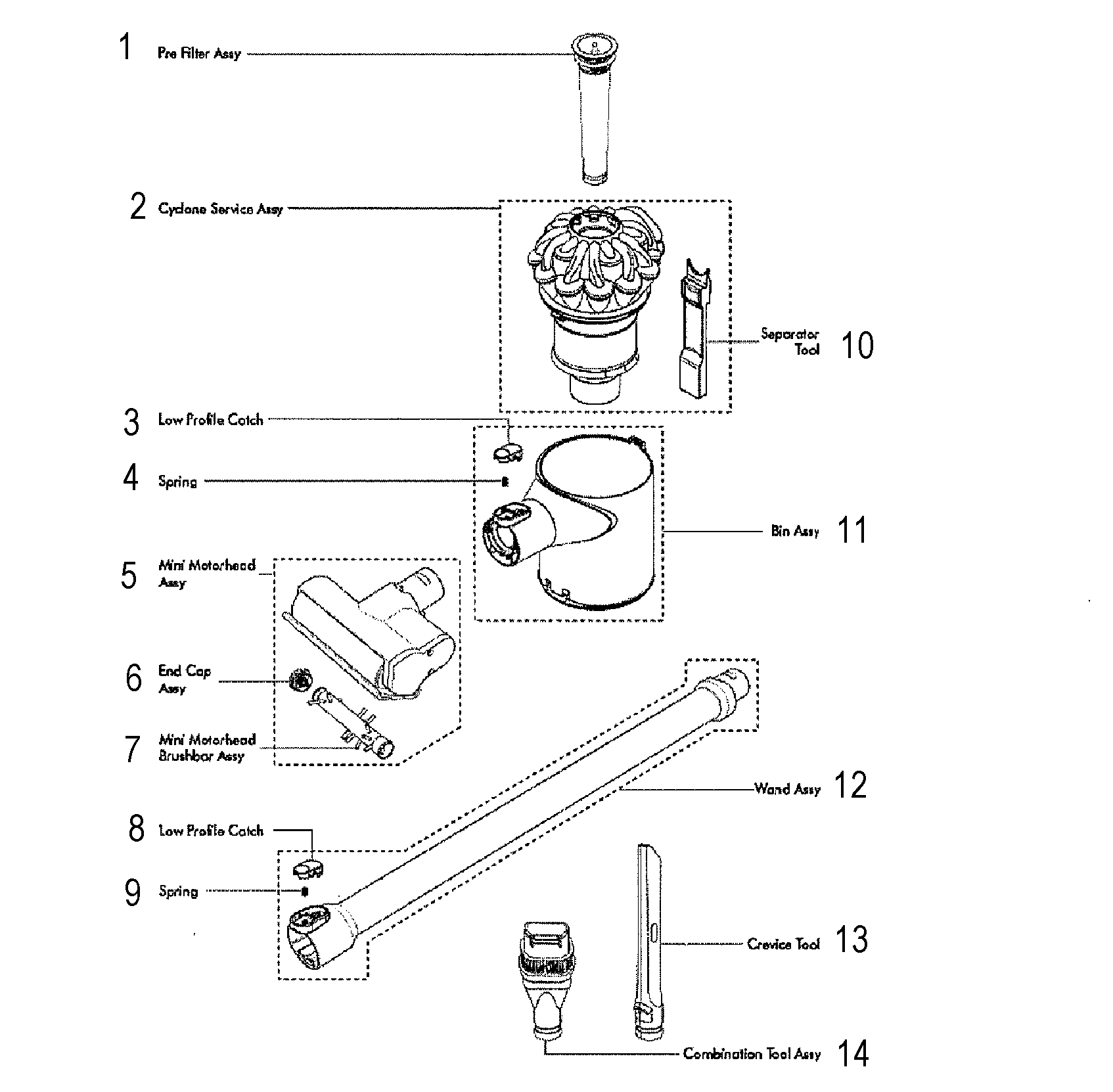

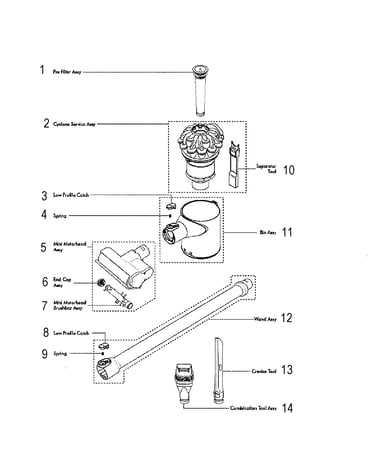

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 57 parts  |
Up Top Tool,iron,retail DY-91764504
#3

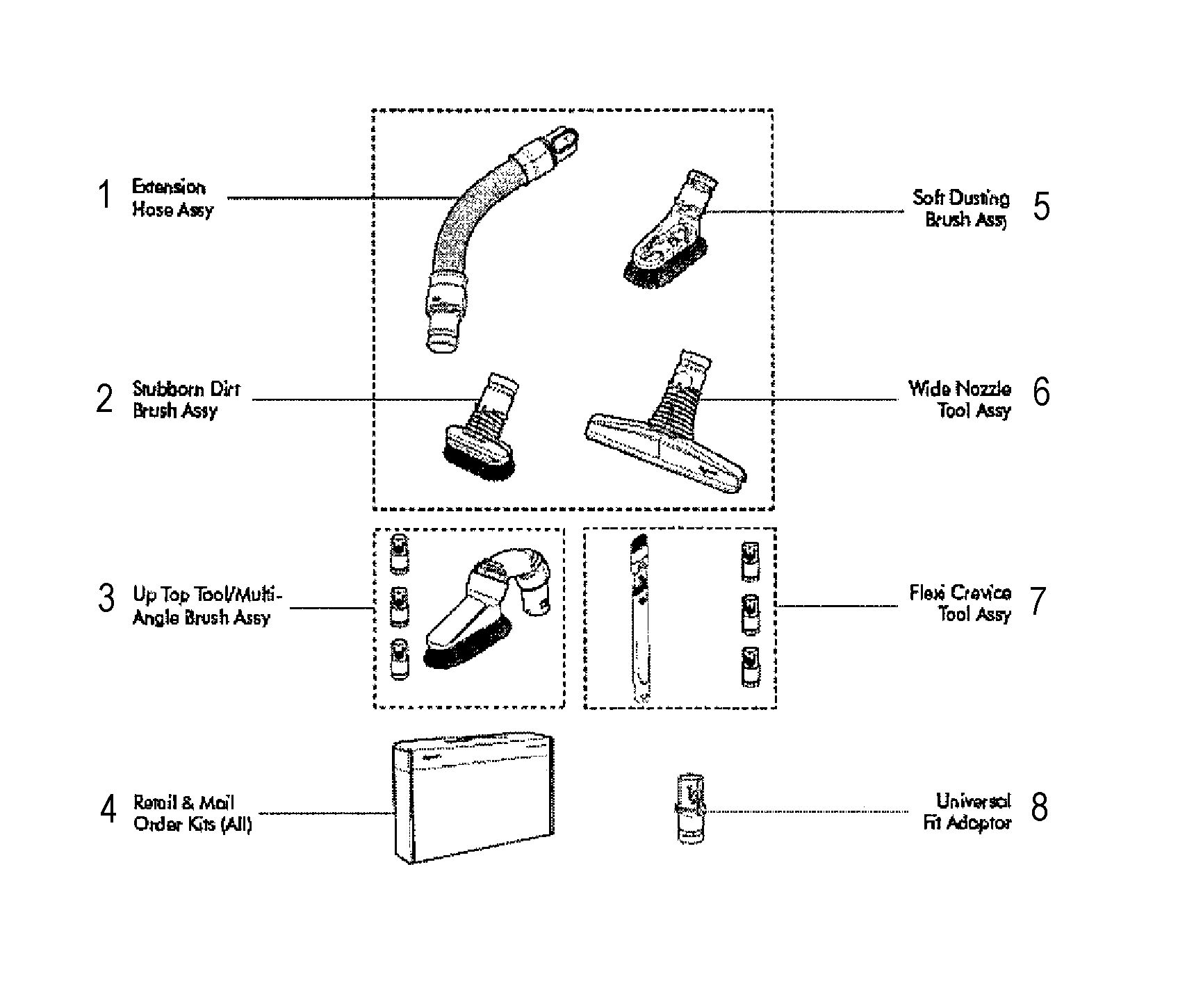

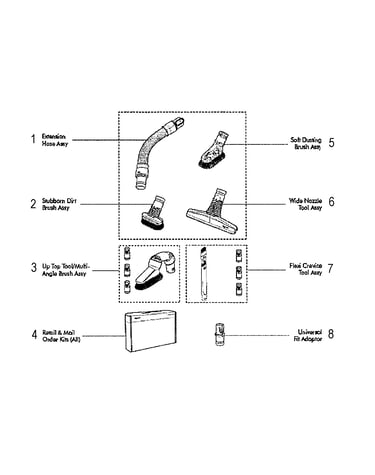

Accessories diagram

Up top tool,iron,retail

Part #DY-91764504

The manufacturer no longer makes this part, and there's no substitute part

Univ.adapt DY-91176803
#8

Accessories diagram

Univ.adapt

Part #DY-91176803

The manufacturer no longer makes this part, and there's no substitute part

Flexi Crevice Tool,retail DY-90803206
#7

Accessories diagram

Flexi crevice tool,retail

Part #DY-90803206

The manufacturer no longer makes this part, and there's no substitute part

Soft Brush DY-90889602
#5

Accessories diagram

Soft brush

Part #DY-90889602

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Hose Assembly DY-91270001
#1

Accessories diagram

Vacuum hose assembly

Part #DY-91270001

The manufacturer no longer makes this part, and there's no substitute part

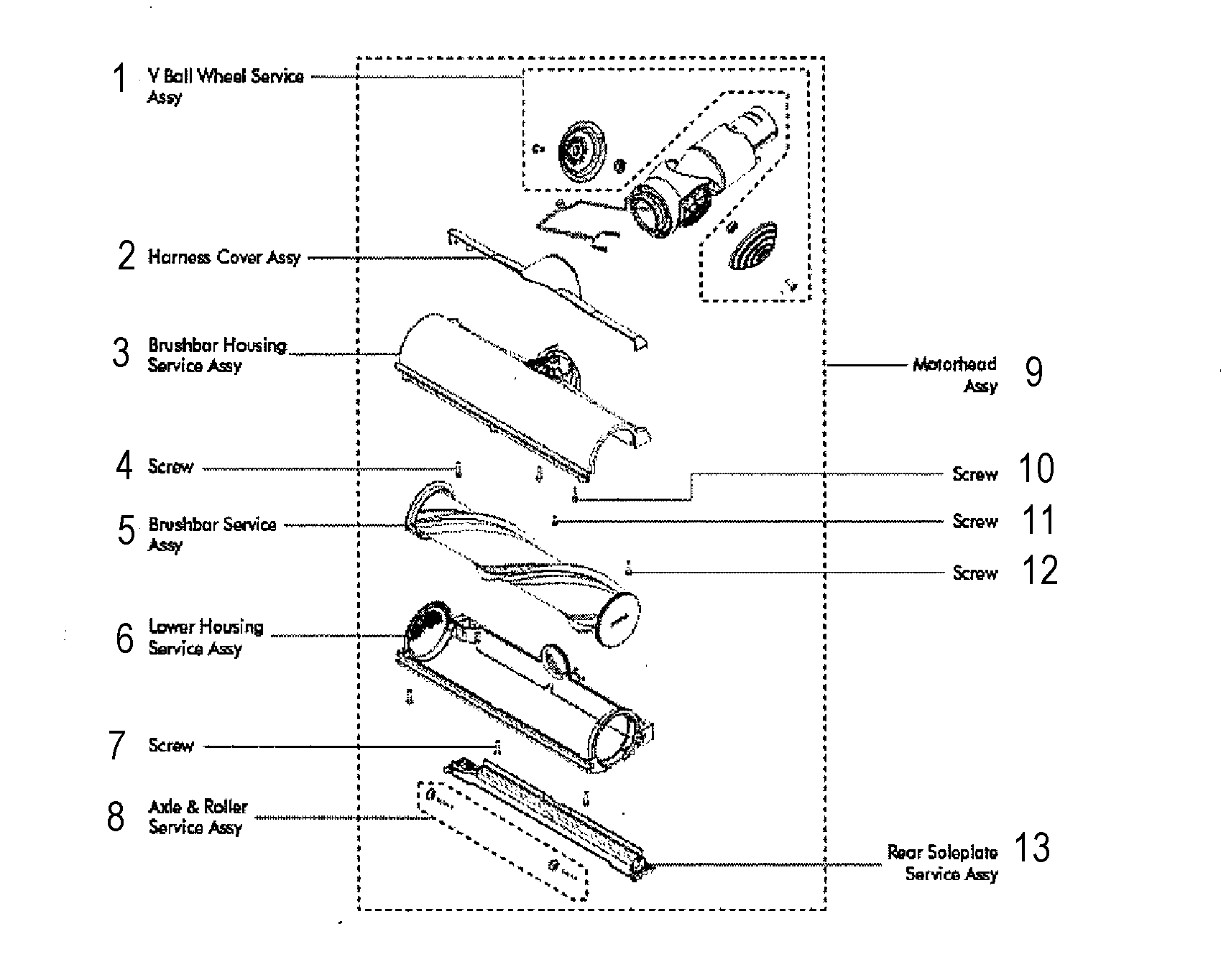

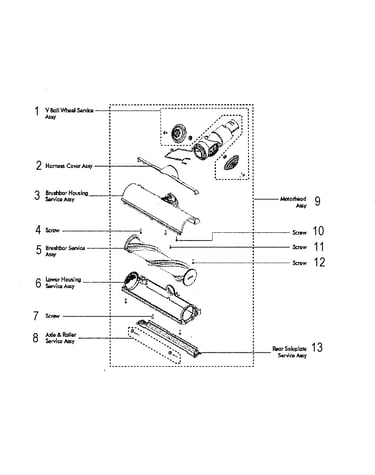

Vacuum Floor Nozzle Roller DY-92048801
#7

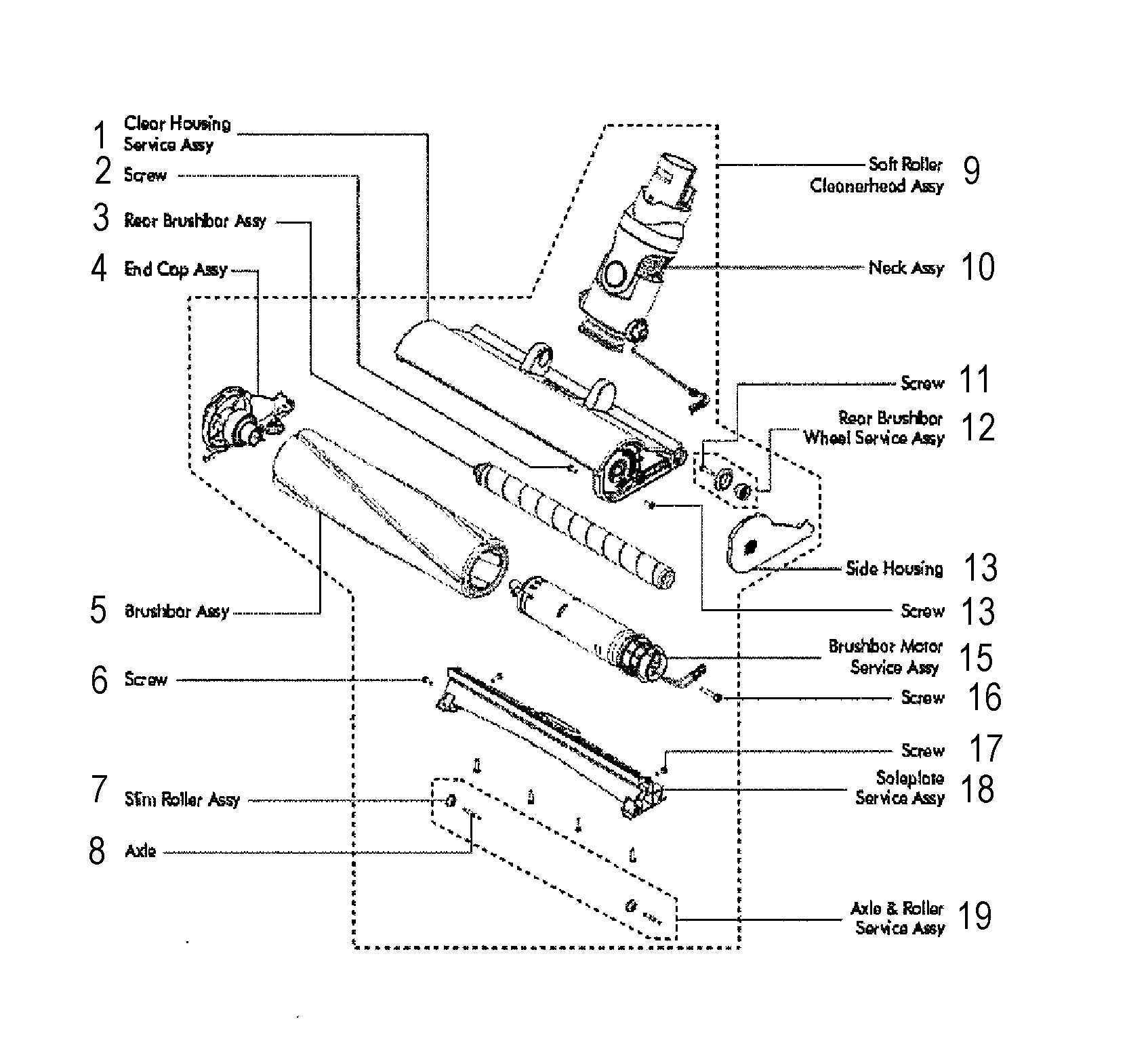

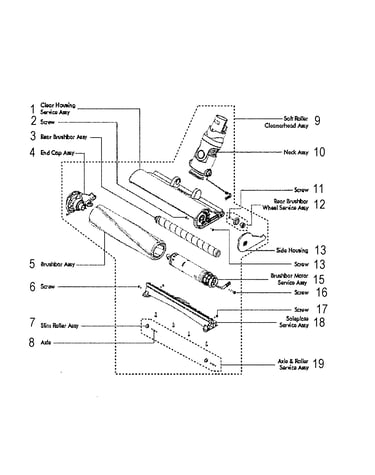

Cleanerhead asy diagram

Vacuum floor nozzle roller

Part #DY-92048801

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Crevice Tool DY-91763301
#7A

Accessories diagram

Vacuum crevice tool

Part #DY-91763301

The manufacturer no longer makes this part, and there's no substitute part

Charger DY-96781302
#3

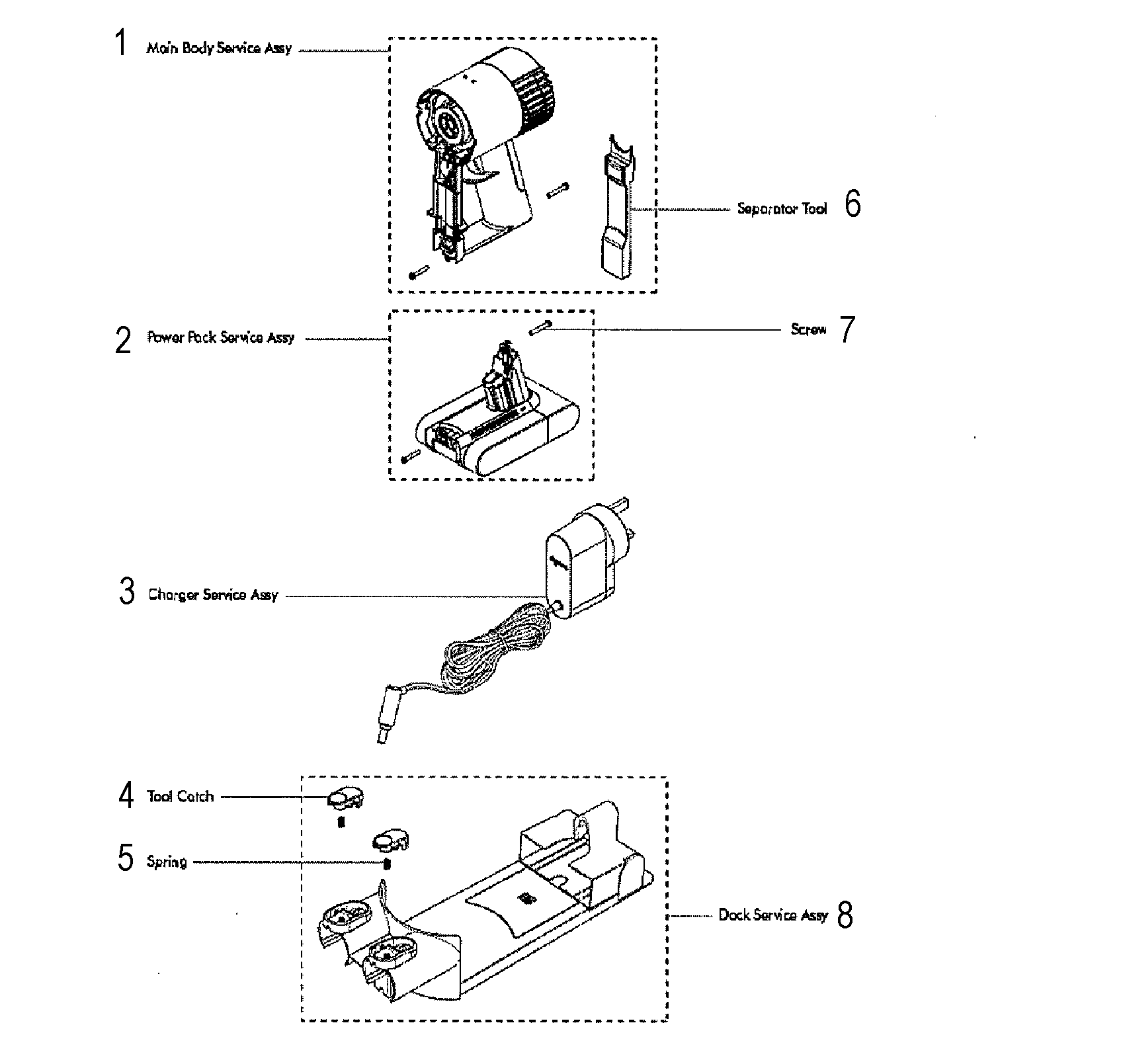

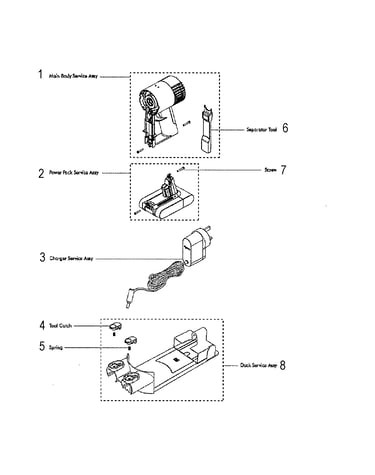

Body and power supply diagram

Charger

Part #DY-96781302

The manufacturer no longer makes this part, and there's no substitute part

Brush Assembly DY-91269701
#5A

Accessories diagram

Brush assembly

Part #DY-91269701

The manufacturer no longer makes this part, and there's no substitute part

Brush DY-91850801
#2

Accessories diagram

Brush

Part #DY-91850801

The manufacturer no longer makes this part, and there's no substitute part
