Kenmore
Upright Freezer

Model # 106727570 Official Kenmore freezer

Here are the diagrams and repair parts for Official Kenmore 106727570 freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

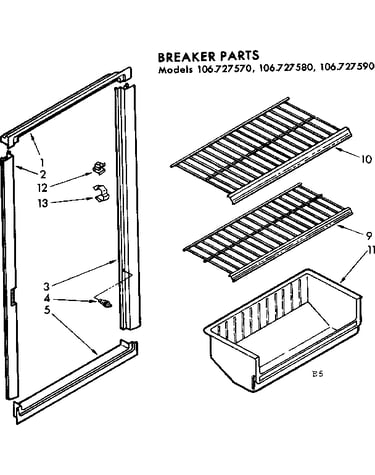

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 222 parts  |
Light Bulb 527949
#42

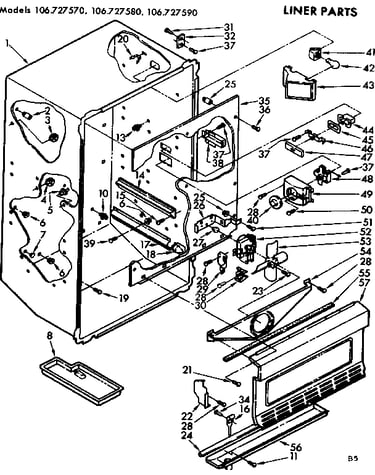

Liner parts diagram

Light bulb

Part #527949

Replaced by #40A15

?
Manufacturer substitution
This part replaces 527949. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Timer 851160
#17

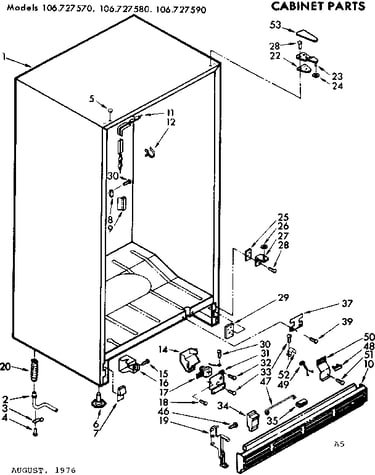

Cabinet parts diagram

Timer

Part #851160

Replaced by #W10822278

?
Manufacturer substitution
This part replaces 851160. Substitute parts can look different from the original.
BEST SELLER
$27.99 |
18% OFF Phone Price : $33.99
In Stock
Drier Tube 978246
#32

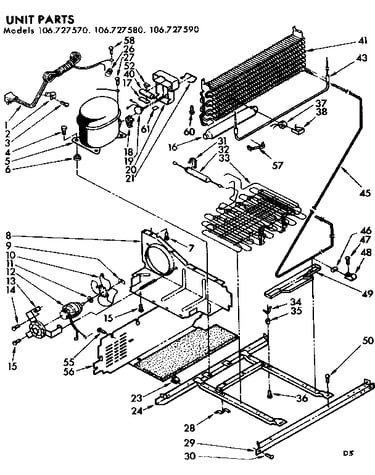

Unit parts diagram

Drier tube

Part #978246

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 978246. Substitute parts can look different from the original.
BEST SELLER
$31.58 |
16% OFF Phone Price : $37.58
In Stock
Fan Motor 851476
#12

Unit parts diagram

Fan motor

Part #851476

Replaced by #833697

?
Manufacturer substitution
This part replaces 851476. Substitute parts can look different from the original.
BEST SELLER
$60.49 |
9% OFF Phone Price : $66.49
In Stock
Cement 797403

#NI

All parts diagram

Cement

Part #797403

Replaced by #WP279368

?
Manufacturer substitution
This part replaces 797403. Substitute parts can look different from the original.
BEST SELLER
$42.72 |
12% OFF Phone Price : $48.72
In Stock
Danby Appliance Touch-up Paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, W10813125, Y058028) 72017

#NI

All parts diagram

Danby appliance touch-up paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, w10813125, y058028)

Part #72017

BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Touch-up Paint (white) 799343

#NI

All parts diagram

Touch-up paint (white)

Part #799343

Replaced by #350930

?
Manufacturer substitution
This part replaces 799343. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$15.69 |
11% OFF Phone Price : $17.69
In Stock
Refrigerator Service Valve 978025

#NI

All parts diagram

Refrigerator service valve

Part #978025

Replaced by #WP978025

?
Manufacturer substitution
This part replaces 978025. Substitute parts can look different from the original.
$29.51 |
17% OFF Phone Price : $35.51
In Stock
Freezer Door Key 842177
#23

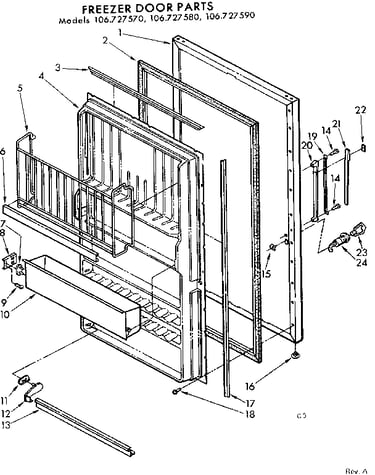

Door parts diagram

Freezer door key

Part #842177

Replaced by #WP842177

?
Manufacturer substitution
This part replaces 842177. Substitute parts can look different from the original.
This item is not returnable
$4.02 |
20% OFF Phone Price : $5.02
In Stock
Sears Refrigerator Service Valve 978026

#NI

All parts diagram

Sears refrigerator service valve

Part #978026

$34.19 |
15% OFF Phone Price : $40.19
In Stock
