Model # RH7730XXS0 Official Whirlpool range hood

Here are the diagrams and repair parts for Official Whirlpool RH7730XXS0 range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 79 parts |

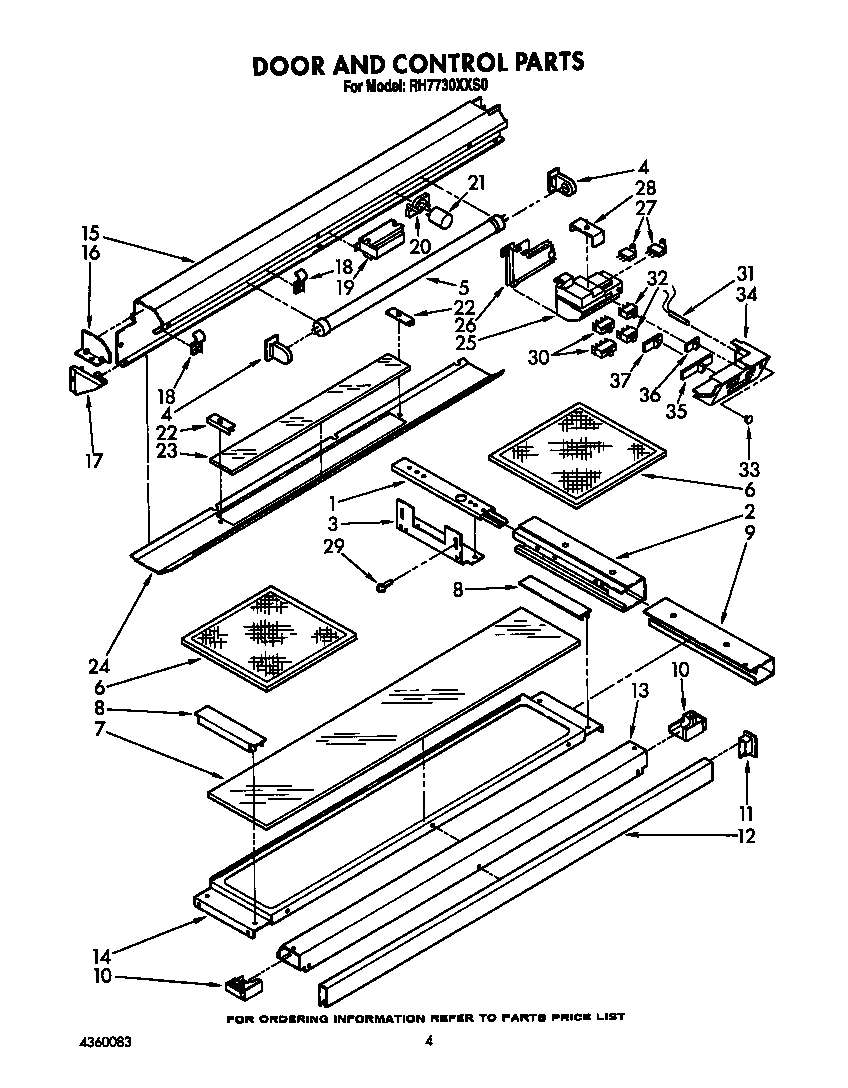

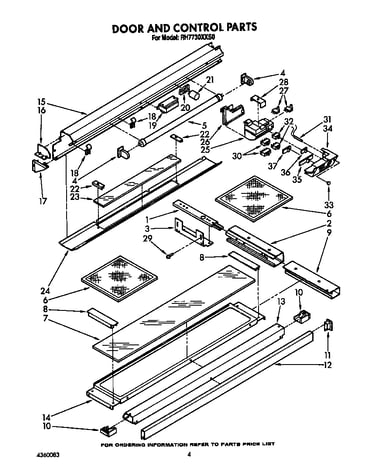

Door and control parts diagram

Grease filter

Part #4360015

Replaced by #WPW10370046

$101.01 |

11% OFF Phone Price : $113.01

In Stock

Qty

#28

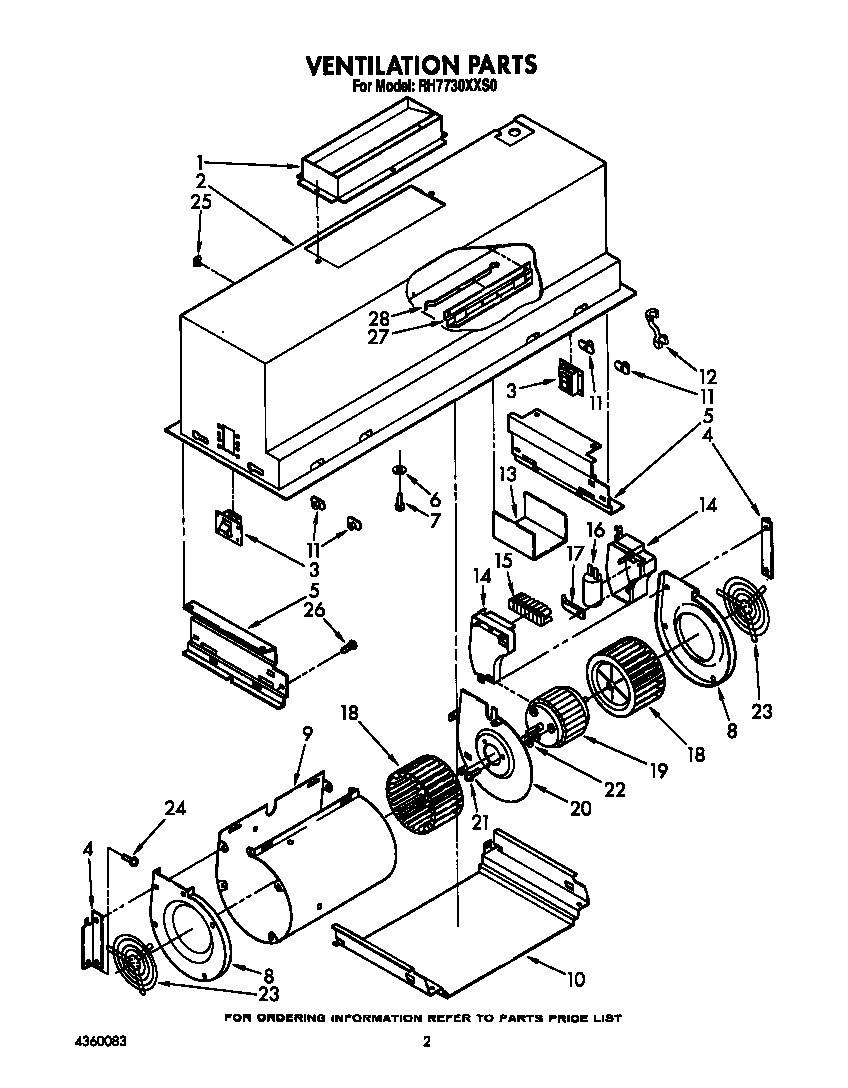

Ventilation parts diagram

Spring

Part #4360072

Replaced by #WPW10349738

$131.64

In Stock

Qty

#18B

Ventilation parts diagram

Range hood blower wheel

Part #4360055

Replaced by #W10500696

$73.80

In Stock

Qty

Door and control parts diagram

Glass

Part #4360076

Replaced by #WPW10369939

$102.18

In Stock

Qty

#21

Ventilation parts diagram

Screw

Part #4360050

Replaced by #4344826

$12.49

In Stock

Qty

#NI

All parts diagram

Charcoal filter

Part #883140

Replaced by #WP883140

$109.89

In Stock

Qty

#27

Door and control parts diagram

Switch

Part #4360035

Replaced by #WPW10240604

$108.38 |

10% OFF Phone Price : $120.38

In Stock

Qty

#20

Ventilation parts diagram

Plate support

Part #4360052

The manufacturer no longer makes this part, and there's no substitute part

#30

Door and control parts diagram

Slide switch

Part #4360025

The manufacturer no longer makes this part, and there's no substitute part

#24

Ventilation parts diagram

Screw

Part #4360067

The manufacturer no longer makes this part, and there's no substitute part
