Chicago Pneumatic
Impact Wrench

Model # CP-734 Official Chicago Pneumatic impact wrench

Here are the diagrams and repair parts for Official Chicago Pneumatic CP-734 impact wrench, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 61 parts  |
Anvil Shank 20645907
#31

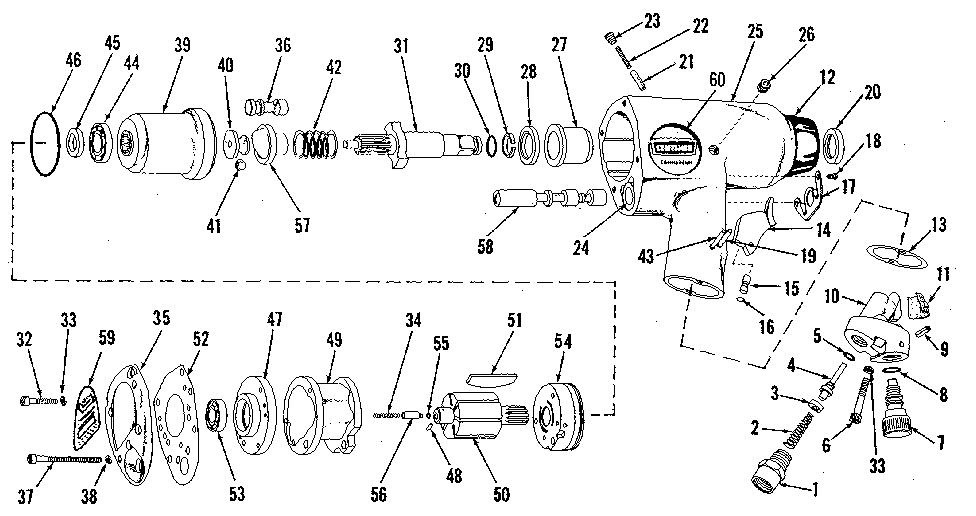

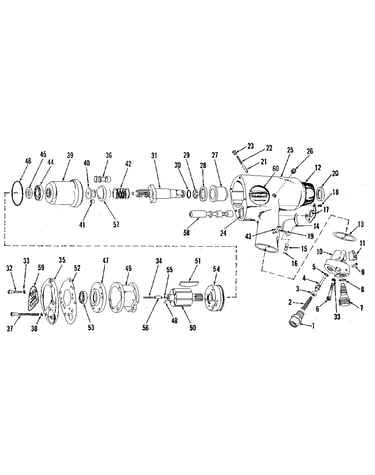

Unit parts diagram

Anvil shank

Part #20645907

The manufacturer no longer makes this part, and there's no substitute part

Spring 20699902
#22

Unit parts diagram

Spring

Part #20699902

The manufacturer no longer makes this part, and there's no substitute part

Screw 20647653
#23

Unit parts diagram

Screw

Part #20647653

The manufacturer no longer makes this part, and there's no substitute part

Exhst Dflctr 20699897
#17

Unit parts diagram

Exhst dflctr

Part #20699897

The manufacturer no longer makes this part, and there's no substitute part

Hammer Gage 206107406
#39

Unit parts diagram

Hammer gage

Part #206107406

The manufacturer no longer makes this part, and there's no substitute part

Roll Pin 20140172
#48

Unit parts diagram

Roll pin

Part #20140172

The manufacturer no longer makes this part, and there's no substitute part

Valve Block 20699910
#10

Unit parts diagram

Valve block

Part #20699910

The manufacturer no longer makes this part, and there's no substitute part

Trigger Pin 20214764
#19

Unit parts diagram

Trigger pin

Part #20214764

The manufacturer no longer makes this part, and there's no substitute part

Oil Seal 20687513
#45

Unit parts diagram

Oil seal

Part #20687513

The manufacturer no longer makes this part, and there's no substitute part

Hammer Pin 20645902
#36

Unit parts diagram

Hammer pin

Part #20645902

The manufacturer no longer makes this part, and there's no substitute part
