Model # 56493284450 Official LXI synchronized dual cassette deck

Here are the diagrams and repair parts for Official LXI 56493284450 synchronized dual cassette deck, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

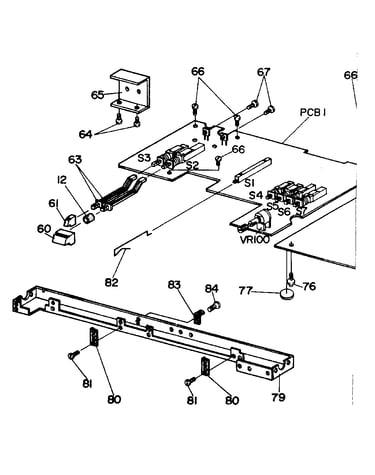

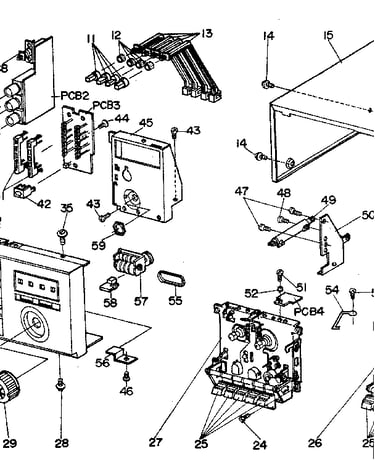

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 49 parts  |
Screw 46-57656-3

#67

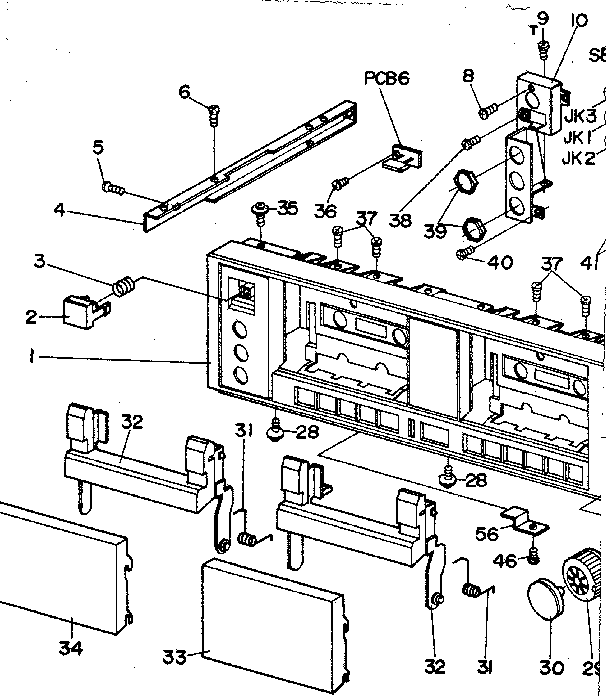

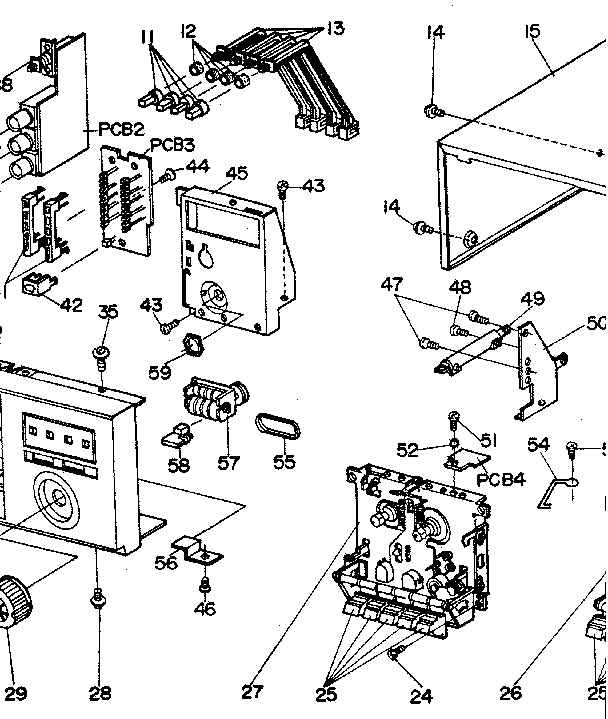

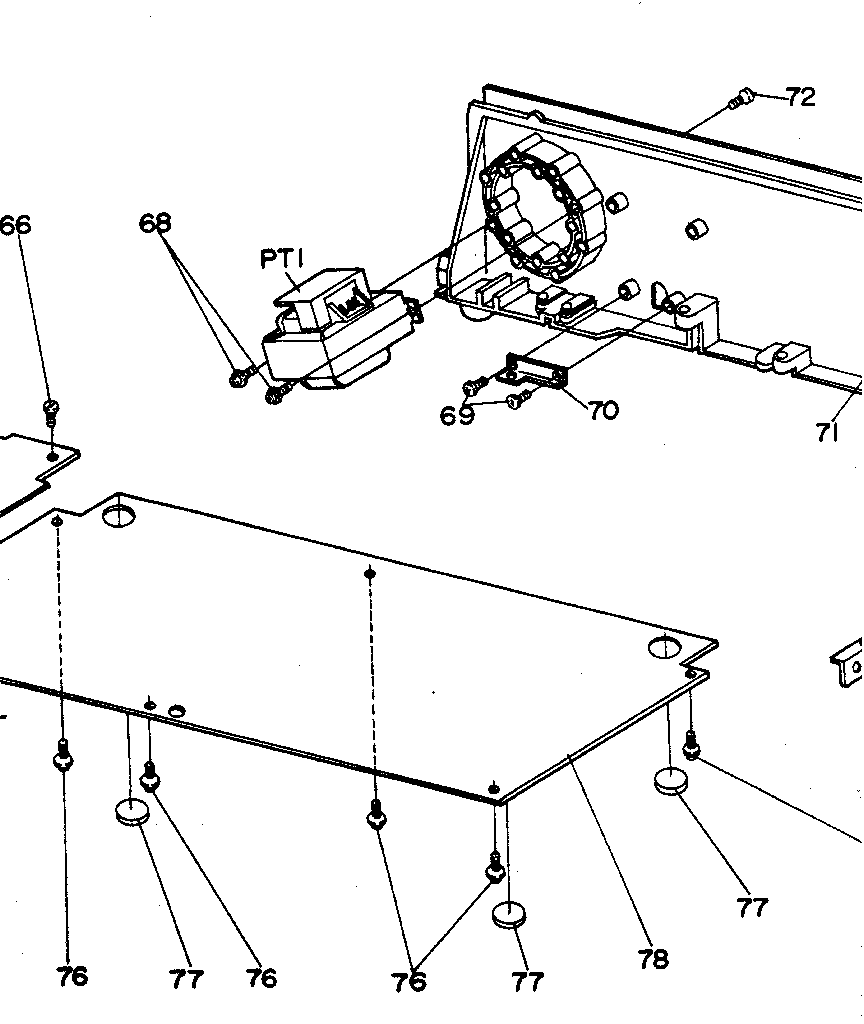

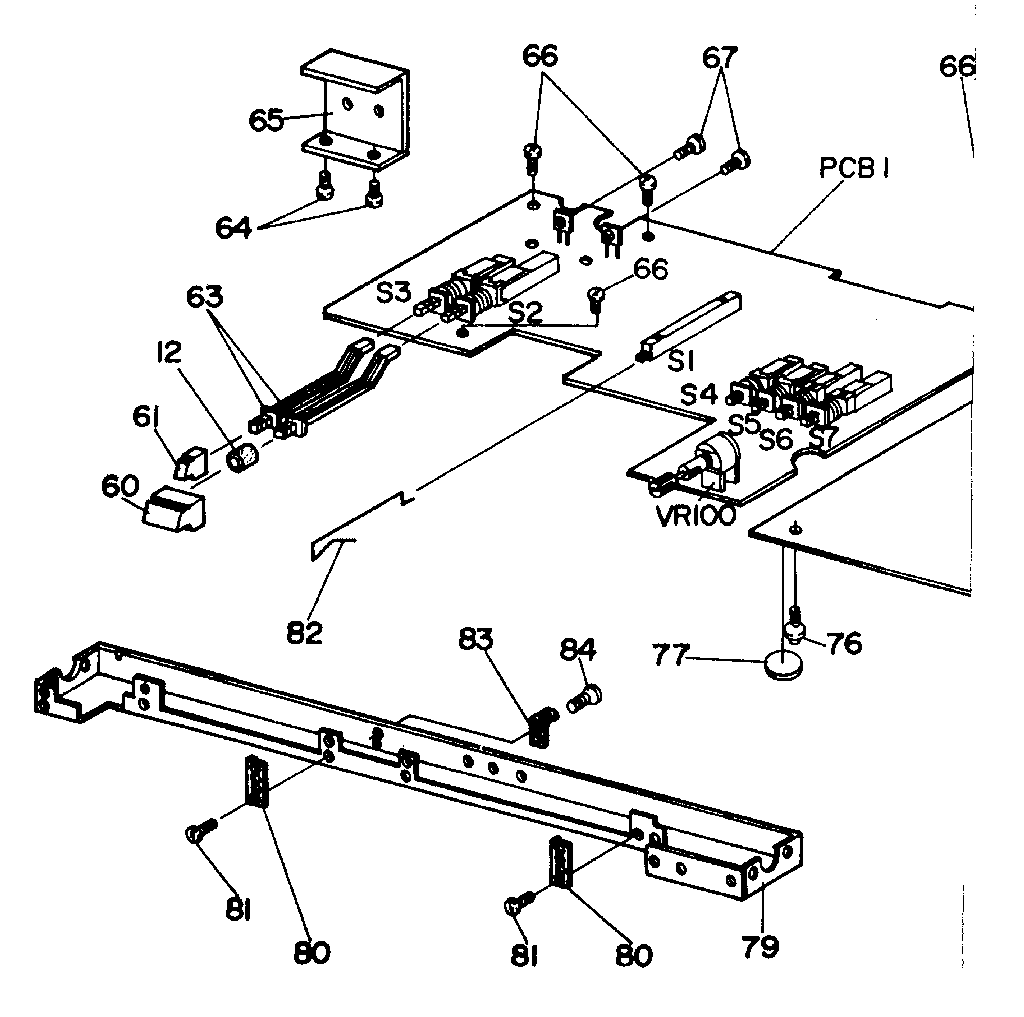

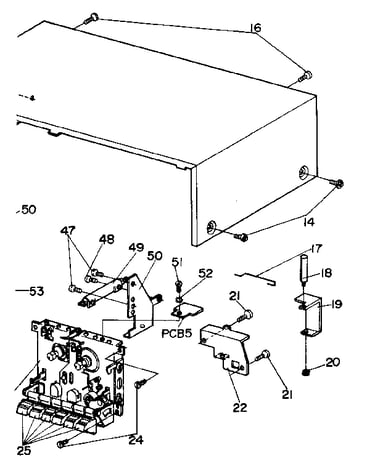

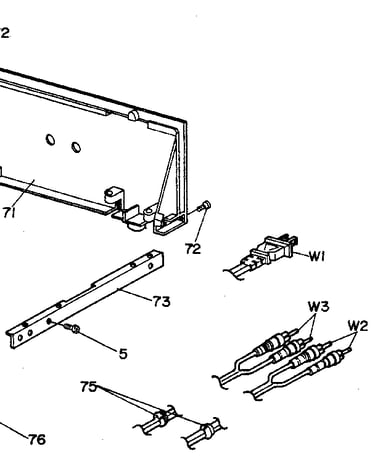

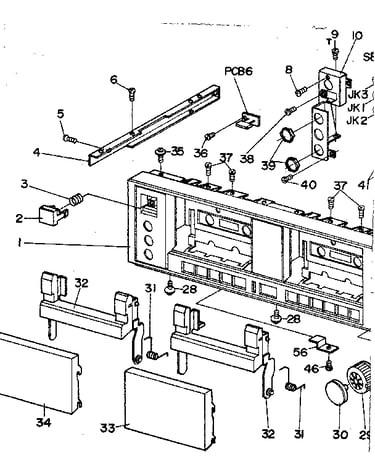

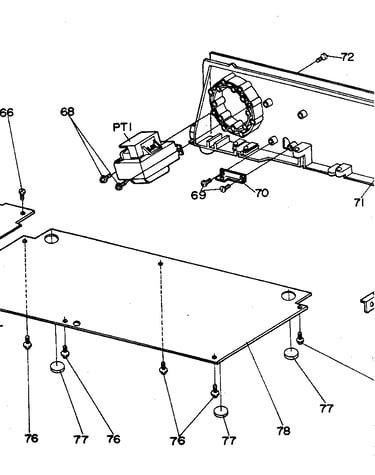

All parts diagram

Screw

Part #46-57656-3

The manufacturer no longer makes this part, and there's no substitute part

Screw 46-57449-3

#69

All parts diagram

Screw

Part #46-57449-3

The manufacturer no longer makes this part, and there's no substitute part

Power Knob 46-521196-2

#2

All parts diagram

Power knob

Part #46-521196-2

The manufacturer no longer makes this part, and there's no substitute part

Knob, Rec. Right 46-521410-3

#30

All parts diagram

Knob, rec. right

Part #46-521410-3

The manufacturer no longer makes this part, and there's no substitute part

Nut Vr, 8mmd 46-5677-3

#59

All parts diagram

Nut vr, 8mmd

Part #46-5677-3

The manufacturer no longer makes this part, and there's no substitute part

Knob, Dubbing 46-521281-3

#60

All parts diagram

Knob, dubbing

Part #46-521281-3

The manufacturer no longer makes this part, and there's no substitute part

Wire Spring 46-701212-3

#17

All parts diagram

Wire spring

Part #46-701212-3

The manufacturer no longer makes this part, and there's no substitute part

Chassis Bottom (not A Service Part) 3x8mm. Main P. C. Board Mtg. 46-57512-3
Chassis bottom (not a service part) 3x8mm. main p. c. board mtg.

Part #46-57512-3

The manufacturer no longer makes this part, and there's no substitute part

Bracket, Left 46-111103-3

#10

All parts diagram

Bracket, left

Part #46-111103-3

The manufacturer no longer makes this part, and there's no substitute part

Screw 97-1375

#47

All parts diagram

Screw

Part #97-1375

The manufacturer no longer makes this part, and there's no substitute part
