KitchenAid
Gas Cooktop

Model # KGCC566RBL07 Official KitchenAid counter unit

Here are the diagrams and repair parts for Official KitchenAid KGCC566RBL07 counter unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 80 parts  |
Range Screw 3368921
#11

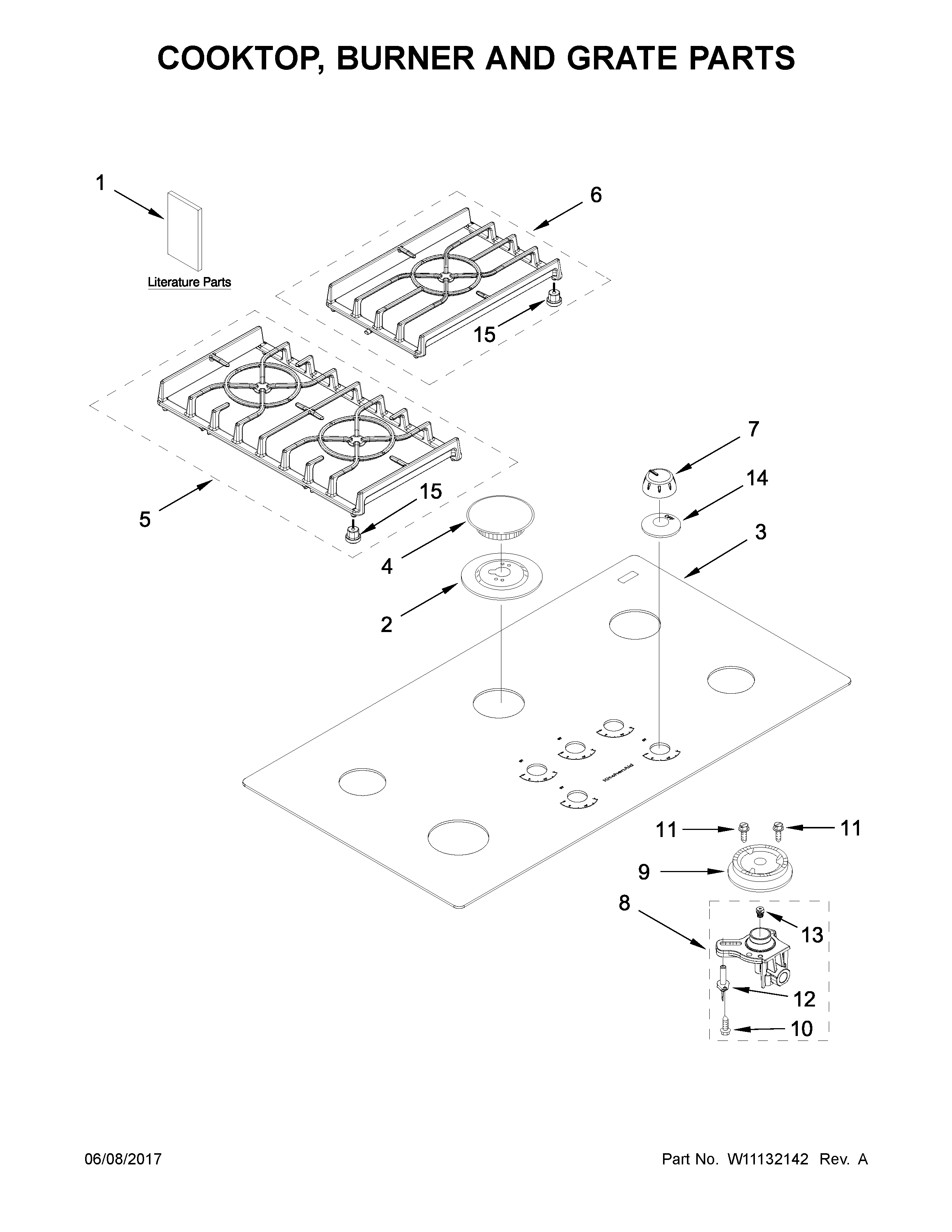

Cooktop, burner and grate parts diagram

Range screw

Part #3368921

Replaced by #WP3368921

?
Manufacturer substitution
This part replaces 3368921. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.34 |
14% OFF Phone Price : $7.34
In Stock
Range Screw 8273062
#10

Cooktop, burner and grate parts diagram

Range screw

Part #8273062

Replaced by #WP8273062

?
Manufacturer substitution
This part replaces 8273062. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.40 |
23% OFF Phone Price : $4.40
In Stock
Range Burner Head W10406243
#9A

Cooktop, burner and grate parts diagram

Range burner head

Part #W10406243

Replaced by #WPW10406243

?
Manufacturer substitution
This part replaces W10406243. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$24.89 |
19% OFF Phone Price : $30.89
In Stock
Range Burner Head W10406797
#9C

Cooktop, burner and grate parts diagram

Range burner head

Part #W10406797

Replaced by #WPW10406797

?
Manufacturer substitution
This part replaces W10406797. Substitute parts can look different from the original.
BEST SELLER
$38.61 |
13% OFF Phone Price : $44.61
In Stock
Spark Module W10110489
#23

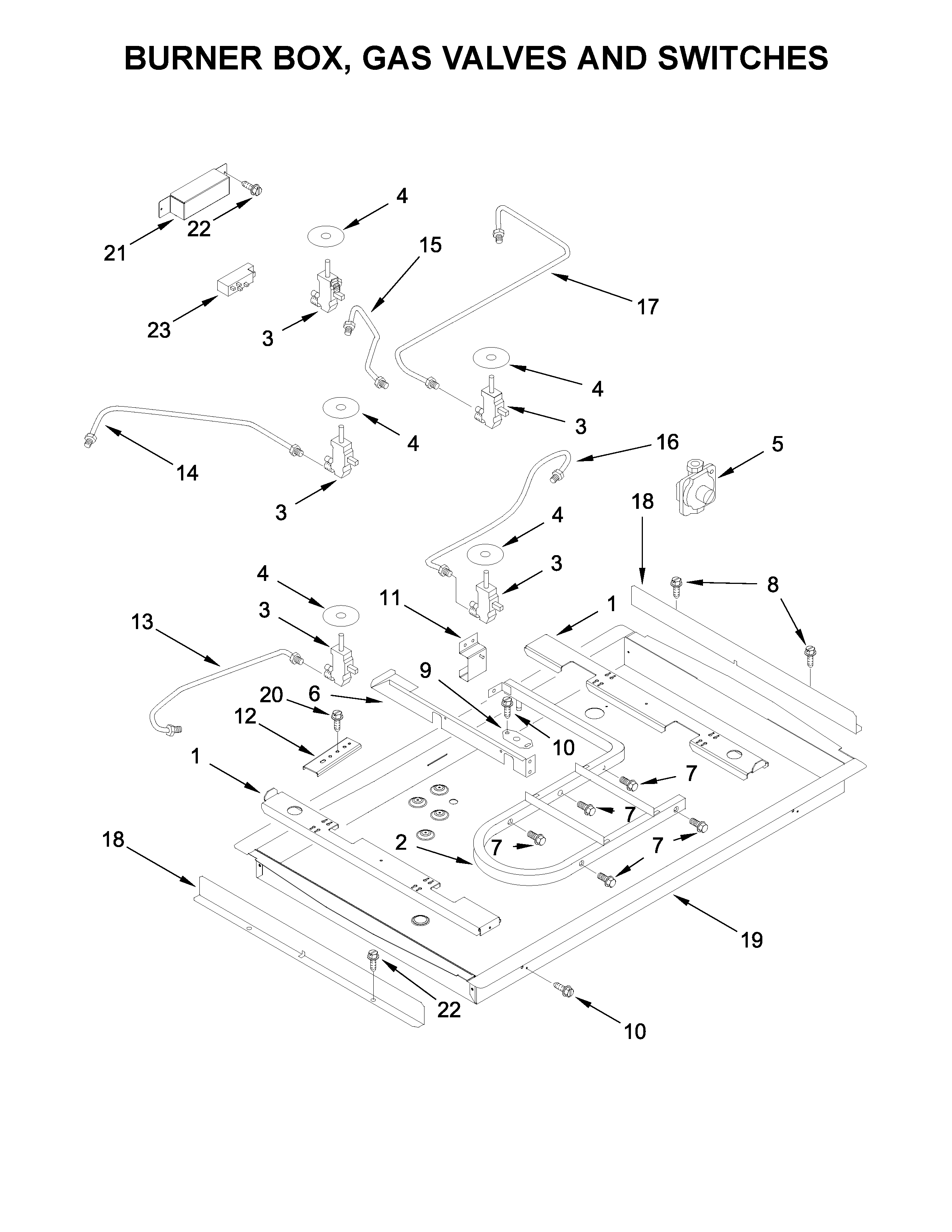

Burner box, gas valves and switches diagram

Spark module

Part #W10110489

Replaced by #WPW10110486

?
Manufacturer substitution
This part replaces W10110489. Substitute parts can look different from the original.
$112.14 |
10% OFF Phone Price : $124.14
In Stock
Range Burner Head W10406283
#9B

Cooktop, burner and grate parts diagram

Range burner head

Part #W10406283

Replaced by #WPW10406283

?
Manufacturer substitution
This part replaces W10406283. Substitute parts can look different from the original.
$50.15 |
11% OFF Phone Price : $56.15
In Stock
Cooktop Burner Grate 8285879CB
#5

Cooktop, burner and grate parts diagram

Cooktop burner grate

Part #8285879CB

Replaced by #W11502175

?
Manufacturer substitution
This part replaces 8285879CB. Substitute parts can look different from the original.
$128.87 |
9% OFF Phone Price : $140.87
In Stock
Grommet-bl 3180079
#14

Cooktop, burner and grate parts diagram

Grommet-bl

Part #3180079

Replaced by #W10854242

?
Manufacturer substitution
This part replaces 3180079. Substitute parts can look different from the original.
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock
Cooktop Burner Valve 4456817
#3B

Burner box, gas valves and switches diagram

Cooktop burner valve

Part #4456817

Replaced by #WP4456817

?
Manufacturer substitution
This part replaces 4456817. Substitute parts can look different from the original.
$149.41 |
7% OFF Phone Price : $161.41
In Stock
Grate Pad 8286695
#15A

Cooktop, burner and grate parts diagram

Grate pad

Part #8286695

Replaced by #W10185266

?
Manufacturer substitution
This part replaces 8286695. Substitute parts can look different from the original.
This item is not returnable
$8.63 |
10% OFF Phone Price : $9.63
In Stock
