Dacor
Gas Range

Model # ER30GISCHNG Official Dacor gas range

Here are the diagrams and repair parts for Official Dacor ER30GISCHNG gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

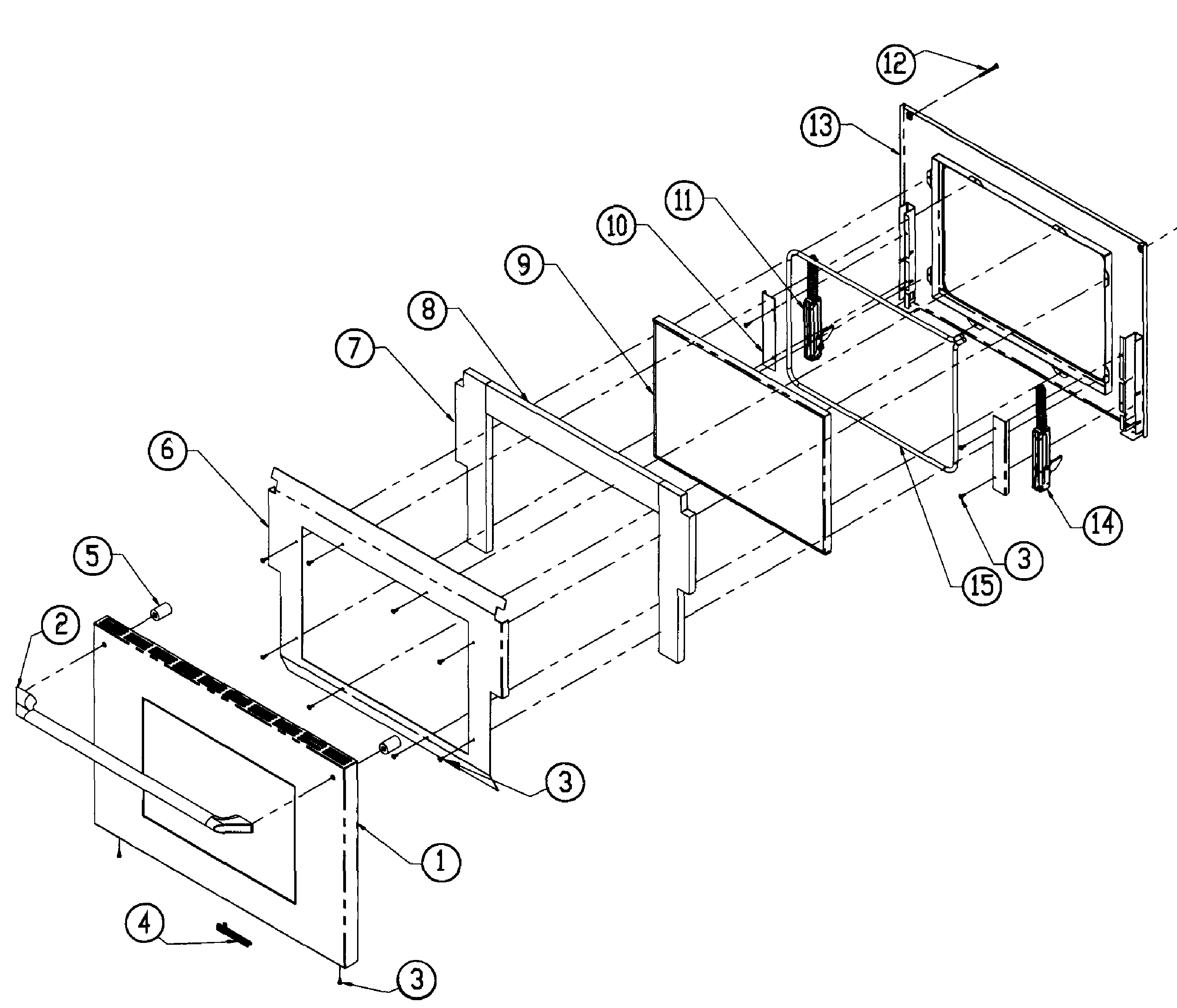

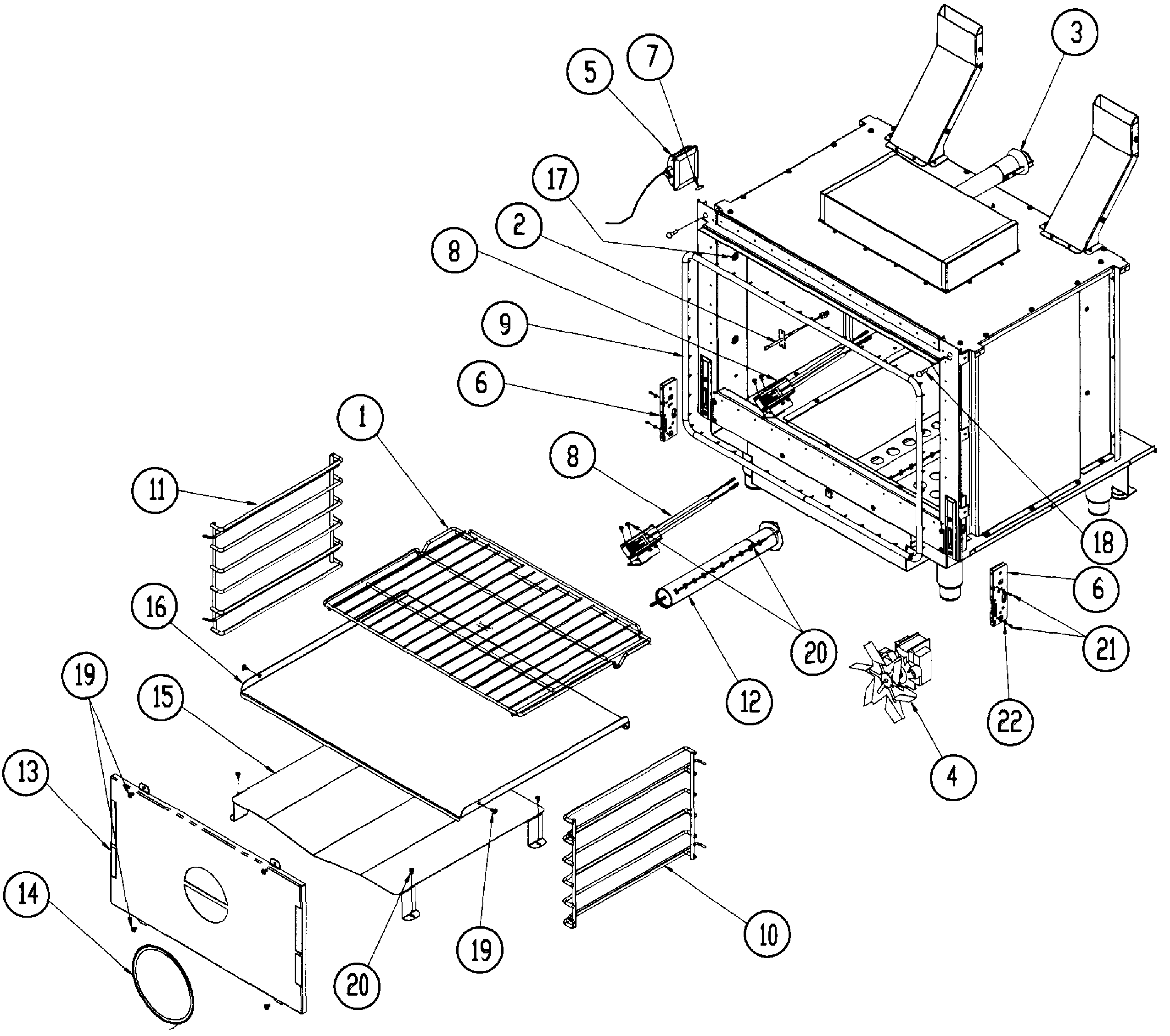

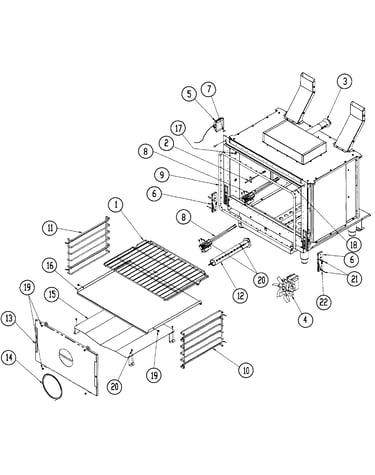

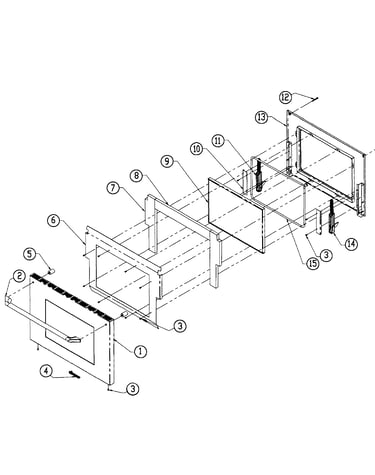

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 123 parts  |
Nut 83308
#13

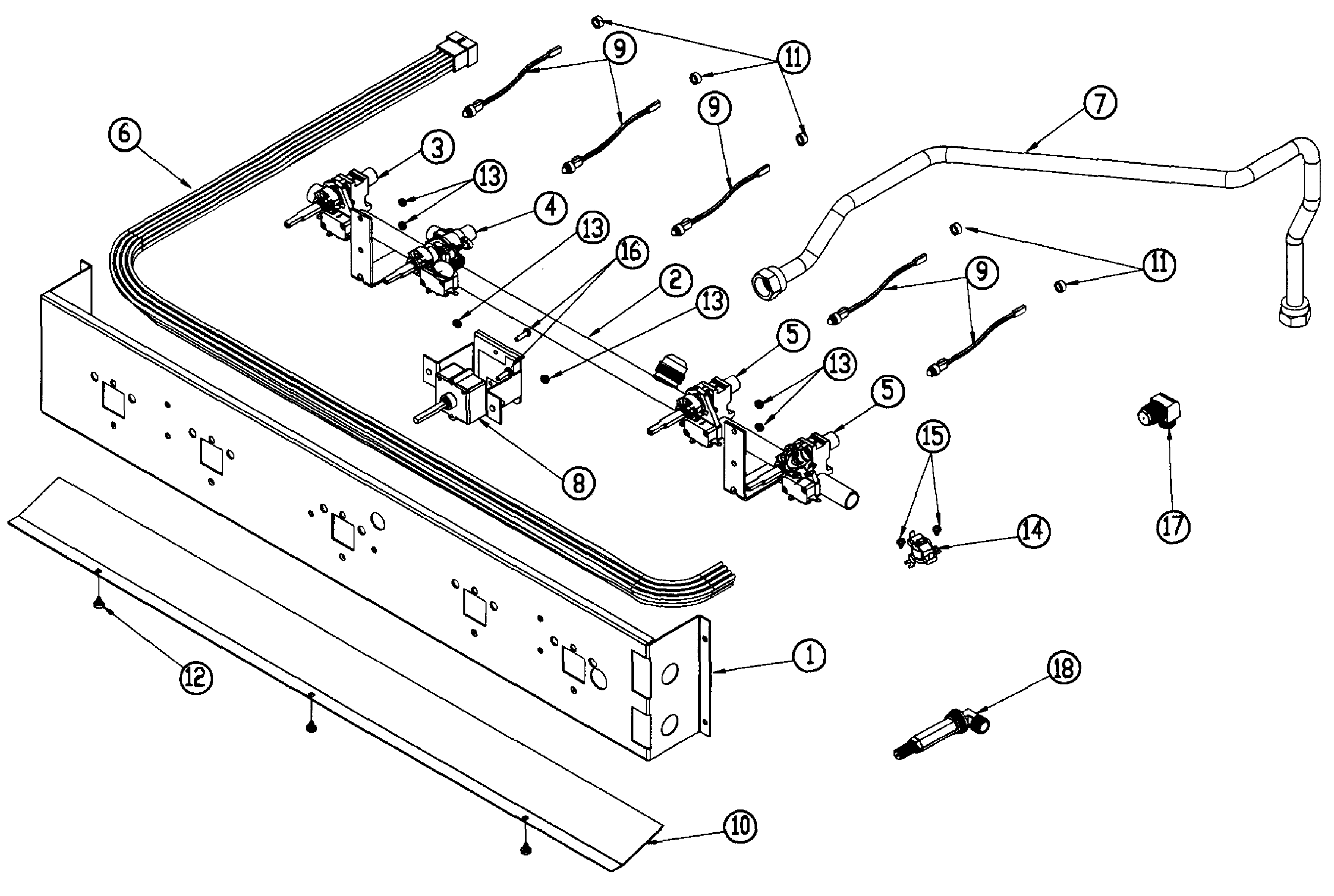

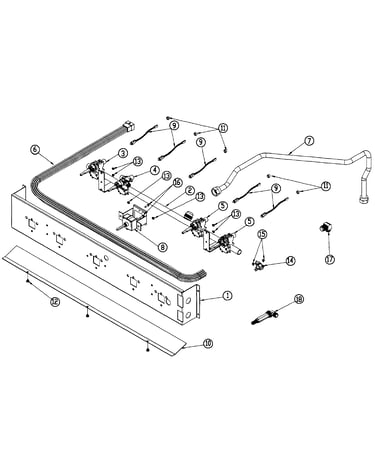

Manifold diagram

Nut

Part #83308

This item is not returnable
$2.16
In Stock
Range Surface Burner Cap 102593
#9

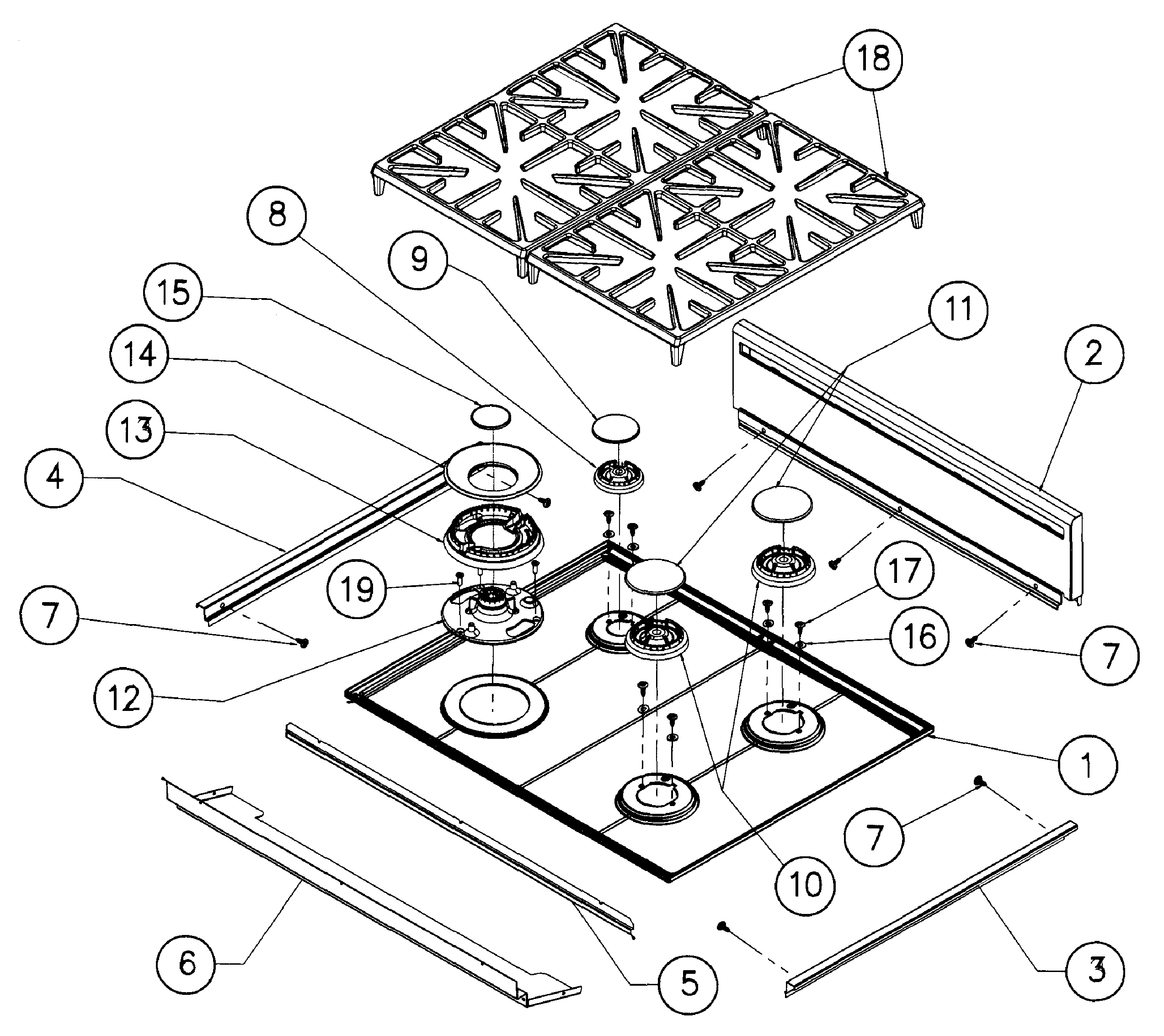

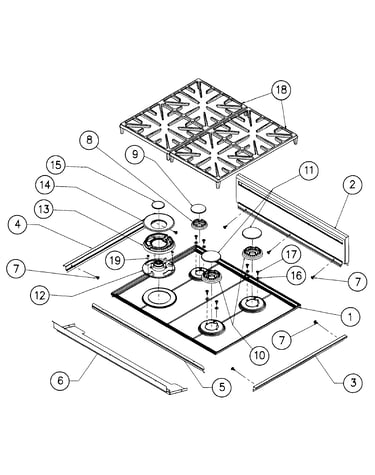

Grates diagram

Range surface burner cap

Part #102593

$9.99
In Stock
Valve 103688-01
#3

Manifold diagram

Valve

Part #103688-01

$31.99
In Stock
Appliance Screw, #8 X 3/8-in 83263
Appliance screw, #8 x 3/8-in

Part #83263

This item is not returnable
$2.16
In Stock
Cooktop Dual Valve 103659
#7

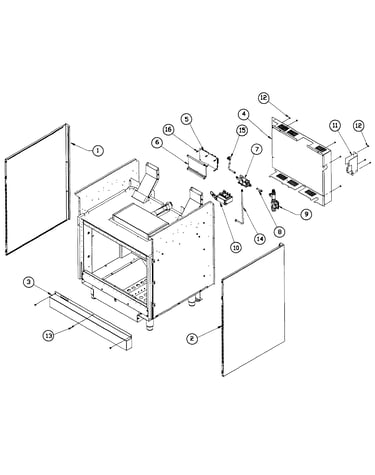

Cabinet diagram

Cooktop dual valve

Part #103659

$119.99
Back Order
End Cap,br 100128BR
#9A

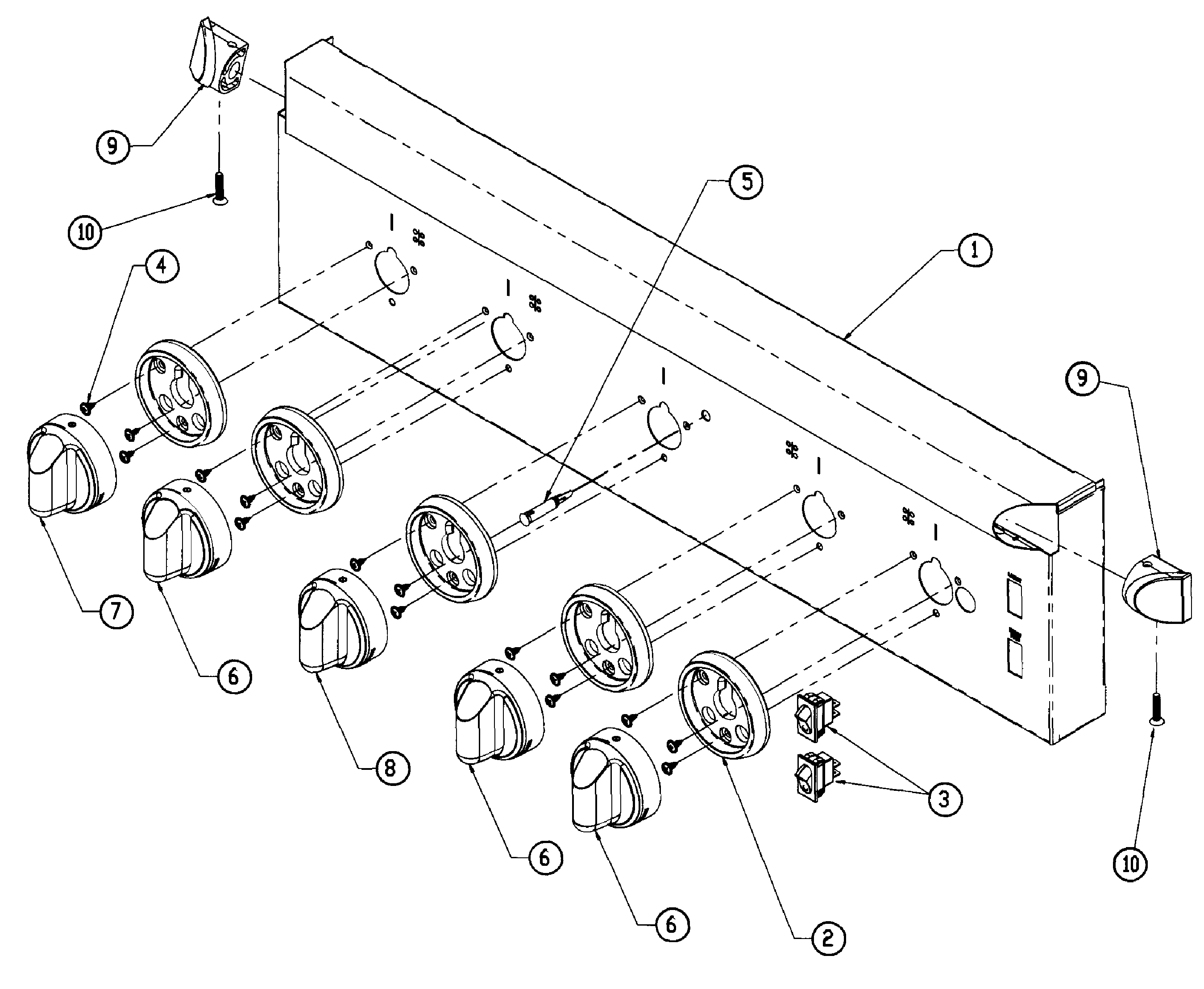

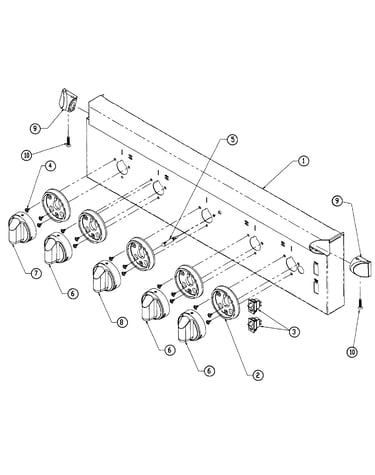

Control panel diagram

End cap,br

Part #100128BR

$89.49
In Stock
Injection Holder 102592-02
#7

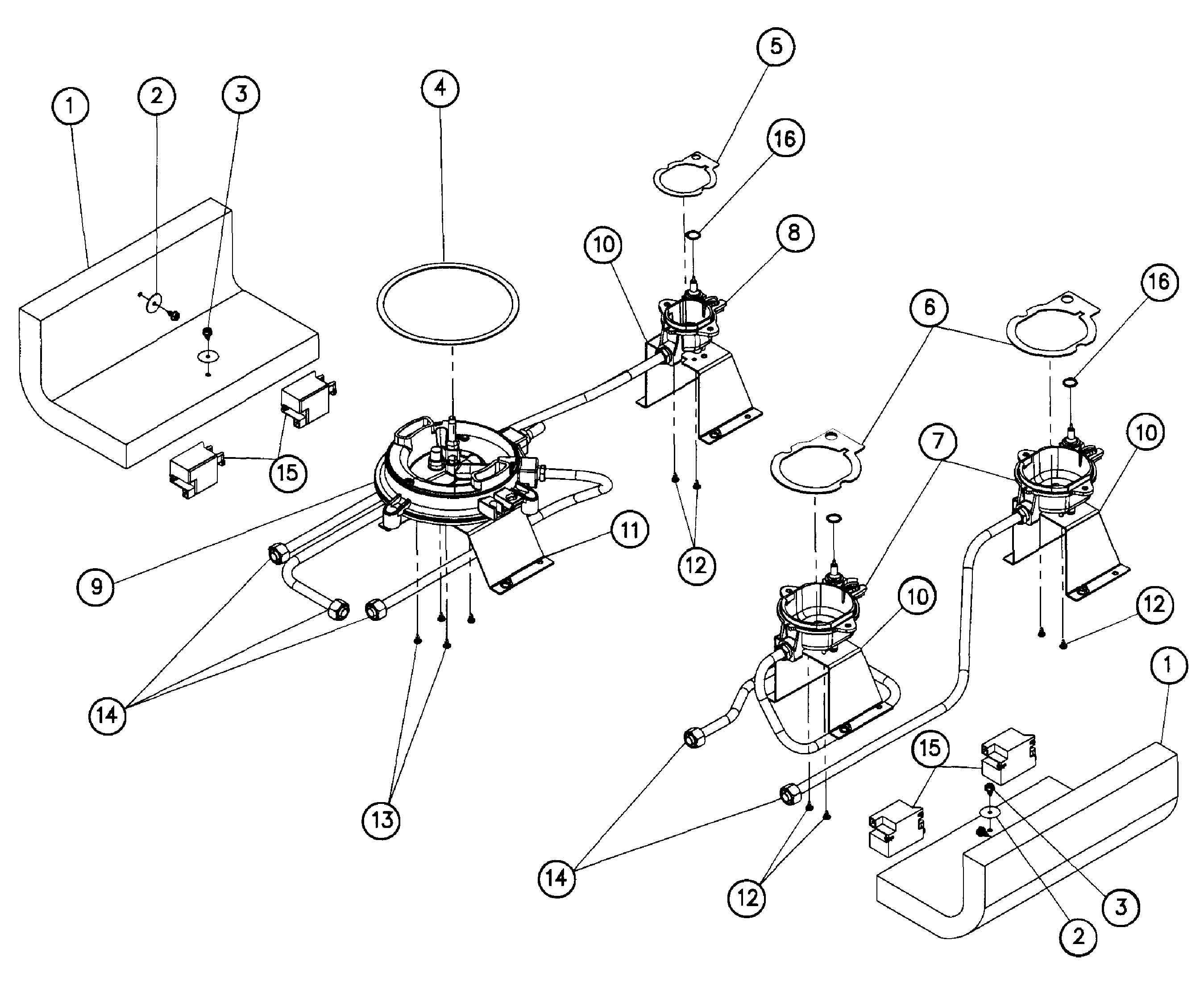

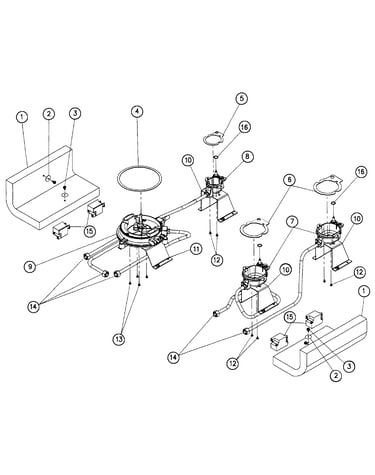

Burners diagram

Injection holder

Part #102592-02

$23.49
In Stock
Lever,adju 106440
#3

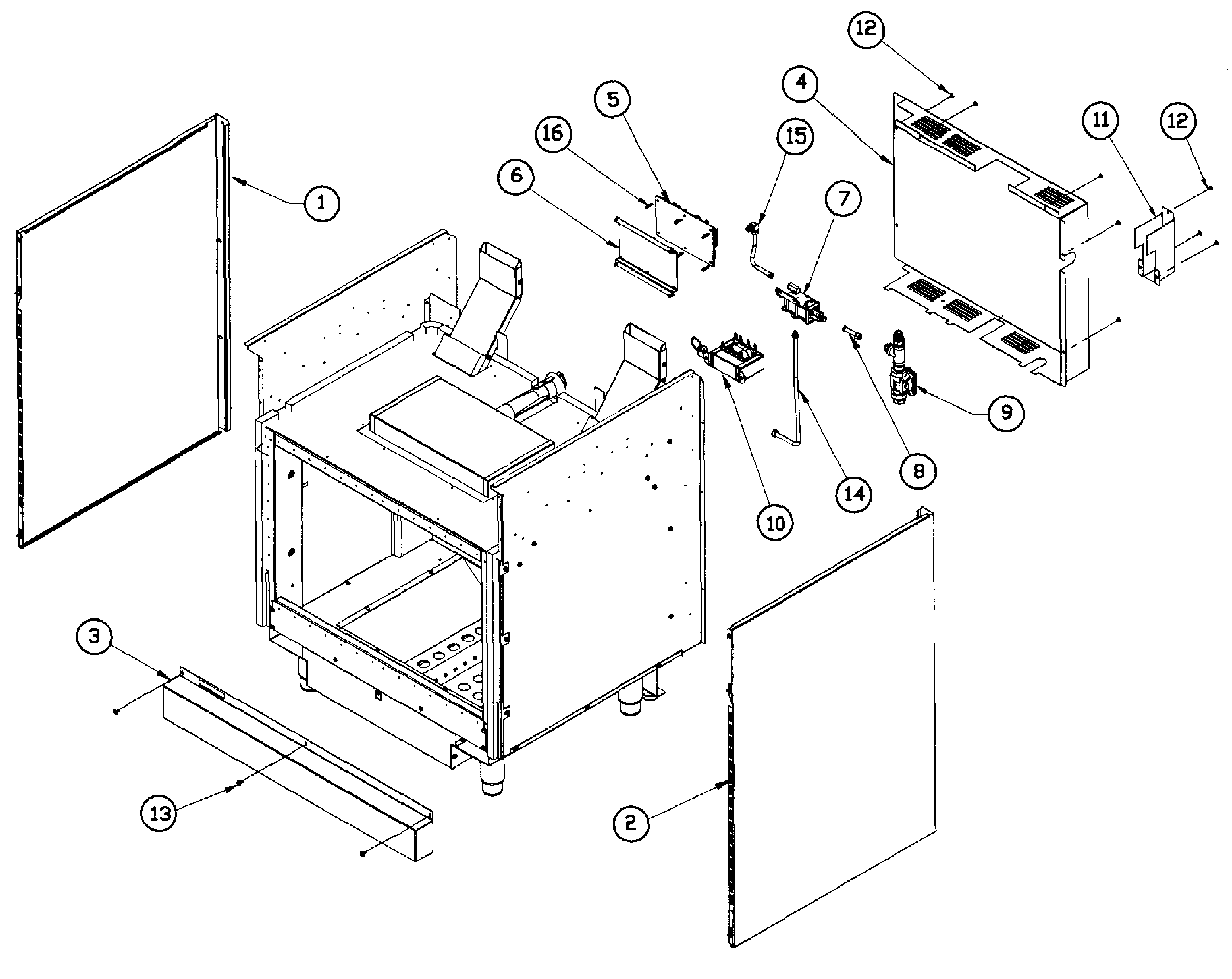

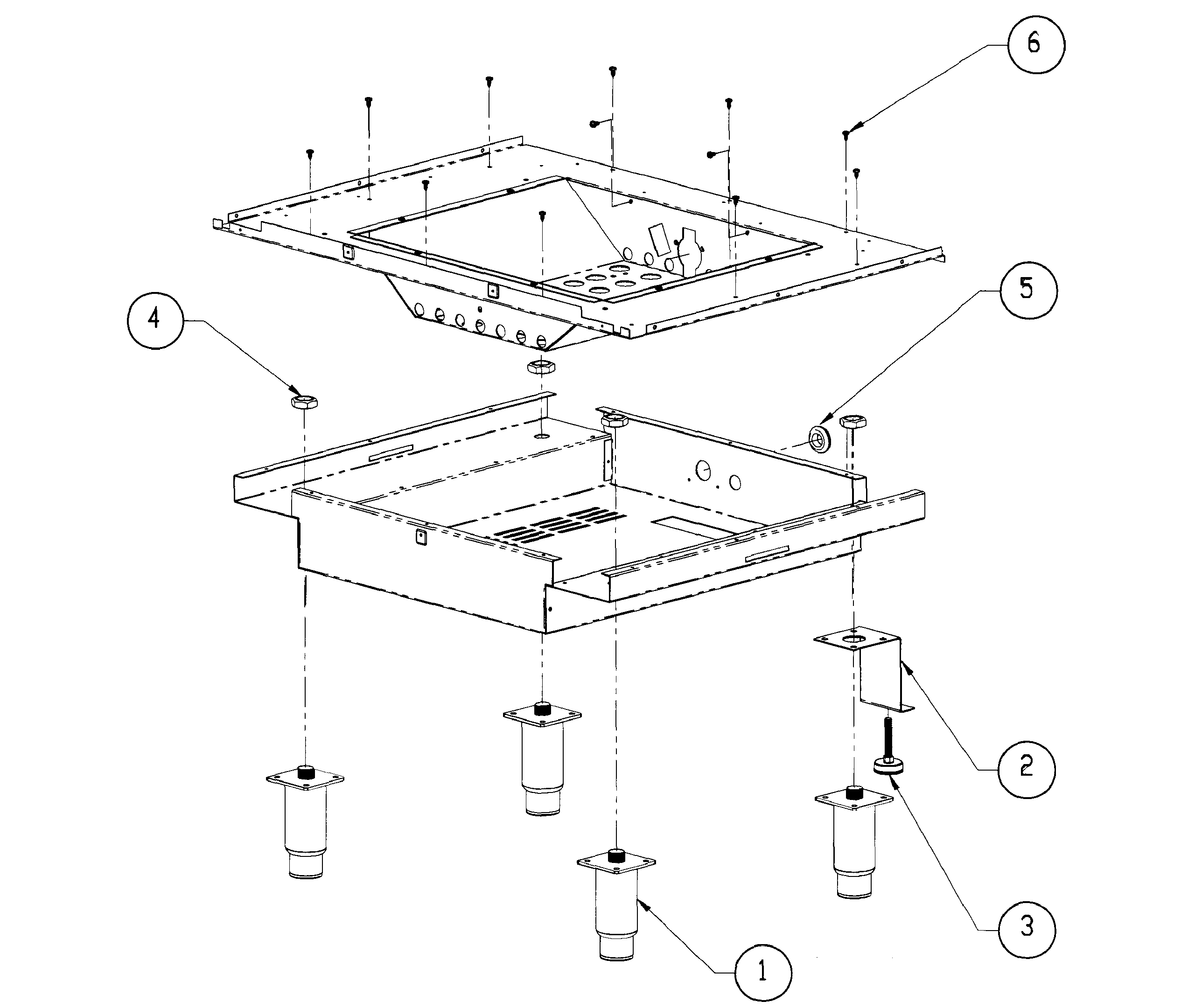

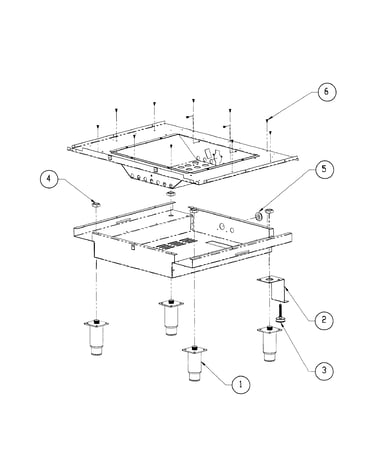

Base assy diagram

Lever,adju

Part #106440

$8.49
In Stock
Oven Insulation 100910
#1

Burners diagram

Oven insulation

Part #100910

This item is not returnable
$2.99
In Stock
Range Surface Burner Head, Outer 102588
#13

Grates diagram

Range surface burner head, outer

Part #102588

$32.56
In Stock
