Model # DW80K5050UG/AA-00 Official Samsung dishwasher

Here are the diagrams and repair parts for Official Samsung DW80K5050UG-AA-00 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 153 parts  |
Dishwasher Sump And Motor Assembly DD82-01353A
Dishwasher sump and motor assembly

Part #DD82-01353A

BEST SELLER
$231.23 |
5% OFF Phone Price : $243.23
In Stock
Dishwasher Water Inlet Valve DC62-30314L
#12-7

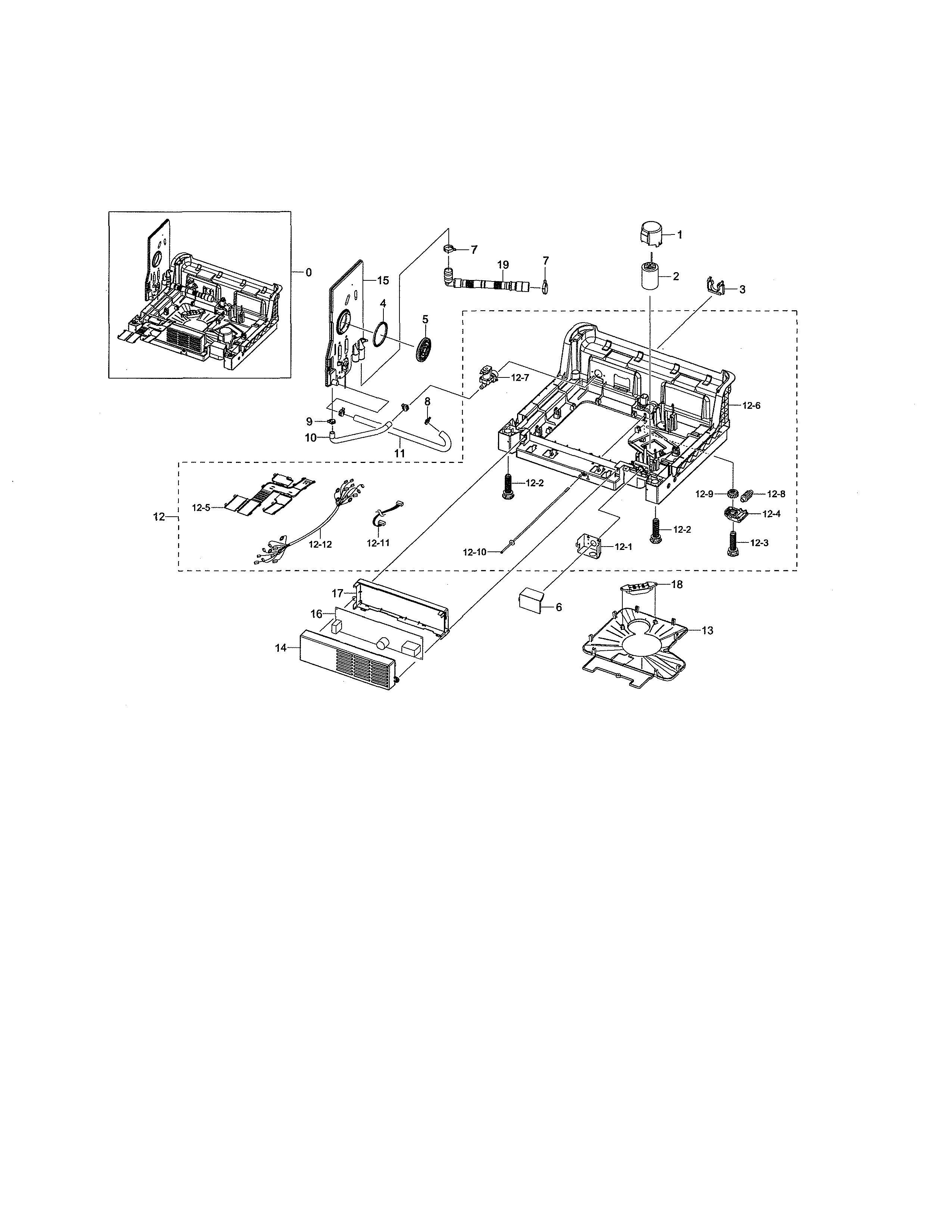

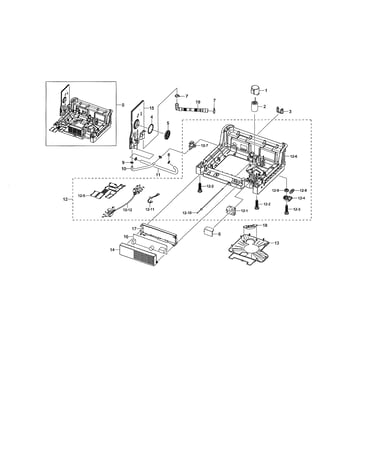

Base diagram

Dishwasher water inlet valve

Part #DC62-30314L

BEST SELLER
$82.51 |
7% OFF Phone Price : $88.51
In Stock
Samsung Dishwasher Dishrack Assembly, Lower DD82-01352A
#8

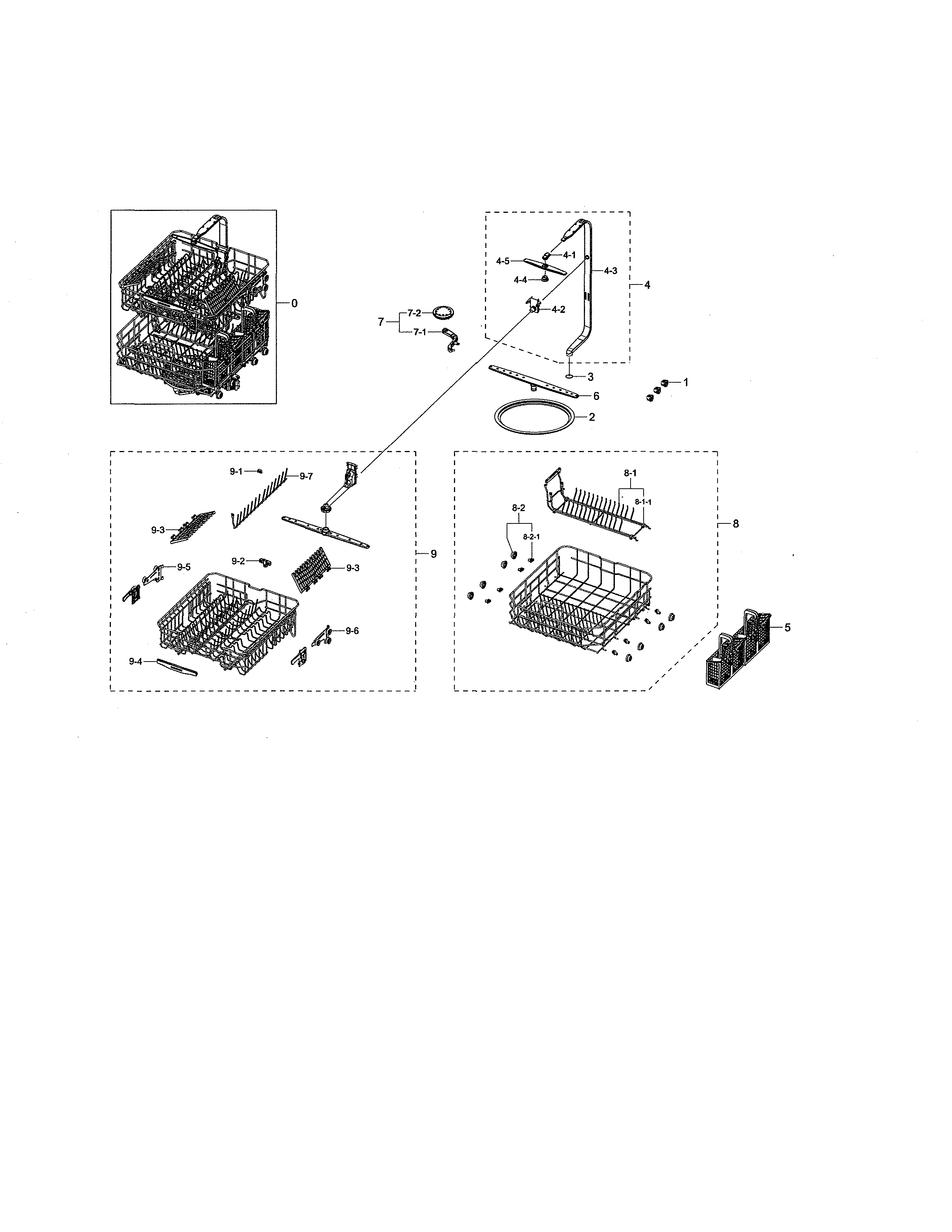

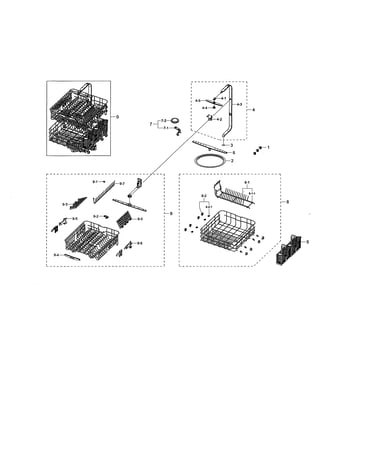

Racks diagram

Samsung dishwasher dishrack assembly, lower

Part #DD82-01352A

BEST SELLER
$131.75 |
8% OFF Phone Price : $143.75
In Stock
Dishwasher Drain Hose DD97-00403A
#19

Base diagram

Dishwasher drain hose

Part #DD97-00403A

Replaced by #DD97-00403E

?
Manufacturer substitution
This part replaces DD97-00403A. Substitute parts can look different from the original.
BEST SELLER
$62.15 |
9% OFF Phone Price : $68.15
In Stock
Dishwasher Circulation Pump Motor DD81-01640A
#24

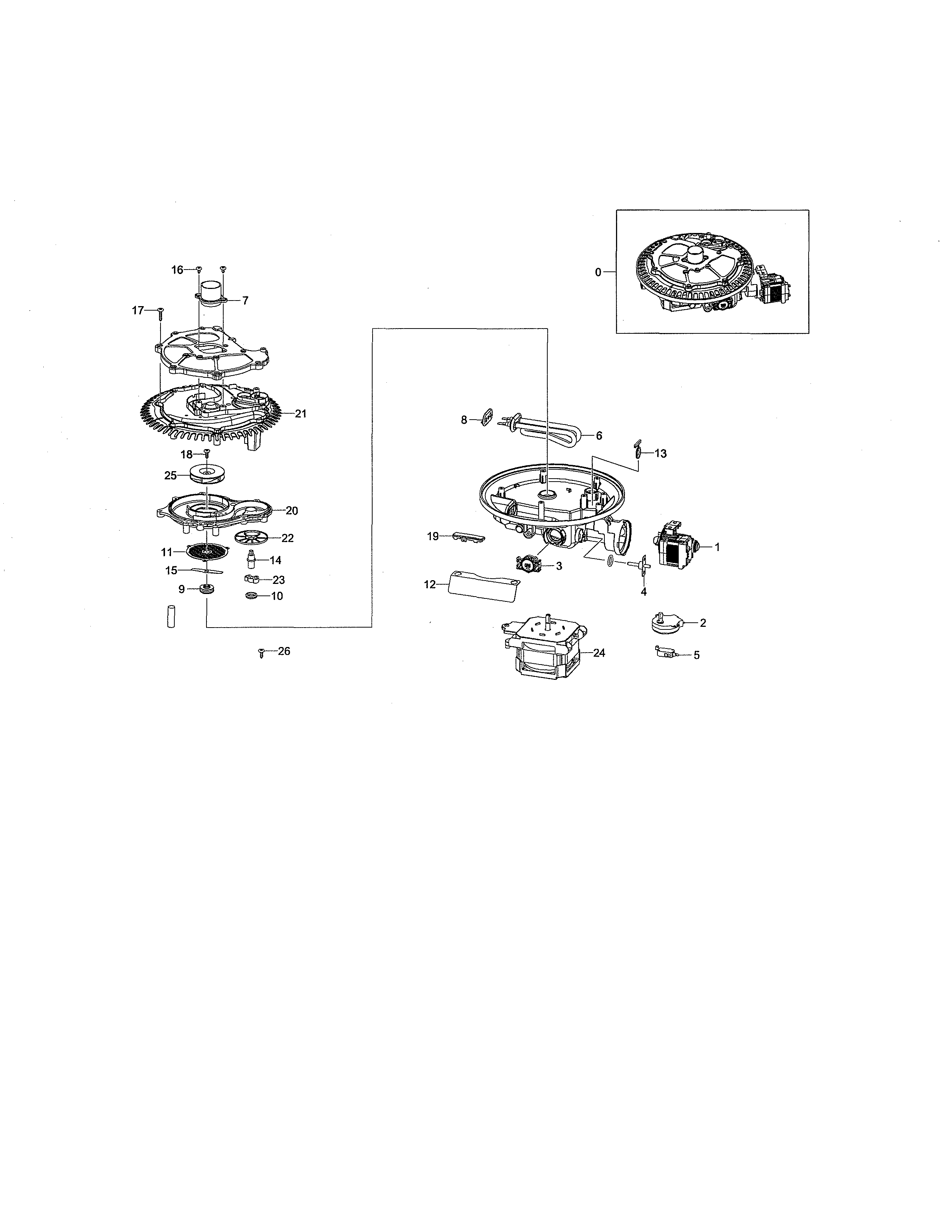

Sump diagram

Dishwasher circulation pump motor

Part #DD81-01640A

BEST SELLER
$174.43 |
6% OFF Phone Price : $186.43
In Stock
Dishwasher Tub Gasket DD62-00043A
#8

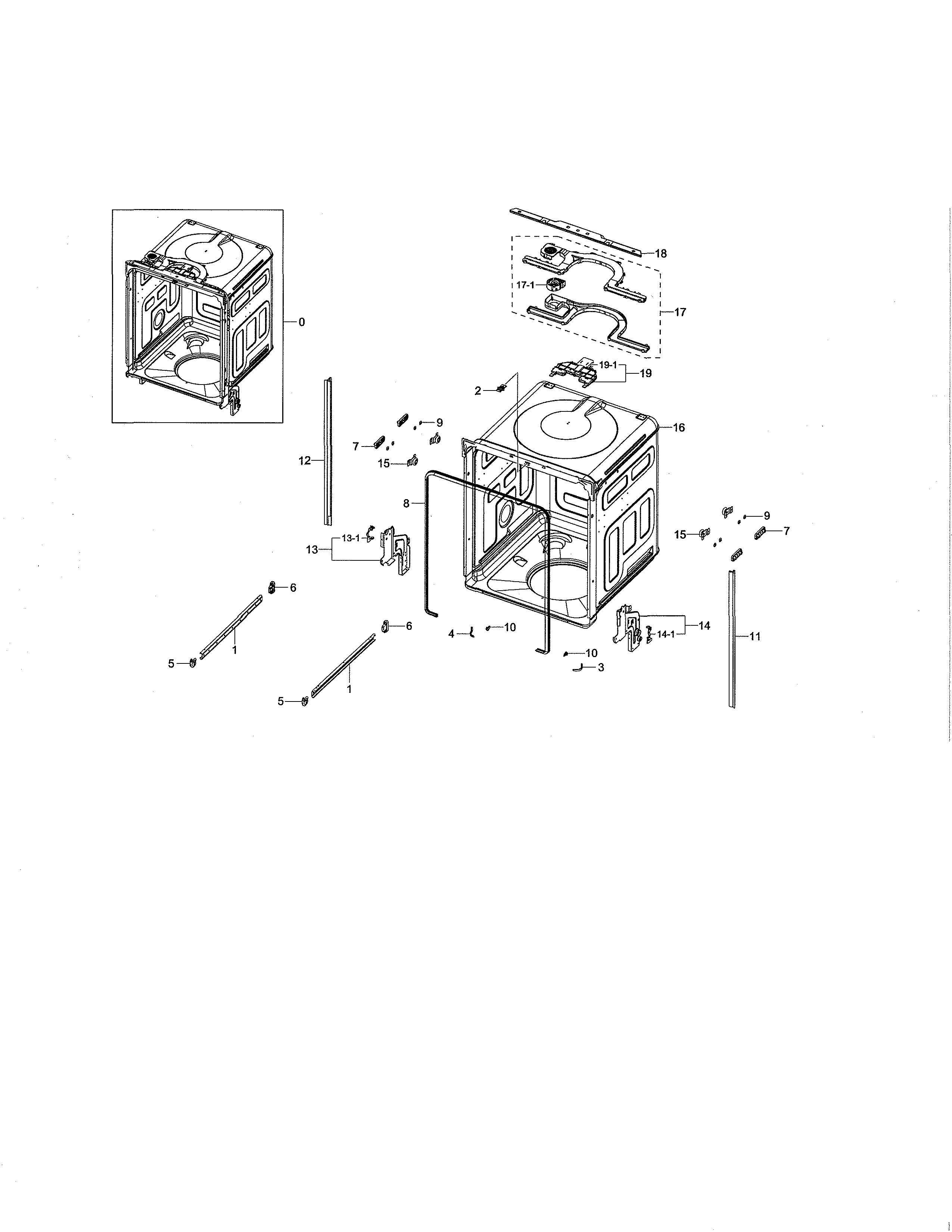

Tub diagram

Dishwasher tub gasket

Part #DD62-00043A

BEST SELLER
$74.00 |
8% OFF Phone Price : $80.00
Back Order
Dishwasher Detergent Dispenser Assembly DD59-01002A
#11-1

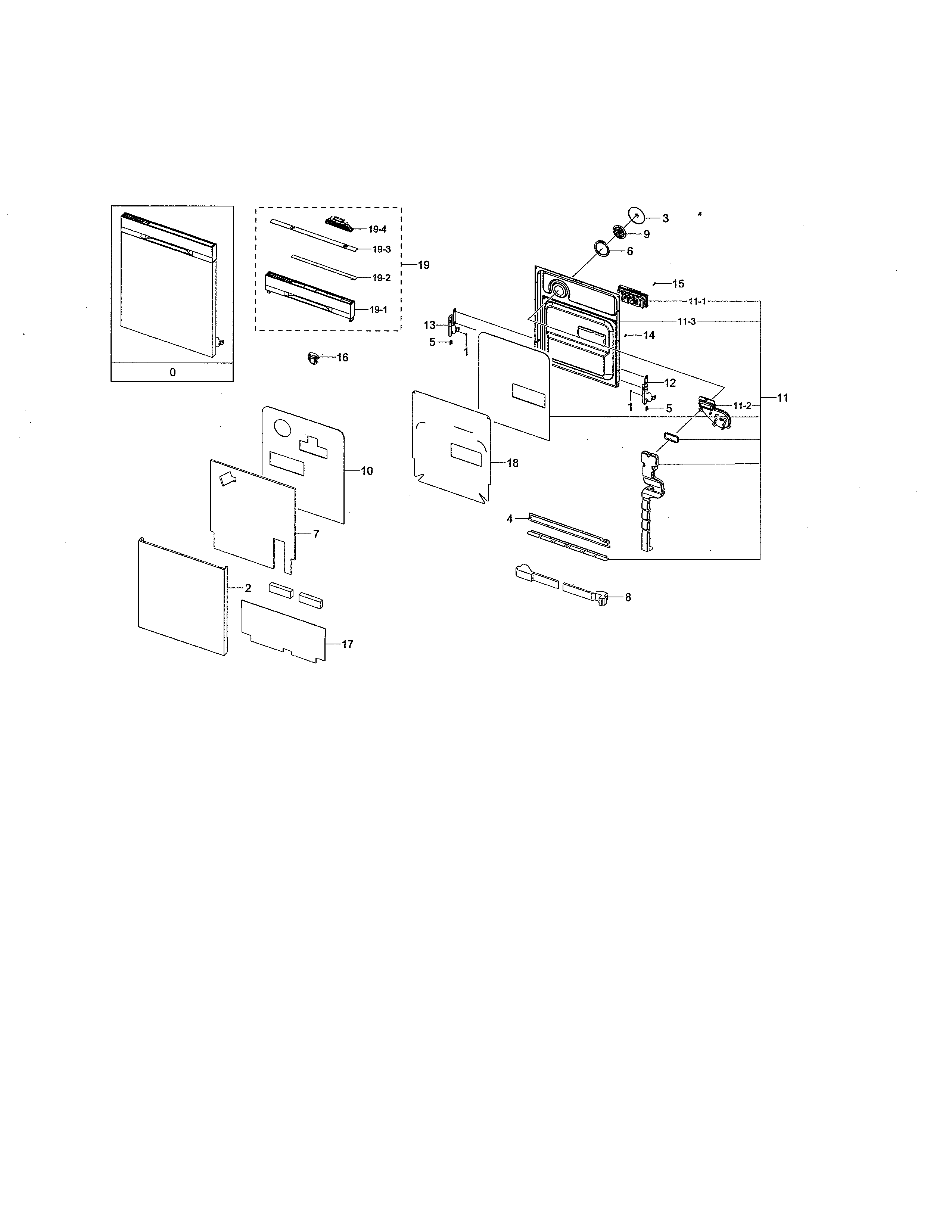

Door diagram

Dishwasher detergent dispenser assembly

Part #DD59-01002A

BEST SELLER
$119.33 |
9% OFF Phone Price : $131.33
In Stock
Dishwasher Screw DD81-01189A
#18

Sump diagram

Dishwasher screw

Part #DD81-01189A

BEST SELLER
This item is not returnable
$3.59 |
22% OFF Phone Price : $4.59
In Stock
Dishwasher Touch Control Board DD82-01338B
#19-2

Door diagram

Dishwasher touch control board

Part #DD82-01338B

BEST SELLER
This item is not returnable
$128.59 |
9% OFF Phone Price : $140.59
In Stock
Dishwasher Inner Drain Hose DD81-01502A
#10

Base diagram

Dishwasher inner drain hose

Part #DD81-01502A

BEST SELLER
$80.64 |
7% OFF Phone Price : $86.64
In Stock
